Tests DF: Vehicle Speed Circuit (VSC) Check
Tests DF: Vehicle Speed Circuit (VSC) Check
PINPOINT TEST DF: VEHICLE SPEED CIRCUIT (VSC) CHECK

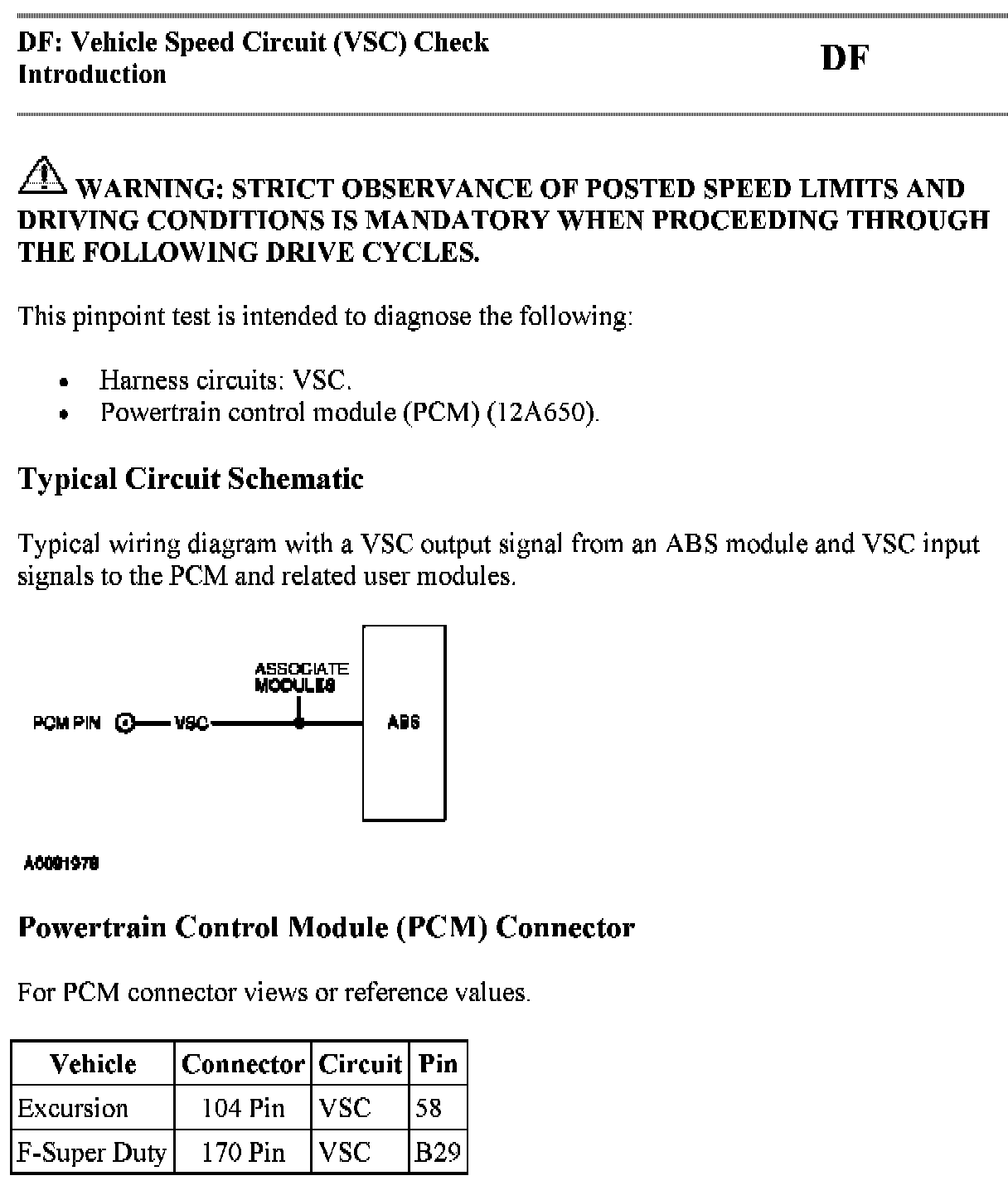

DF Introduction:
DF Introduction:
DF Introduction:

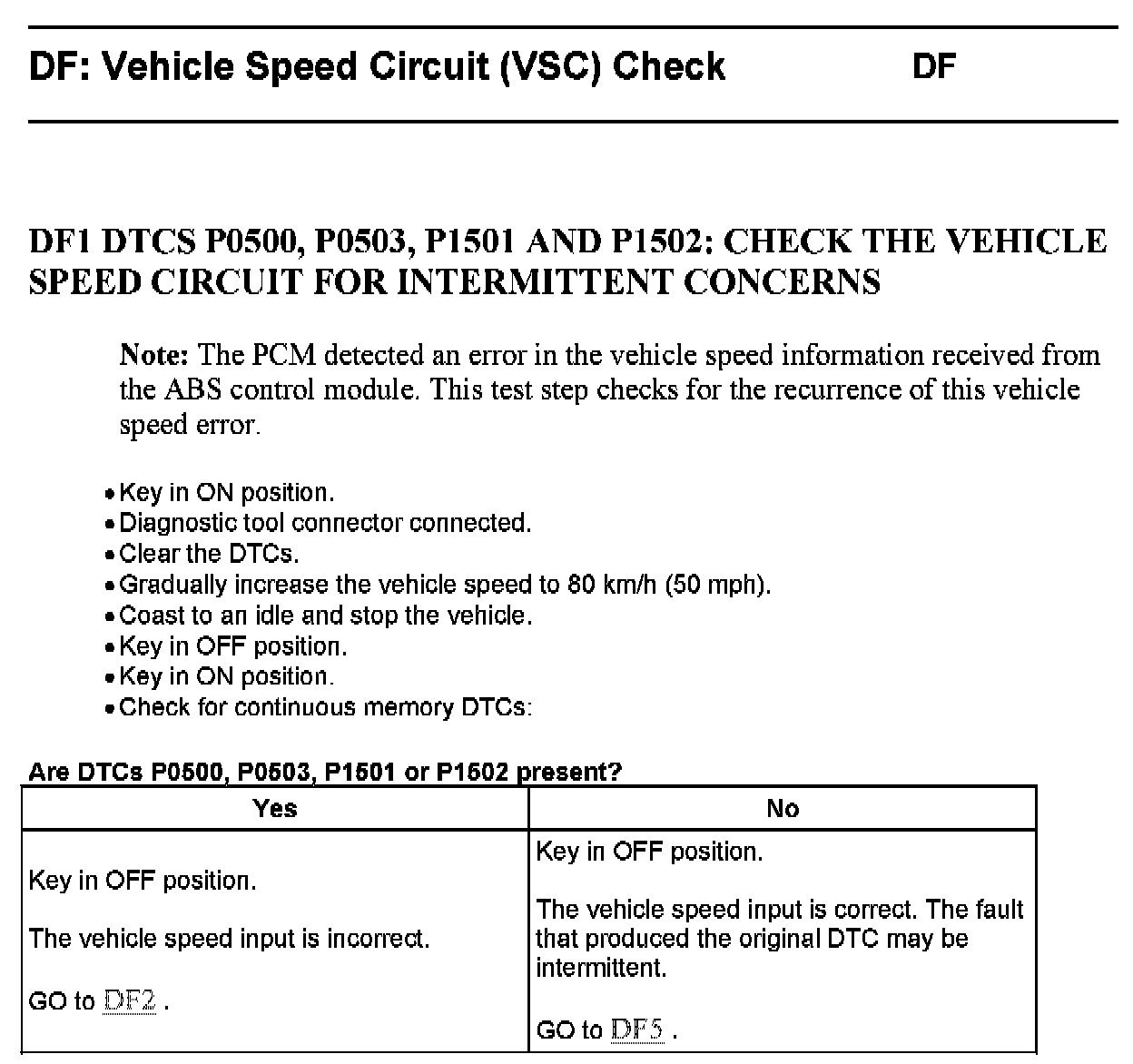

DF1:
DF2 - DF3:

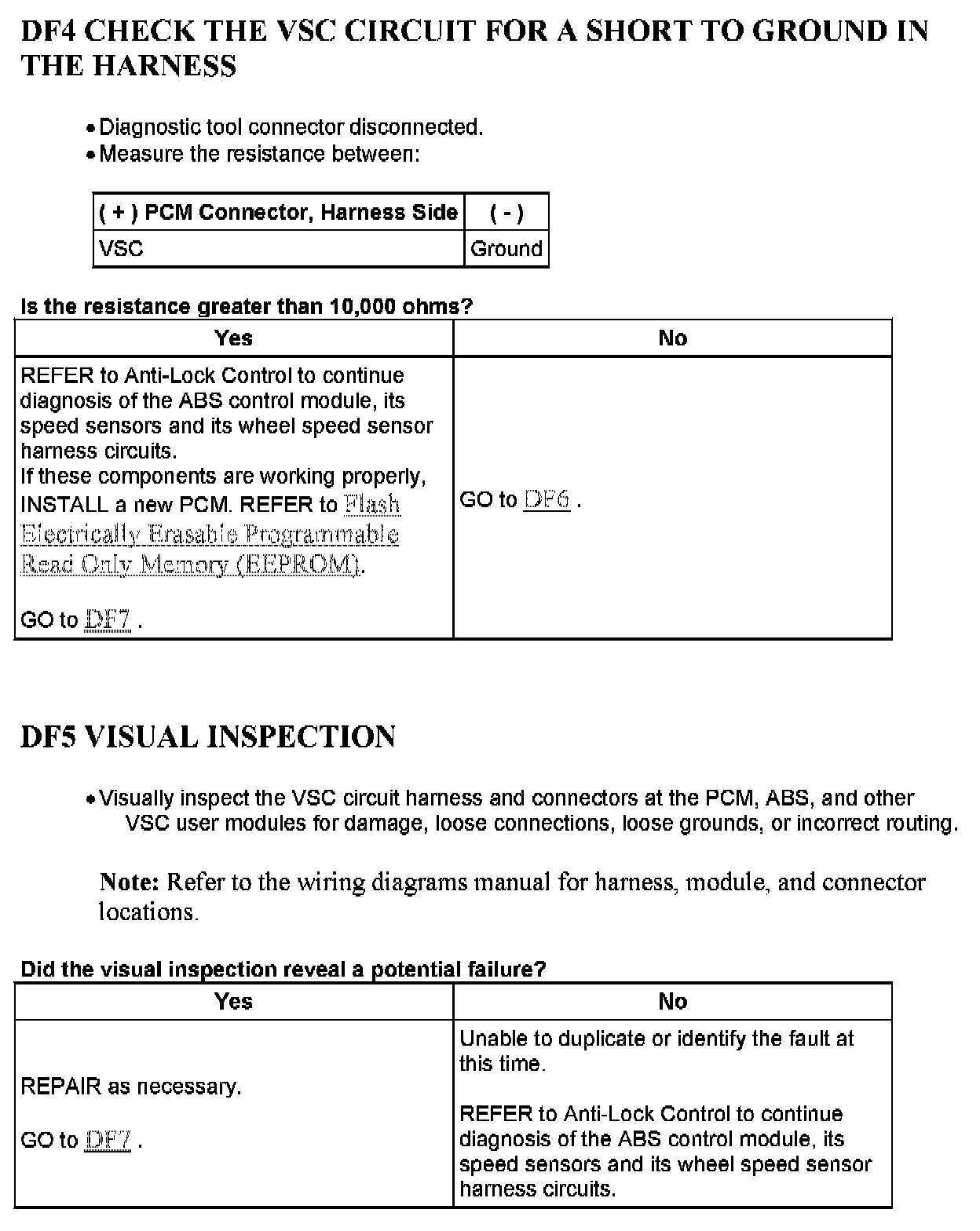

DF4 - DF5:

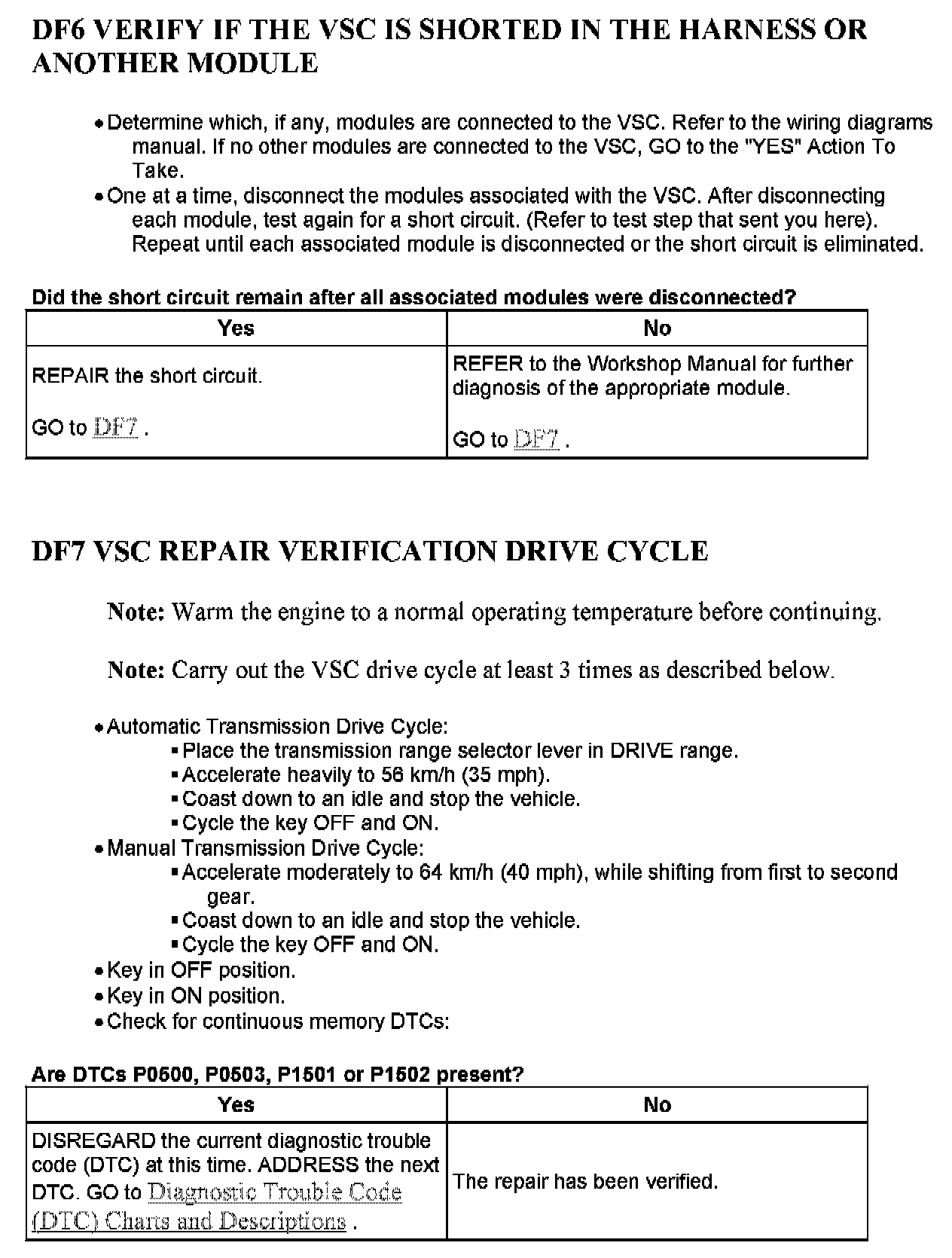

DF6 - DF7:
