Test H: Temperature Selector or Function Selector Inoperative
Test H: Temperature Selector or Function Selector Inoperative

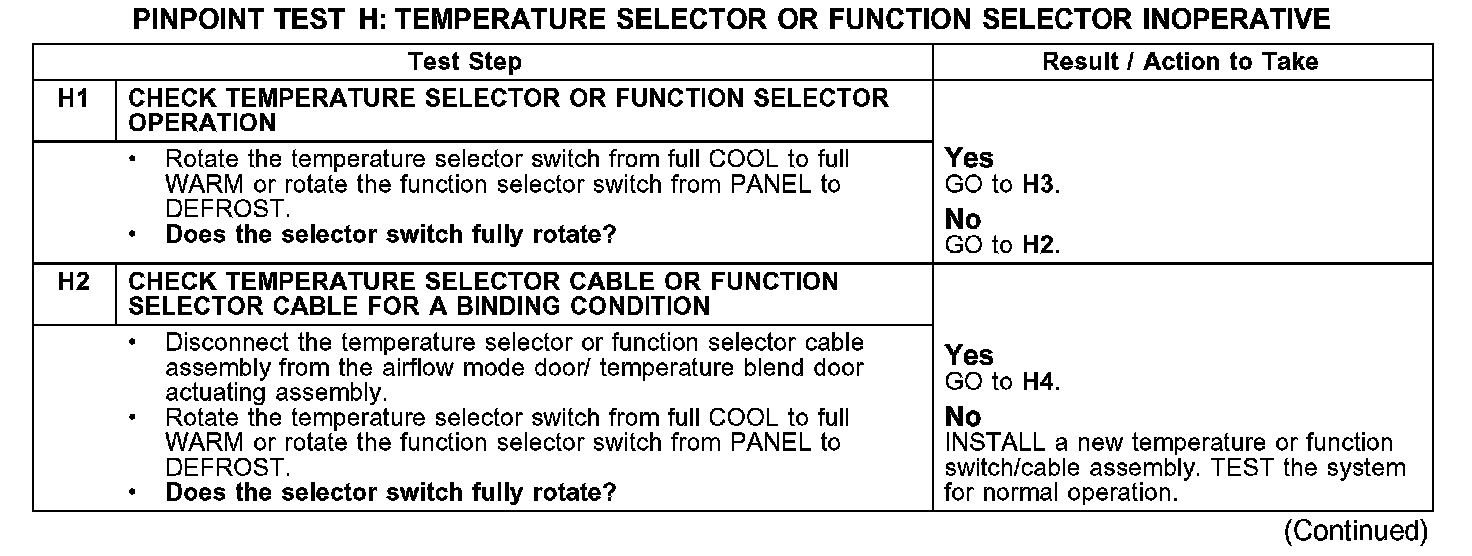

PINPOINT TEST H: TEMPERATURE SELECTOR OR FUNCTION SELECTOR INOPERATIVE
H1-H2:

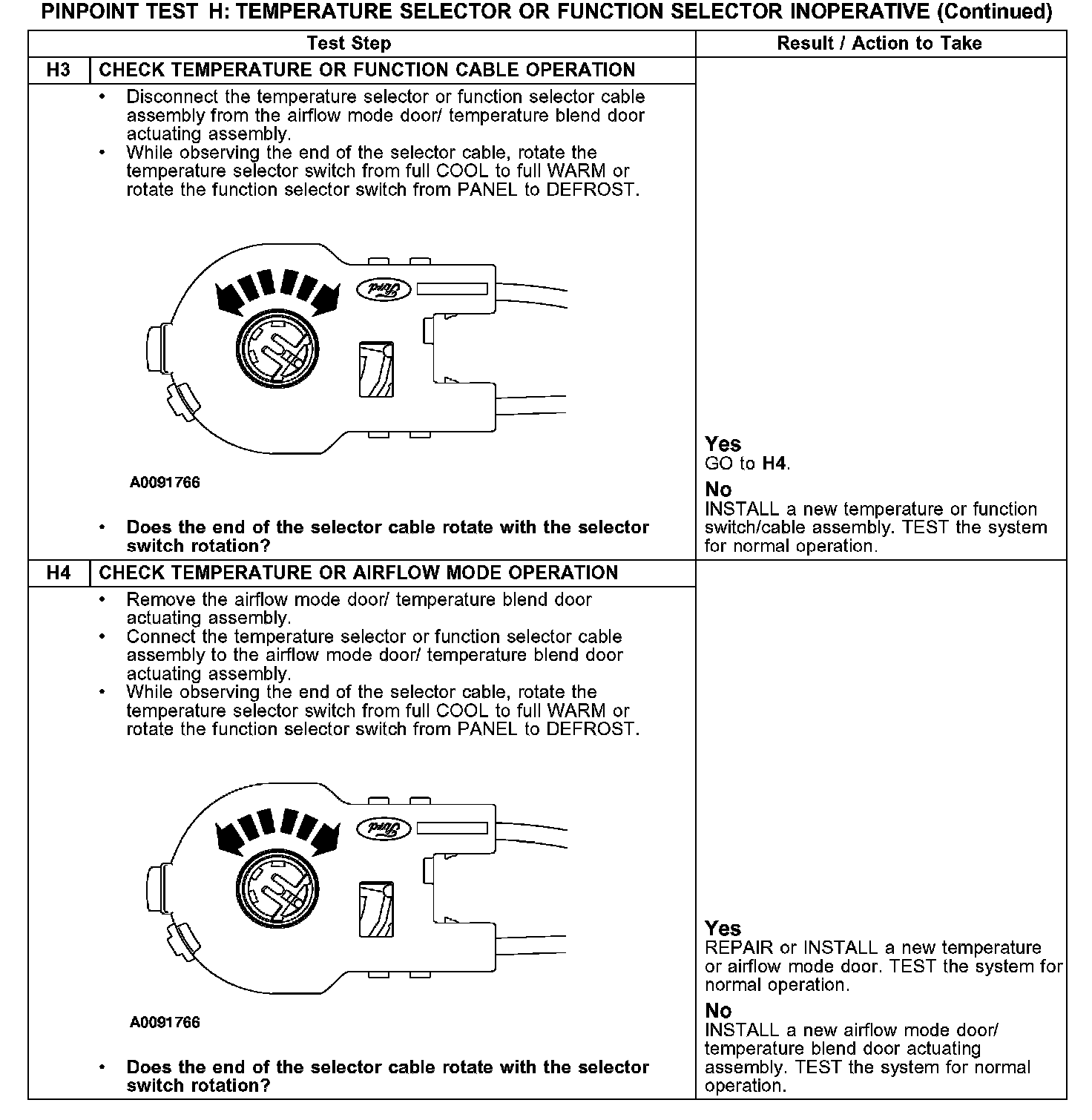

H3-H4:
