Home >> Ford >> 2005 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> System Diagram

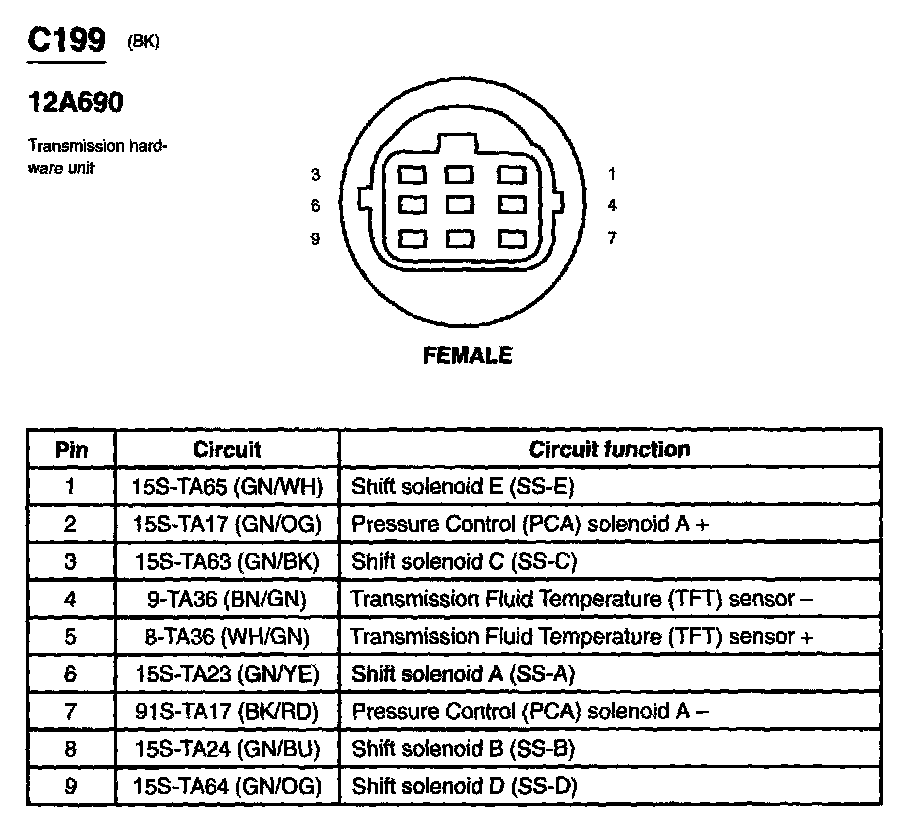

System Diagram
