Flex Plate

TORQUE SPECIFICATIONS

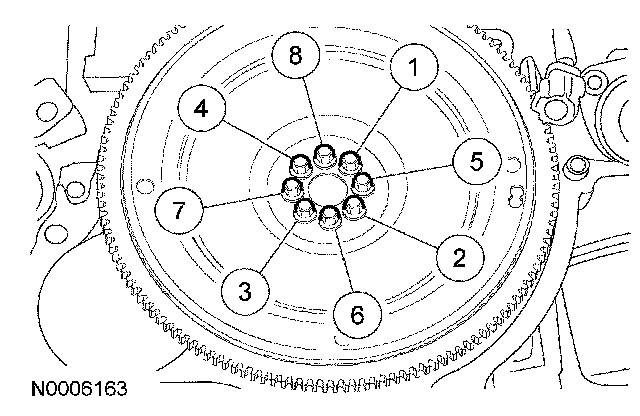

Flexplate Bolts
Stage 1 13 Nm (10 ft. lbs.)
Stage 2 71 Nm (52 ft. lbs.)
