Tests AF: Glow Plug System



PINPOINT TEST AF: GLOW PLUG SYSTEM

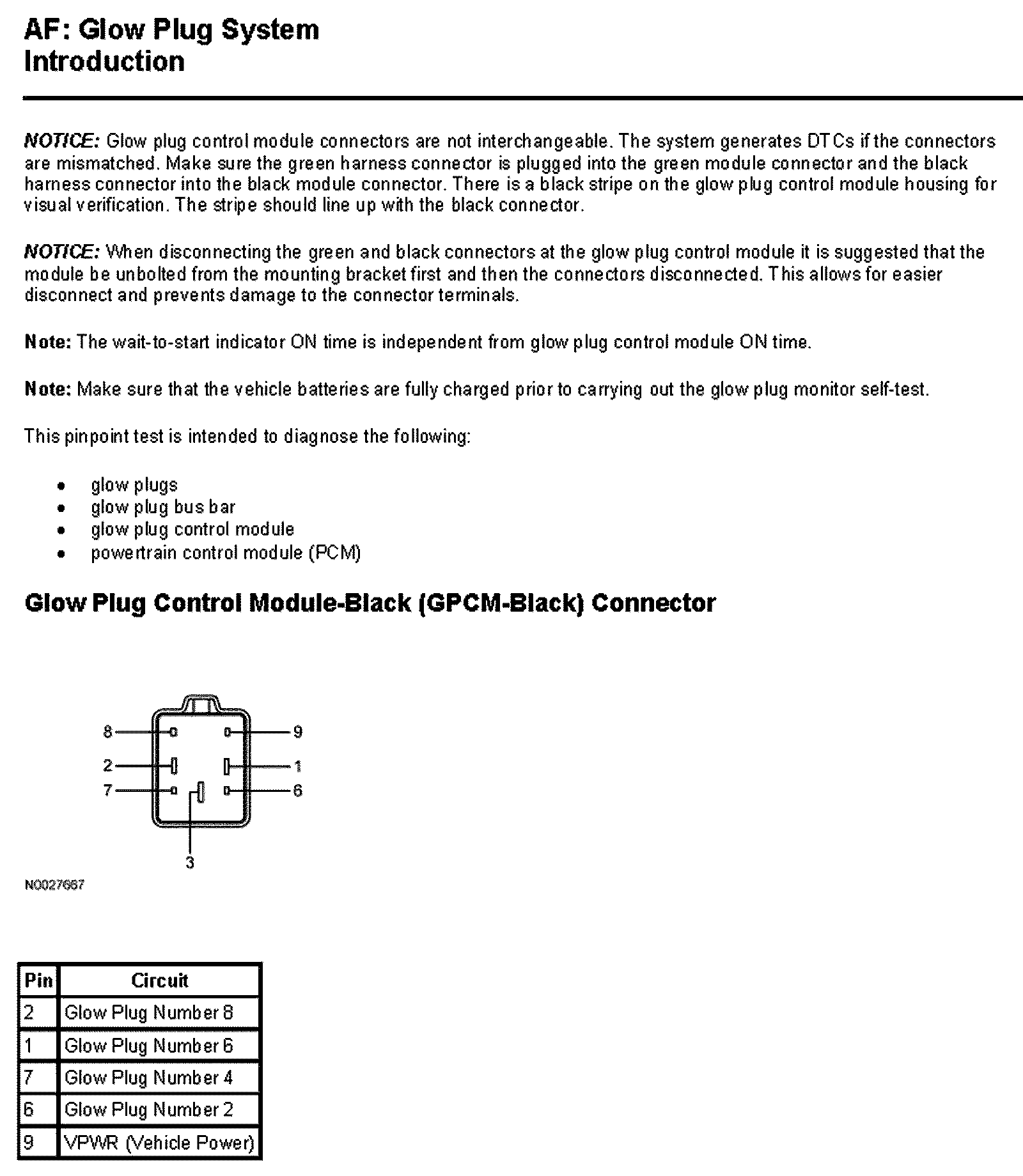

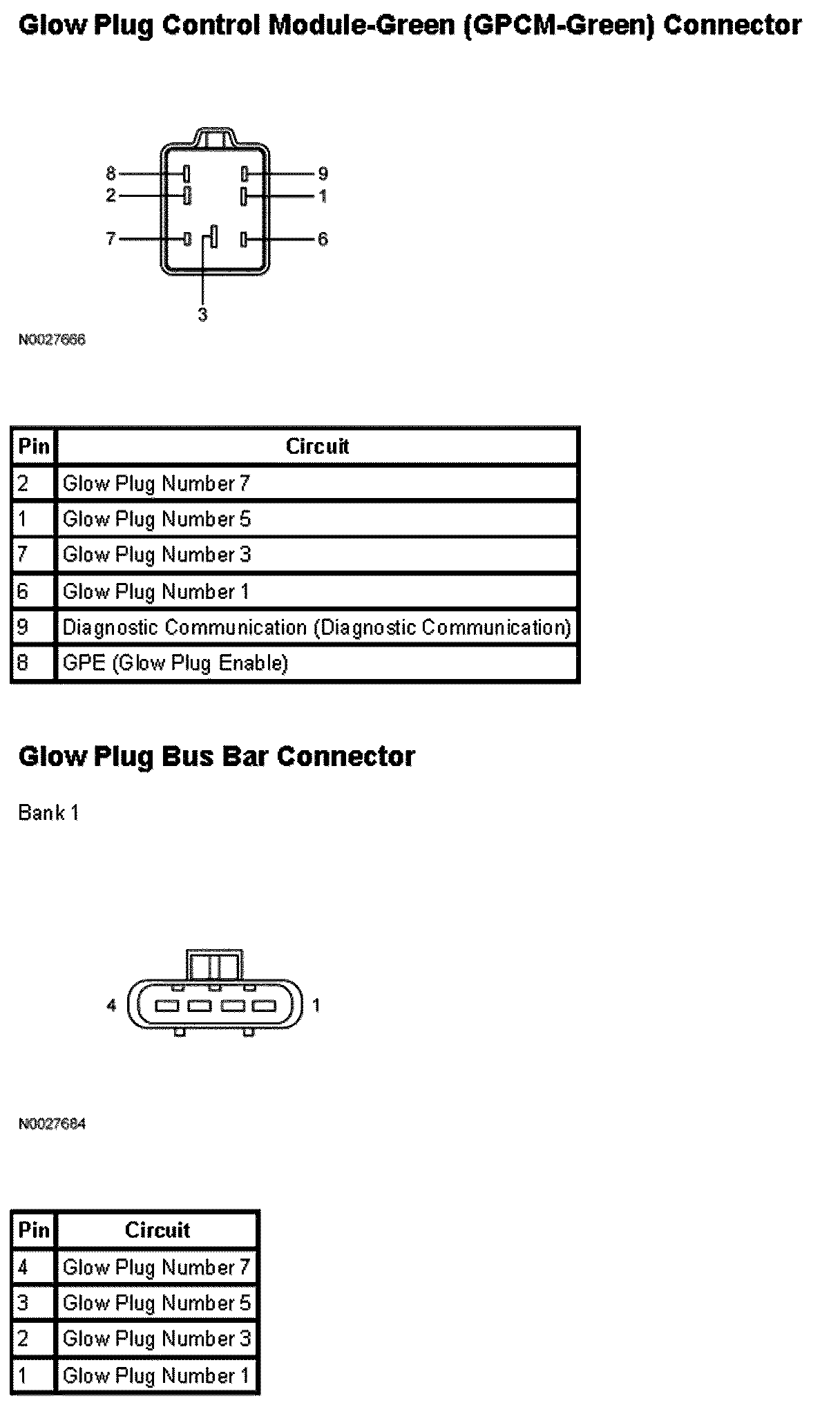

AF Introduction:

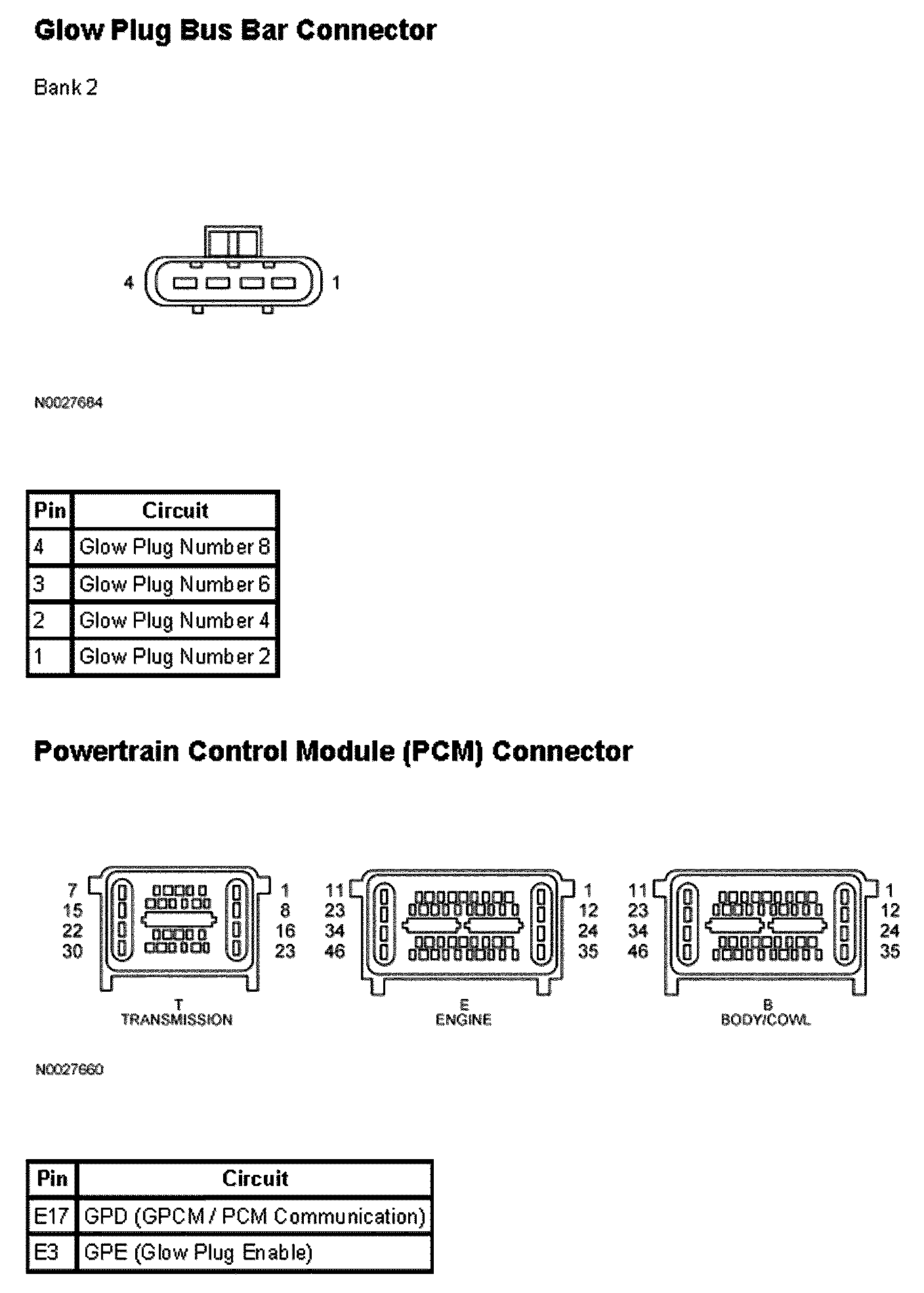

AF Introduction Cont'd:





AF Introduction Cont'd:

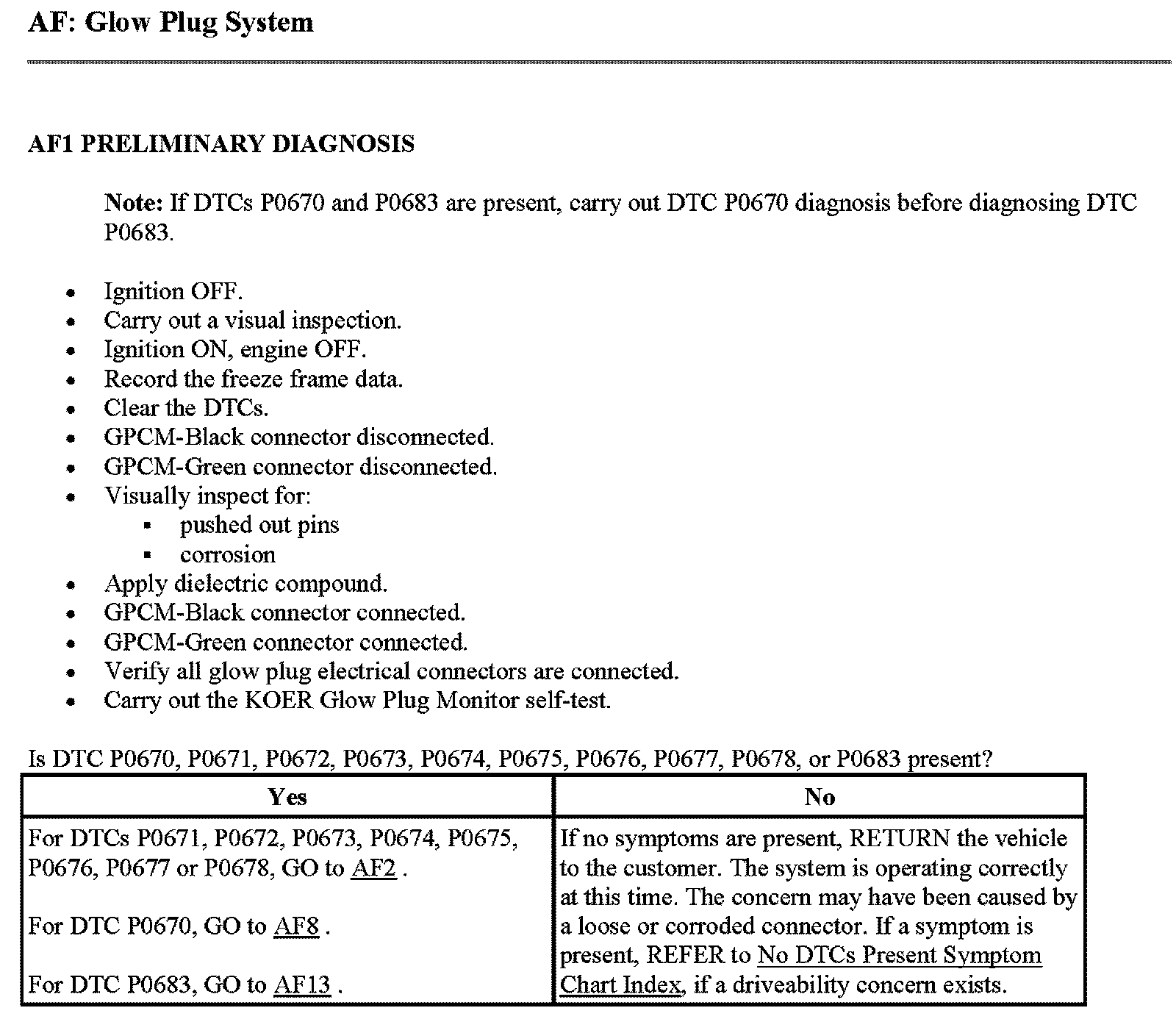

AF1:

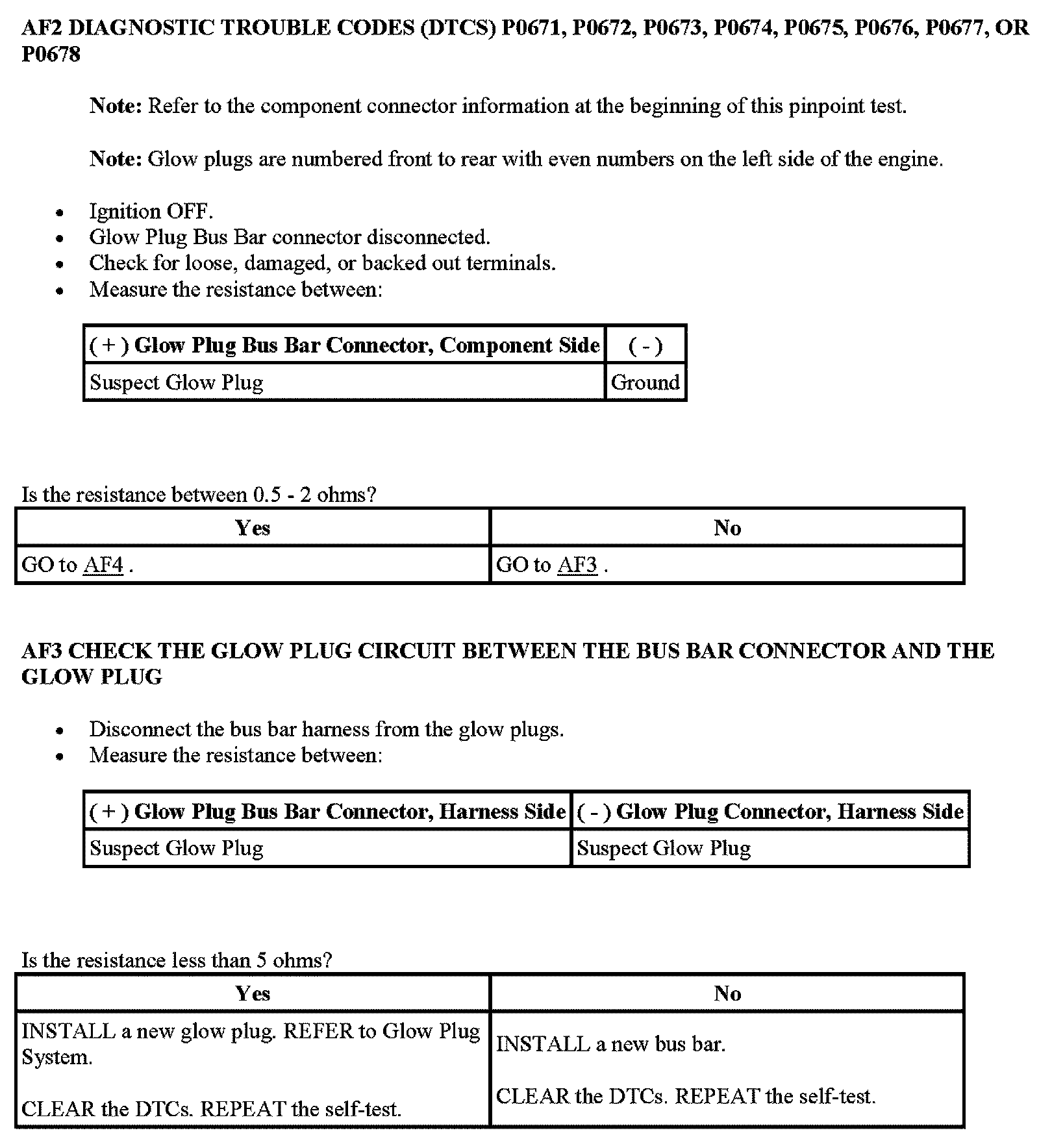

AF2-AF3:

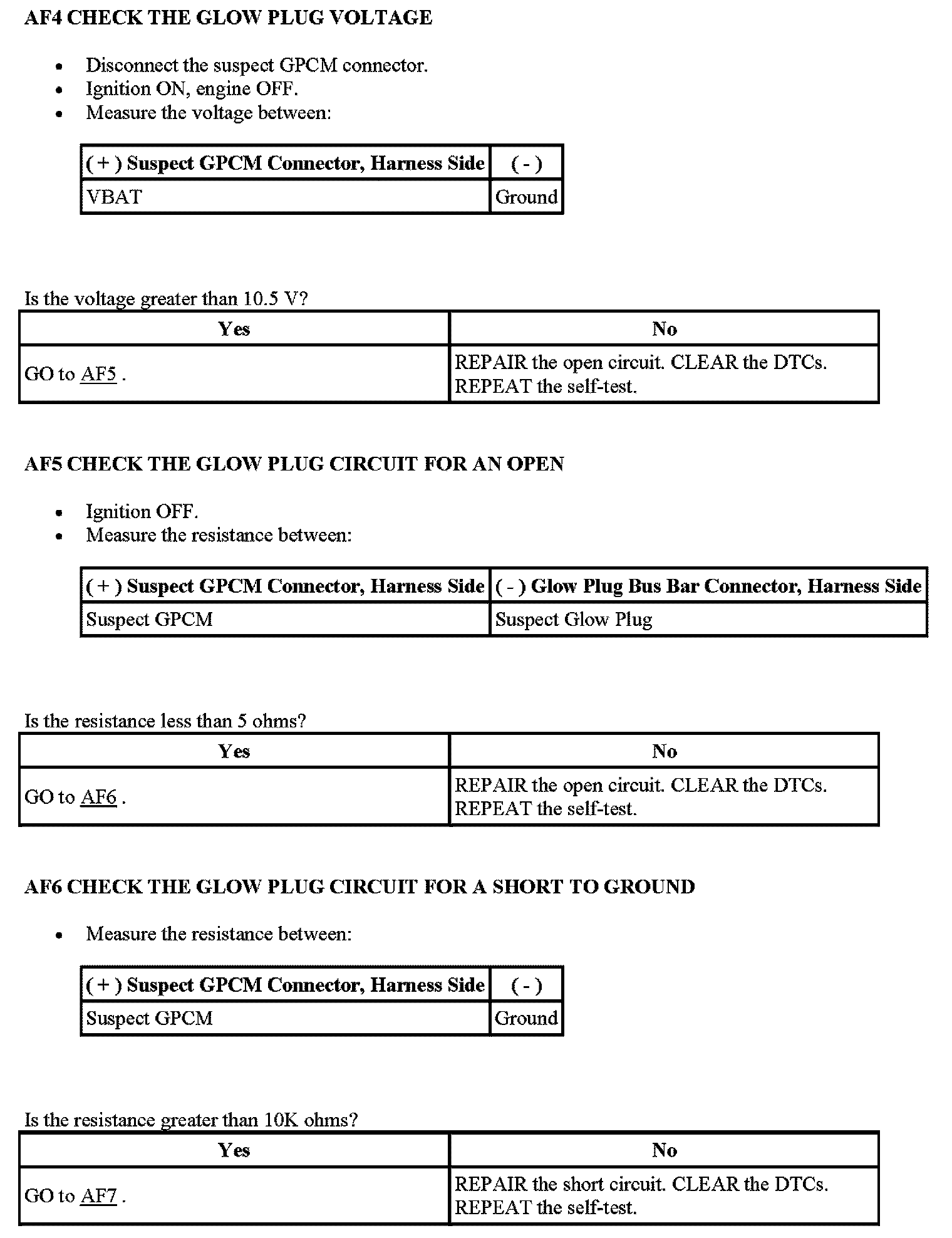

AF4-AF6:

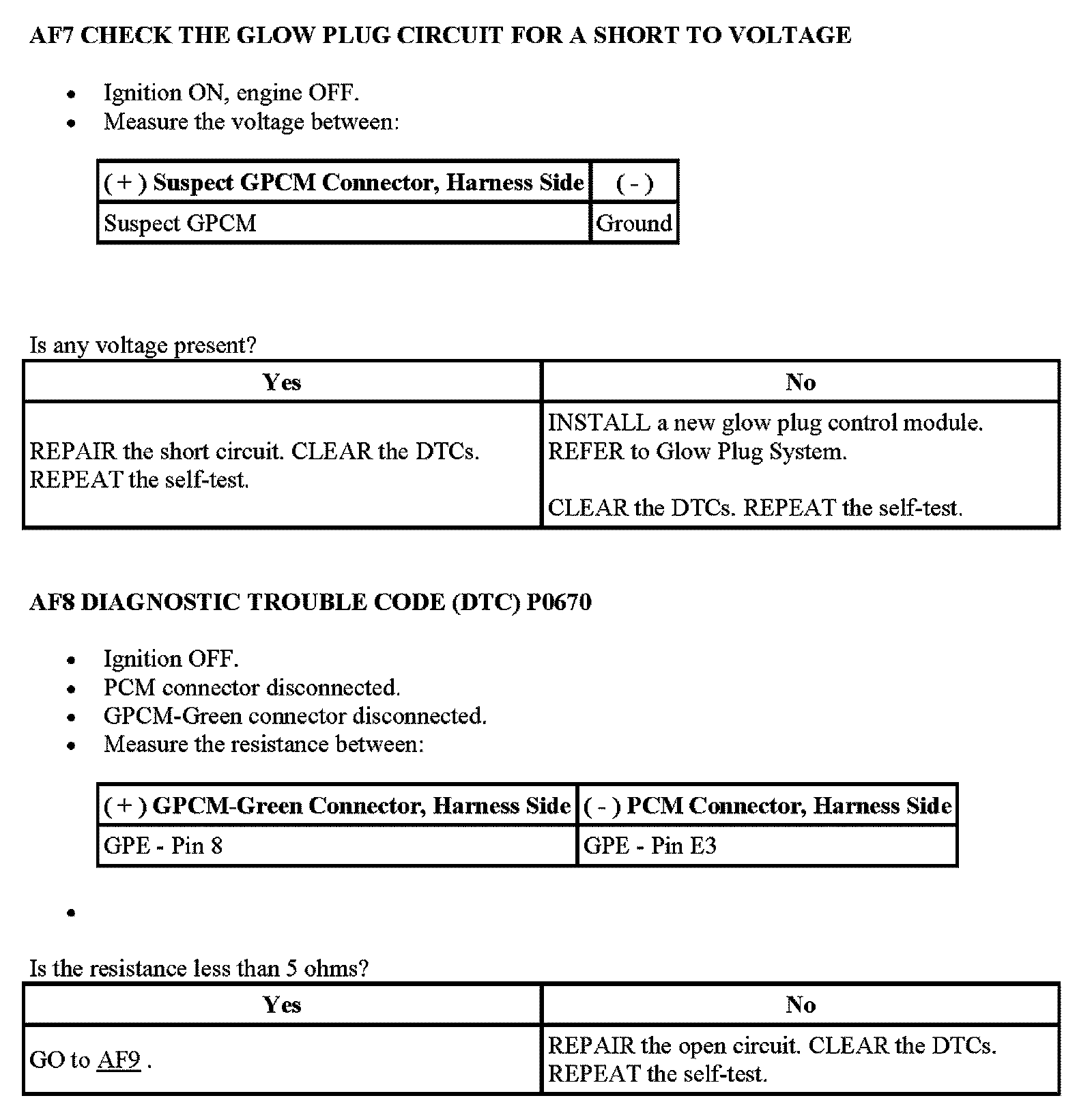

AF7-AF8:

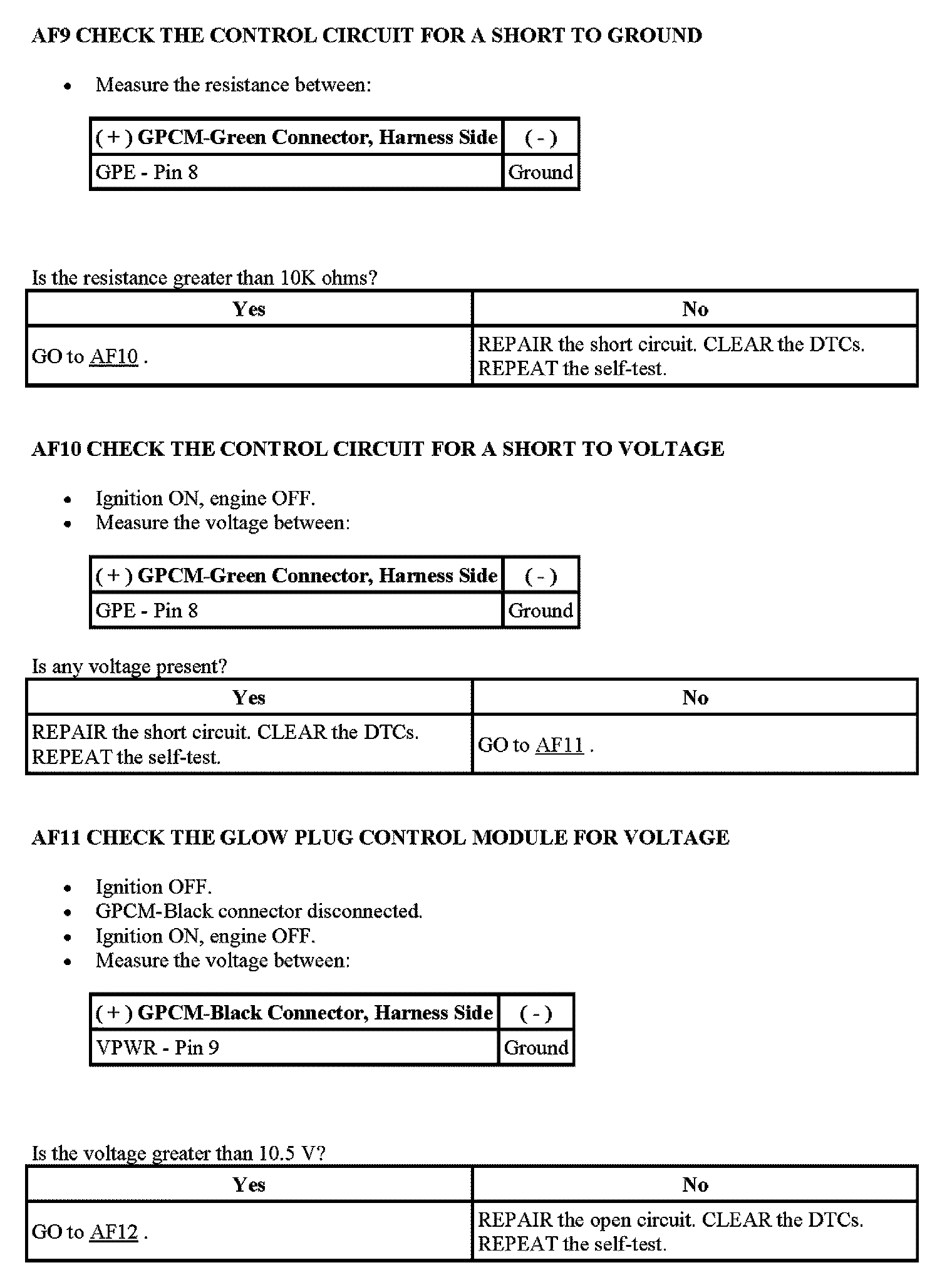

AF9-AF11:

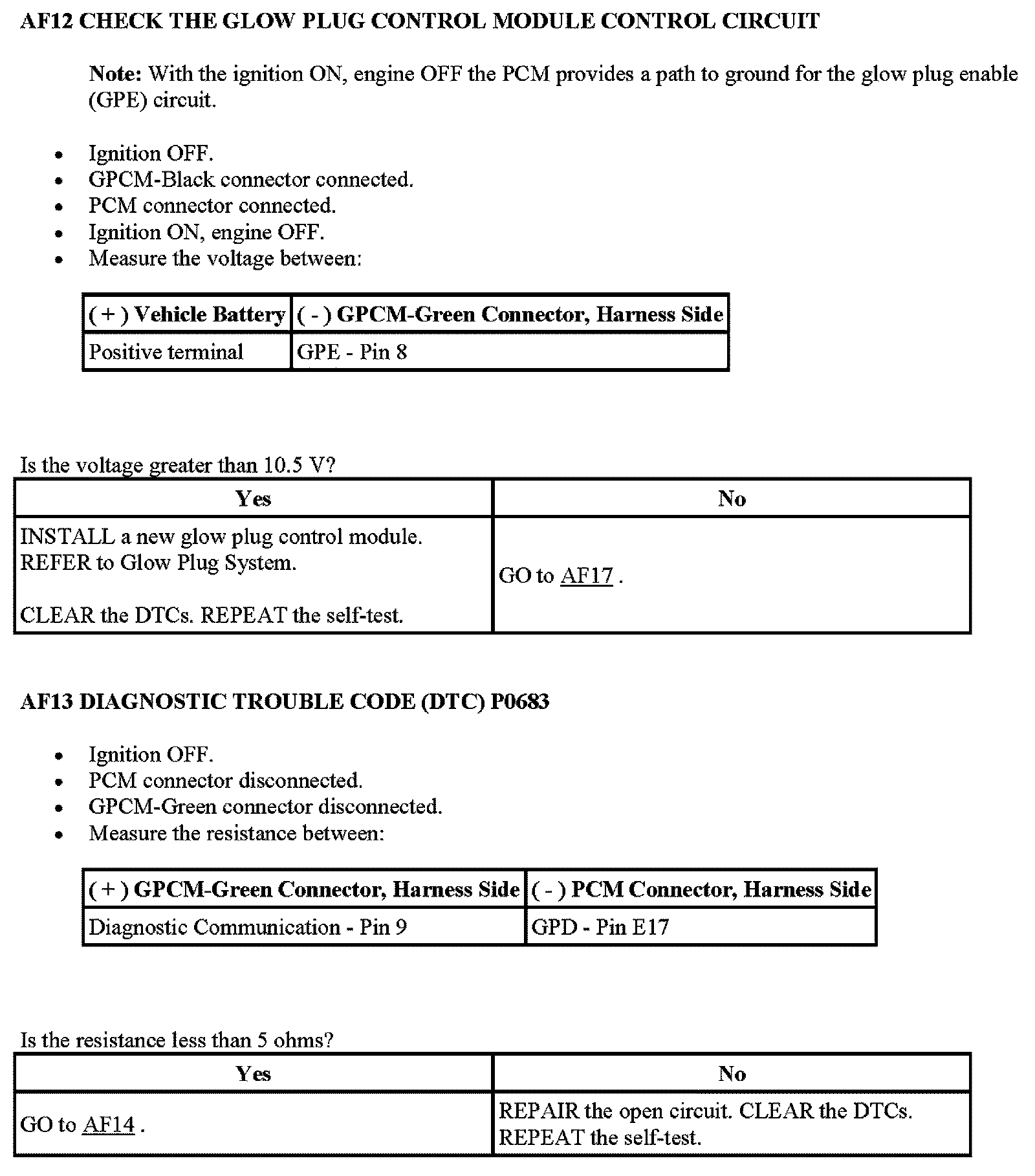

AF12-AF13:

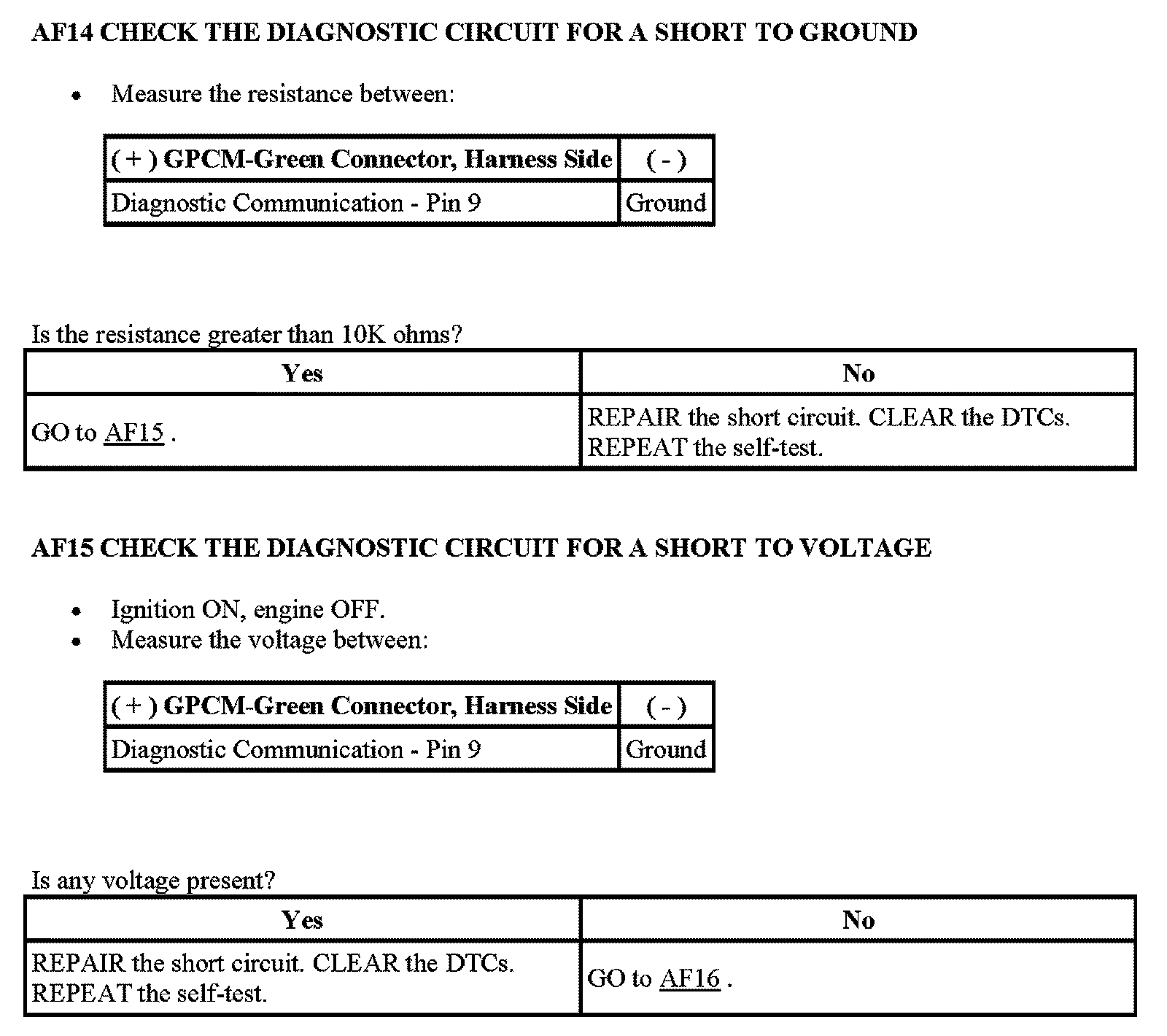

AF14-AF15:

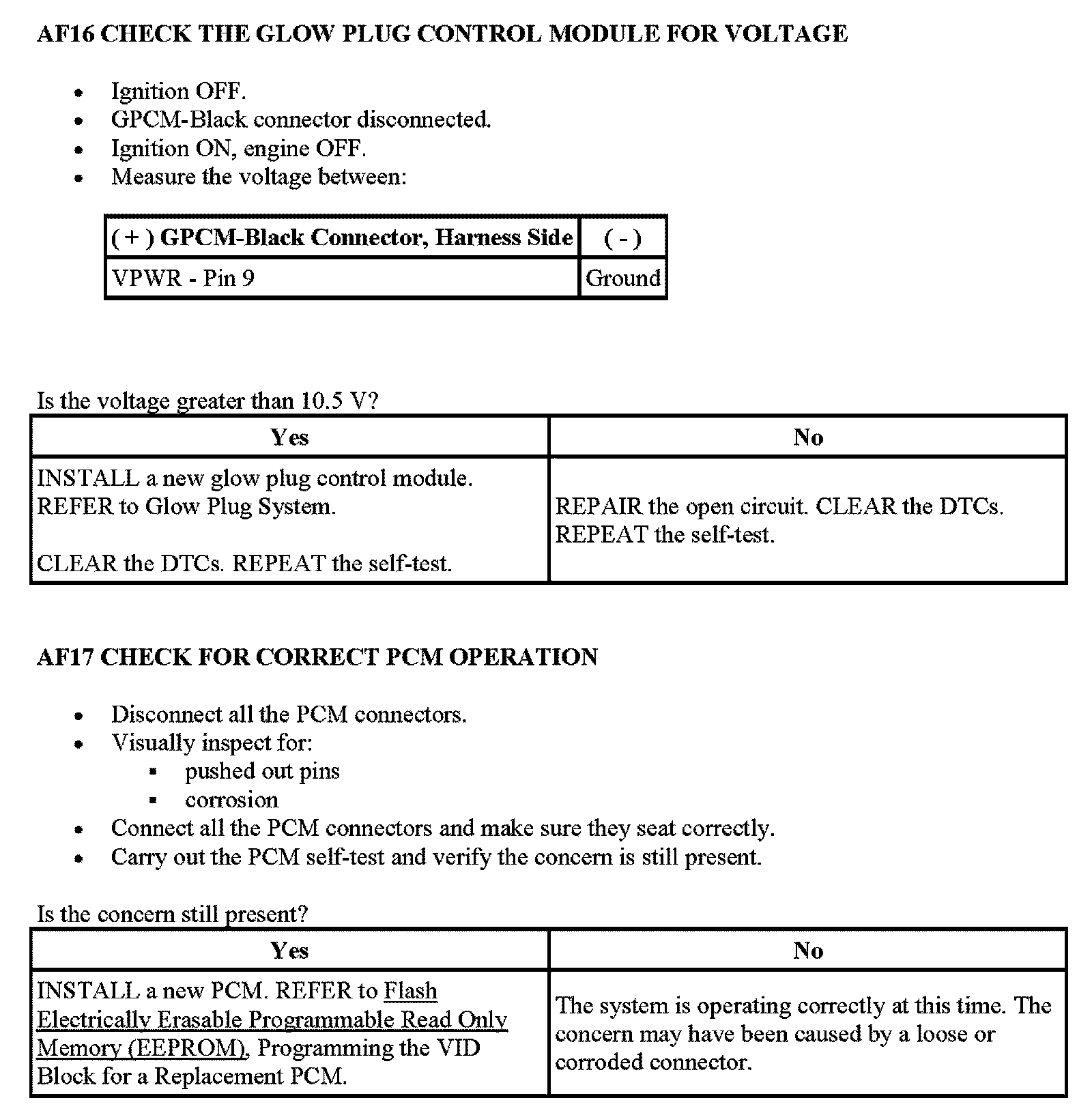

AF16-AF17:
