Cylinder Head Assembly

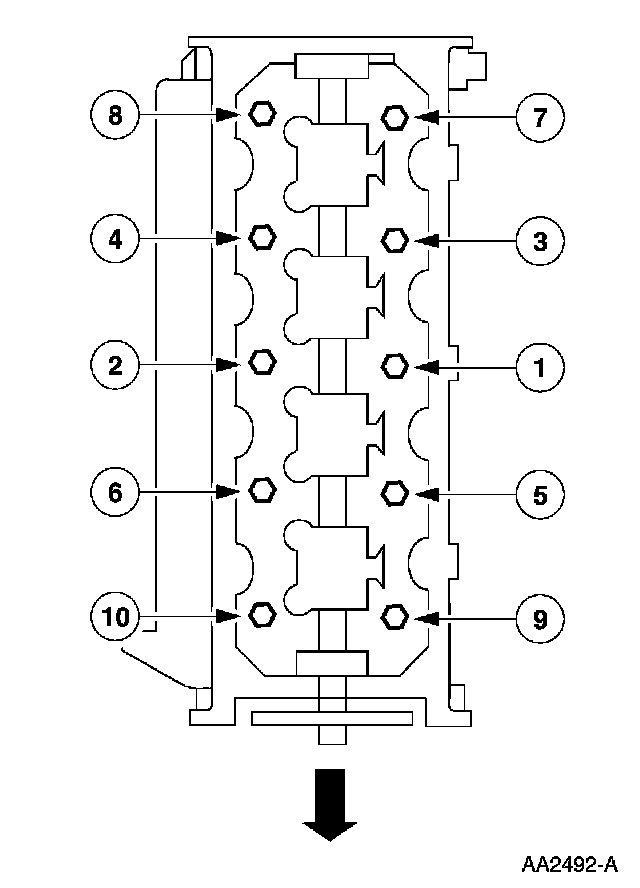

LH cylinder head

Note: Do not Reuse Cylinder Head bolts





Stage 1: Tighten to 40 Nm (30 ft. lbs.).
Stage 2: Tighten an additional 90 degrees.
Stage 3: Tighten an additional 90 degrees.

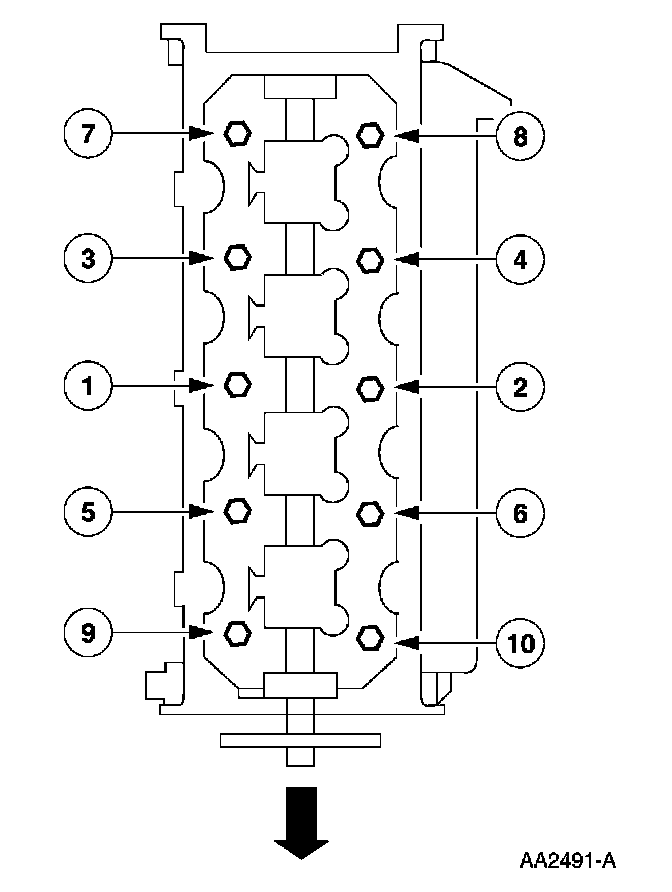

RH cylinder head

Note: Do not Reuse Cylinder Head bolts





Stage 1: Tighten to 40 Nm (30 ft. lbs.).
Stage 2: Tighten an additional 90 degrees.
Stage 3: Tighten an additional 90 degrees

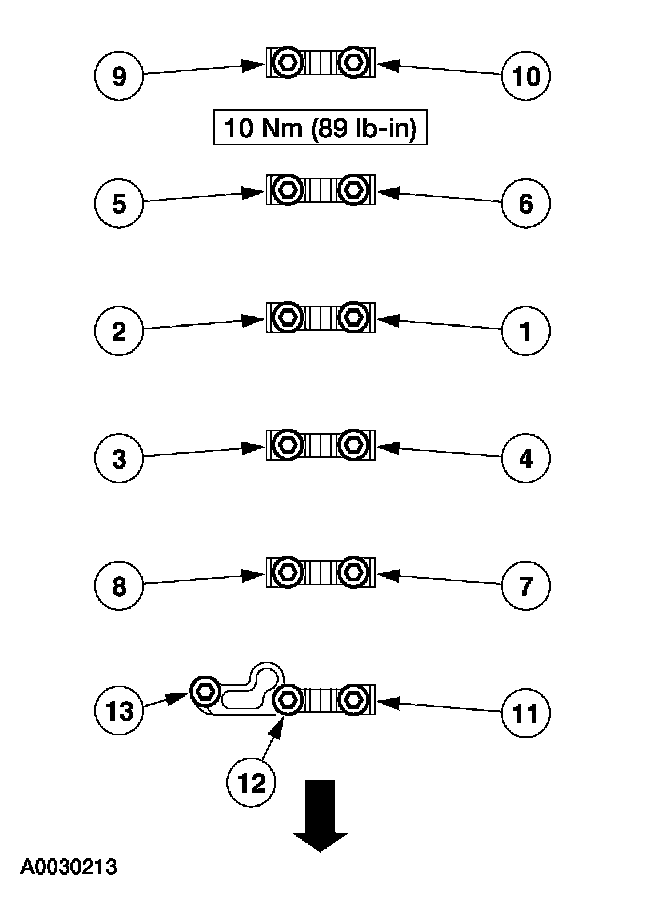

Camshaft bearing cap bolts 10 Nm (89 inch lbs.)

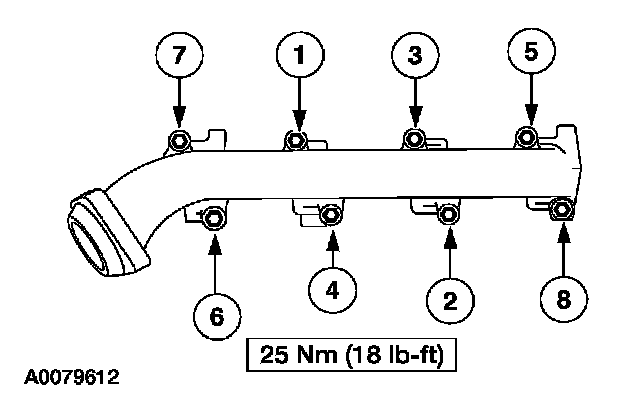

Exhaust manifold nuts 25 Nm (18 ft. lbs.)
Exhaust manifold studs 12 Nm (9 ft. lbs.)





Intake Manifold
Stage 1: Tighten to 2 Nm (18 inch lbs.).
Stage 2: Tighten to 25 Nm (18 ft. lbs.).
