Home
>>
Ford
>>
2005
>>
Excursion 2WD V10-6.8L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Automatic Transmission/Transaxle - TorqShift
Automatic Transmission/Transaxle - TorqShift
Disassembled Views

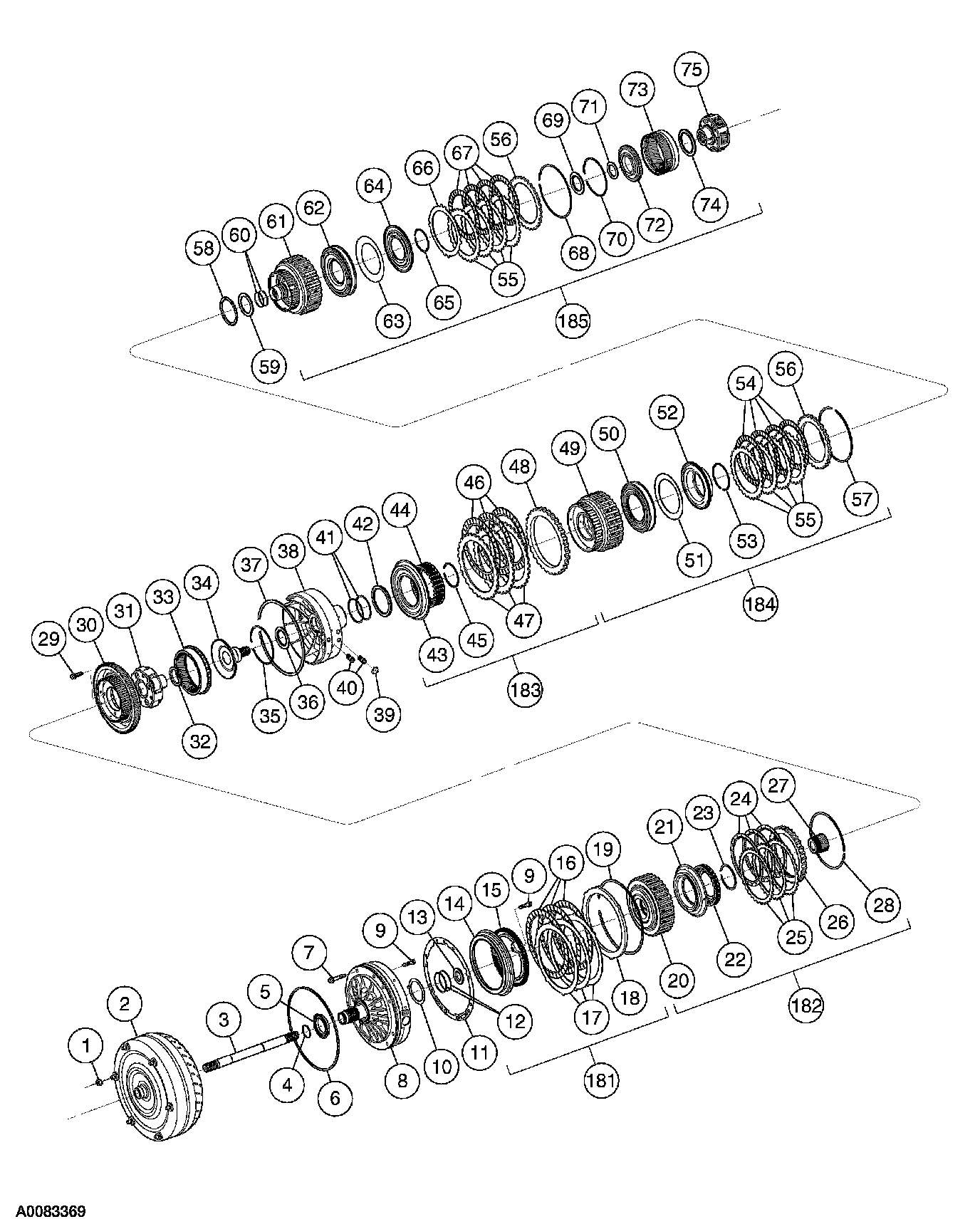

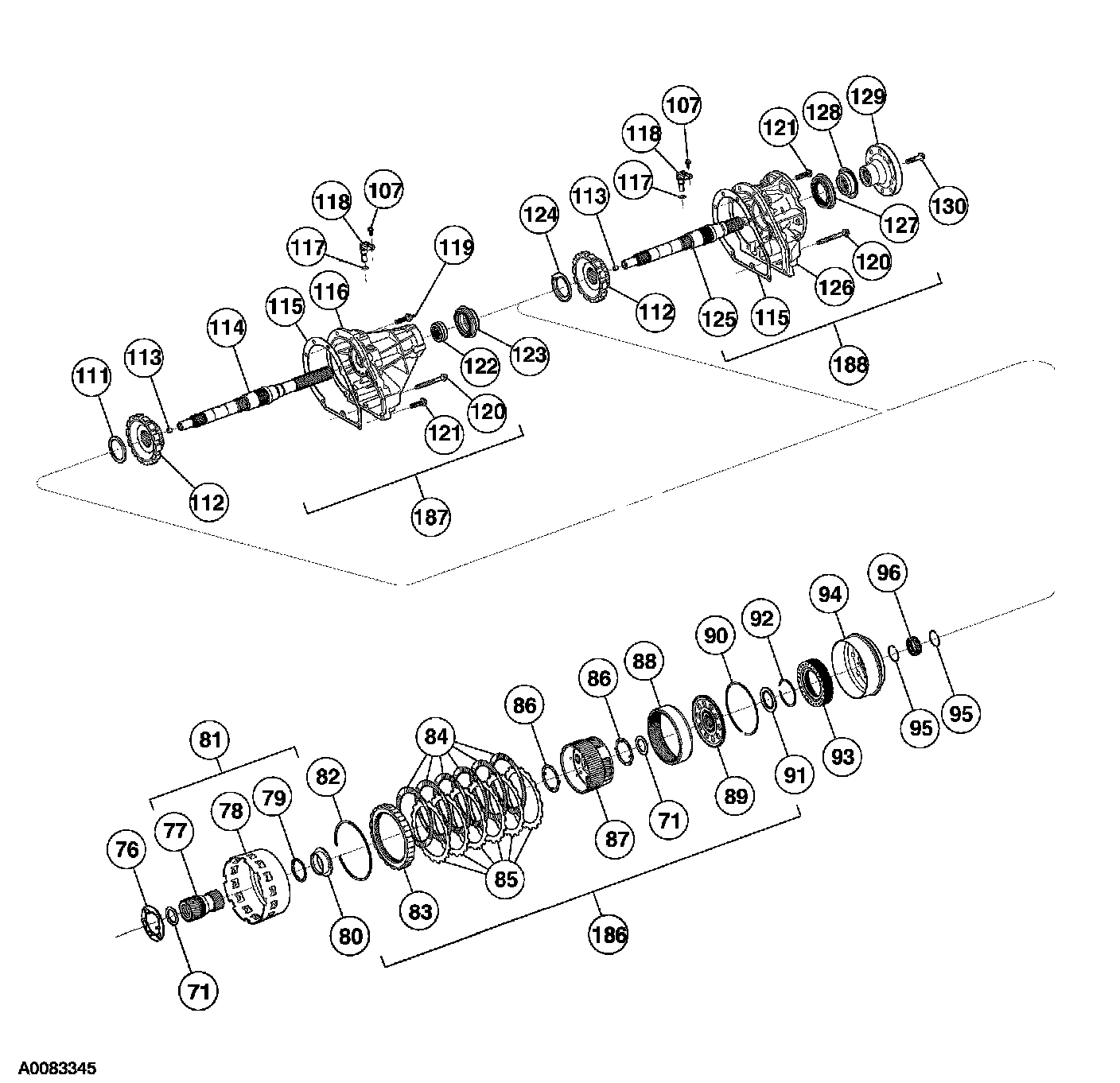

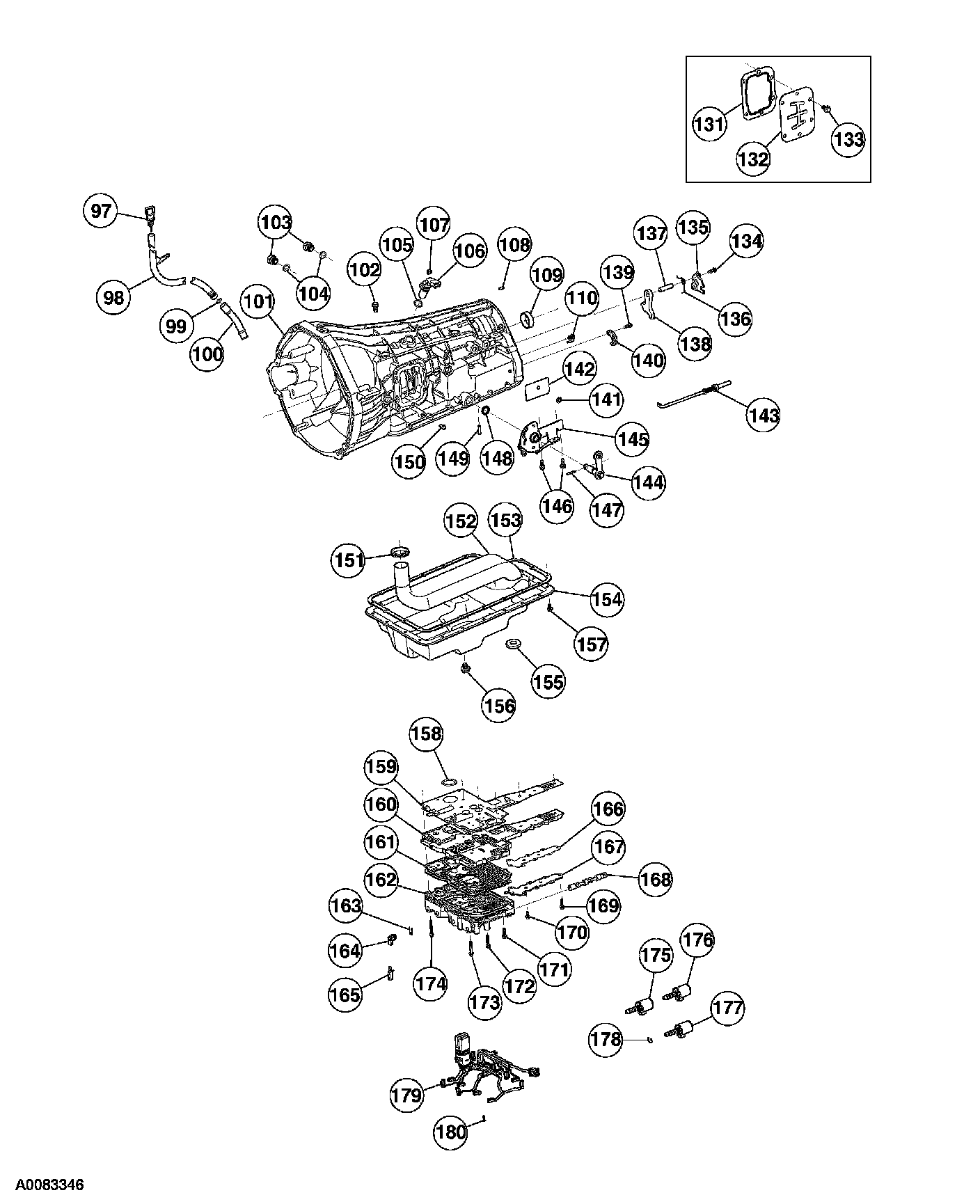

Transmission, Disassembled View
