Power Window Switch: Service and Repair

WINDOW CONTROL SWITCH







Removal and Installation

NOTE:

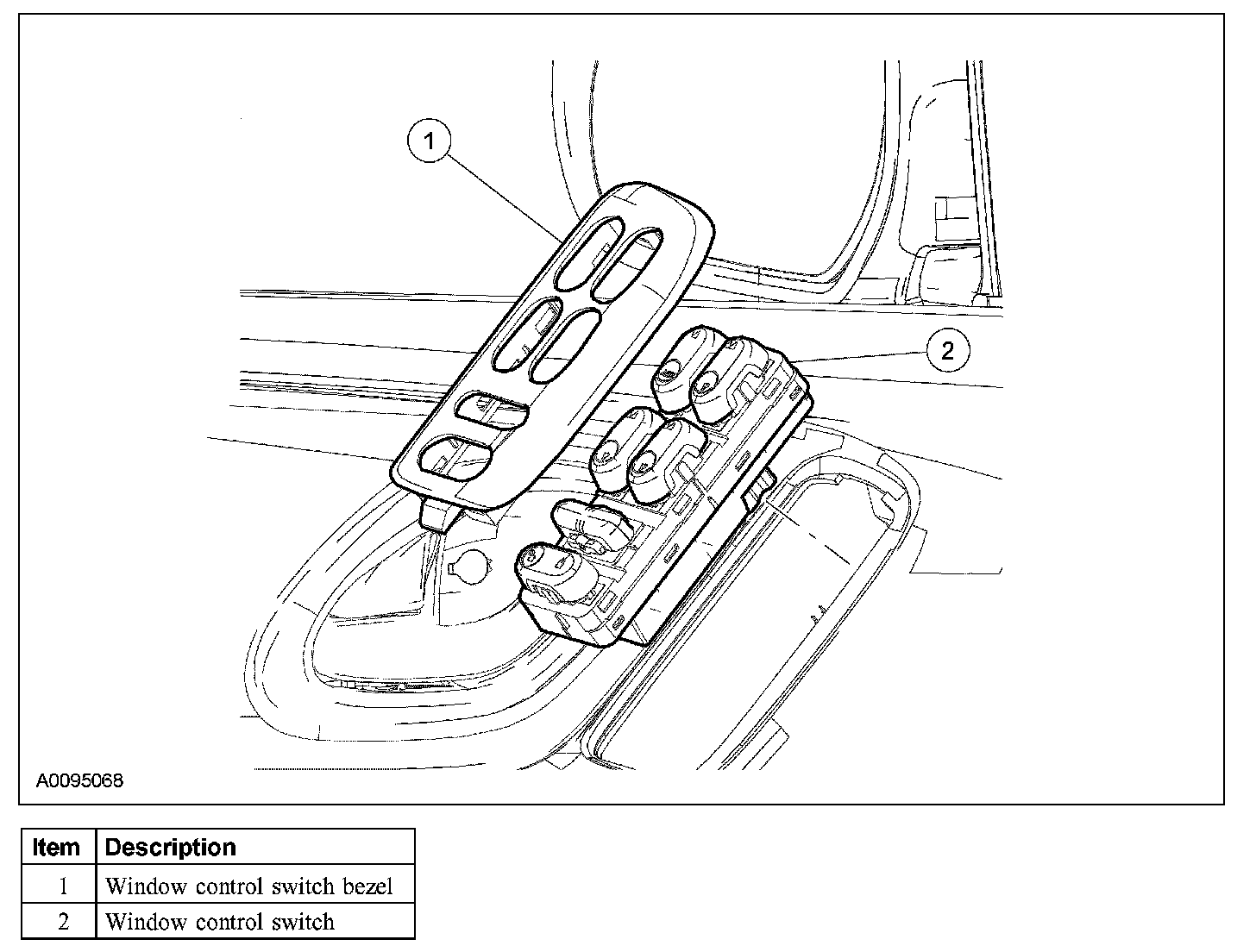

- The LH front window control switch is shown, all others are similar.
- The removal and installation procedures for all window control switches are similar.

1. Remove the front door trim panel or the rear door trim panel.
2. Release the window control switch bezel from the door trim panel.
3. Release the locking tabs and remove the window control switch from the bezel.
4. To install, reverse the removal procedure.
