Home >> Ford >> 2005 >> Escape 2WD L4-2.3L VIN Z >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations >> Window Adjust Switch >> Left/Right Rear

Left/Right Rear

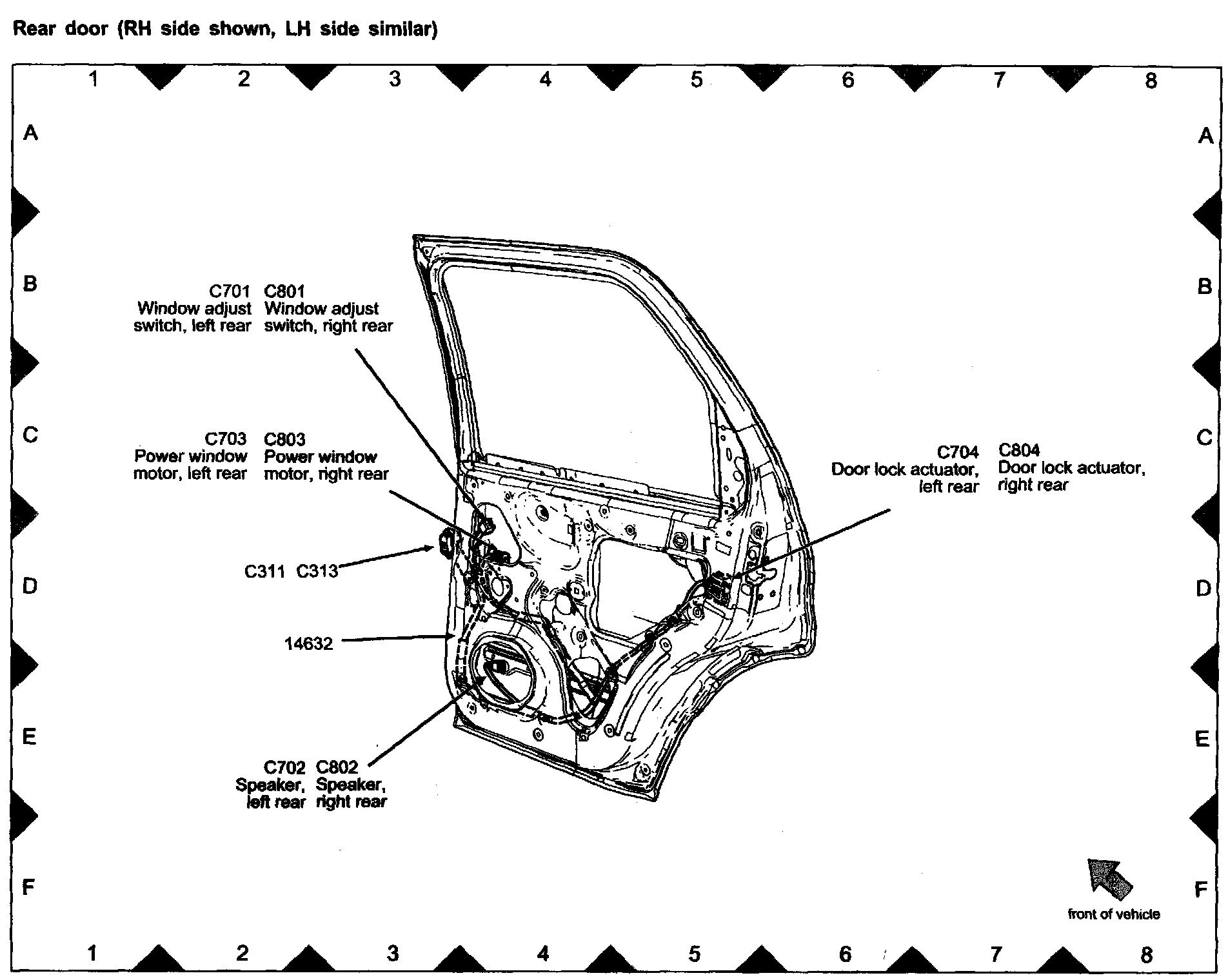

View 151-24 (Rear Door (RH Side Shown, LH Side Similar)):
