Home >> Ford >> 2005 >> Escape 2WD L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Components >> Component Location Views >> View 151-25 (Liftgate)

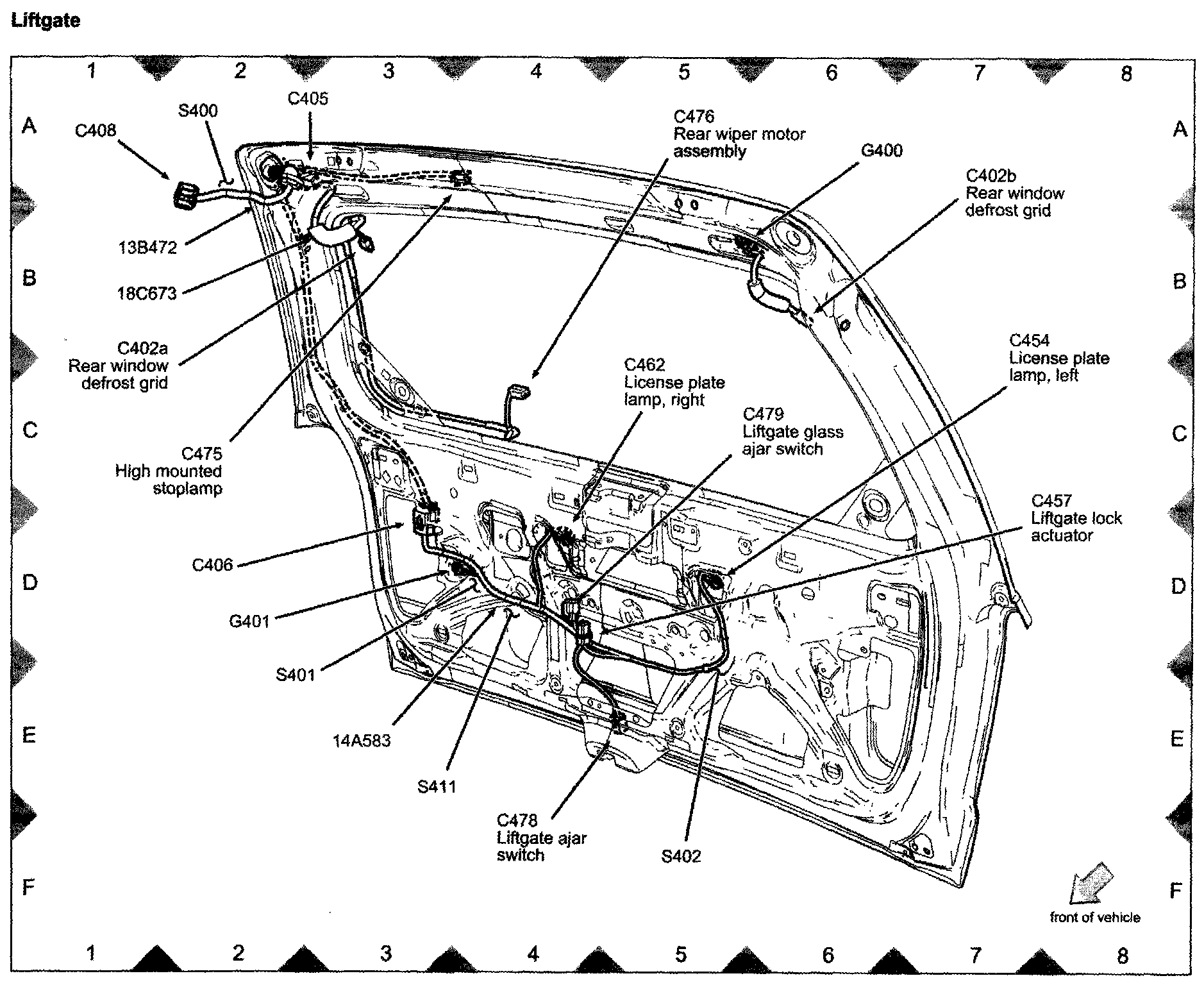

View 151-25 (Liftgate)

View 151-25 (Liftgate):
