Home >> Ford >> 2004 >> Thunderbird >> Repair and Diagnosis >> External Pages >> Different car >> Section 323 (Climate Control System) >> Removal And Installation >> In-Vehicle Temperature Sensor

In-Vehicle Temperature Sensor

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parts in the order indicated in the following illustration and table.

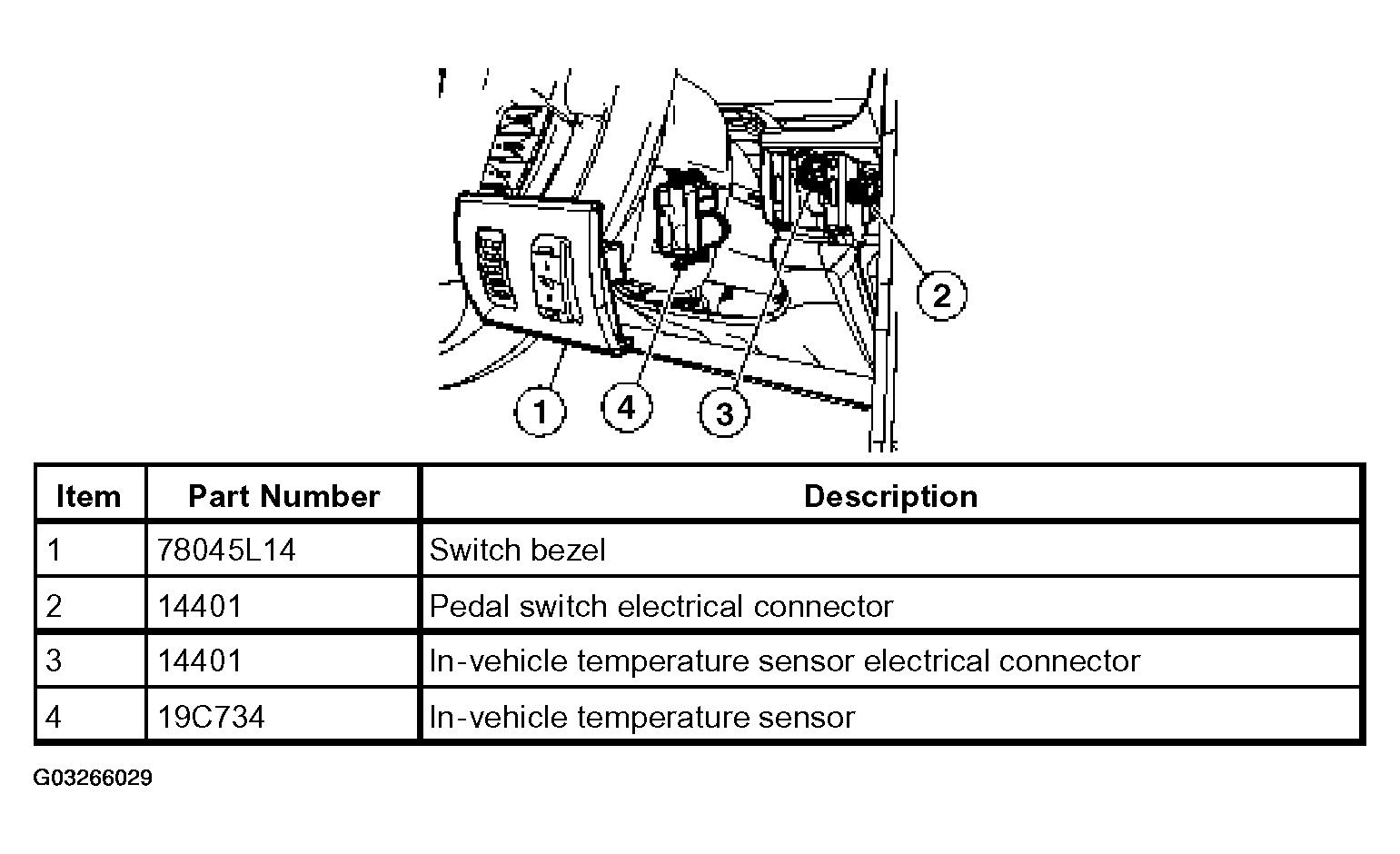

    Fig 1: Removal Sequence Of In-Vehicle Temperature Sensor
    G03266029Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
