Test A

PINPOINT TEST A: THE ENGINE DOES NOT CRANK

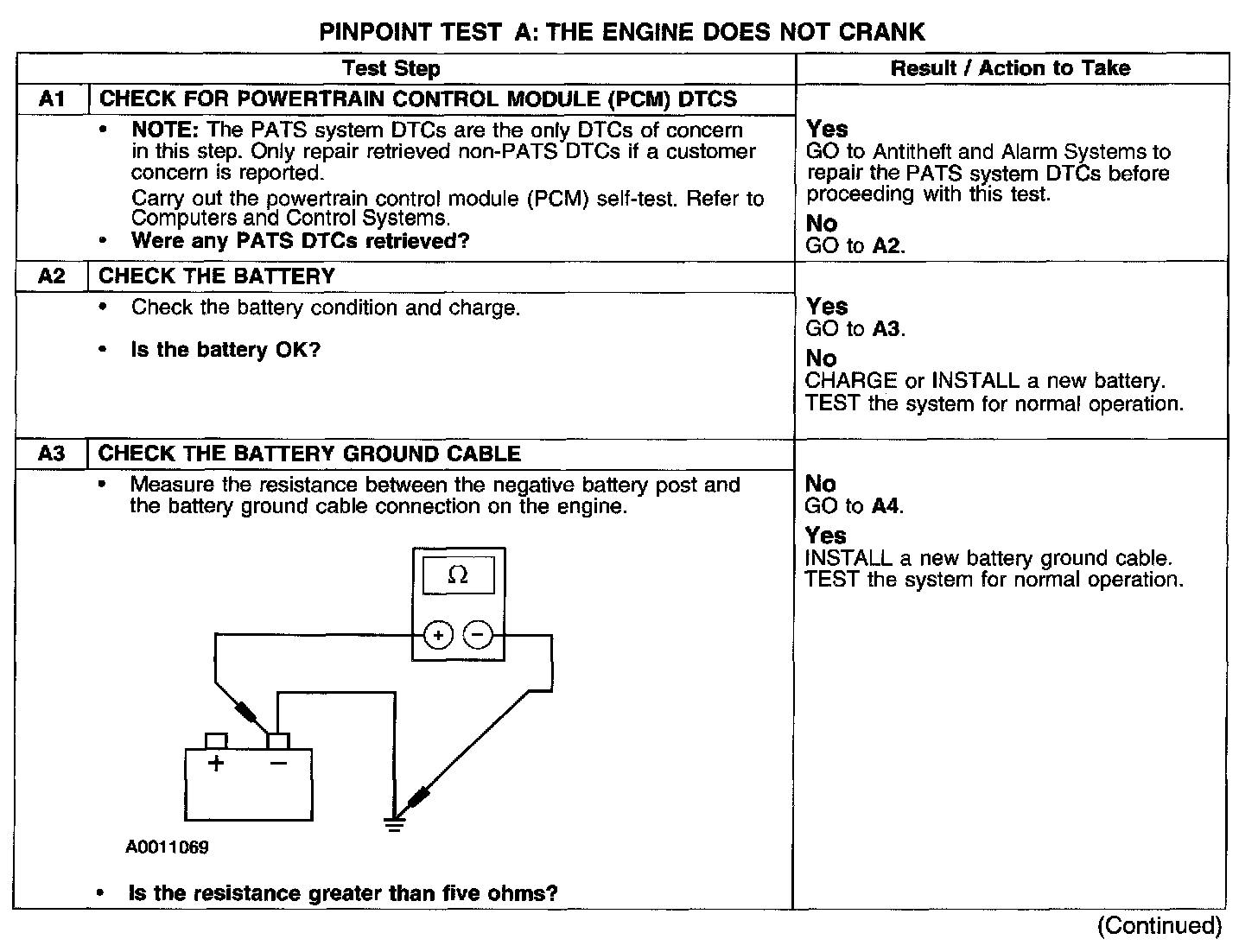

Test A1-A3:

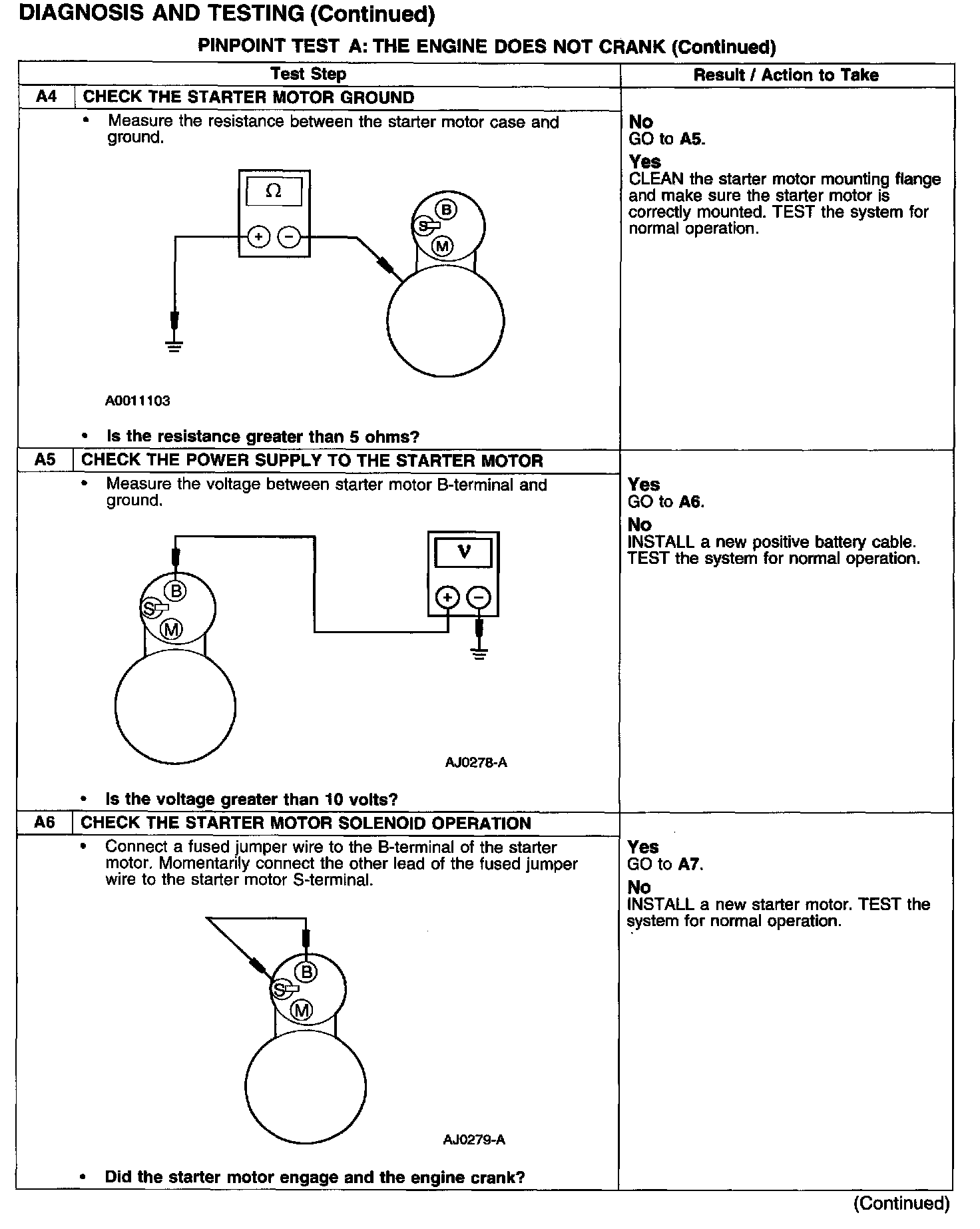

Test A4-A6:

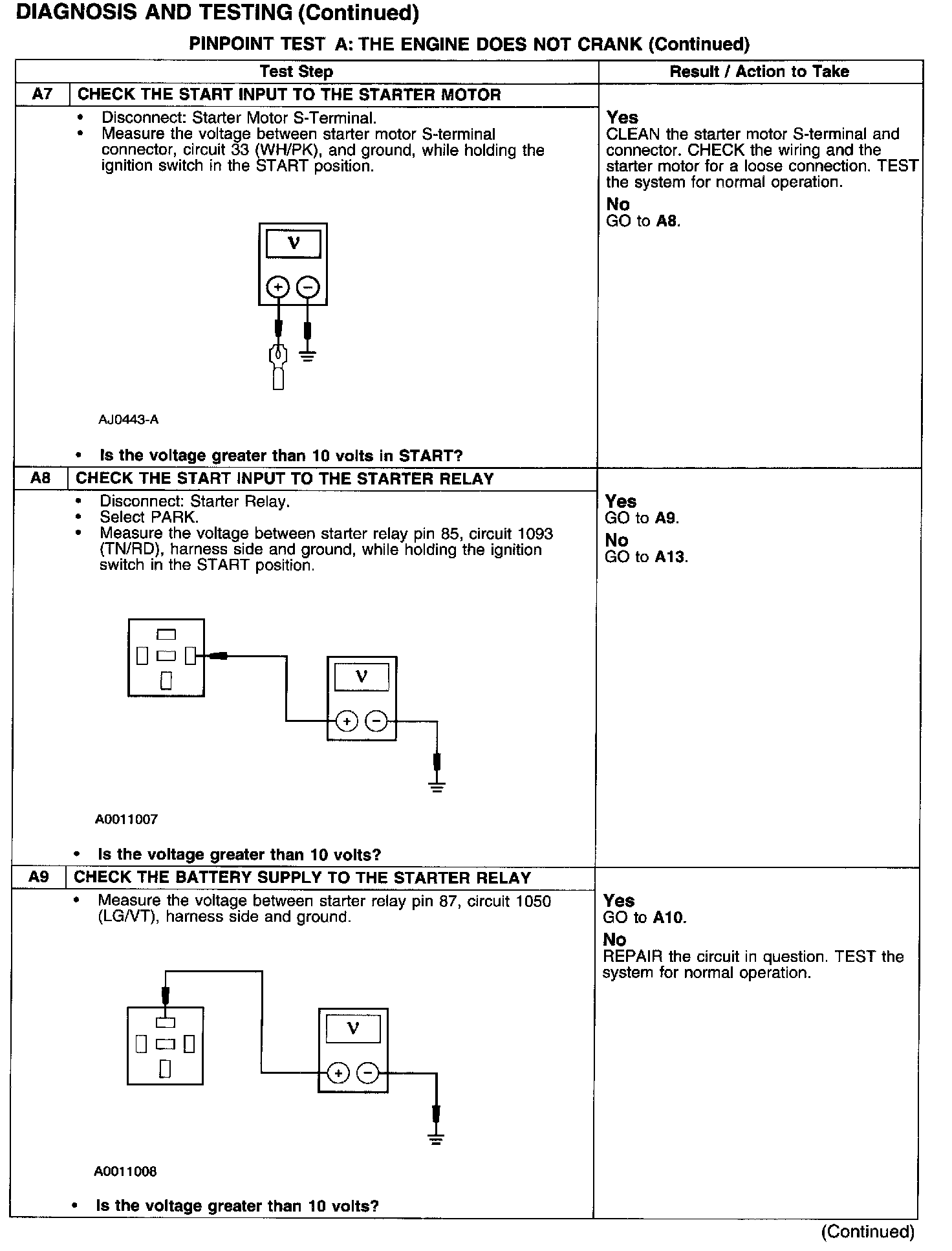

Test A7-A9:






Test A10-A12:

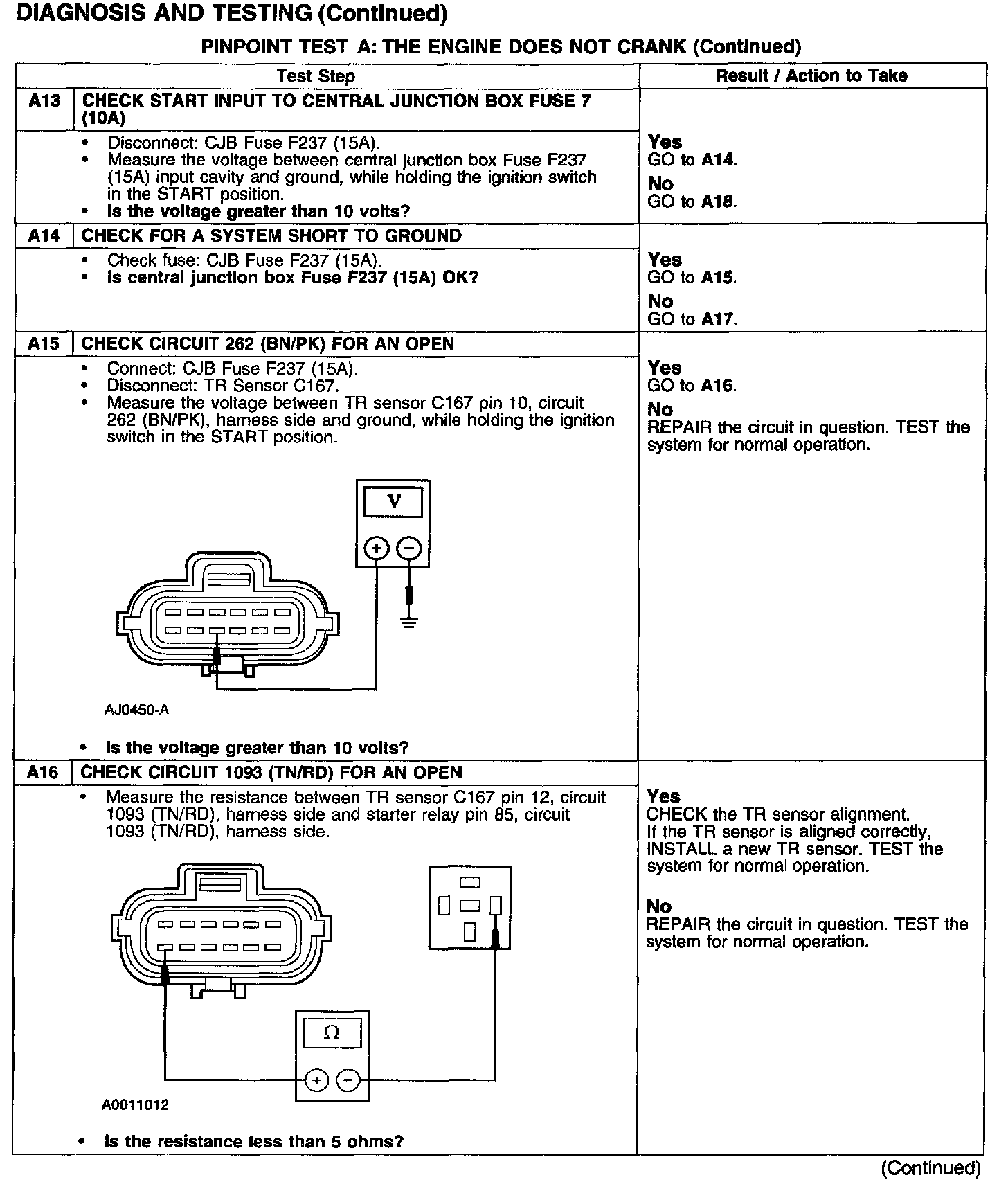

Test A13-A16:

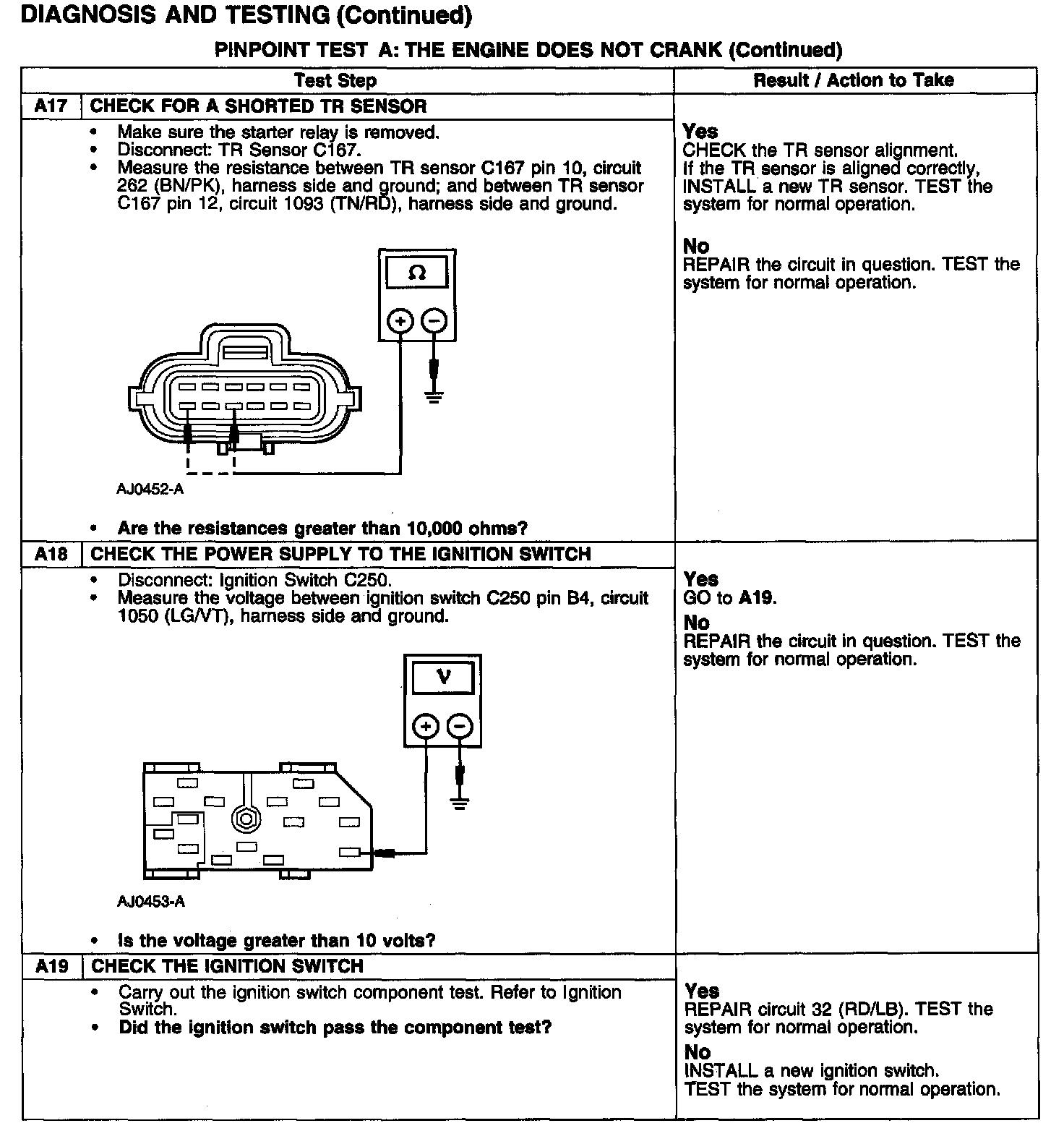

Test A17-A19:
