Test E
Test E
PINPOINT TEST E: THE
CHARGING SYSTEM
WARNING INDICATOR IS OFF WITH THE
IGNITION SWITCH
IN THE RUN POSITION AND THE ENGINE OFF

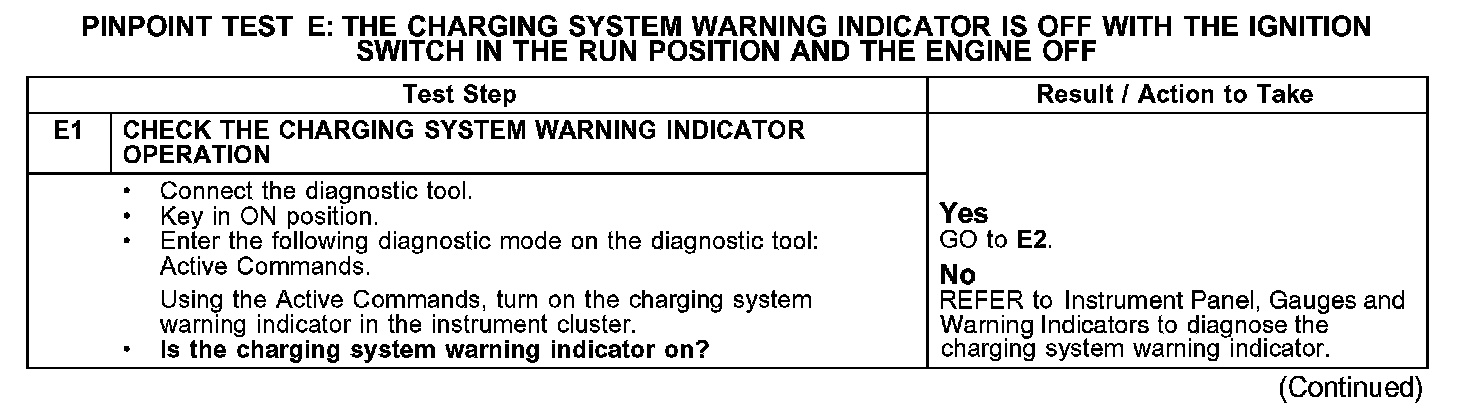

Test E1:

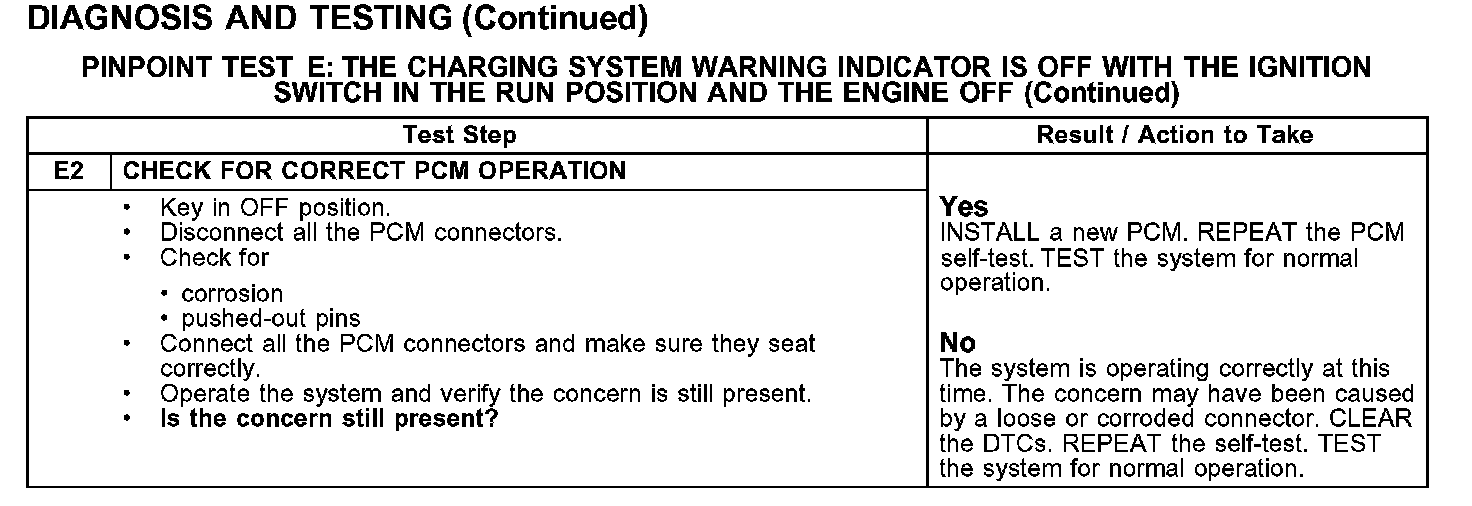

Test E2:
