PINPOINT TEST C: THE
CHARGING SYSTEM
OVERCHARGES (BATTERY VOLTAGE IS GREATER THAN 15.5 VOLTS)

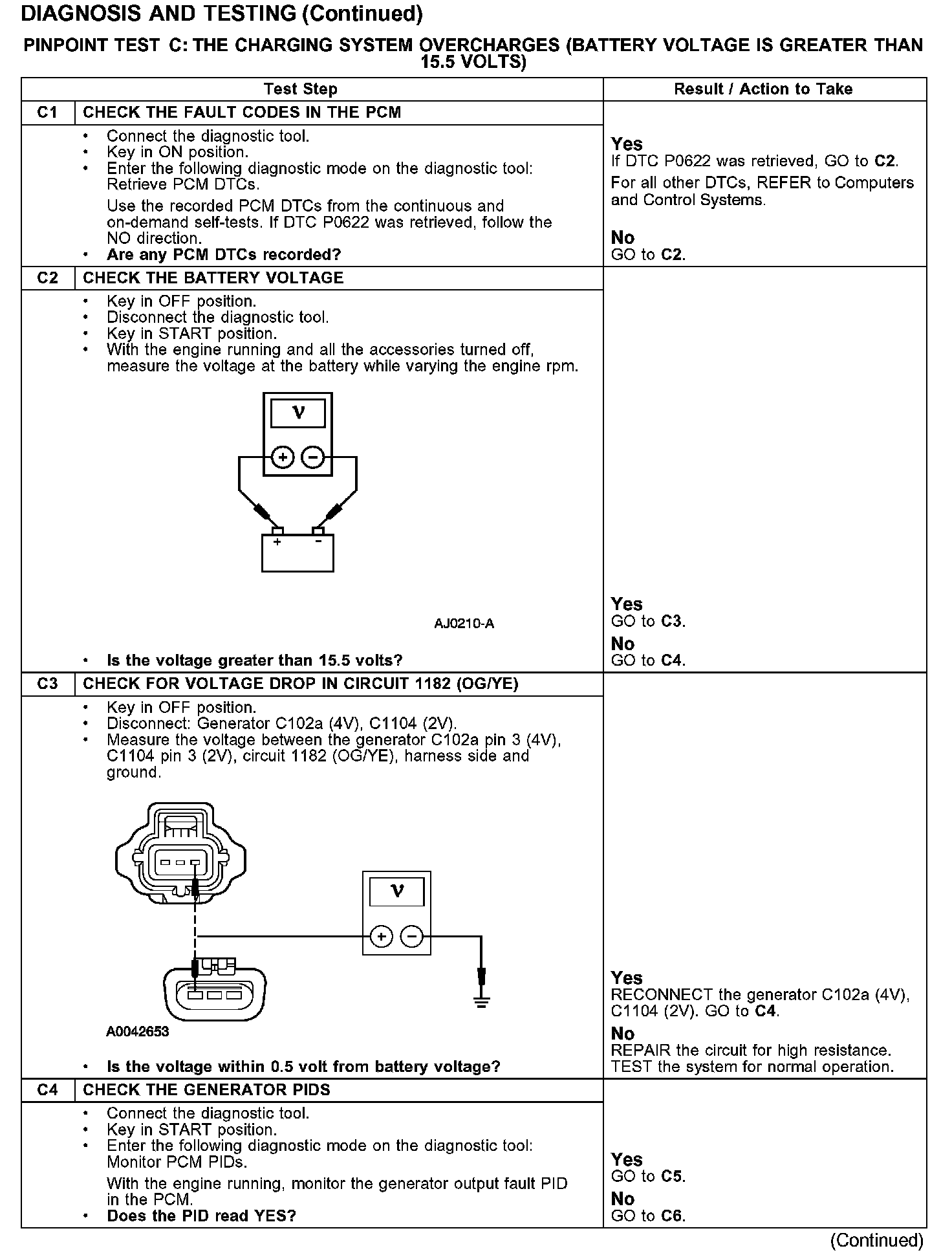

Test C1-C4:

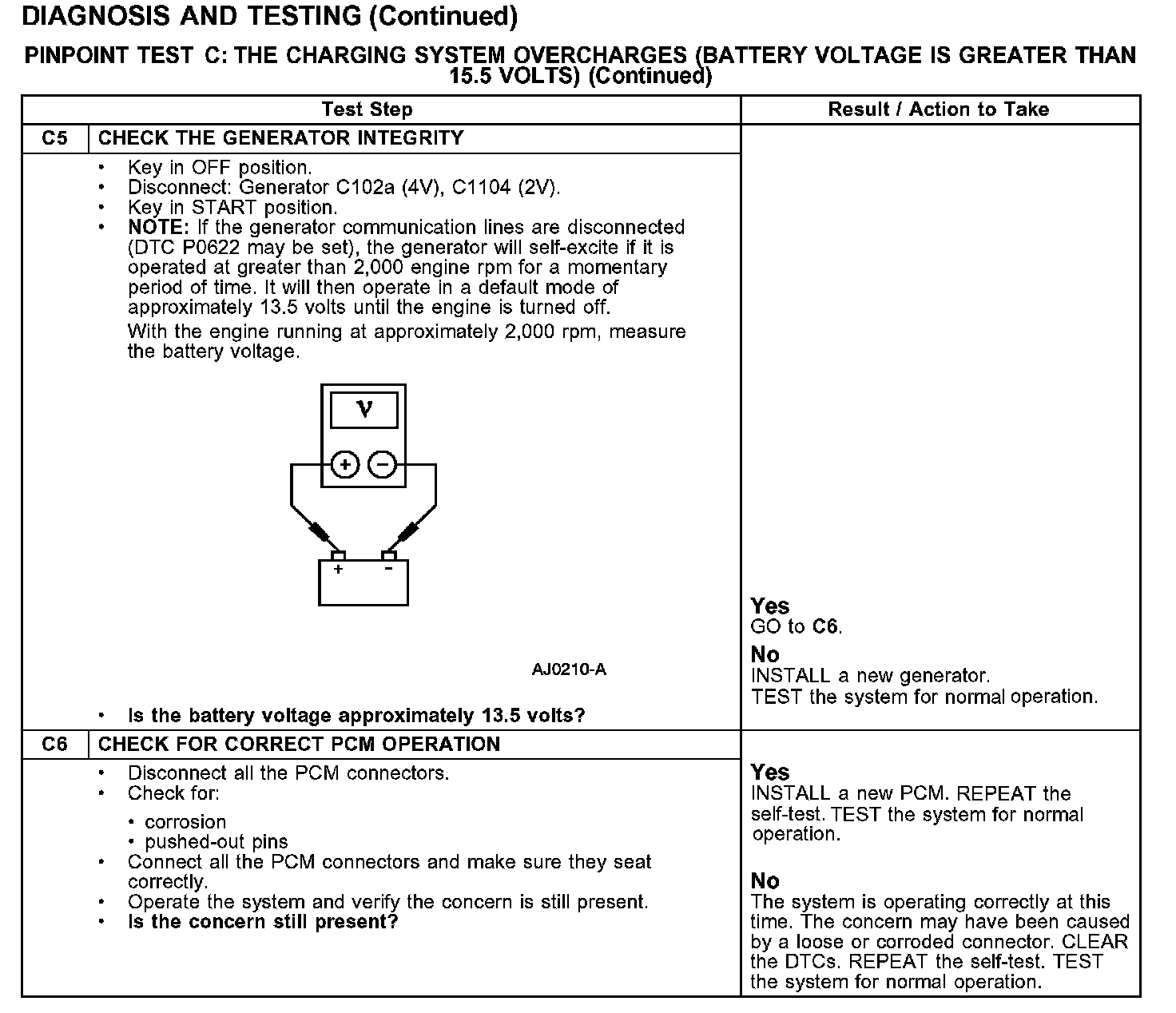

Test C5-C6:
