Driven Sprocket Support: Disassembly

  1. Remove the Teflon® seal rings and the No. 5 thrust washer.

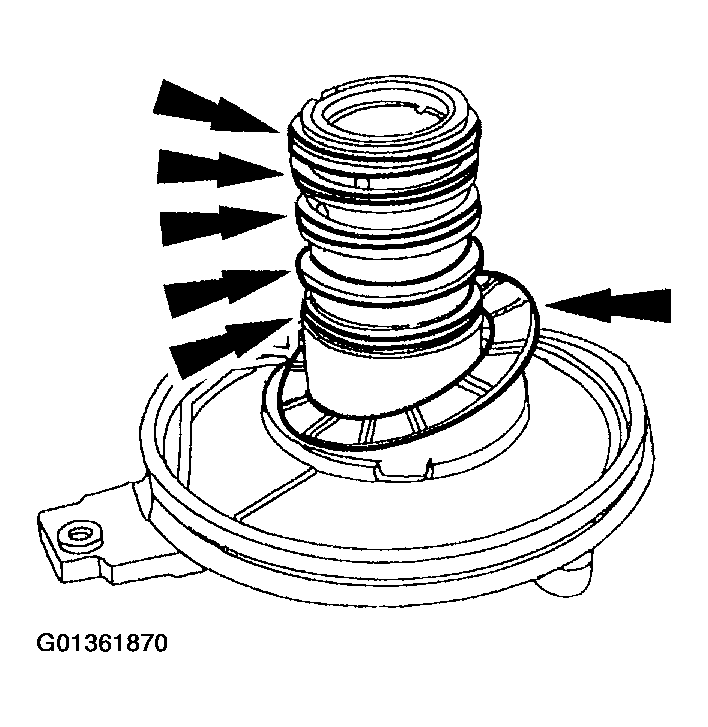

    Fig 1: Removing Teflon® Seal Rings and No. 5 Thrust Washer
    G01361870Courtesy of FORD MOTOR CO.
  2. Inspect the driven sprocket support bearing for damage. If damage is indicated install a new driven sprocket support.

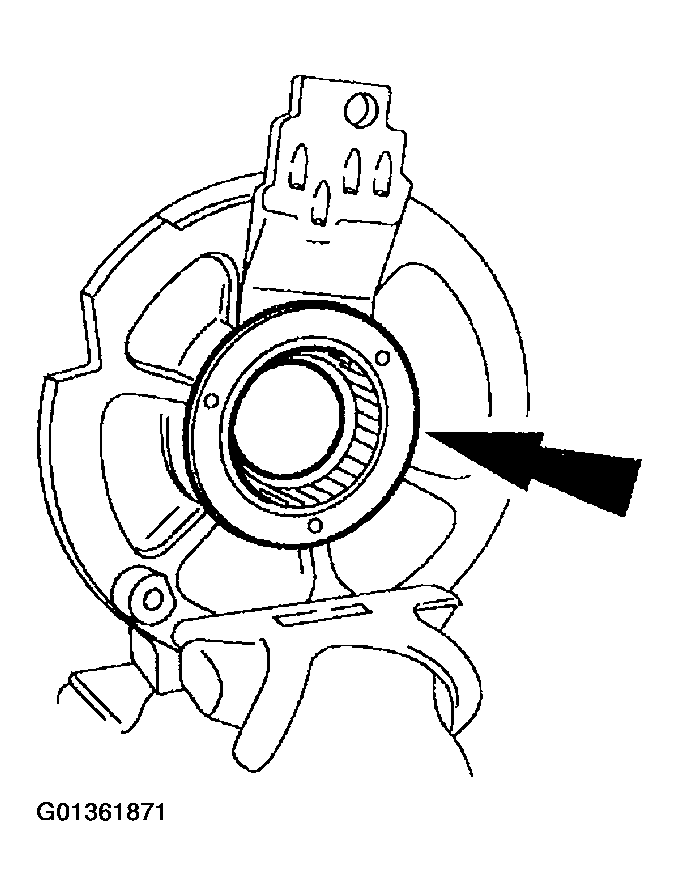

    Fig 2: Inspecting Driven Sprocket Support Bearing For Damage
    G01361871Courtesy of FORD MOTOR CO.
