PINPOINT TEST G: FLASH CODE 2 - BRAKE PEDAL POSITION (BPP) SWITCH CIRCUIT FAILURE

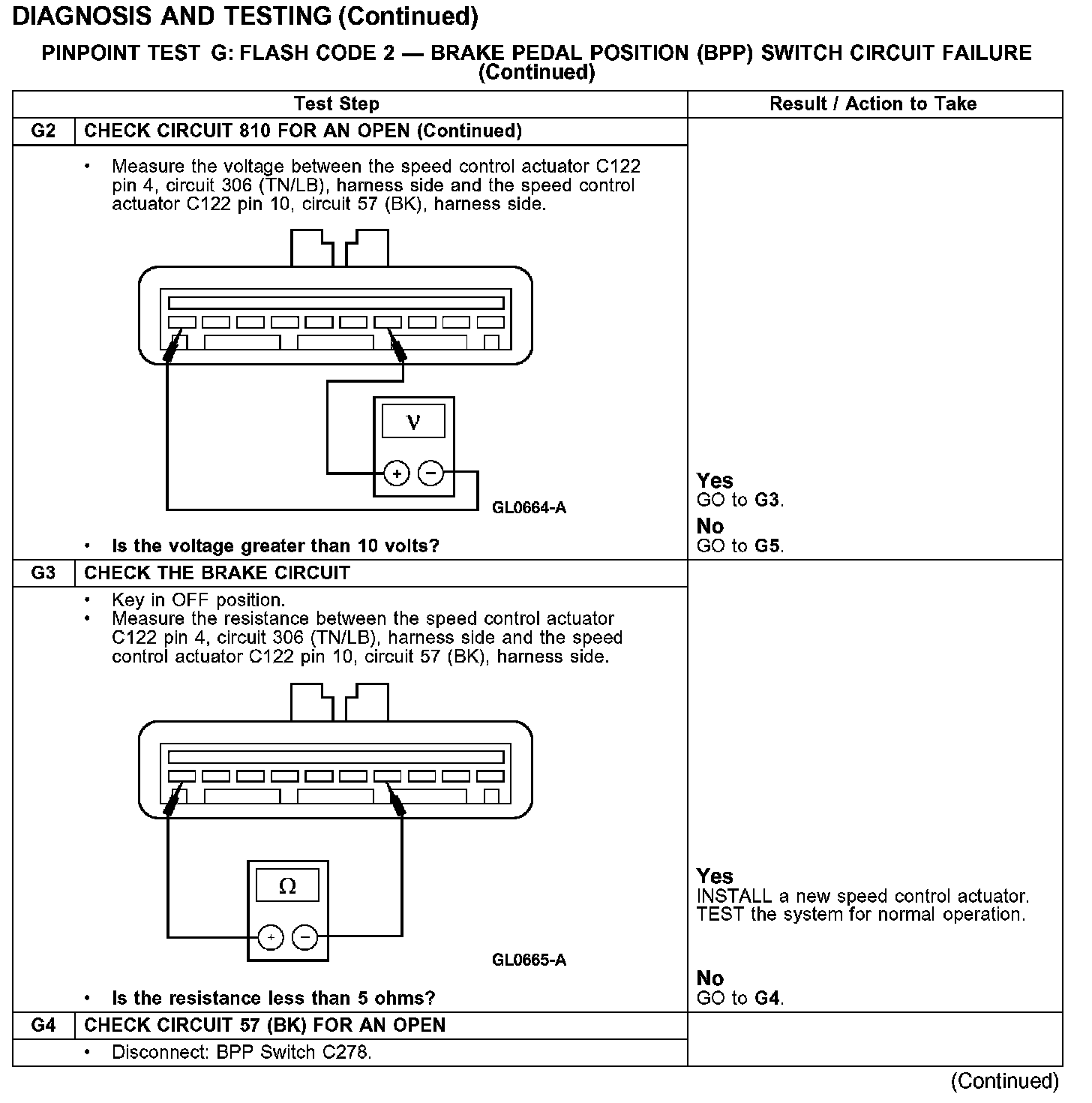

Test G1-G2:
Test G2-G4:

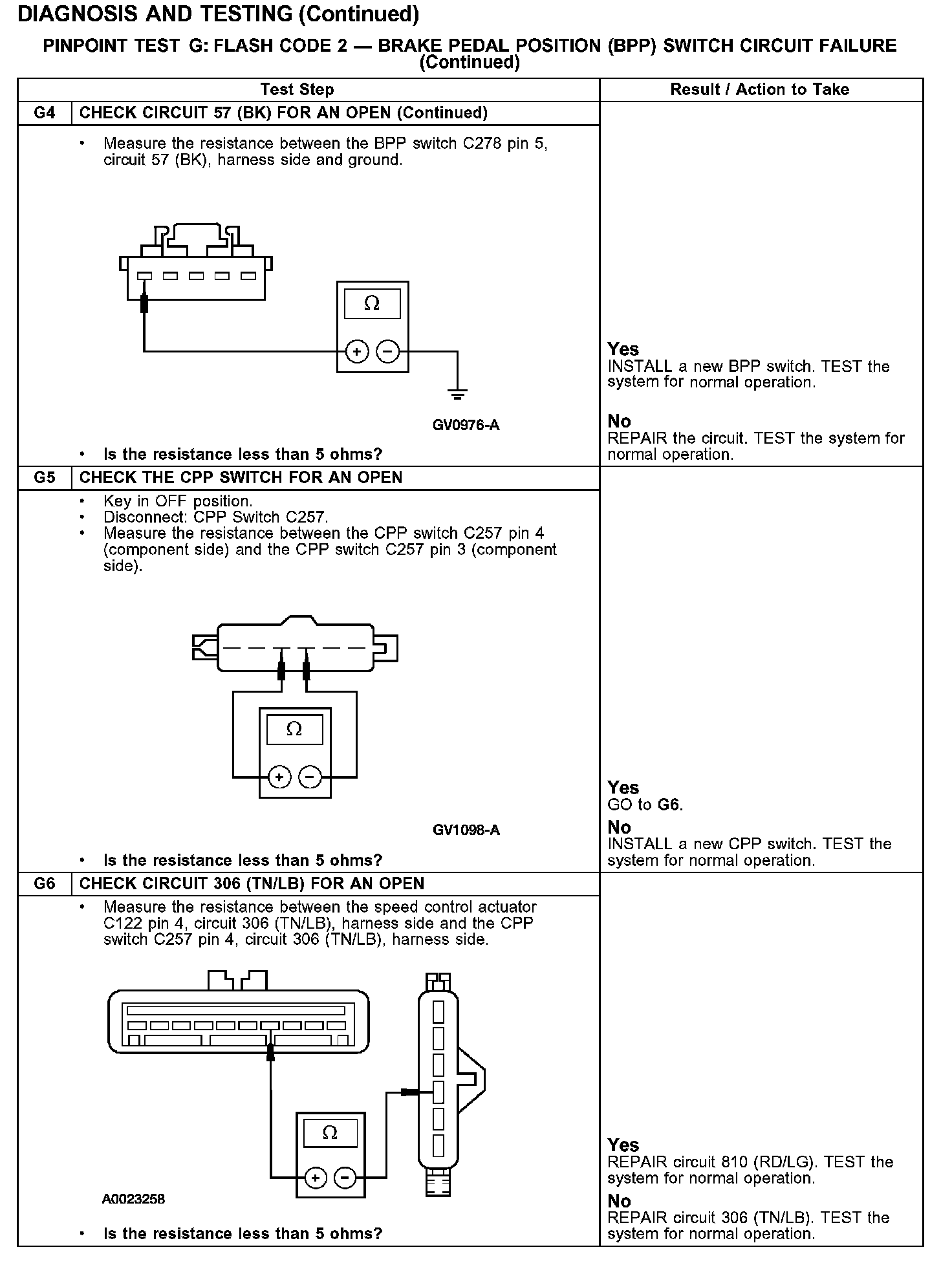

Test G4-G6:
