Automatic Transmission/Transaxle

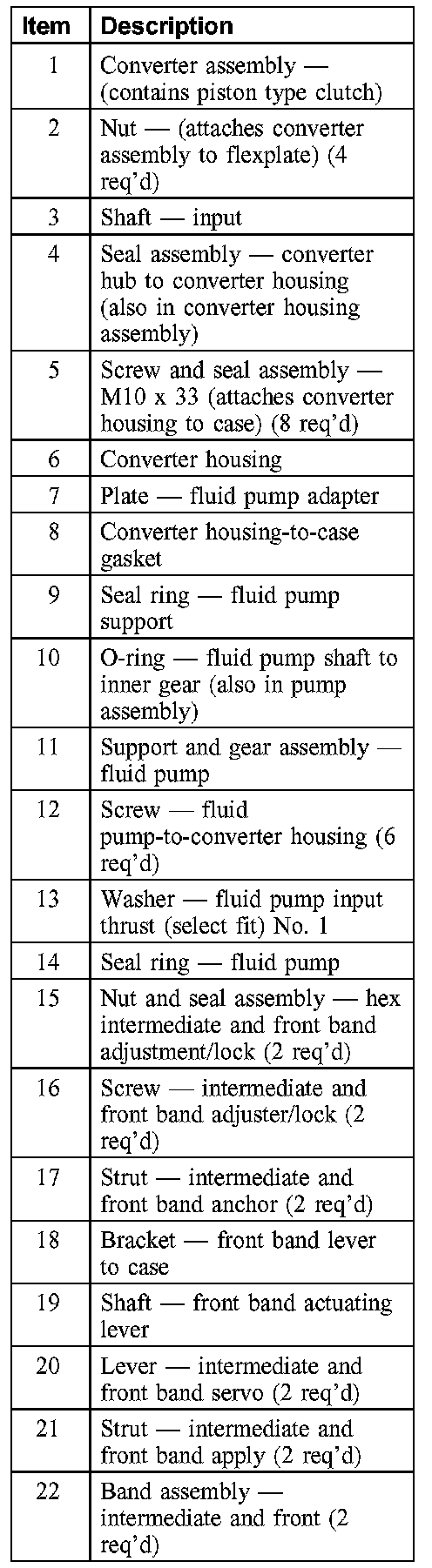

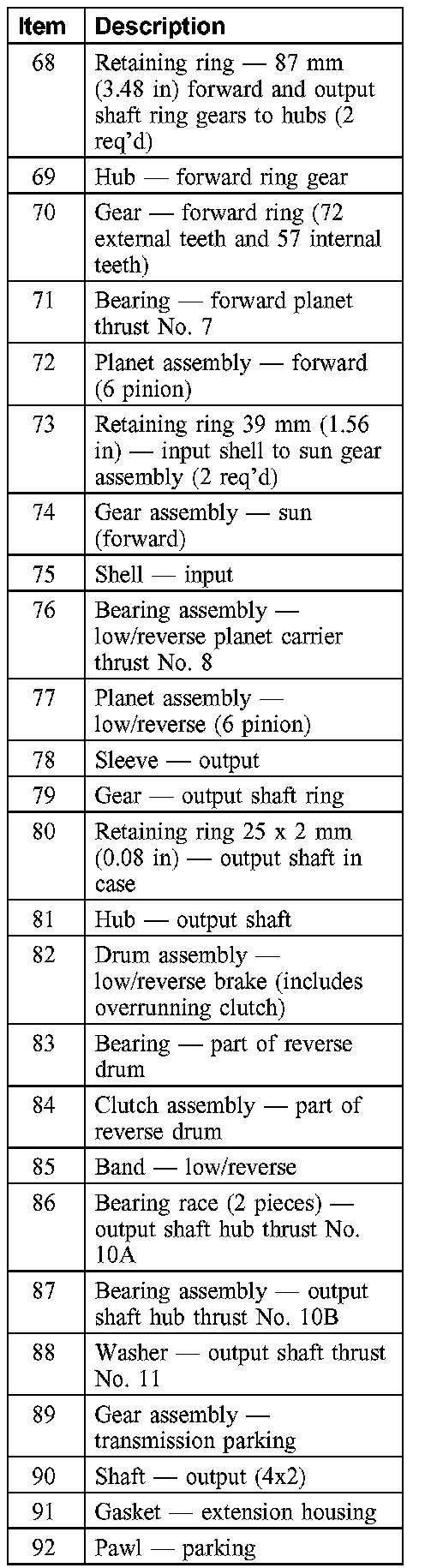

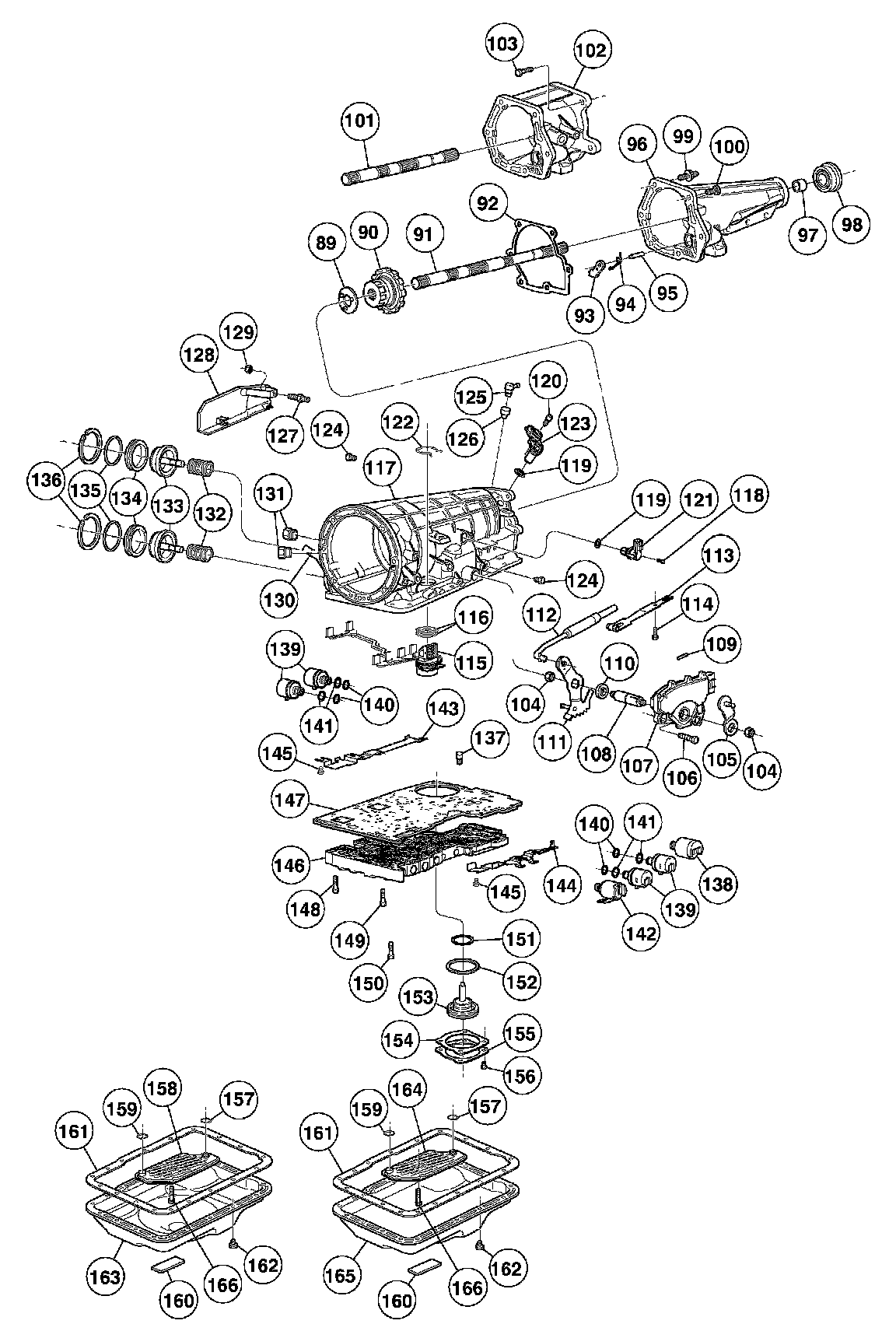

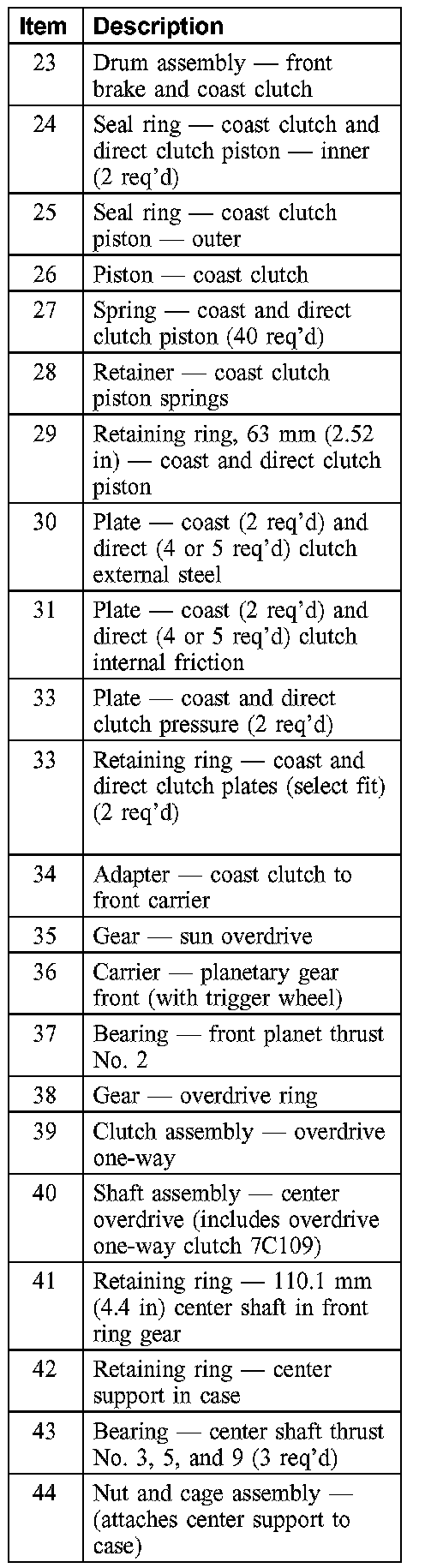

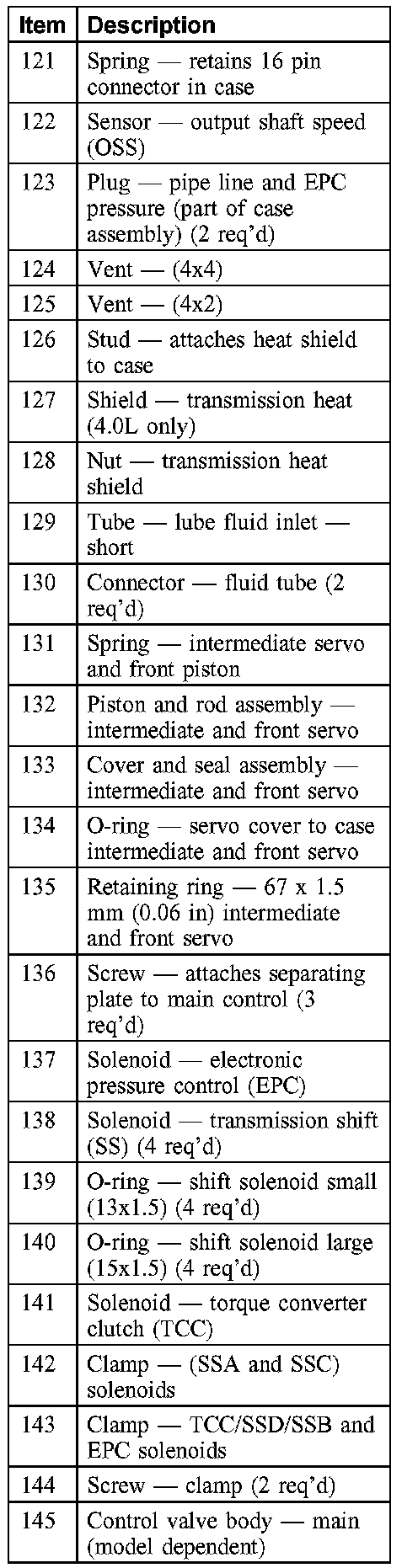

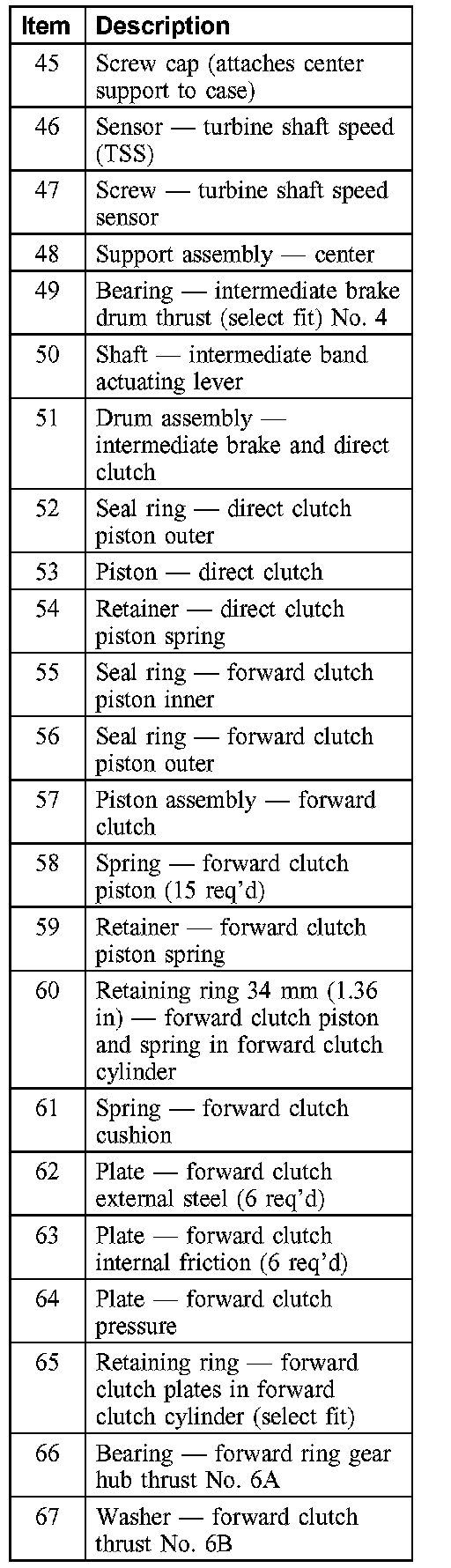

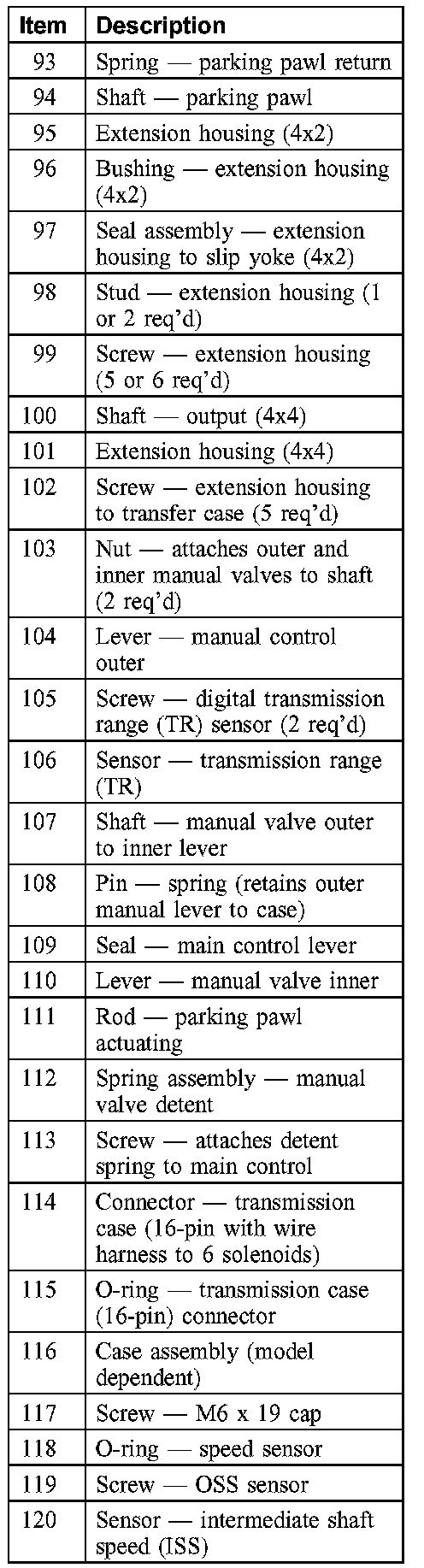

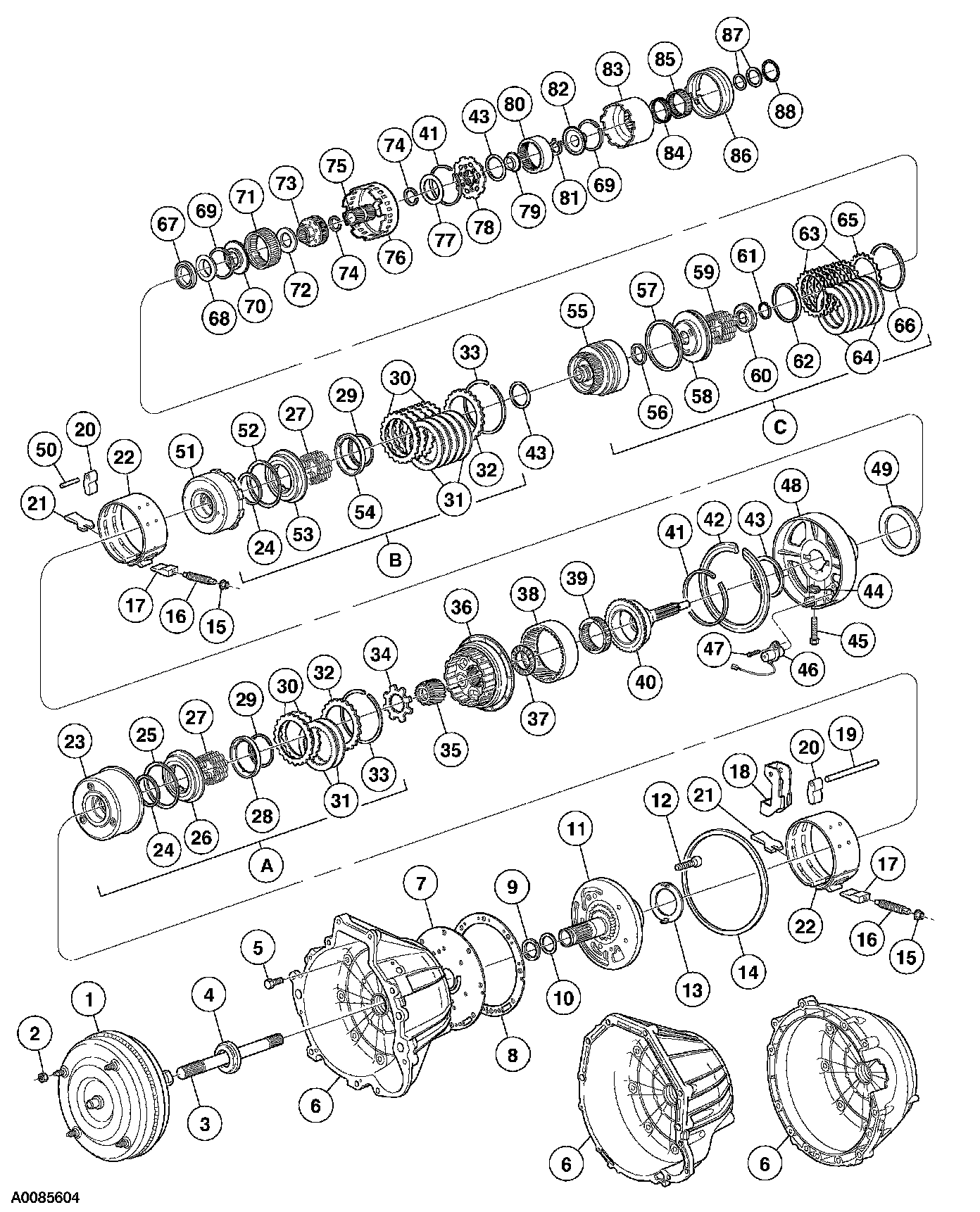

Part 1 Of 10:



Part 2 Of 10:



Part 3 of 10:



Part 4 Of 10:



Part 5 Of 10:



Part 6 Of 10:



Part 7 Of 10:



Part 8 Of 10:



Part 9 Of 10:



Part 10 Of 10:
