LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2004
>>
Ranger 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>

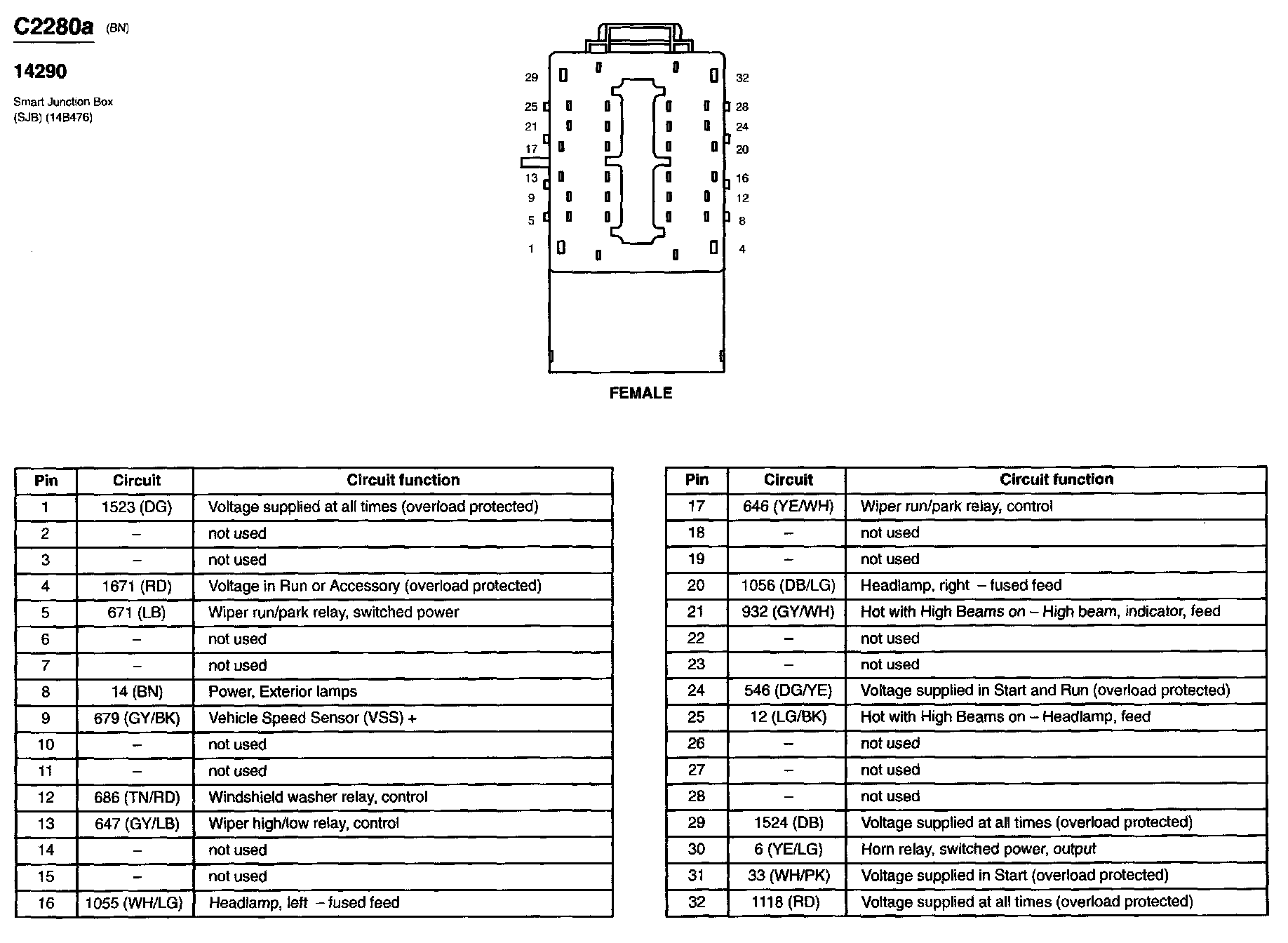

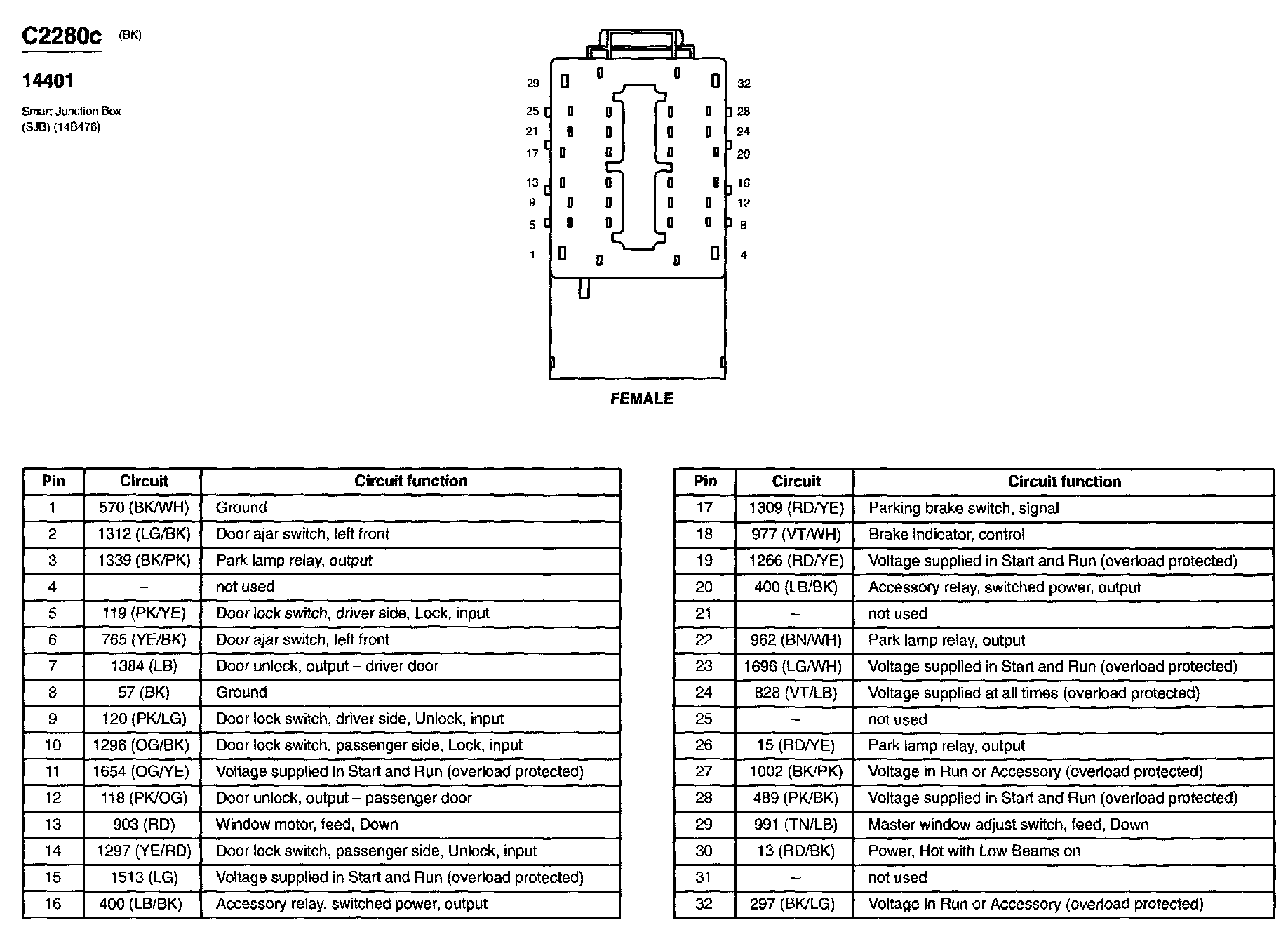

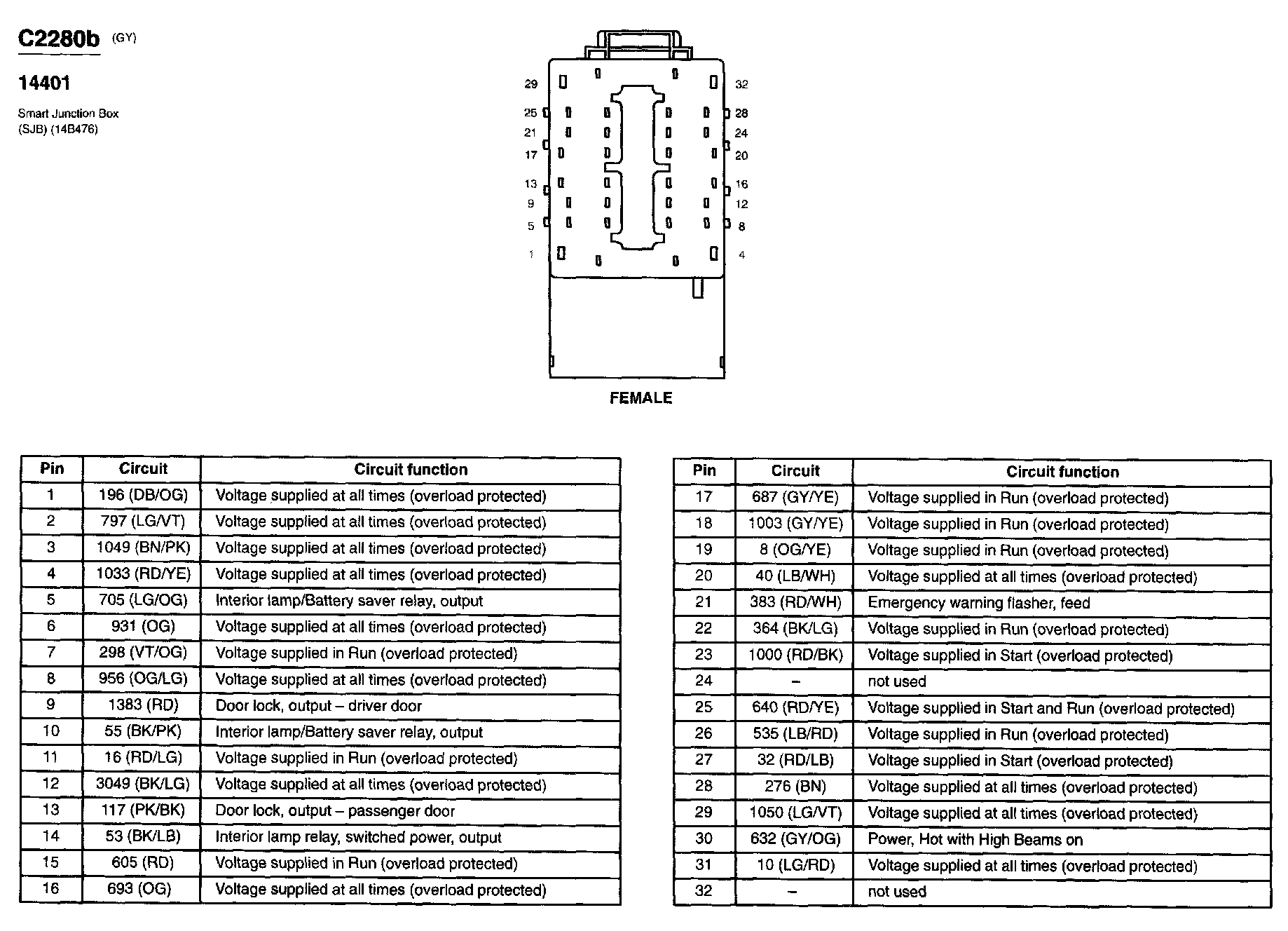

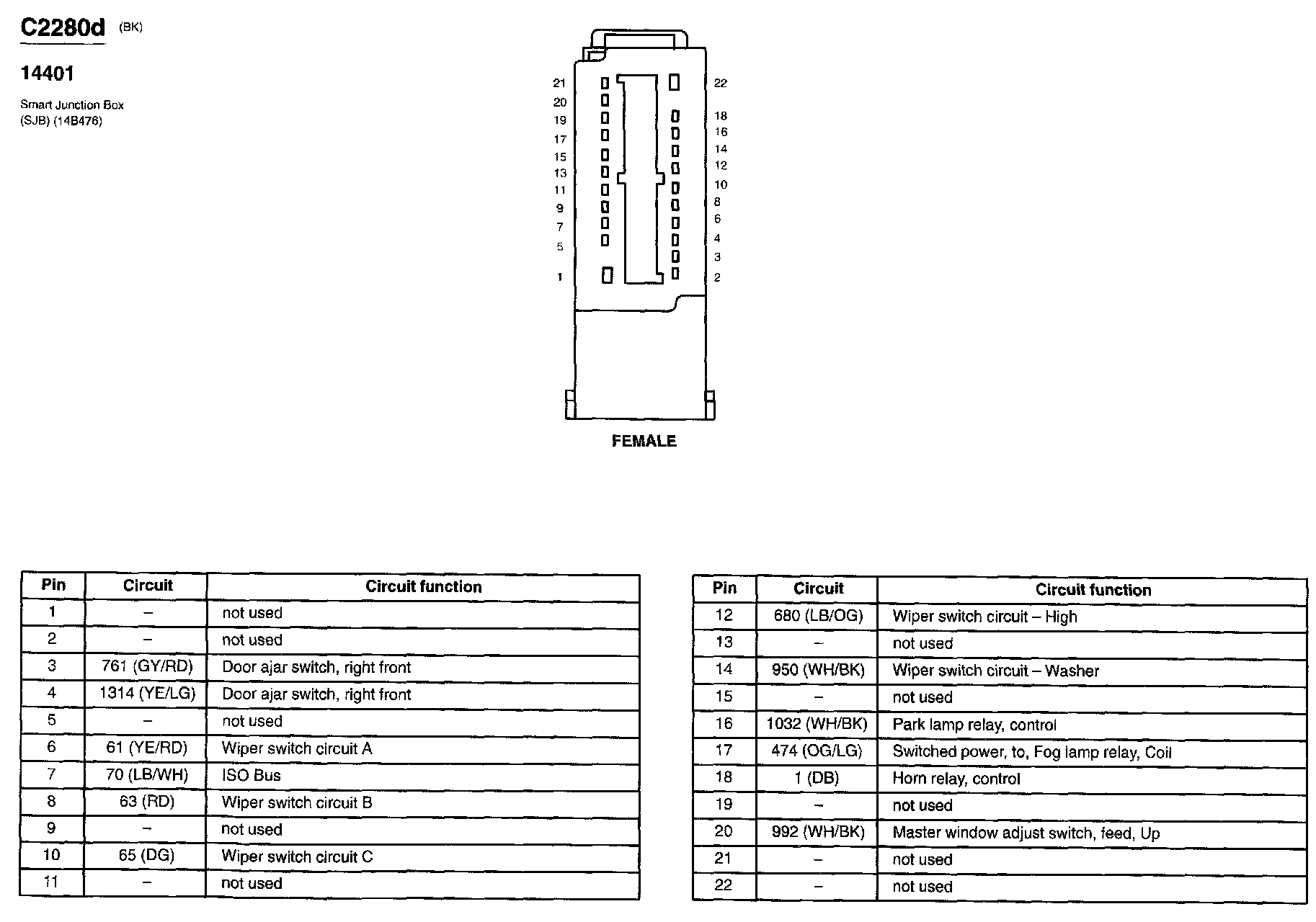

Smart Junction Box (SJB)
Smart Junction Box (SJB)
