LEMON Manuals: Even more car manuals for everyone
Home >> Ford >> 2004 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> Test J

Test J

PINPOINT TEST J: FLASH CODE 4 - SPEED SIGNAL CIRCUIT FAILURE

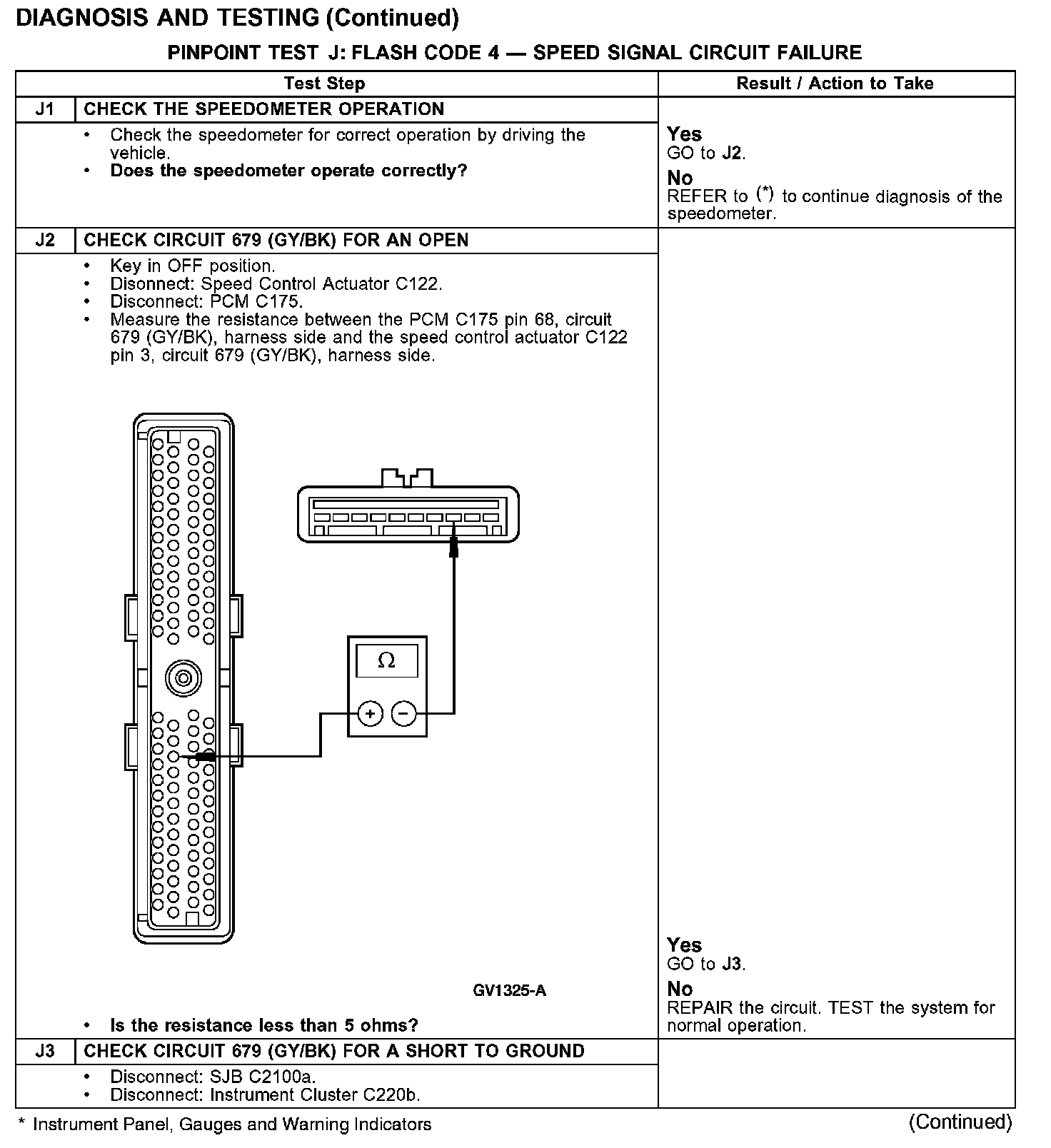

Test J1-J3:

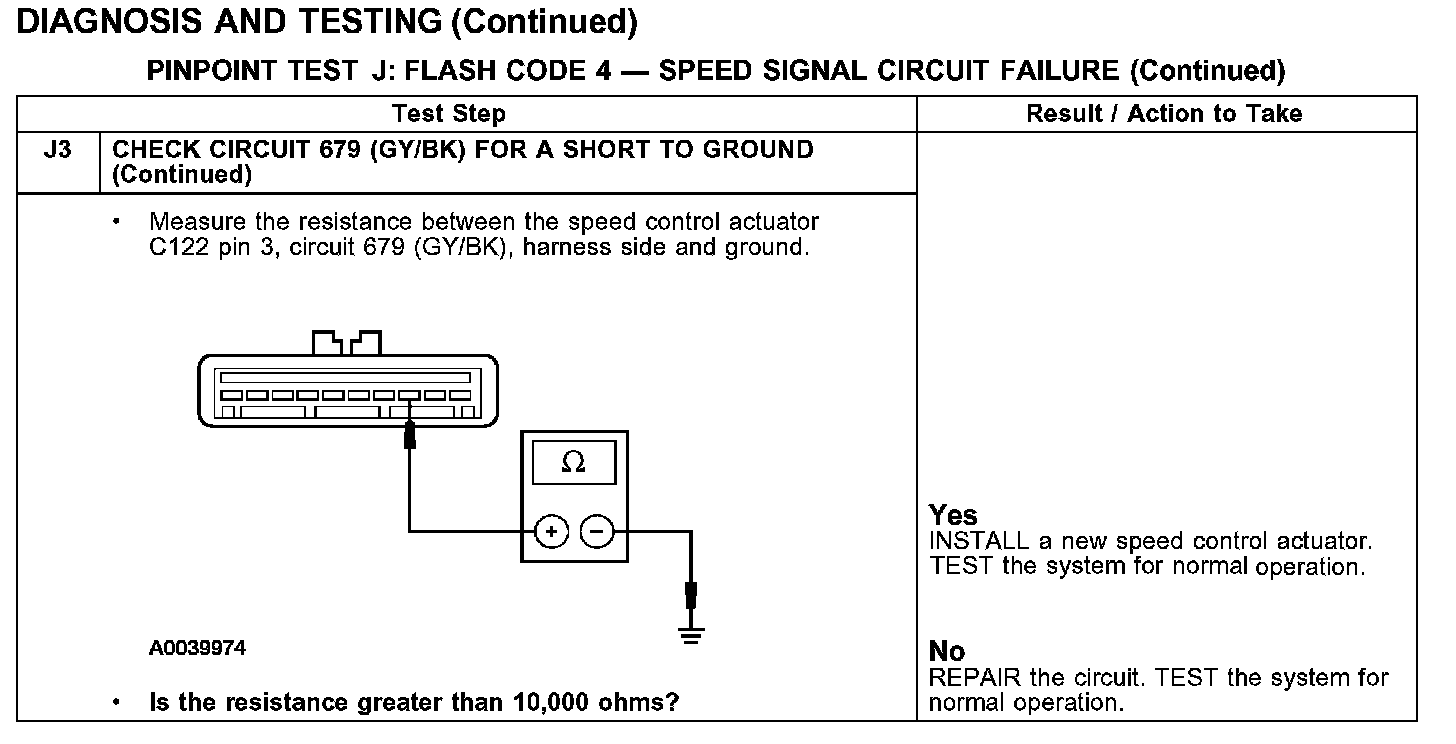

Test J3 Continued:
