Test A

PINPOINT TEST A: THE SPEED CONTROL IS INOPERATIVE

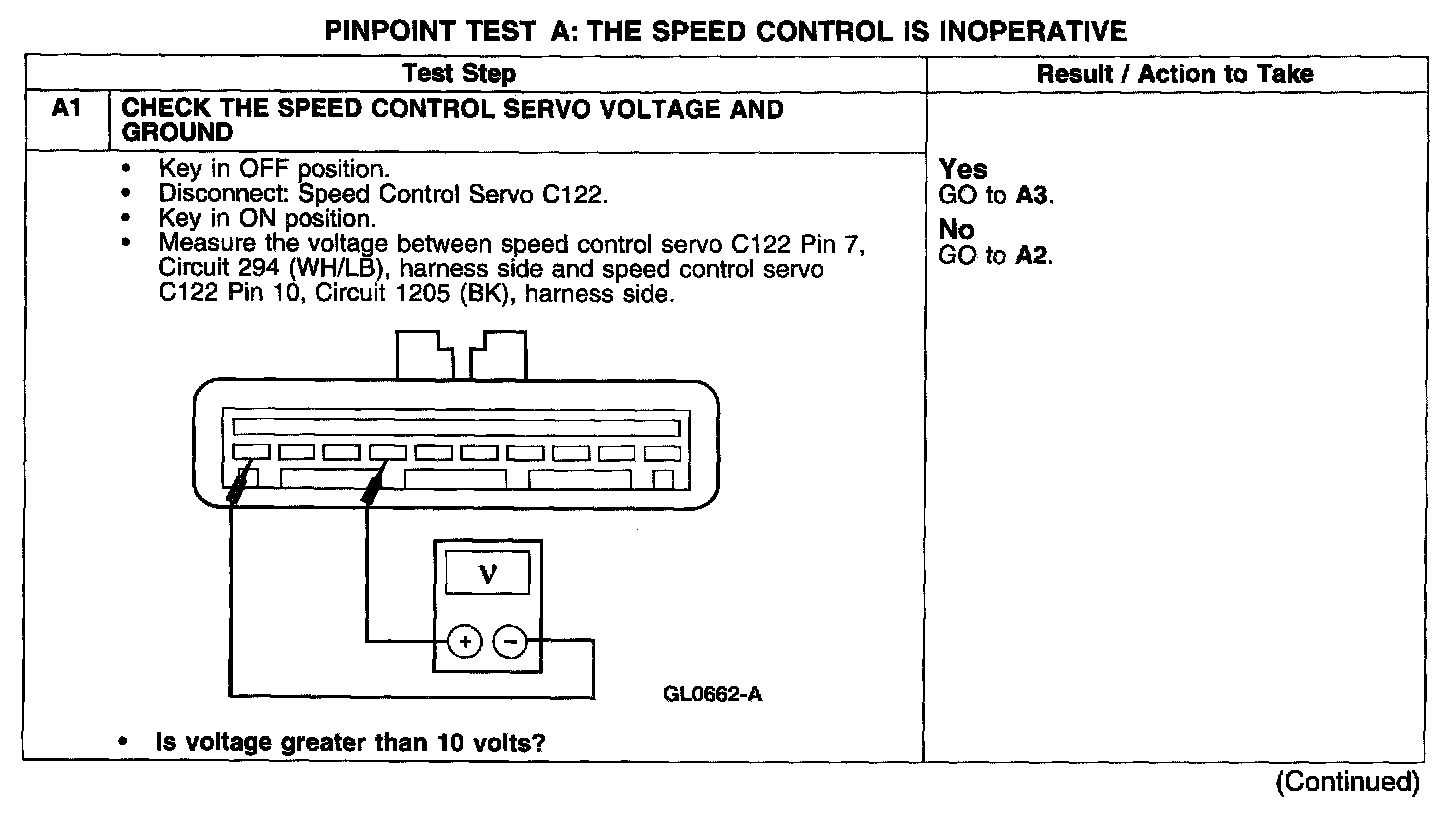

Test A1:

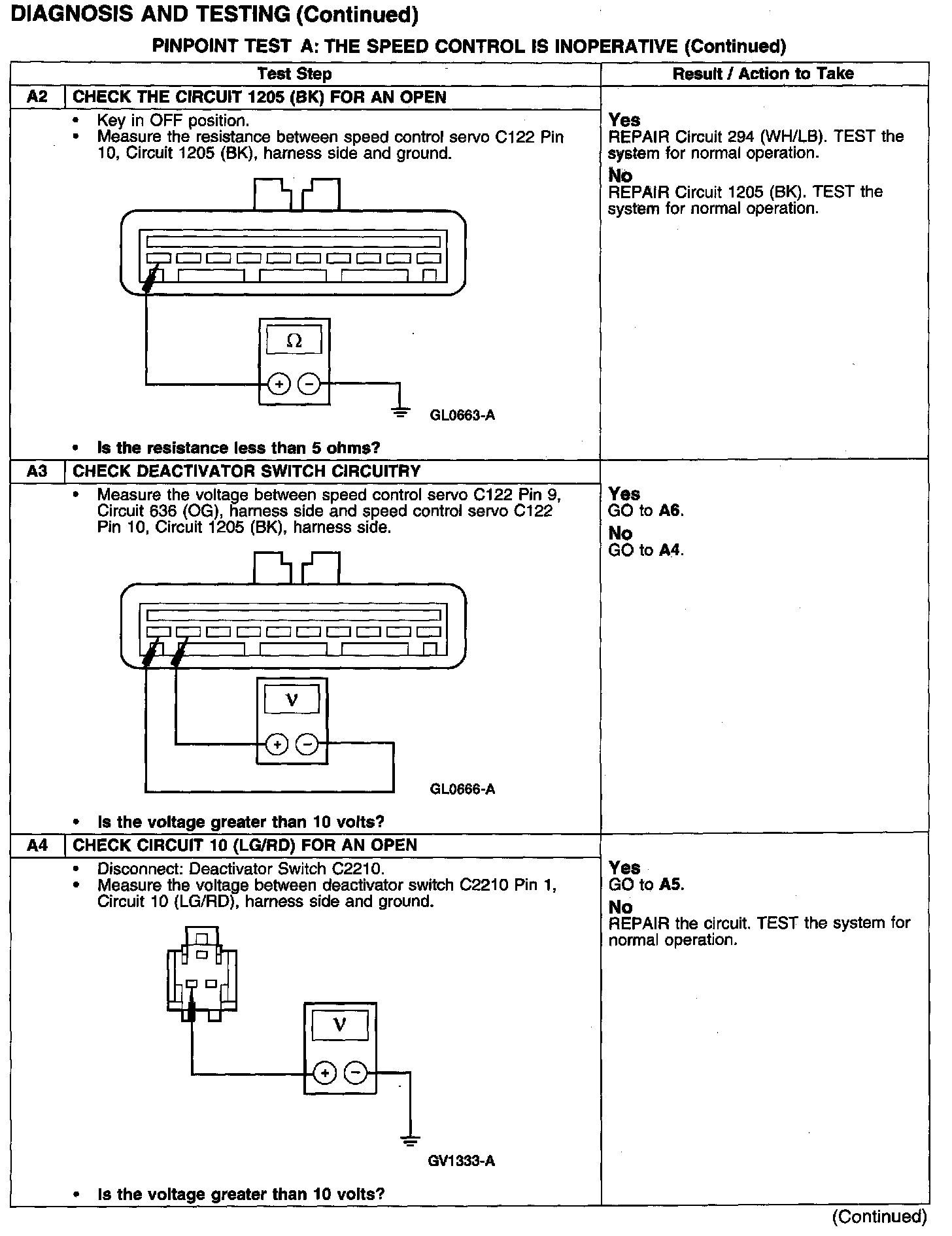

Test A2-A4:

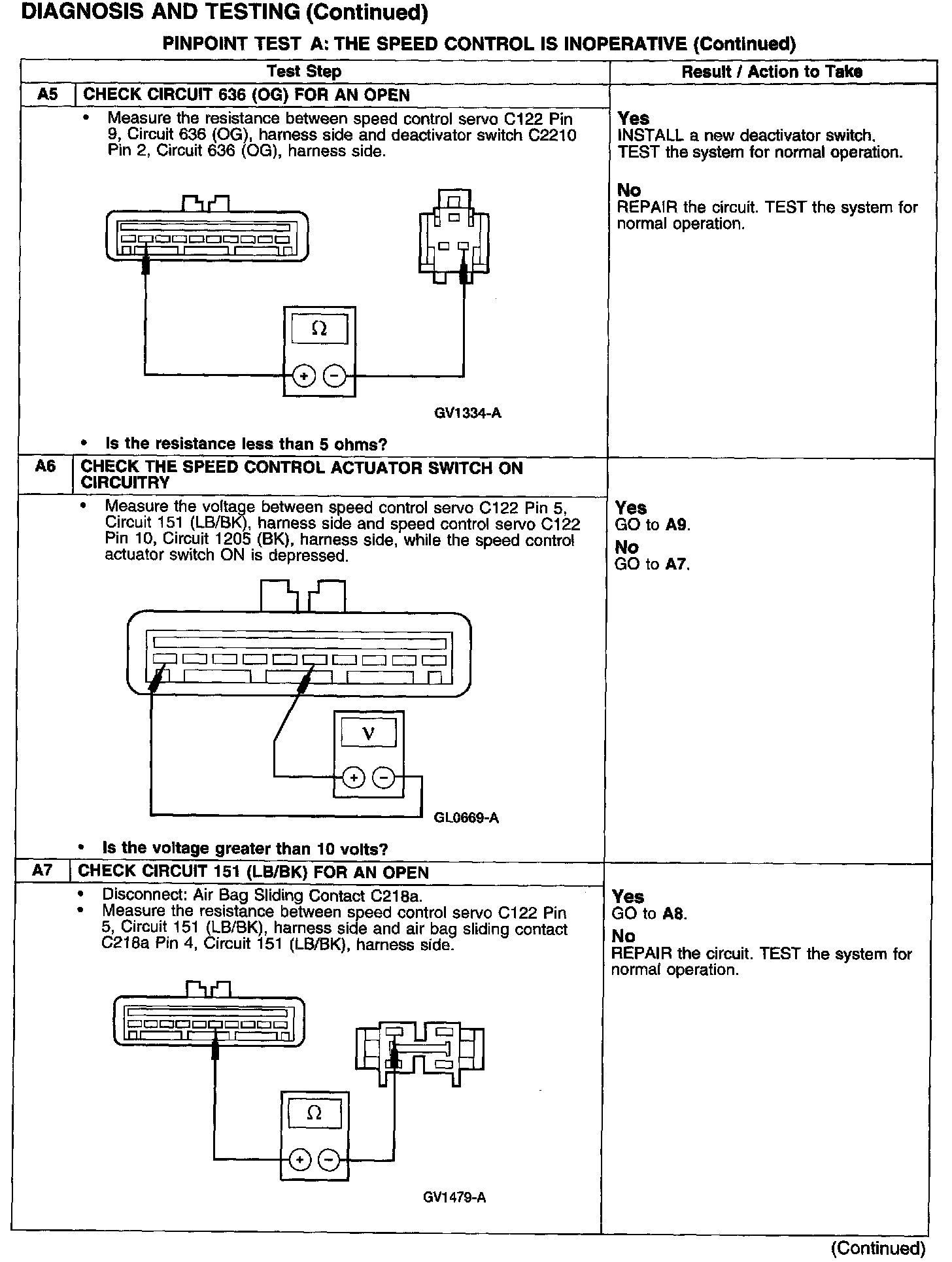

Test A5-A7:

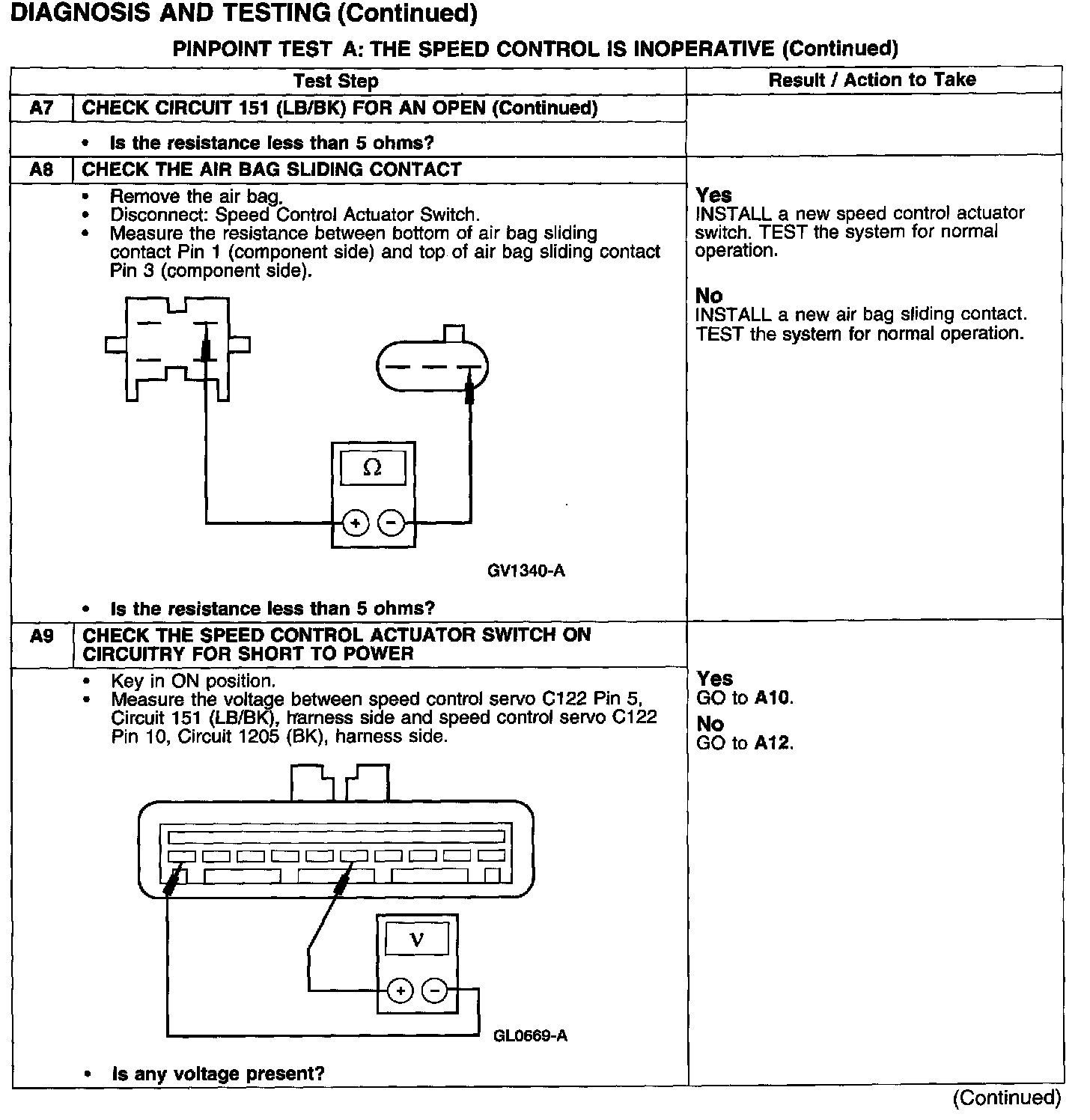

Test A7-A9:

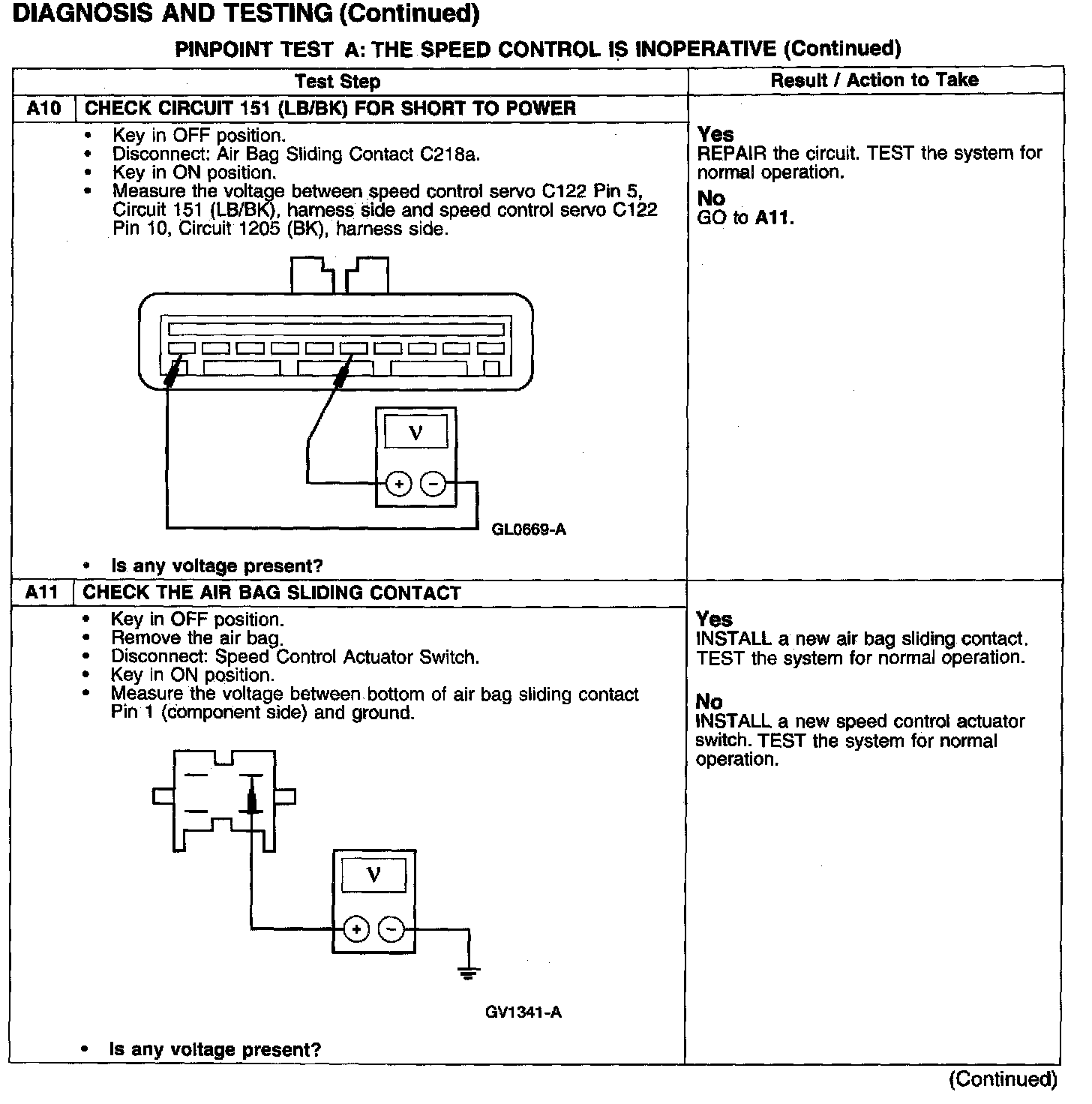

Test A10-A11:

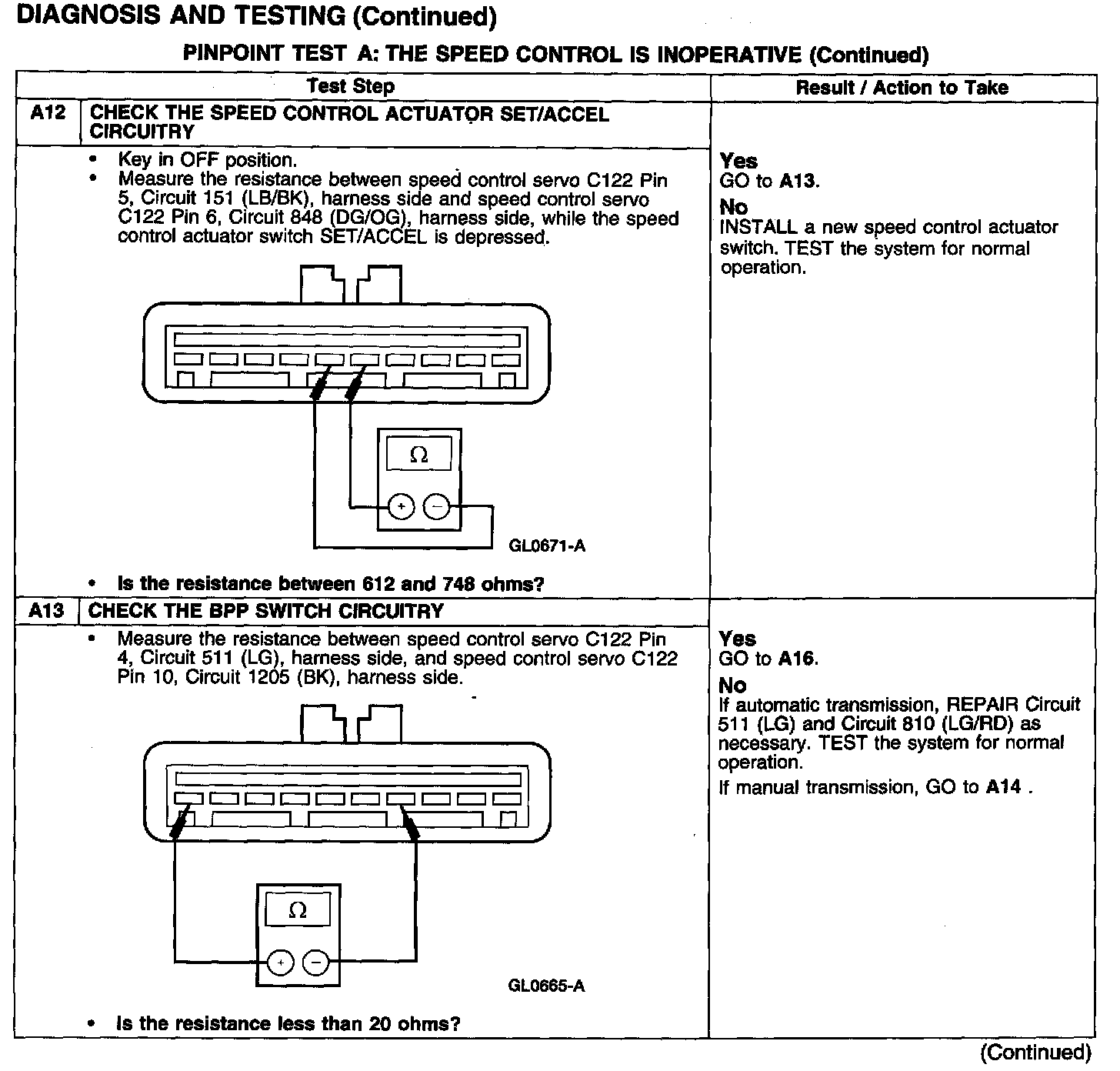

Test A12-A13:

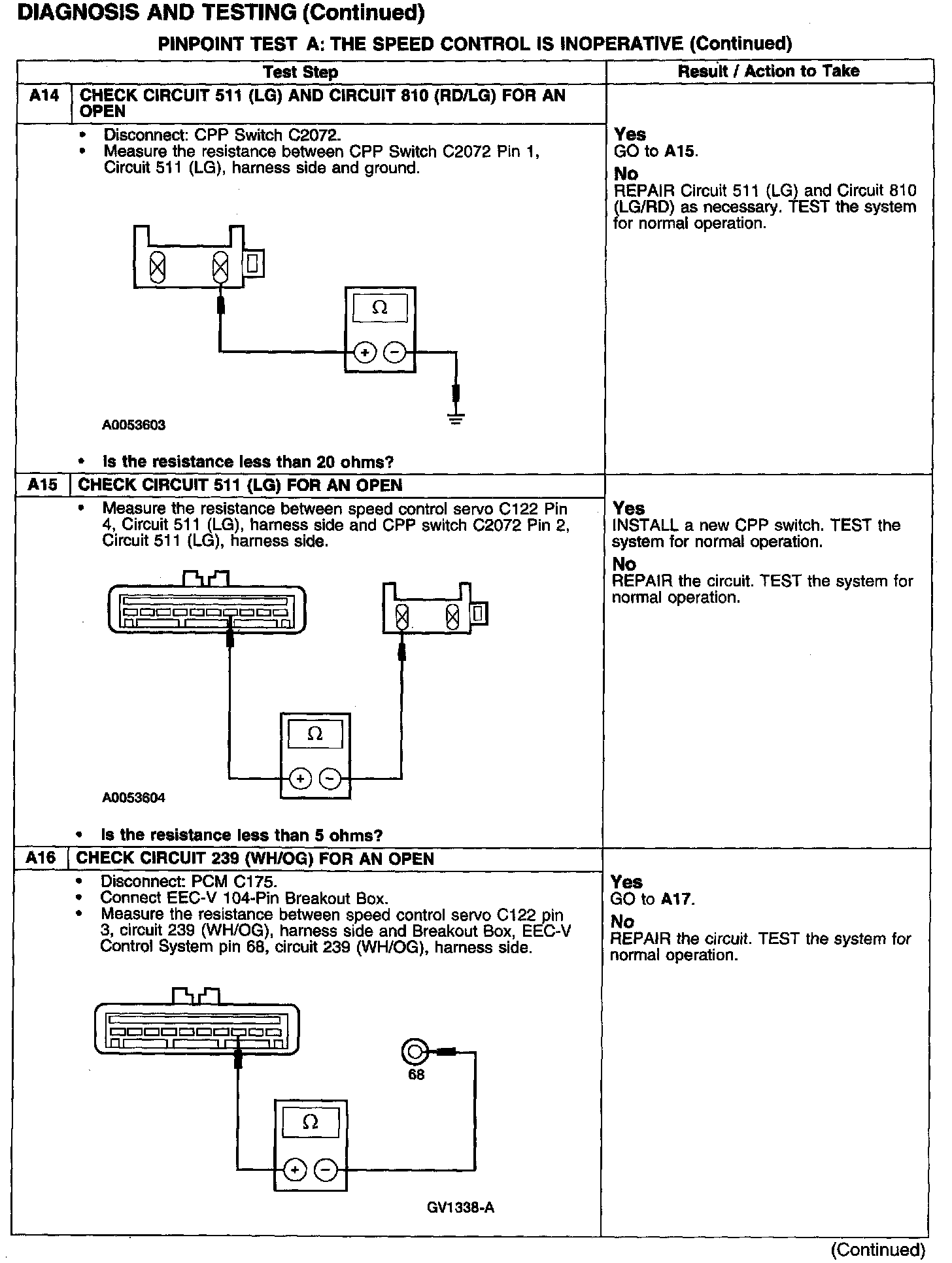

Test A14-A16:

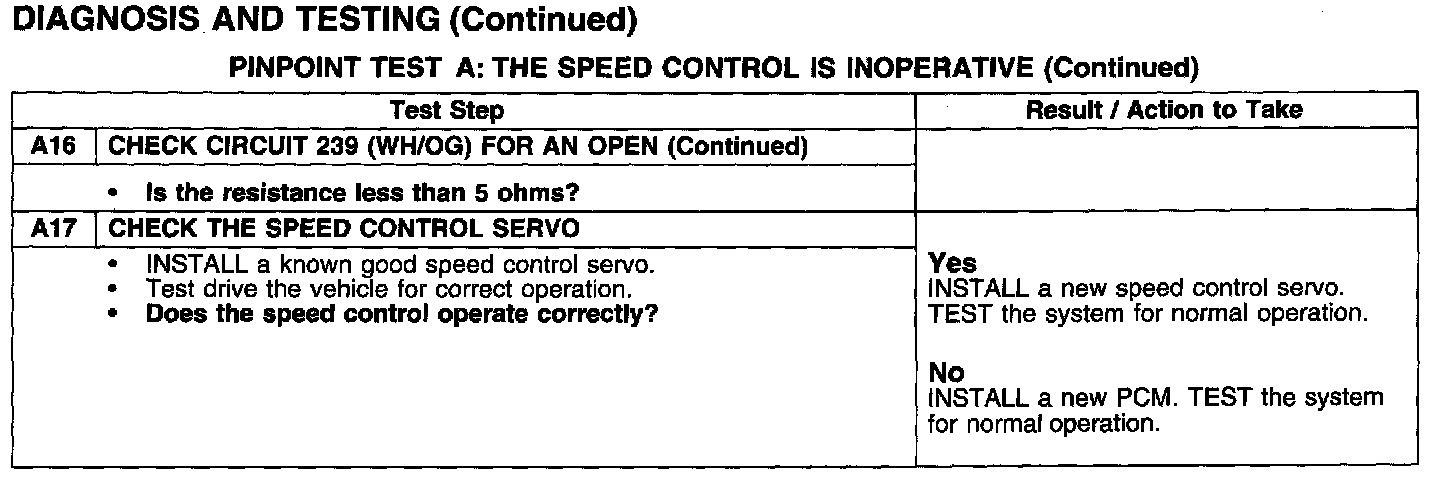

Test A16-A17:
