Home >> Ford >> 2004 >> Freestar V6-4.2L VIN 2 >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Blower Motor Speed Control Module C271

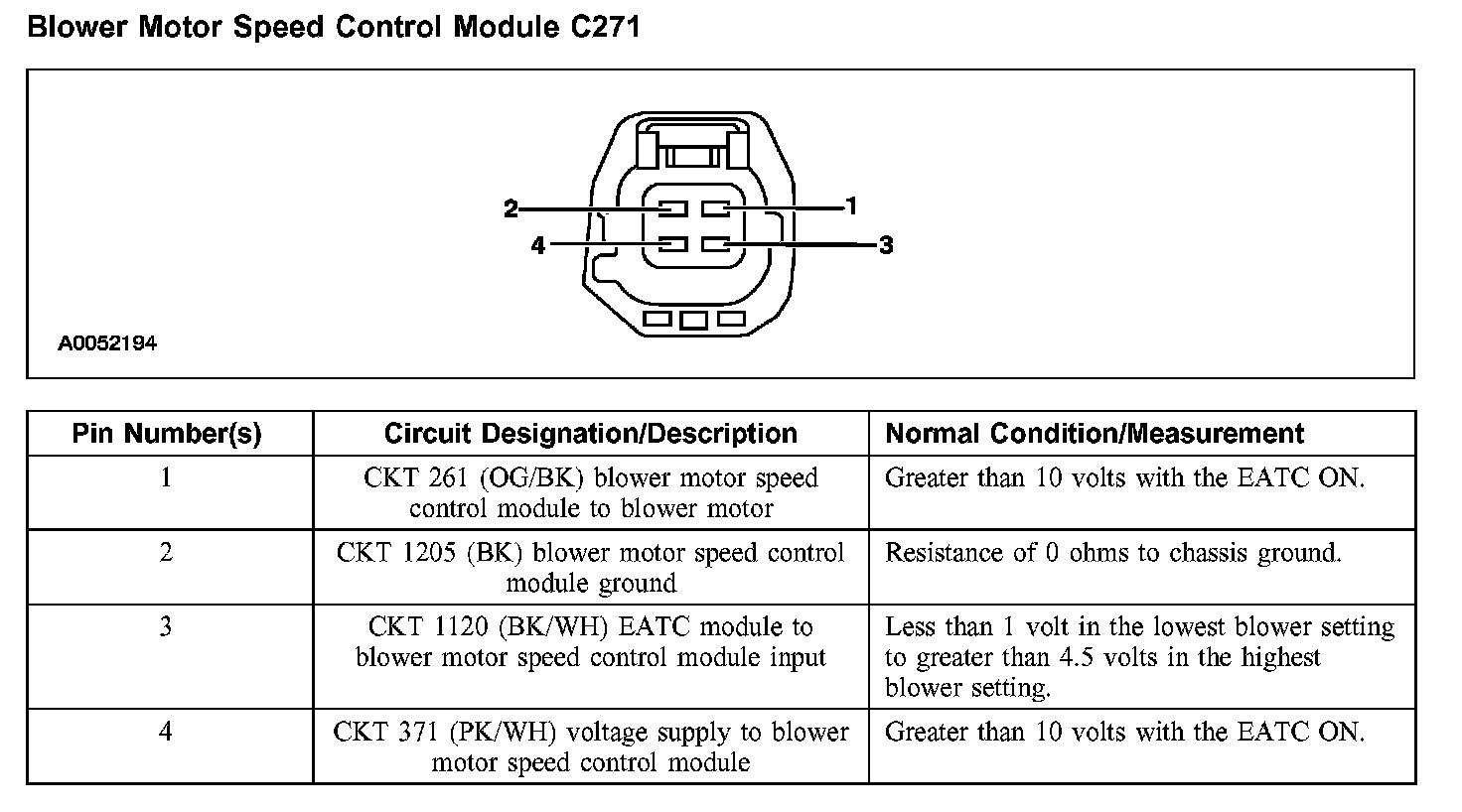

Blower Motor Speed Control Module C271

Blower Motor Speed Control Module C271:
