Home >> Ford >> 2004 >> Freestar V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Brake Master Cylinder

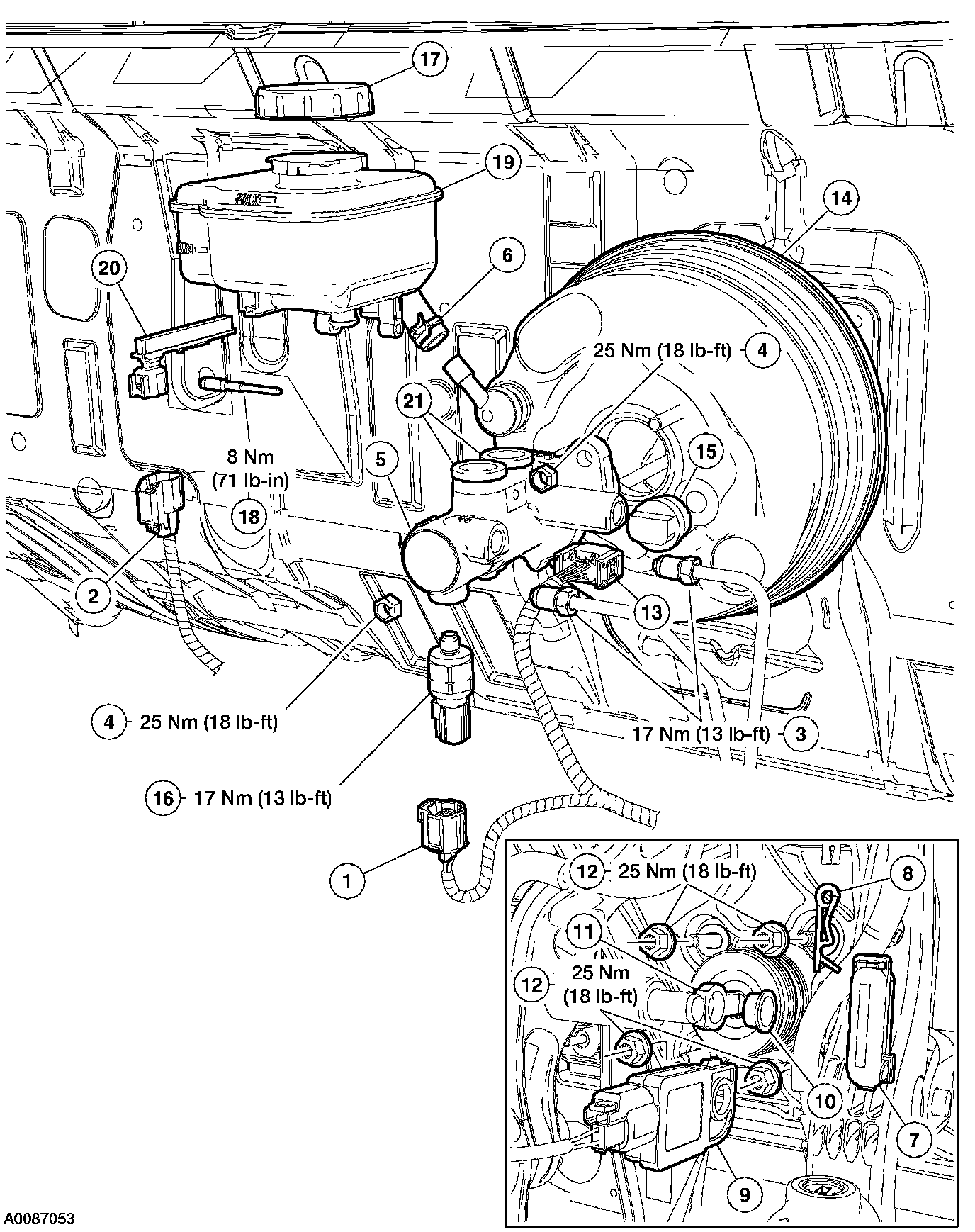

Brake Master Cylinder

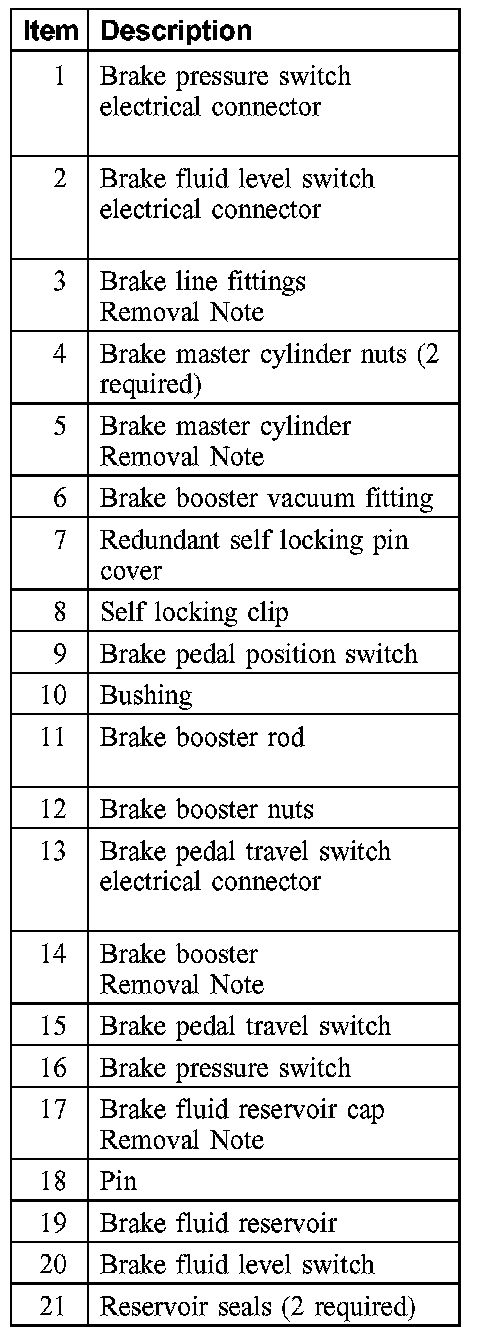

Part 1 Of 2:



Part 2 Of 2:
