Home >> Ford >> 2004 >> Freestar V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Sliding Door Module >> RH Side

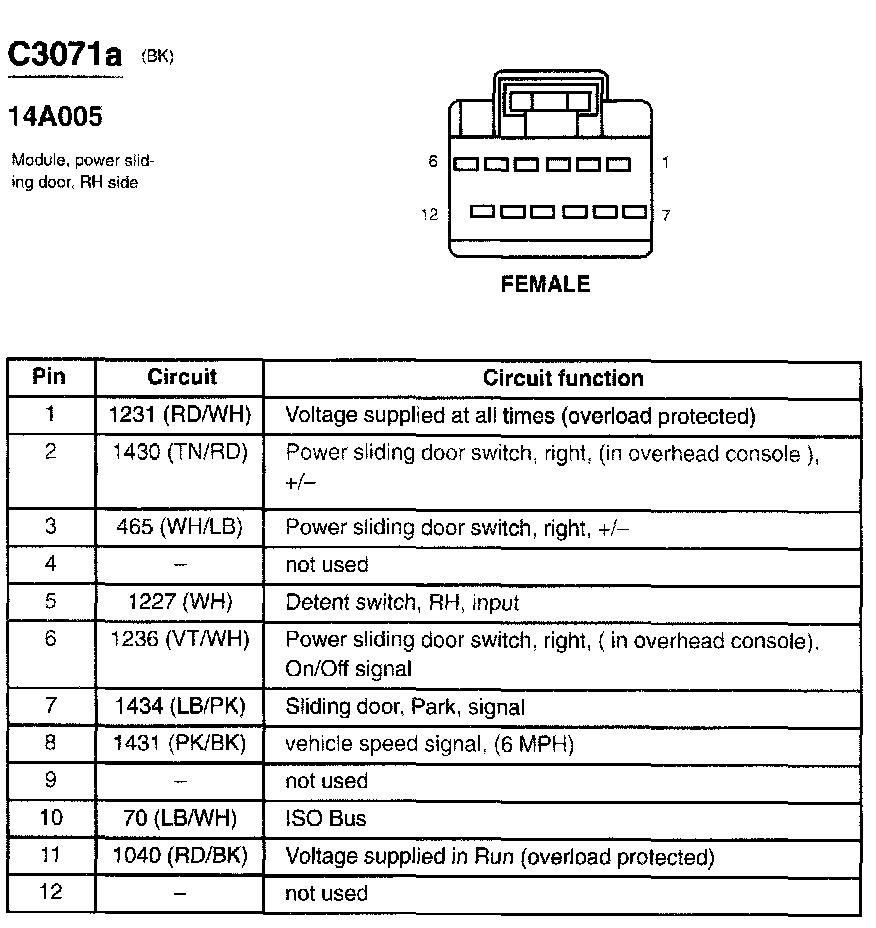

RH Side
