Test A

PINPOINT TEST A: THE ENGINE DOES NOT CRANK BUT THE RELAY CLICKS


Test A1-A2:

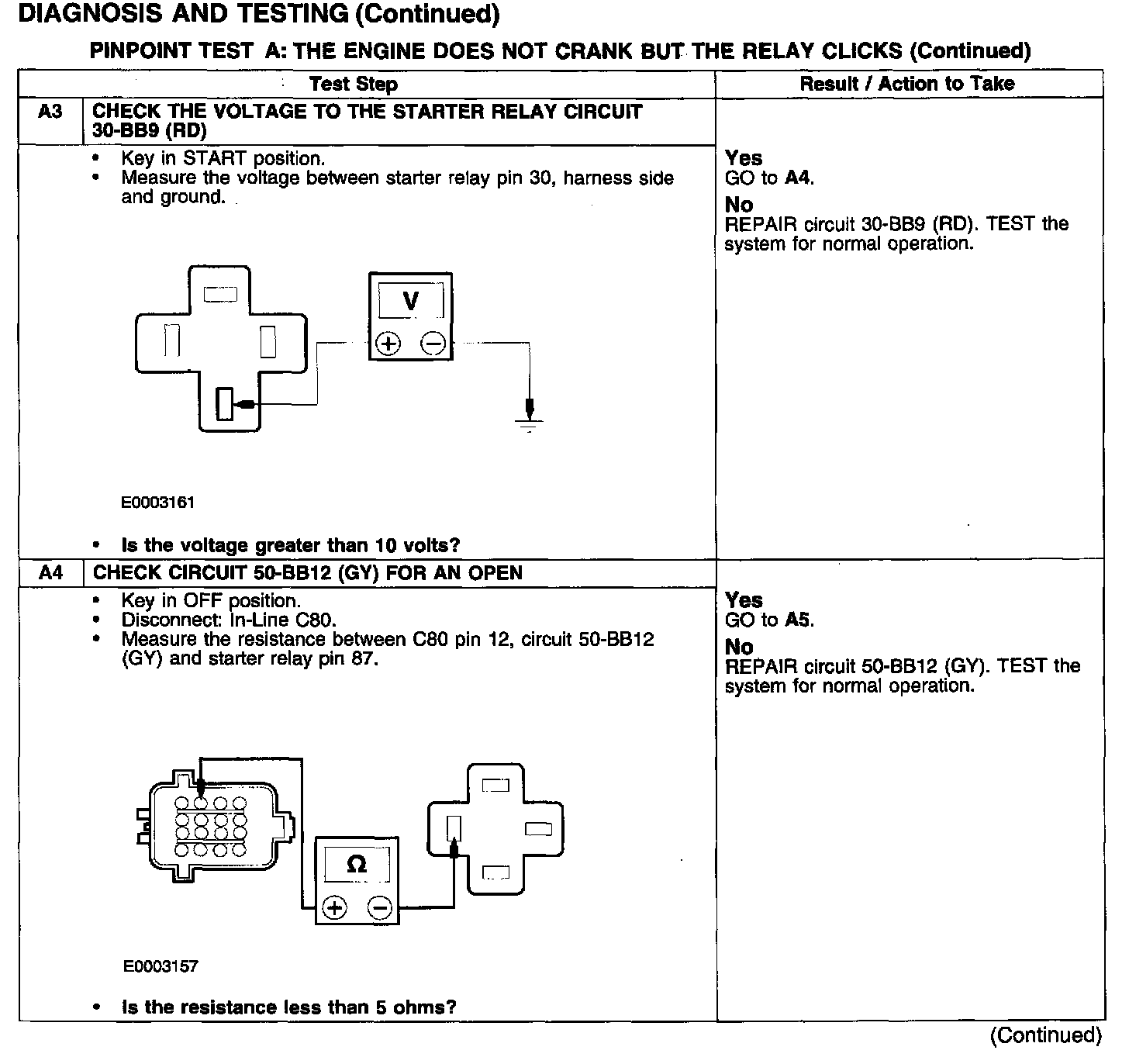

Test A3-A4:

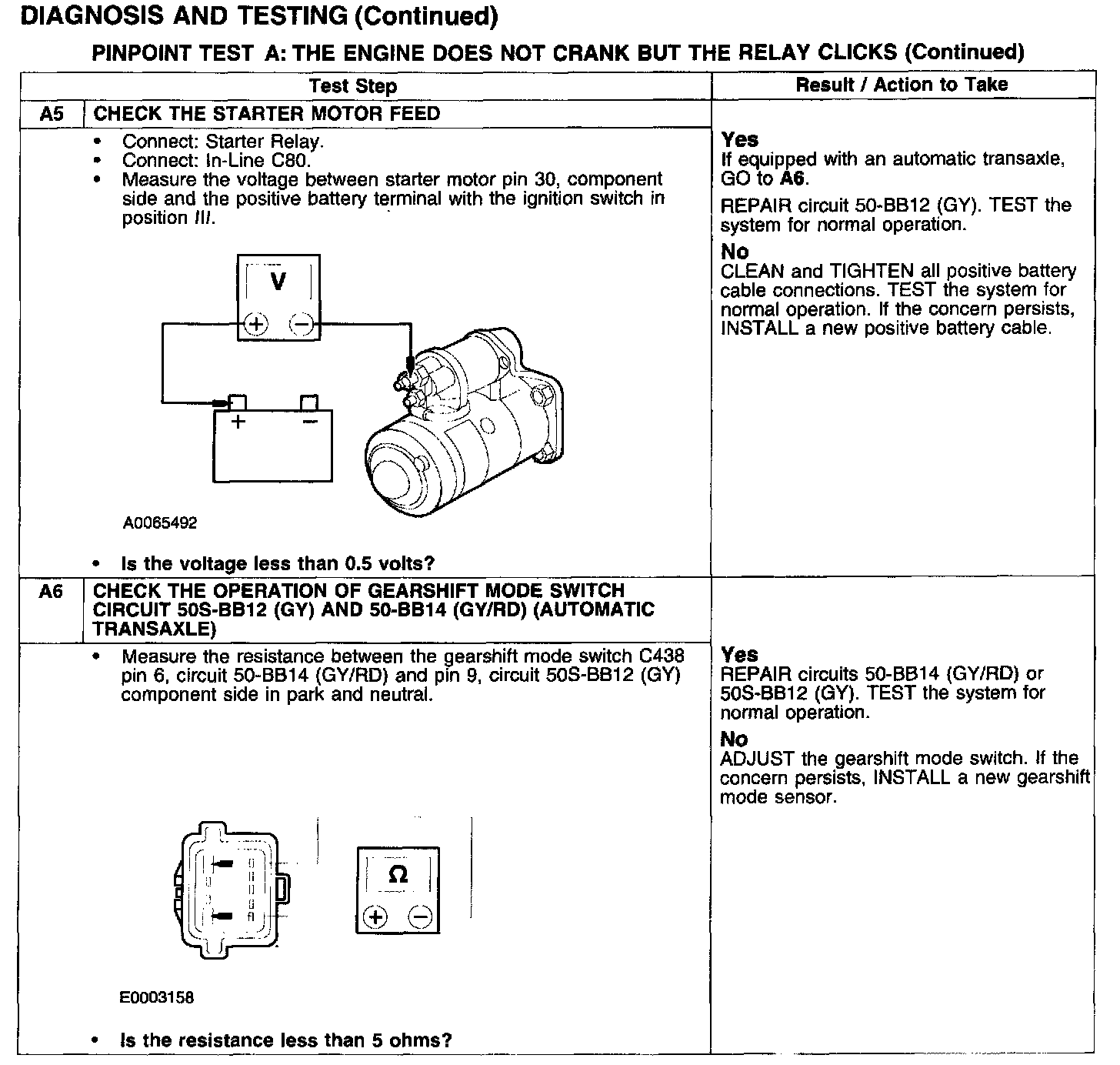

Test A5-A6:
