Test A
Test A
PINPOINT TEST A: THE
CHARGING SYSTEM
WARNING INDICATOR IS ON WITH THE ENGINE RUNNING

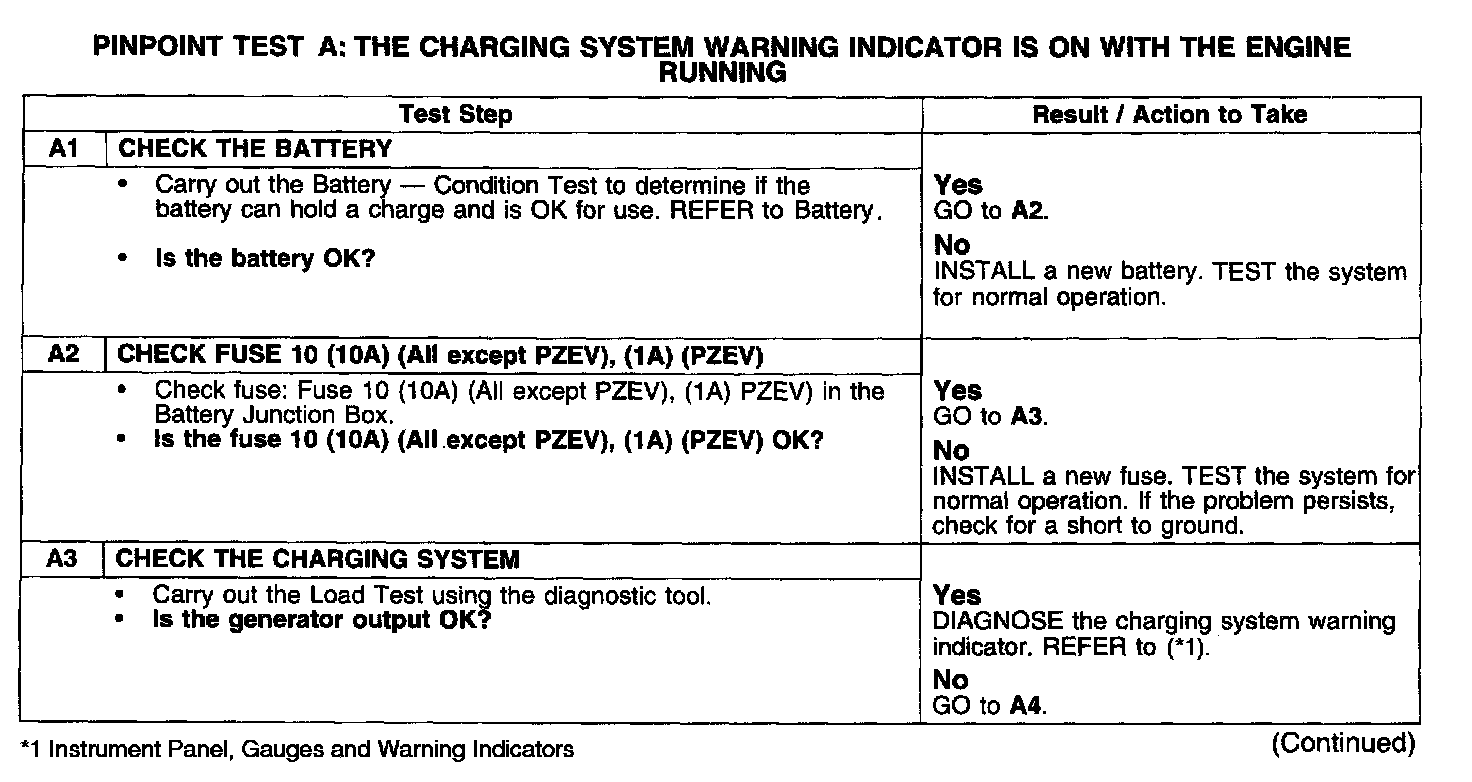

Test A1-A3:

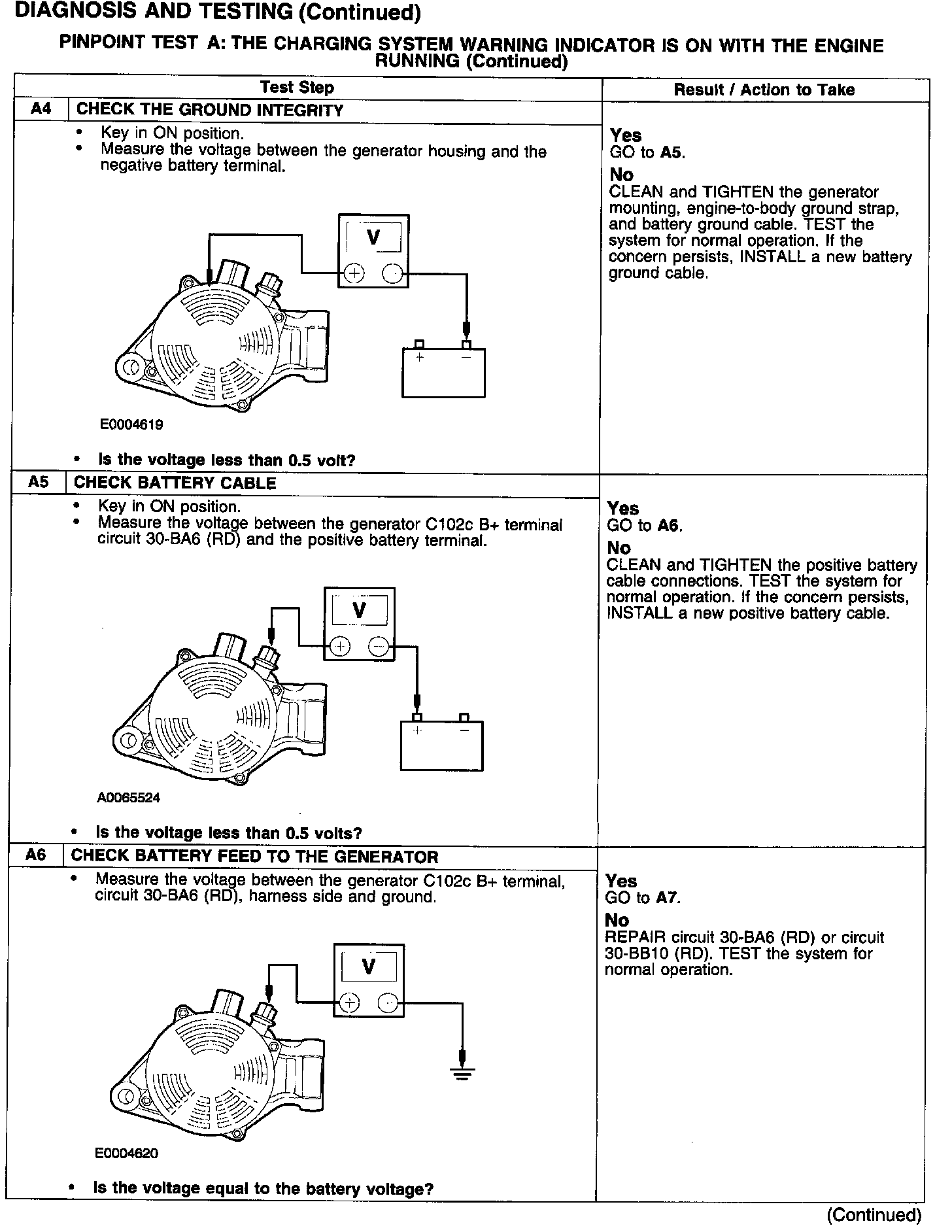

Test A4-A6:

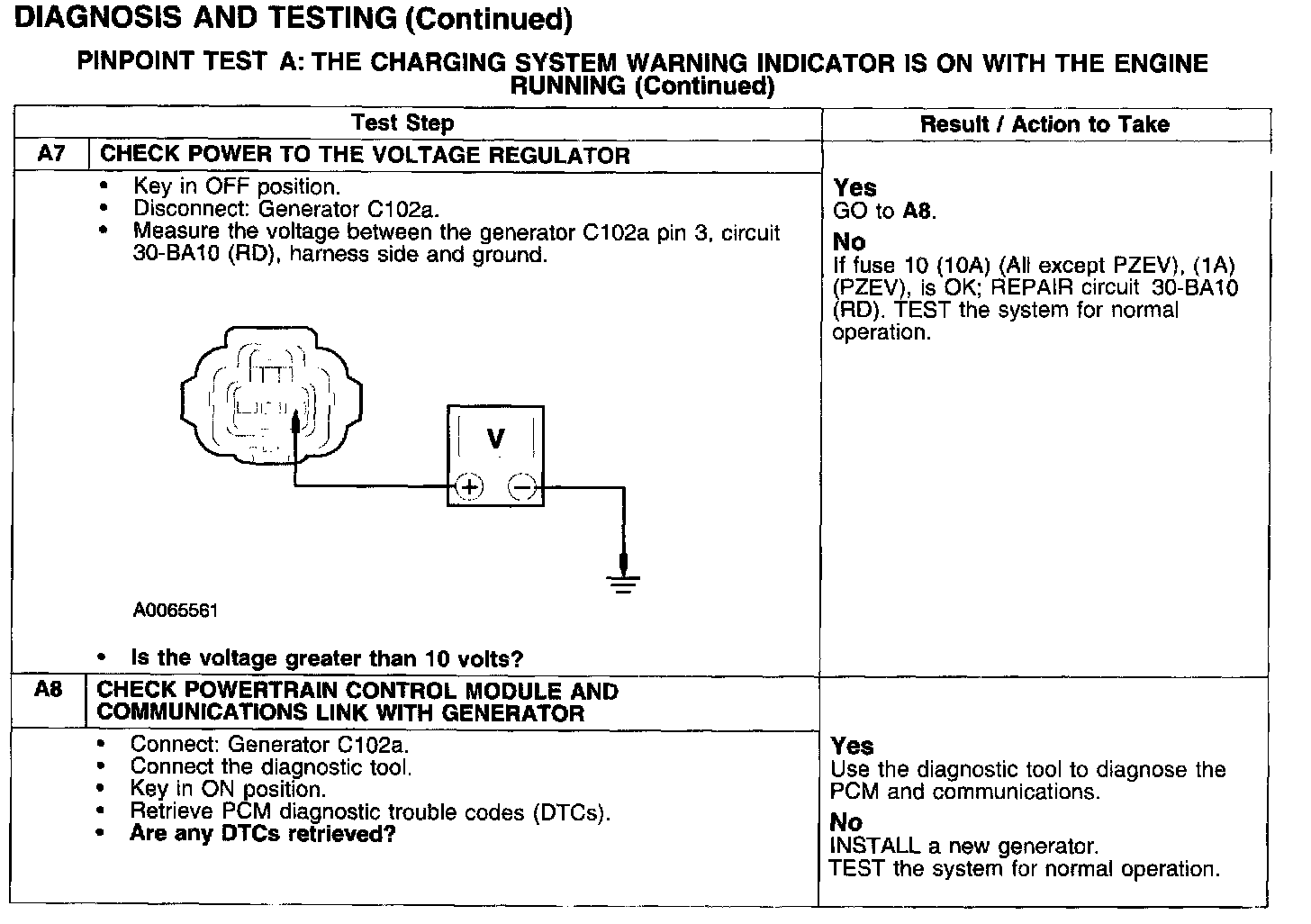

Test A7-A8:
