Home >> Ford >> 2004 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Powertrain Management >> Tune-up and Engine Performance Checks >> Fuel Pressure >> Specifications

Fuel Pressure: Specifications

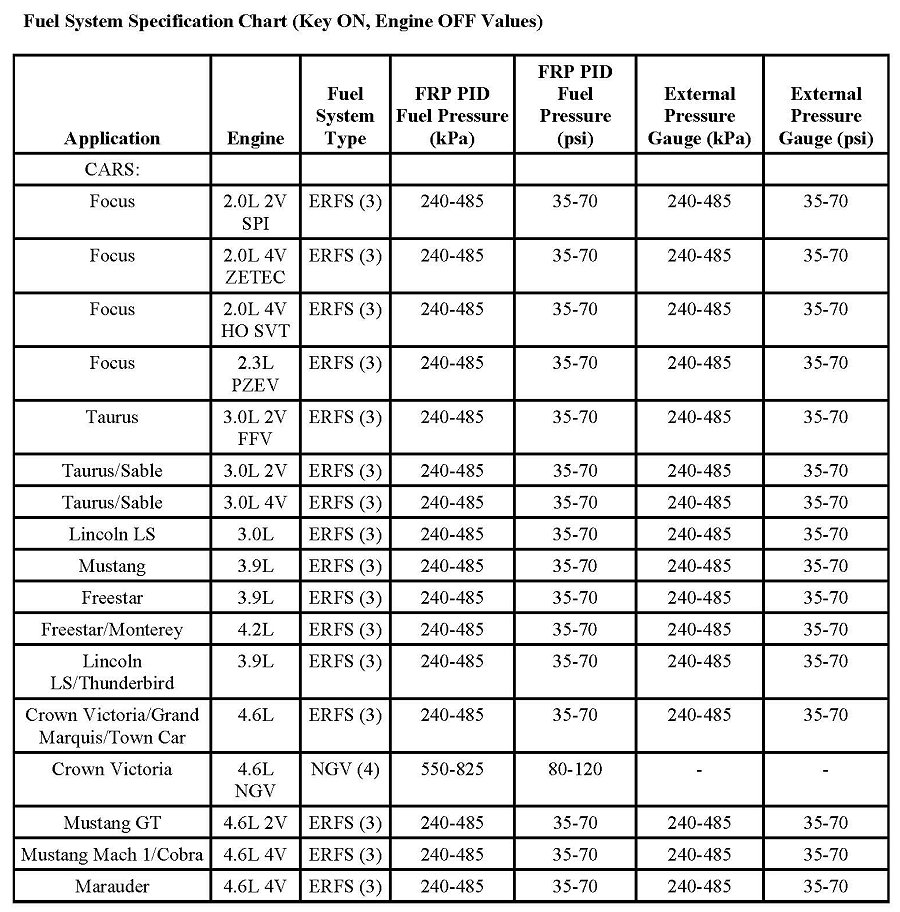

Fuel System Pressure Chart (1 Of 2):

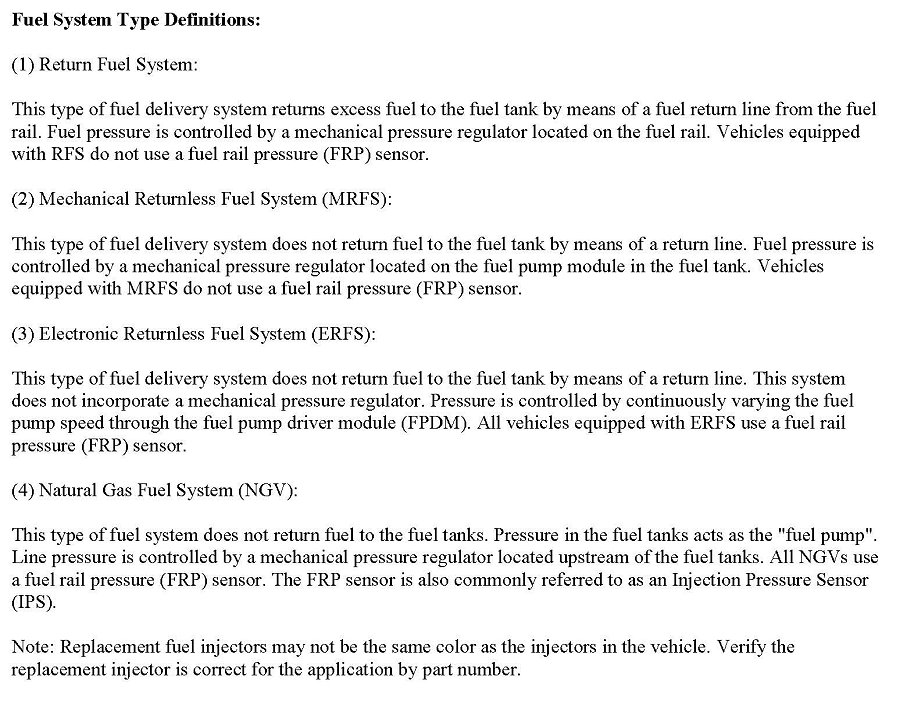

Fuel System Pressure Chart (2 Of 2):
