Connector Location Index

PLEASE NOTE: If a link on the Connector Location Index to a View is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

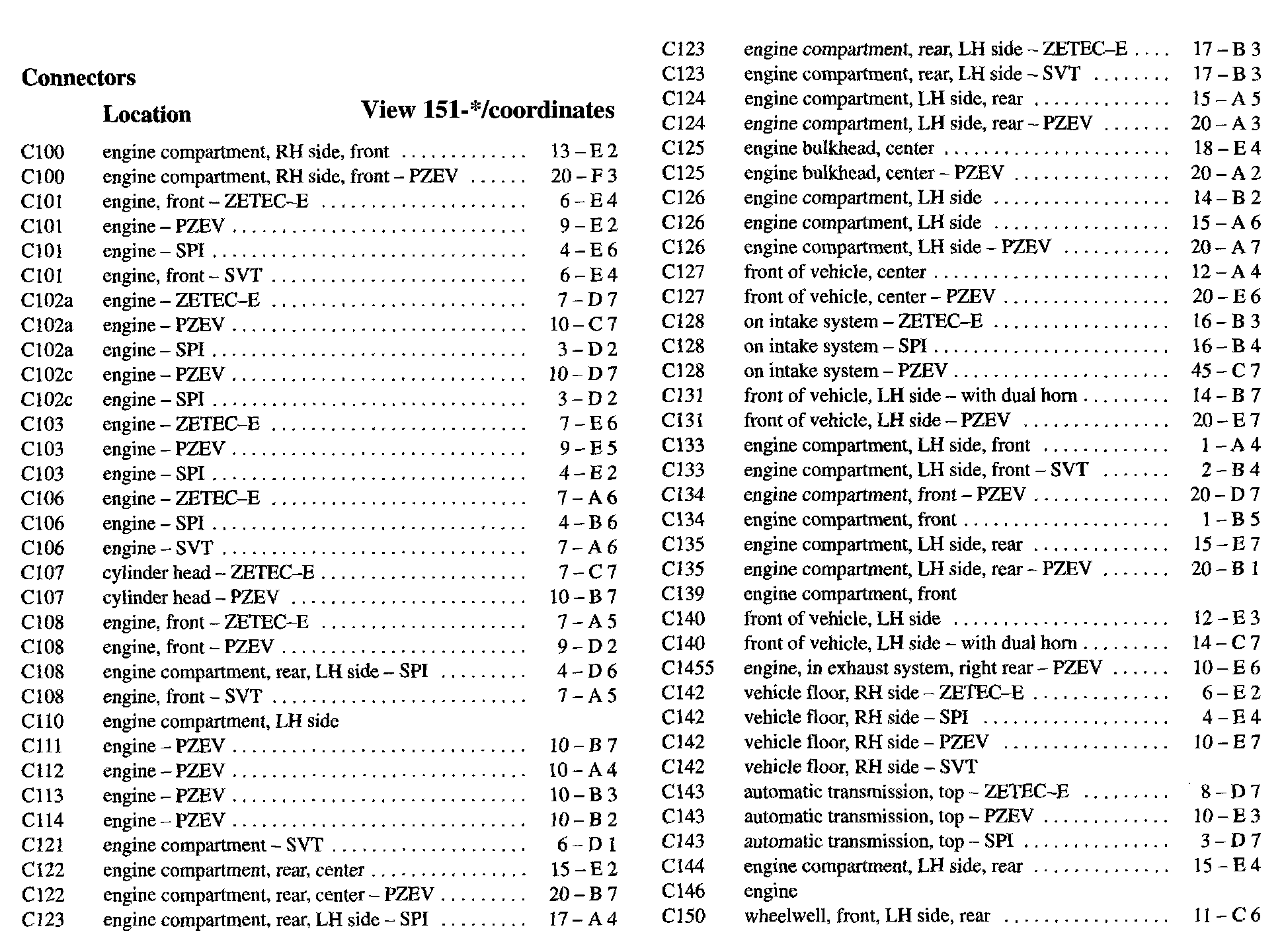

C100-C150:

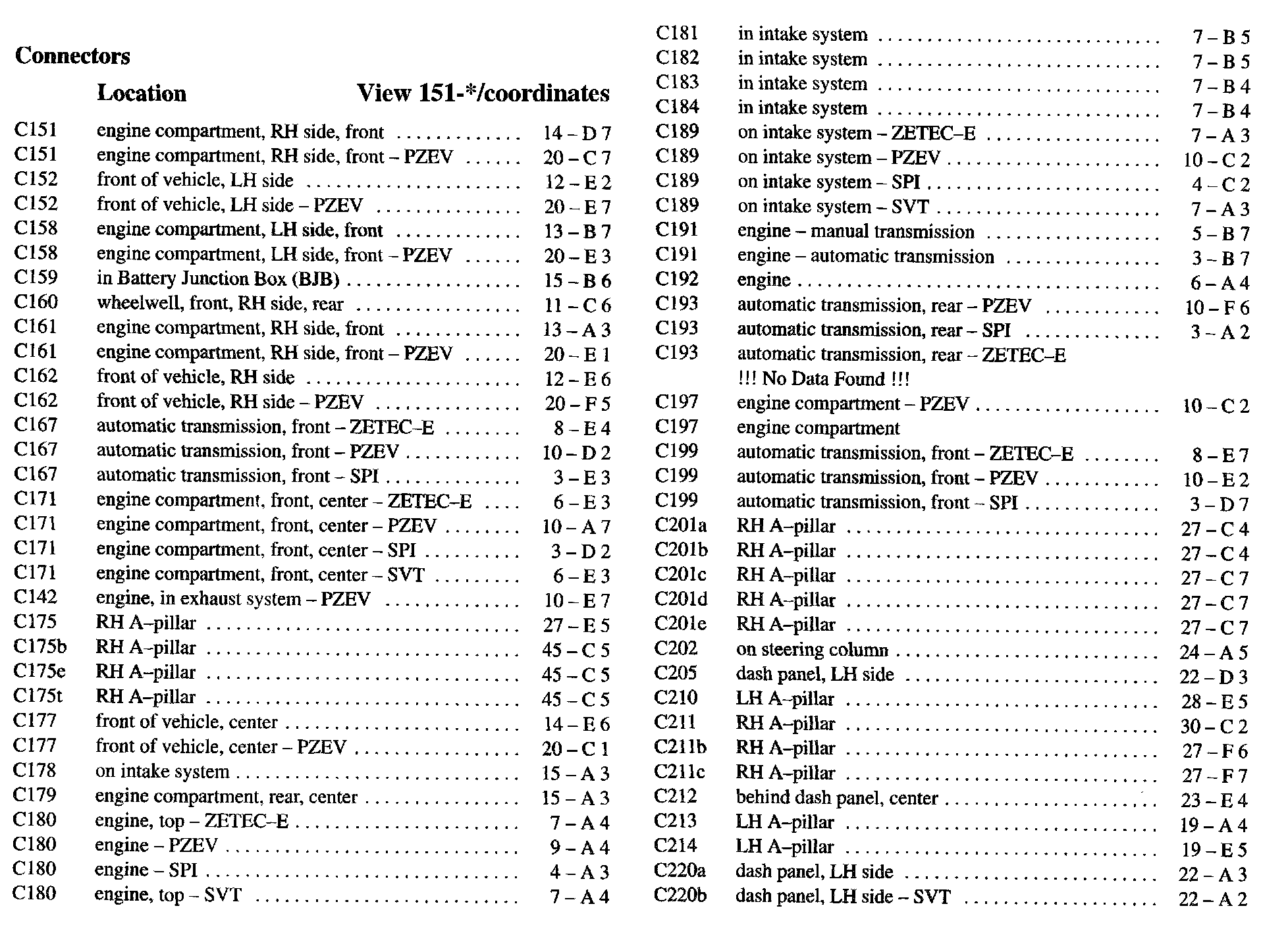

C151-C220b:

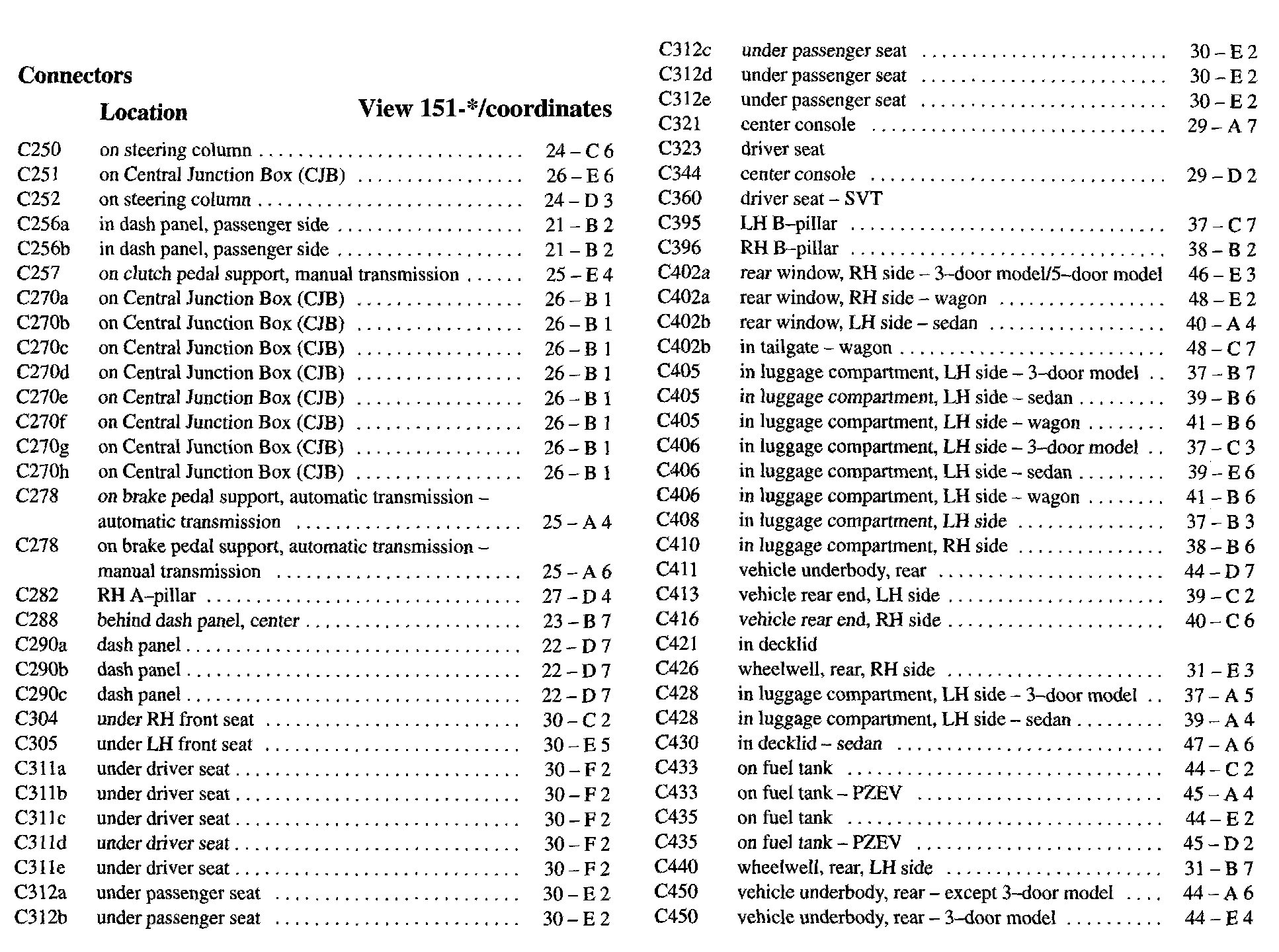

C250-C450:

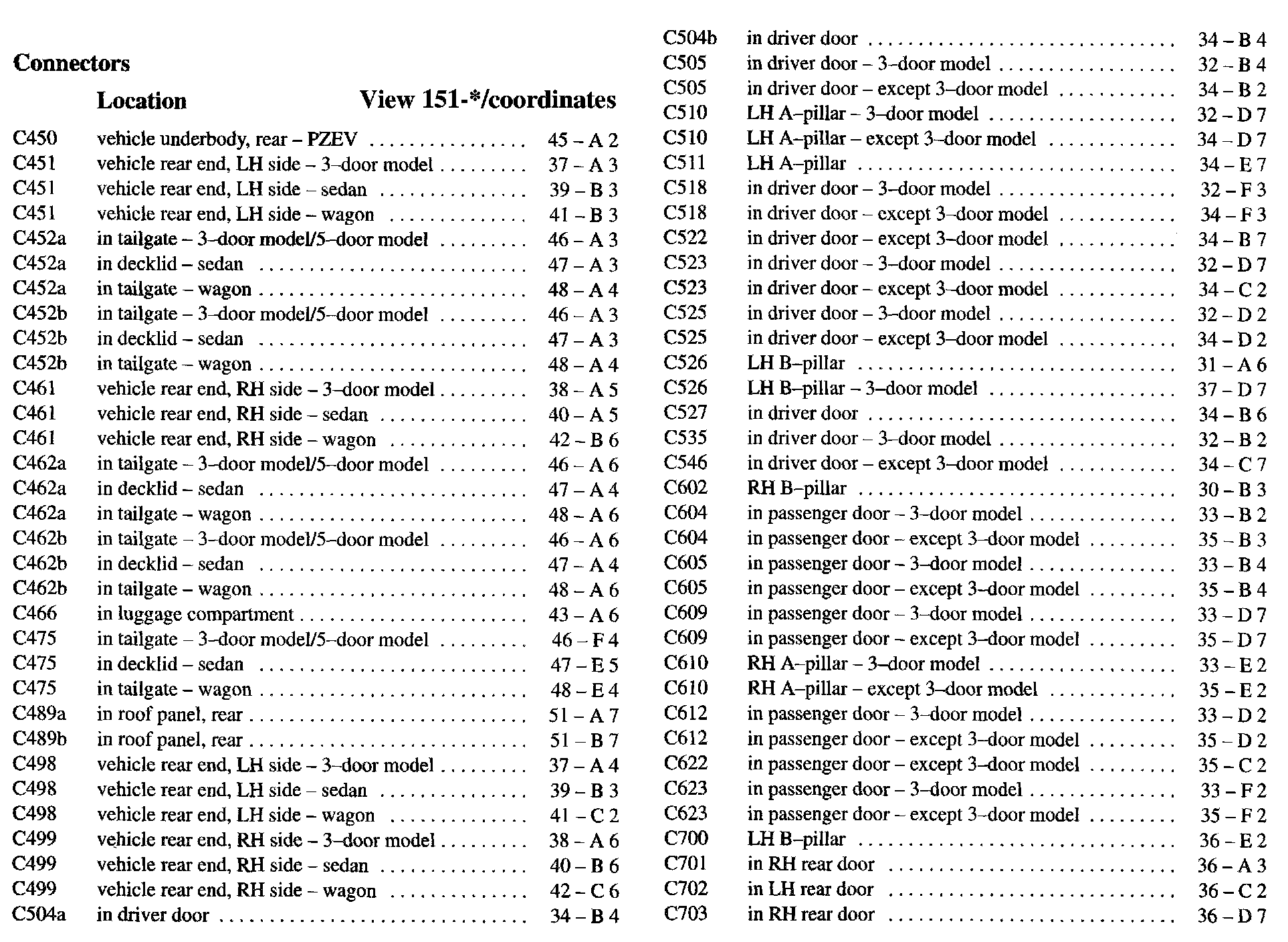

C450-C703:

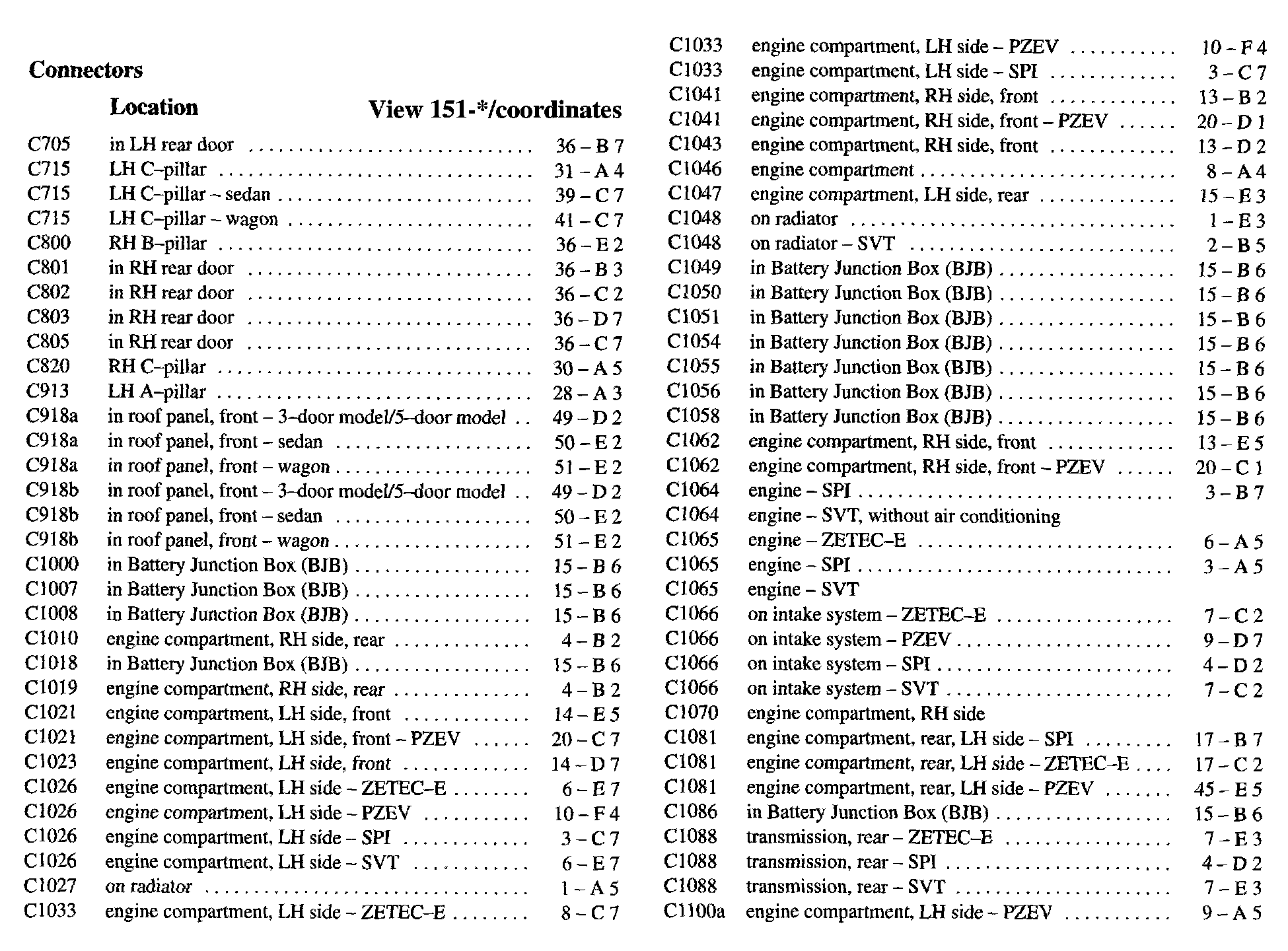

C705-C1100a:

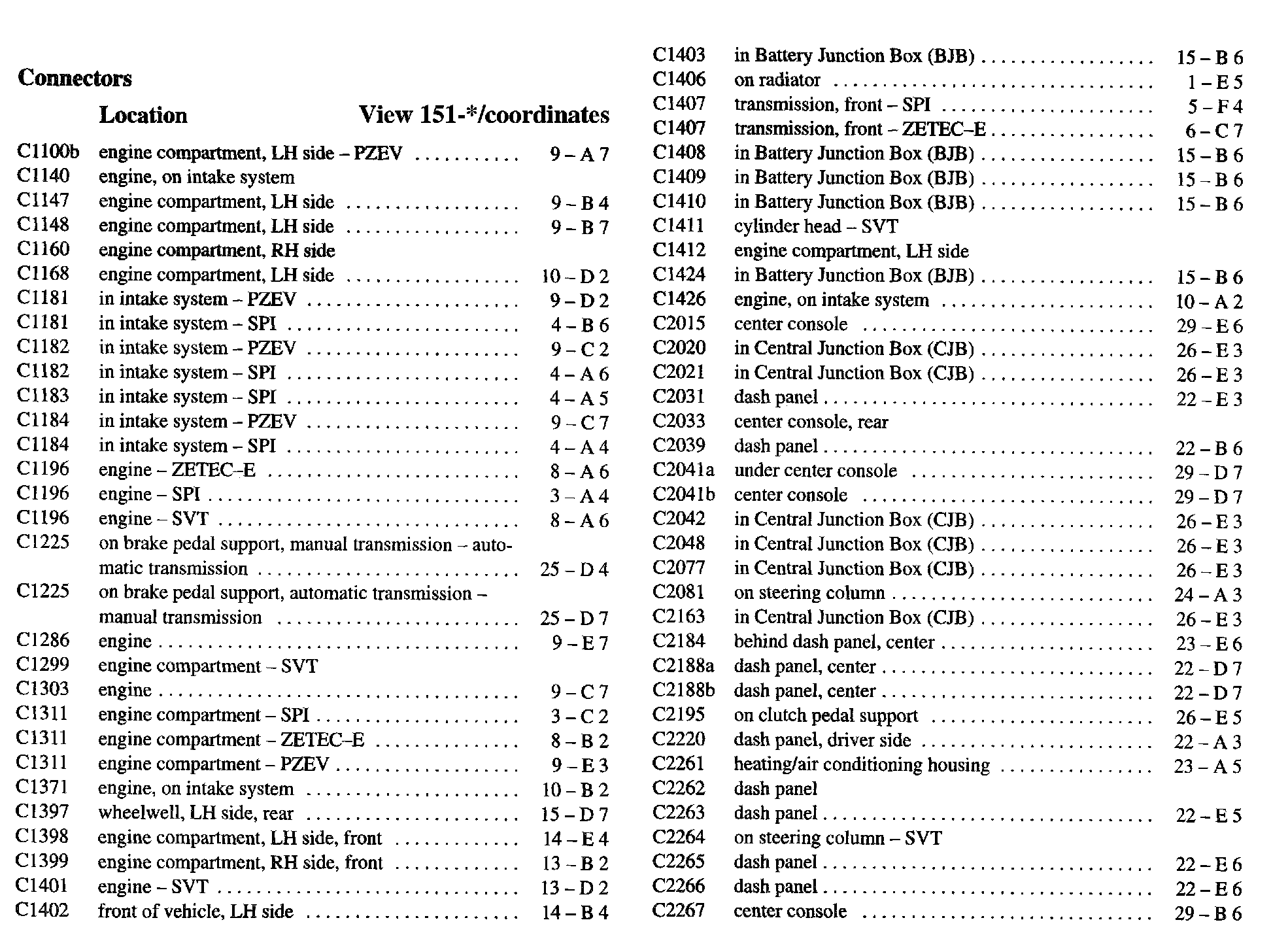

C1100b-C2267:

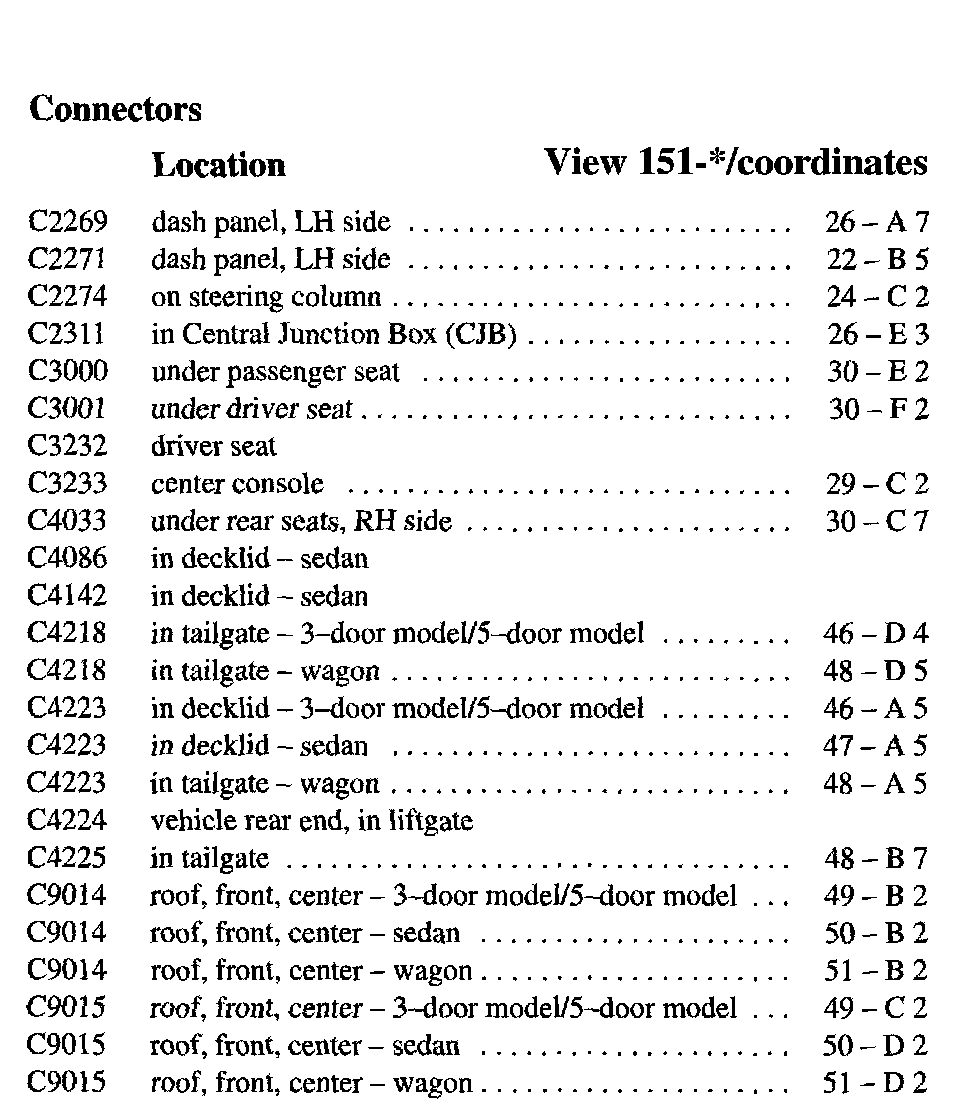

C2269-C9015:
