Home >> Ford >> 2004 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Upper Engine Components

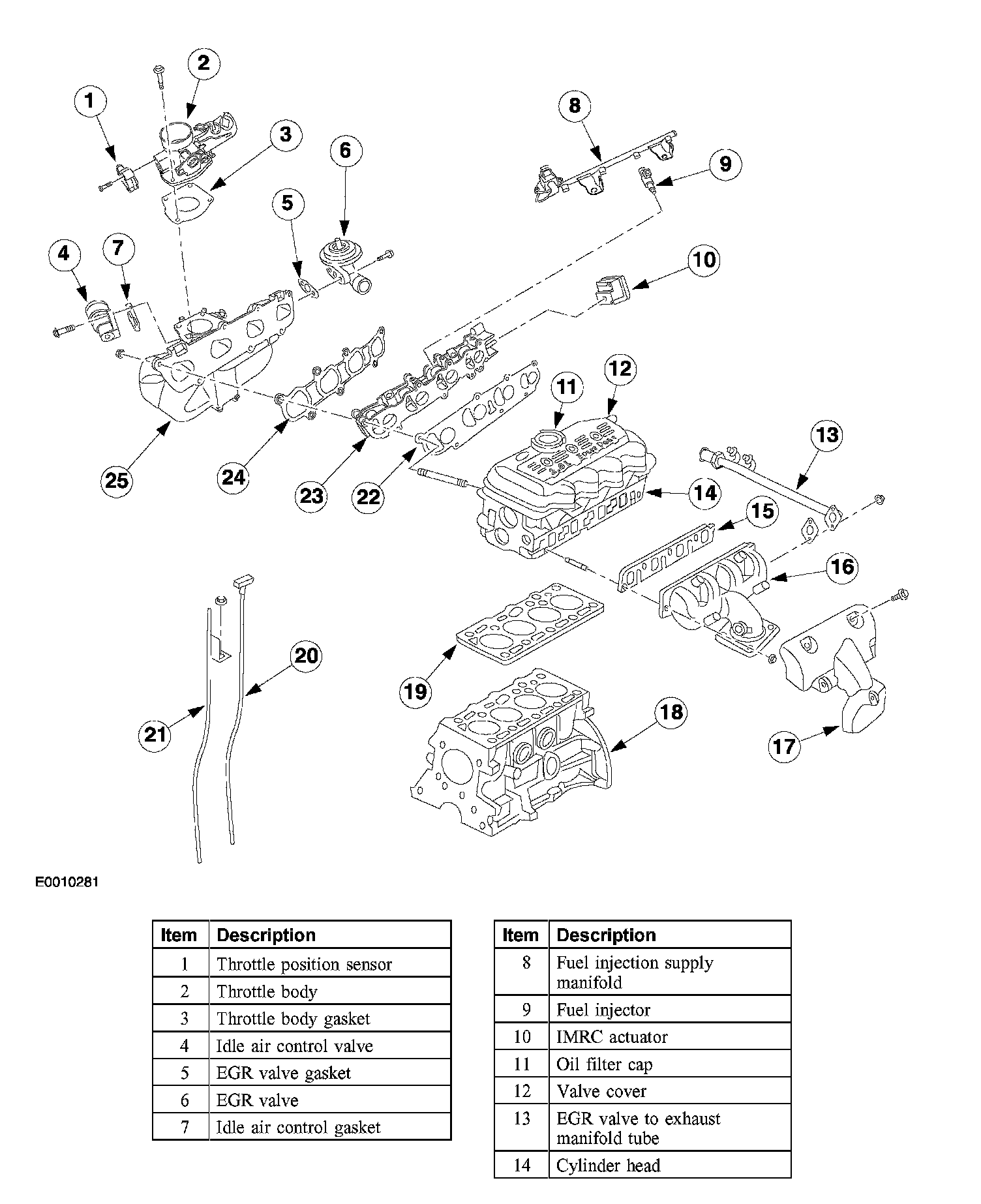

Upper Engine Components

Part 1 Of 2:



Part 2 Of 2:
