Forward Clutch: Notes

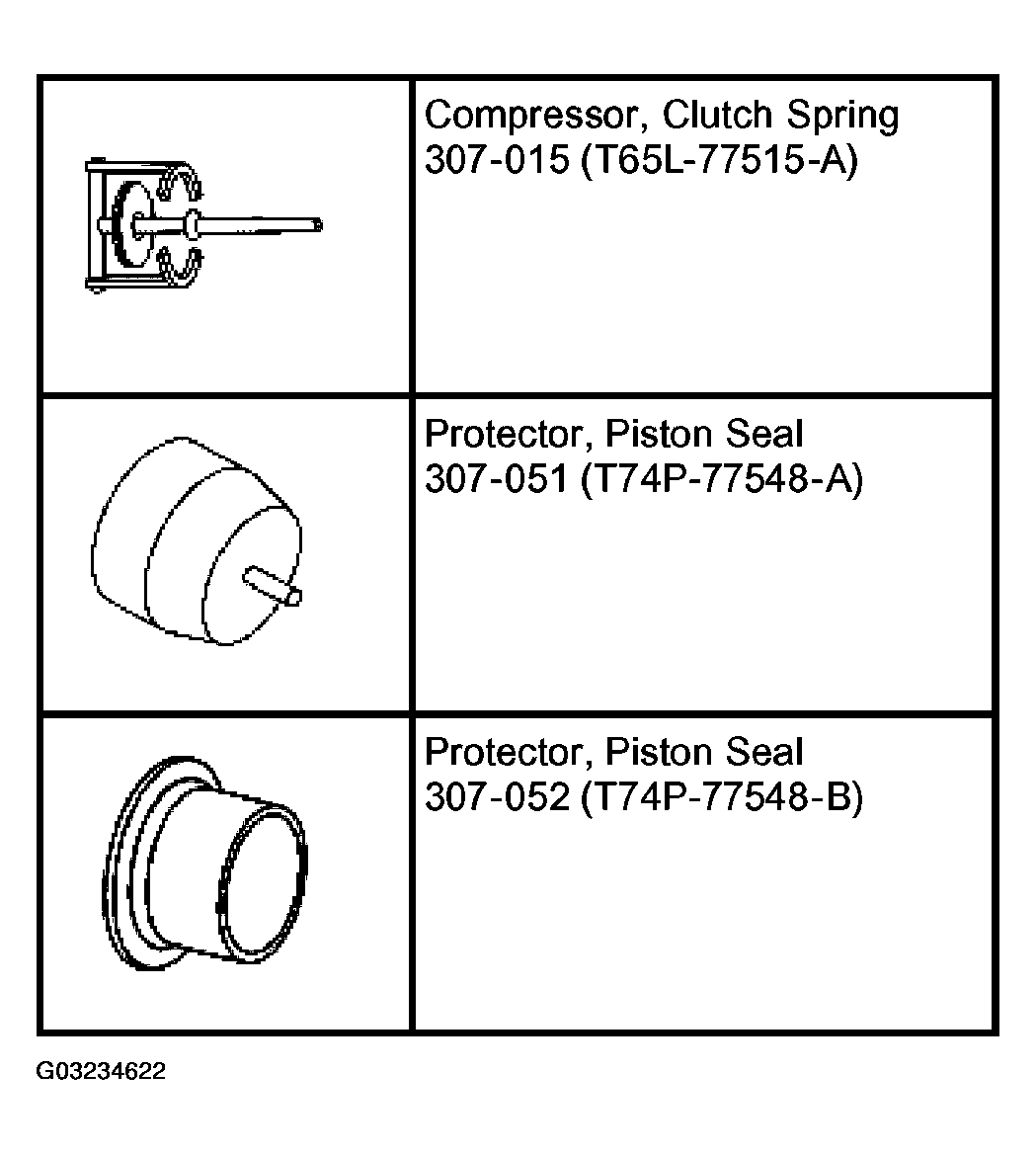

Fig 1: Identifying Special Tools
G03234622Courtesy of FORD MOTOR CO.
MATERIALS

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V

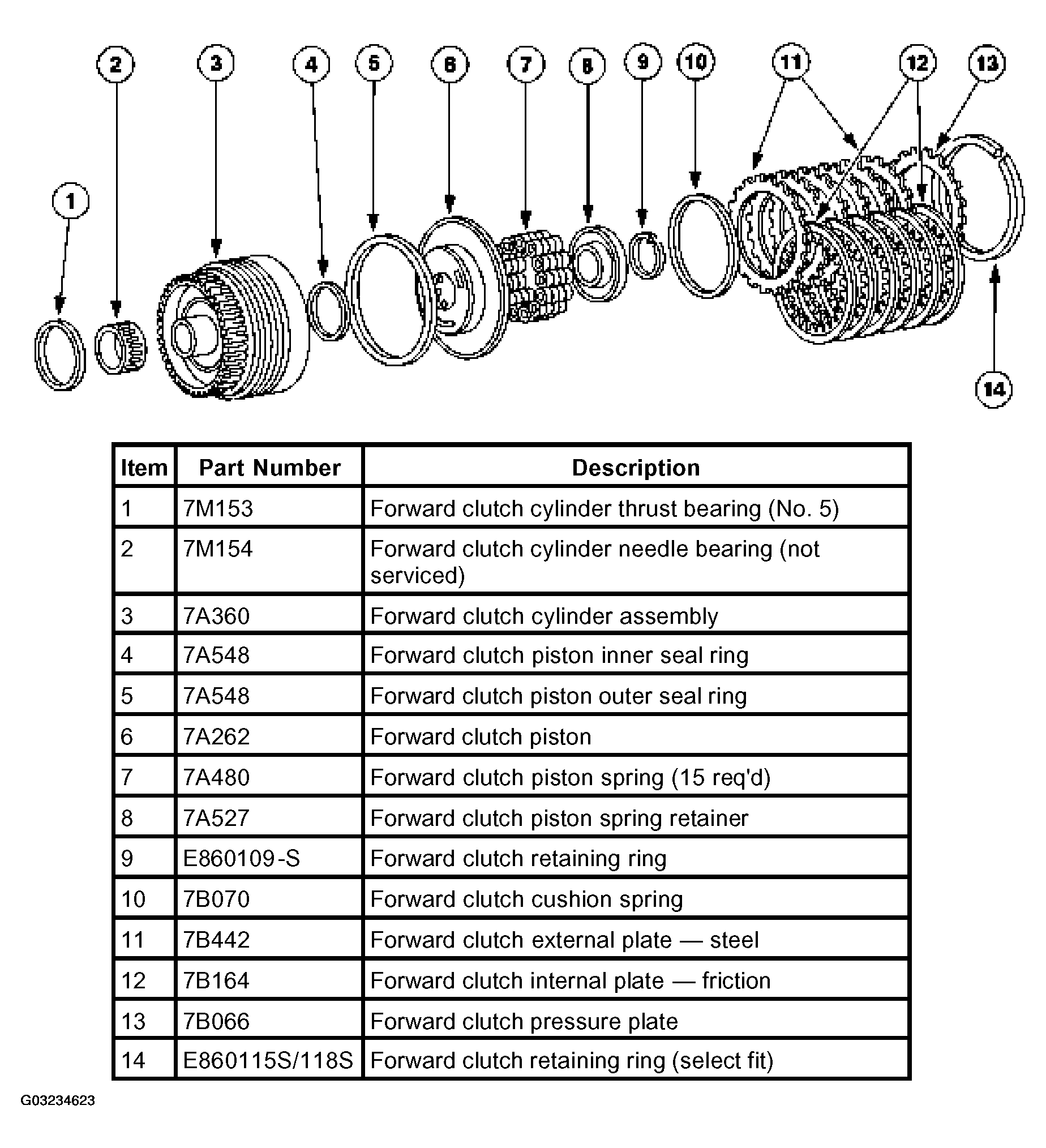

Fig 2: Exploded View Of Forward Clutch Assembly
G03234623Courtesy of FORD MOTOR CO.
