Timing Cover

Engine front cover bolts 25 Nm (18 ft. lbs.)

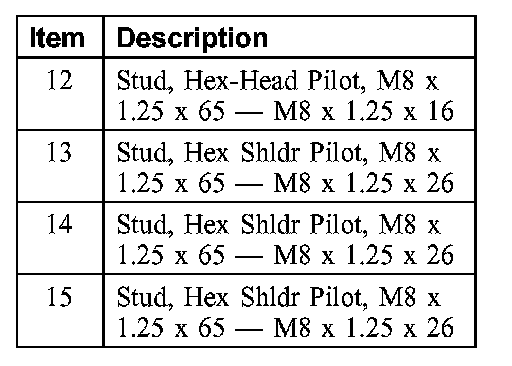

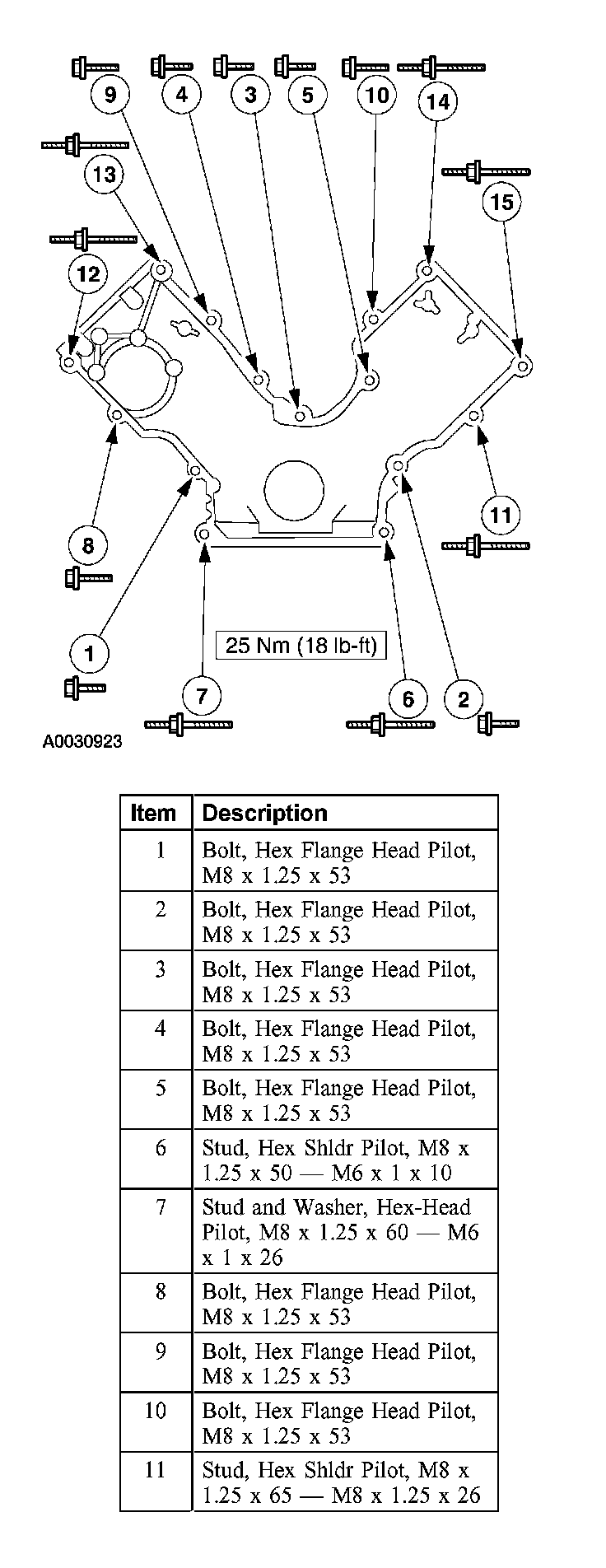

Install the engine front cover in sequence shown.
