Auxiliary Climate Control

HEATER CORE

REMOVAL
1. Remove the third row seat.
2. Position aside the RH rear quarter trim panel.

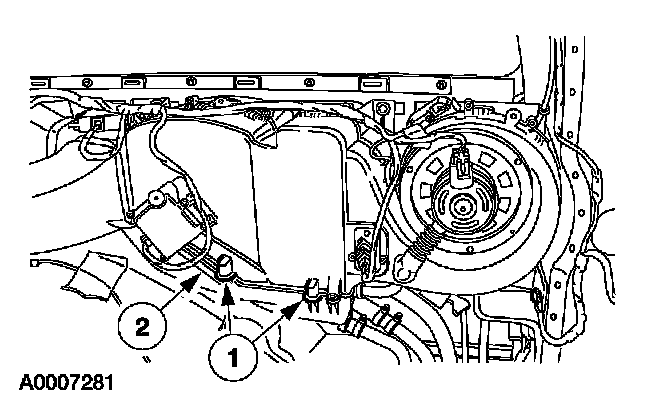

3. Remove the heater core cover.
1 Remove the 8 screws.
2 Remove the heater core cover.

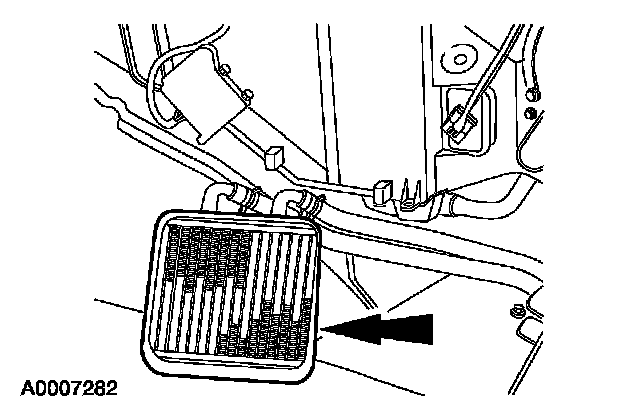

4. Remove the heater core from the housing.

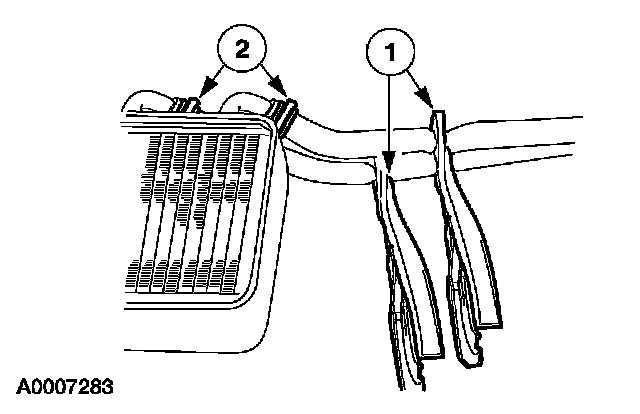

5. Remove the heater core from the heater inlet and outlet hoses.
1 Clamp off the heater inlet and outlet hoses.
2 Position the constant tension clamps and disconnect the hoses from the heater core.

INSTALLATION

1. NOTE: Make sure to correctly assemble and seal the air conditioning and heater assembly to allow efficient operation of the auxiliary climate control system.

To install, reverse the removal procedure.
- Lubricate the coolant hoses with plain water only, if needed.

2. Top-off the engine cooling system.
