Test Z: Continuous Memory Failure
Test Z: Continuous Memory Failure
PINPOINT TEST Z: CONTINUOUS MEMORY FAILURE

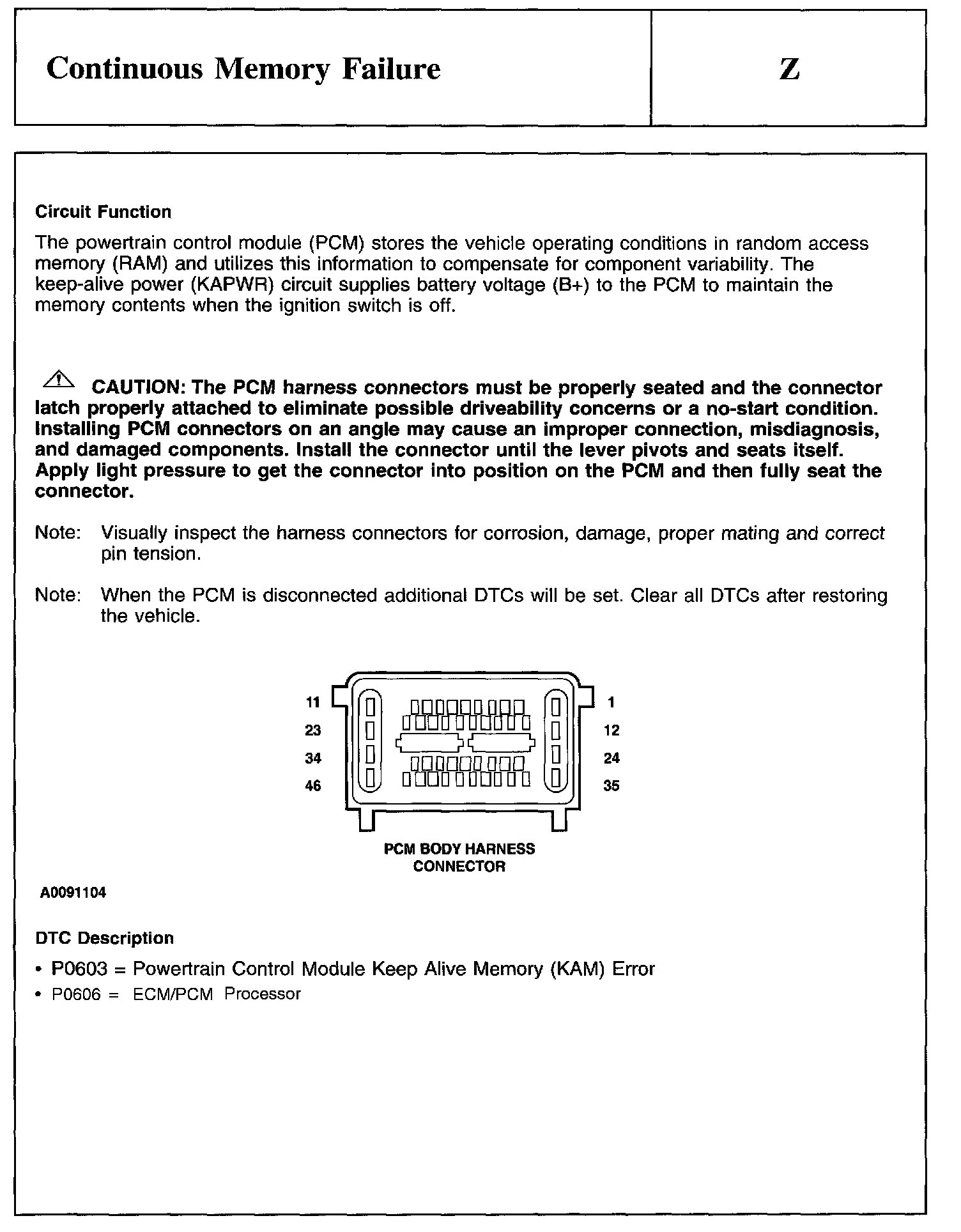

Description, Caution And Schematic:

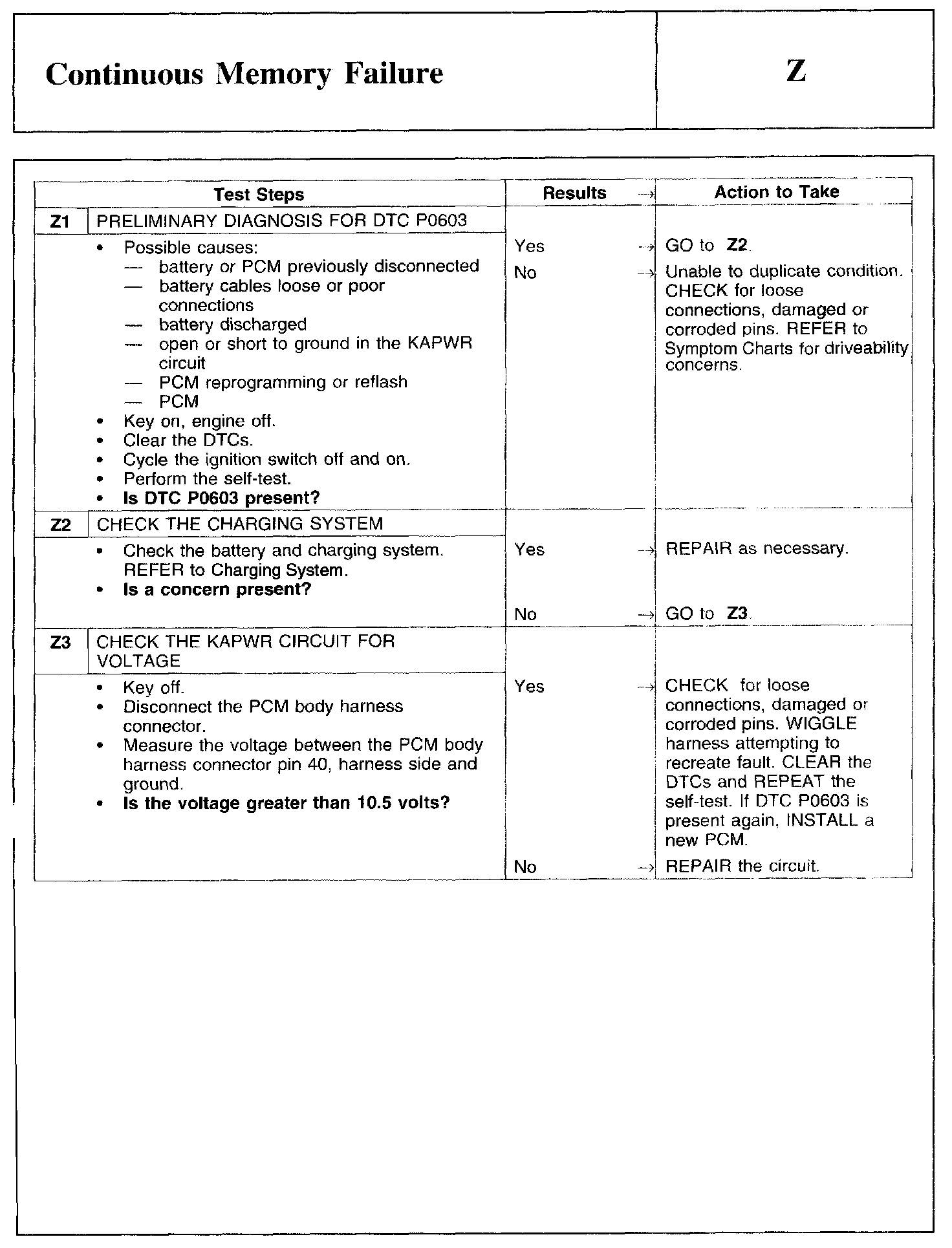

Test Z1-Z3:
