Home >> Ford >> 2004 >> Excursion 2WD V10-6.8L VIN S >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Pinpoint Tests >> Test E

Test E

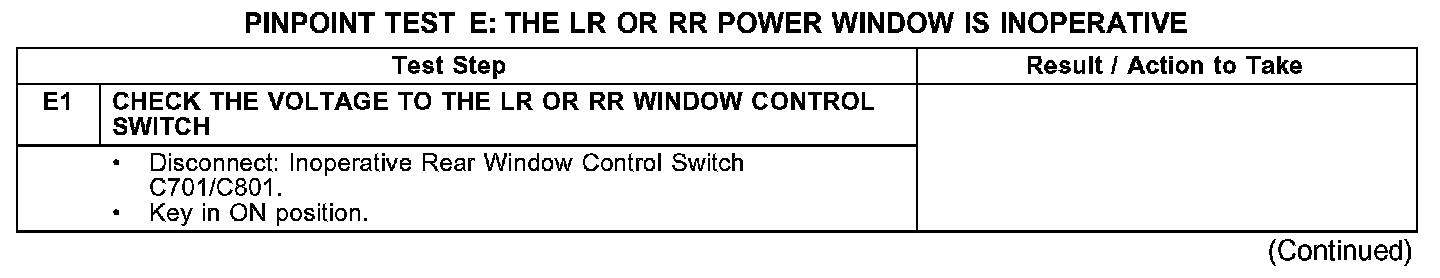

PINPOINT TEST E: THE LR OR RR POWER WINDOW IS INOPERATIVE

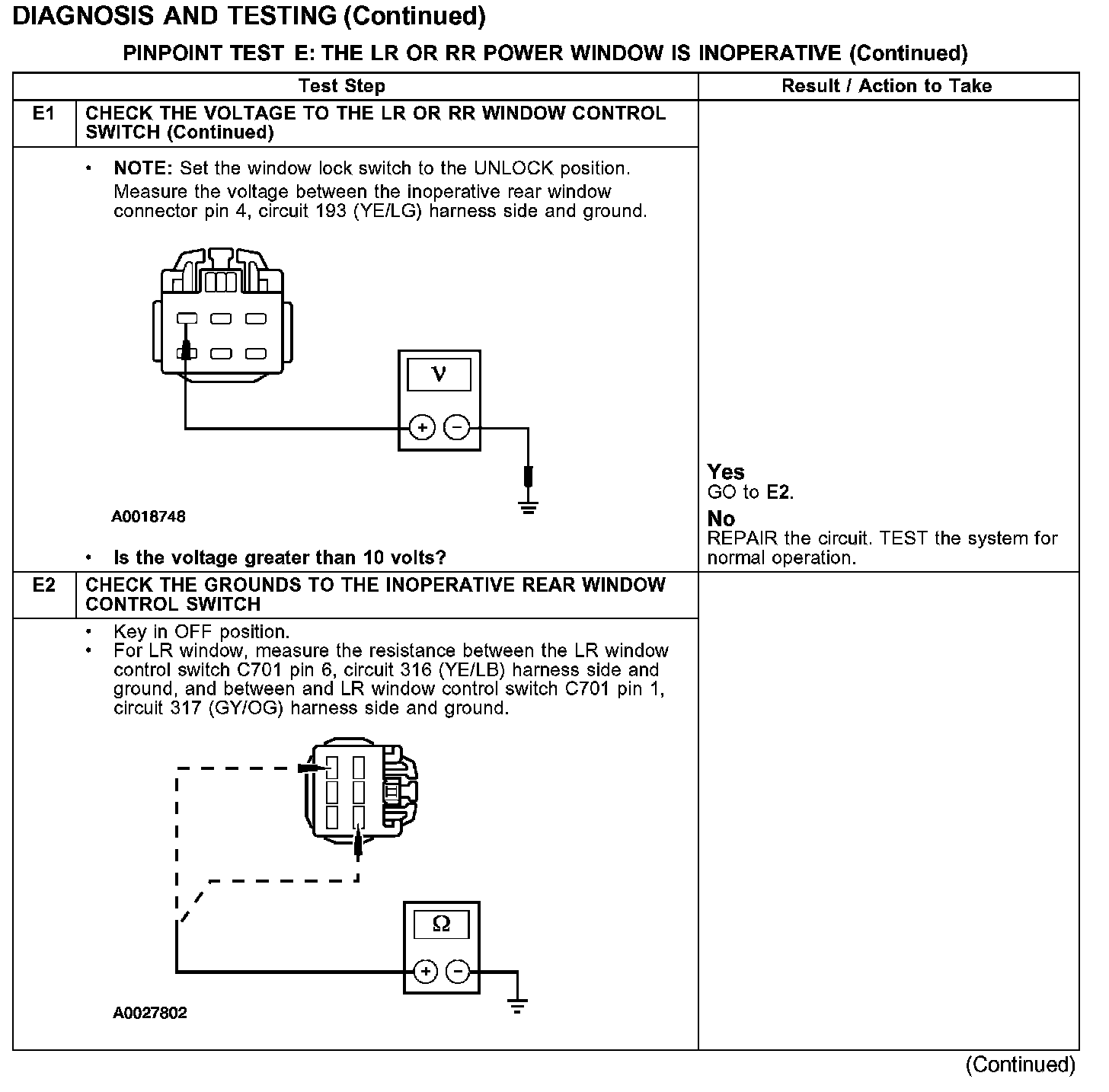

Test E1:

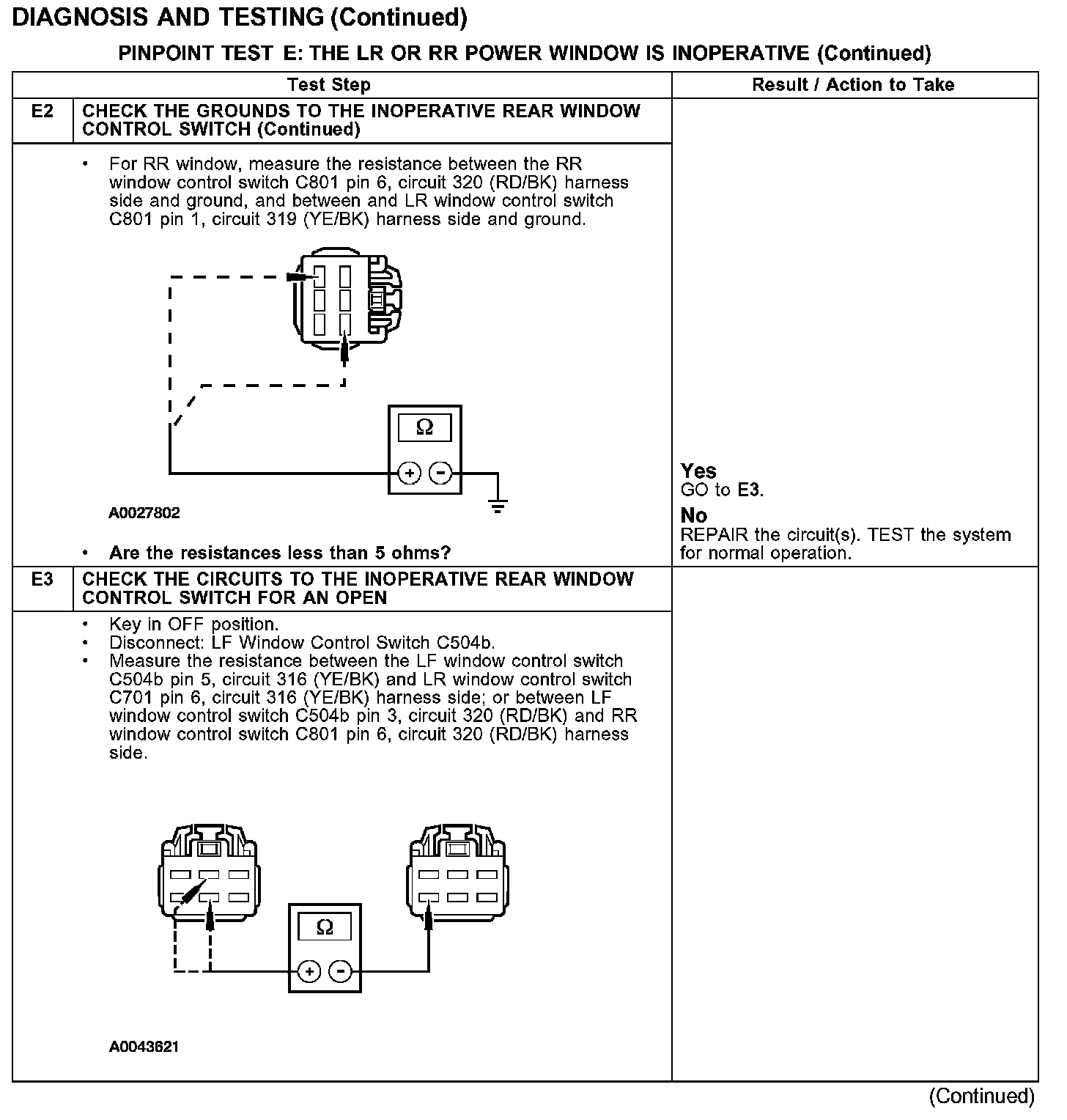

Test E1-E2:

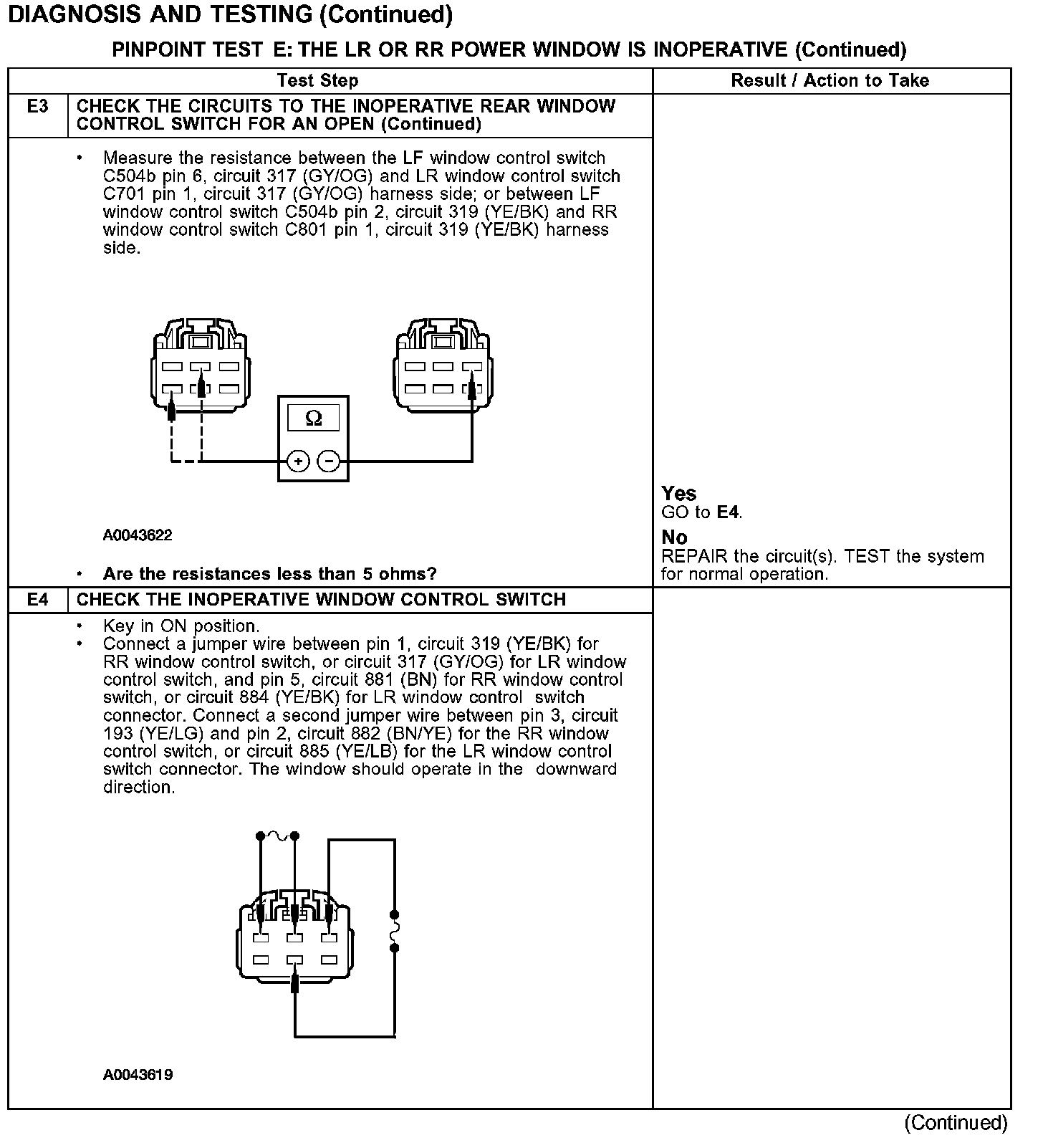

Test E2-E3:

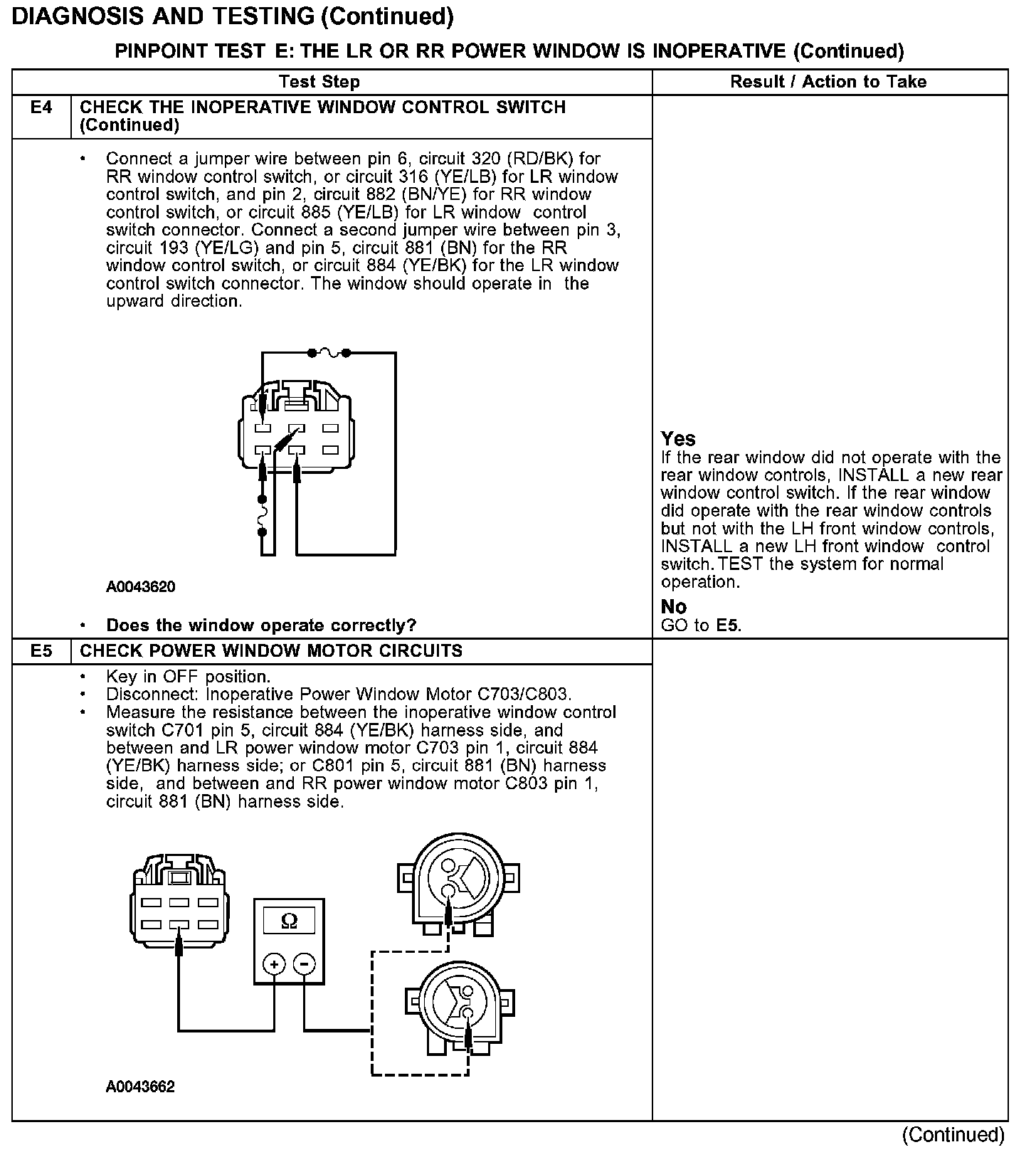

Test E3-E4:






Test E4-E5:

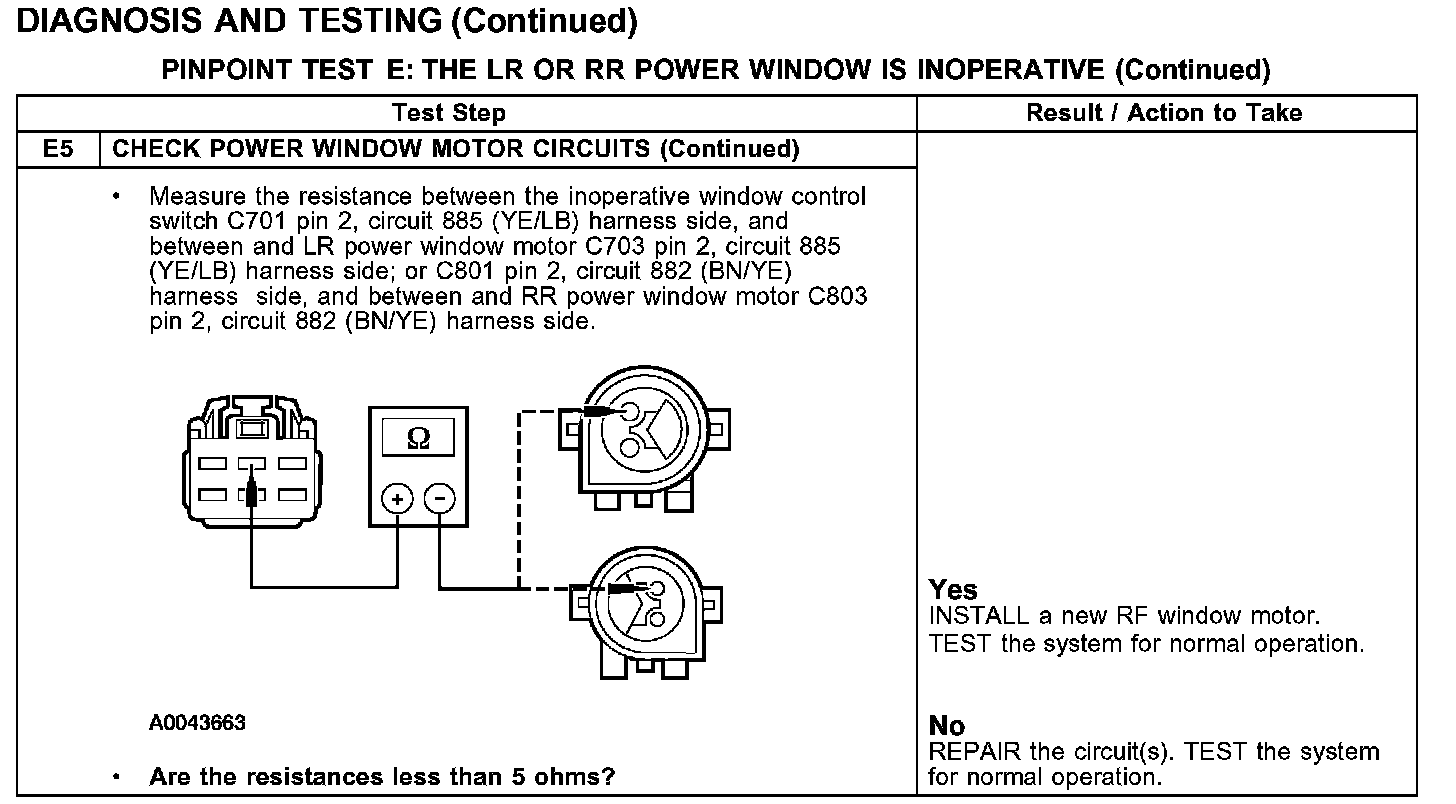

Test E5 Continued:
