Test A

PINPOINT TEST A: THE POWER SLIDING WINDOW IS INOPERATIVE

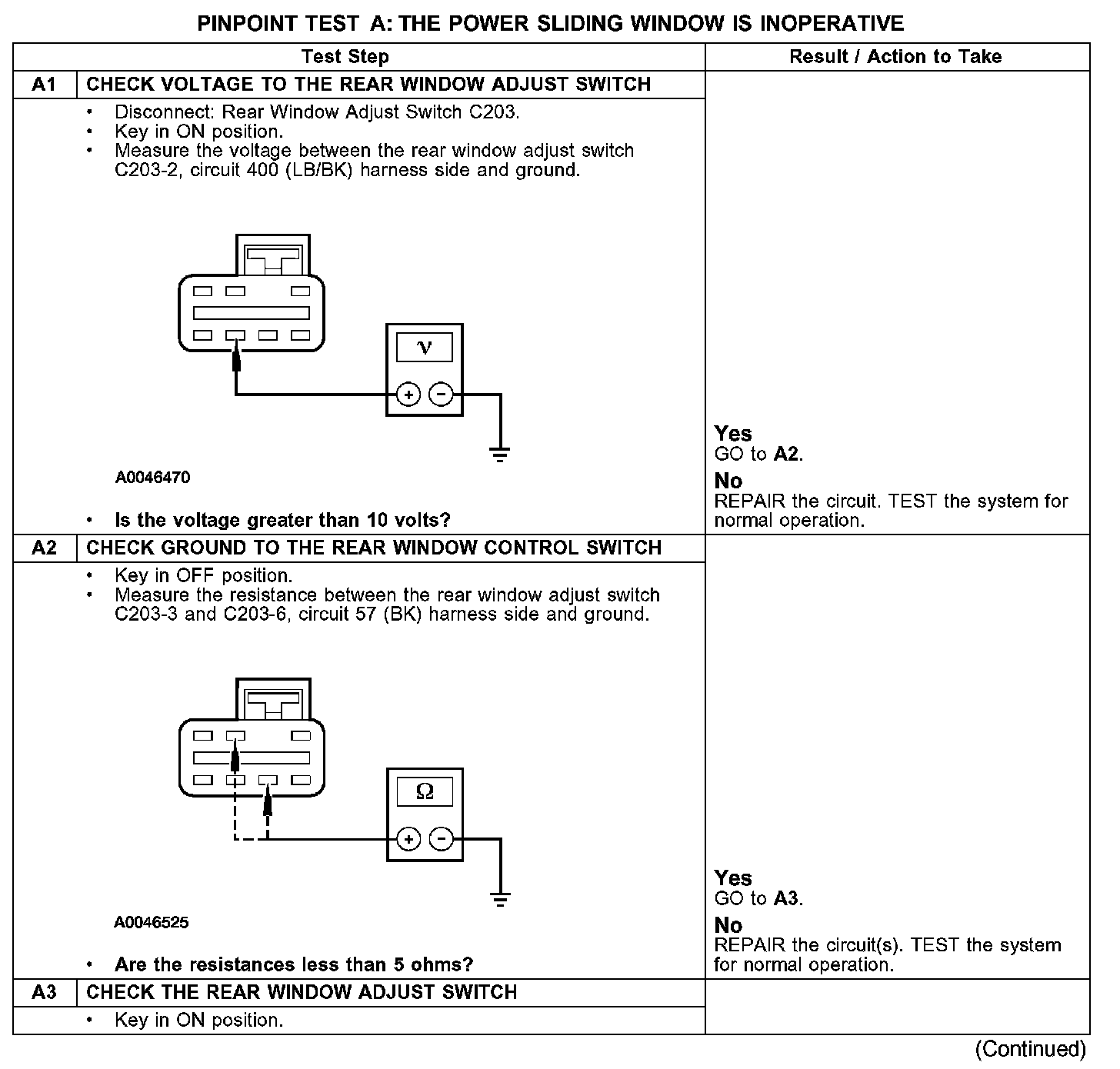

Test A1-A3:

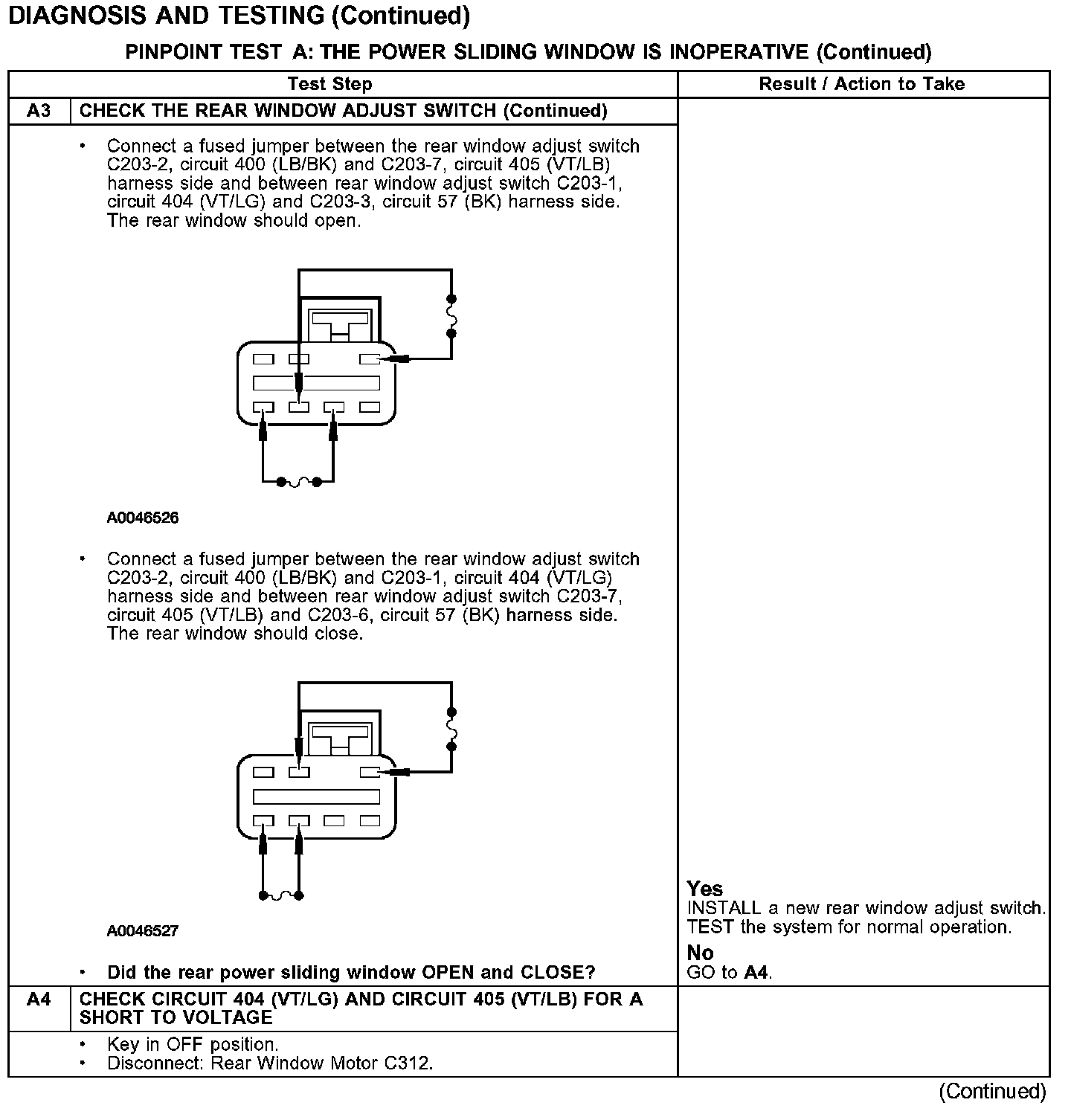

Test A3-A4:

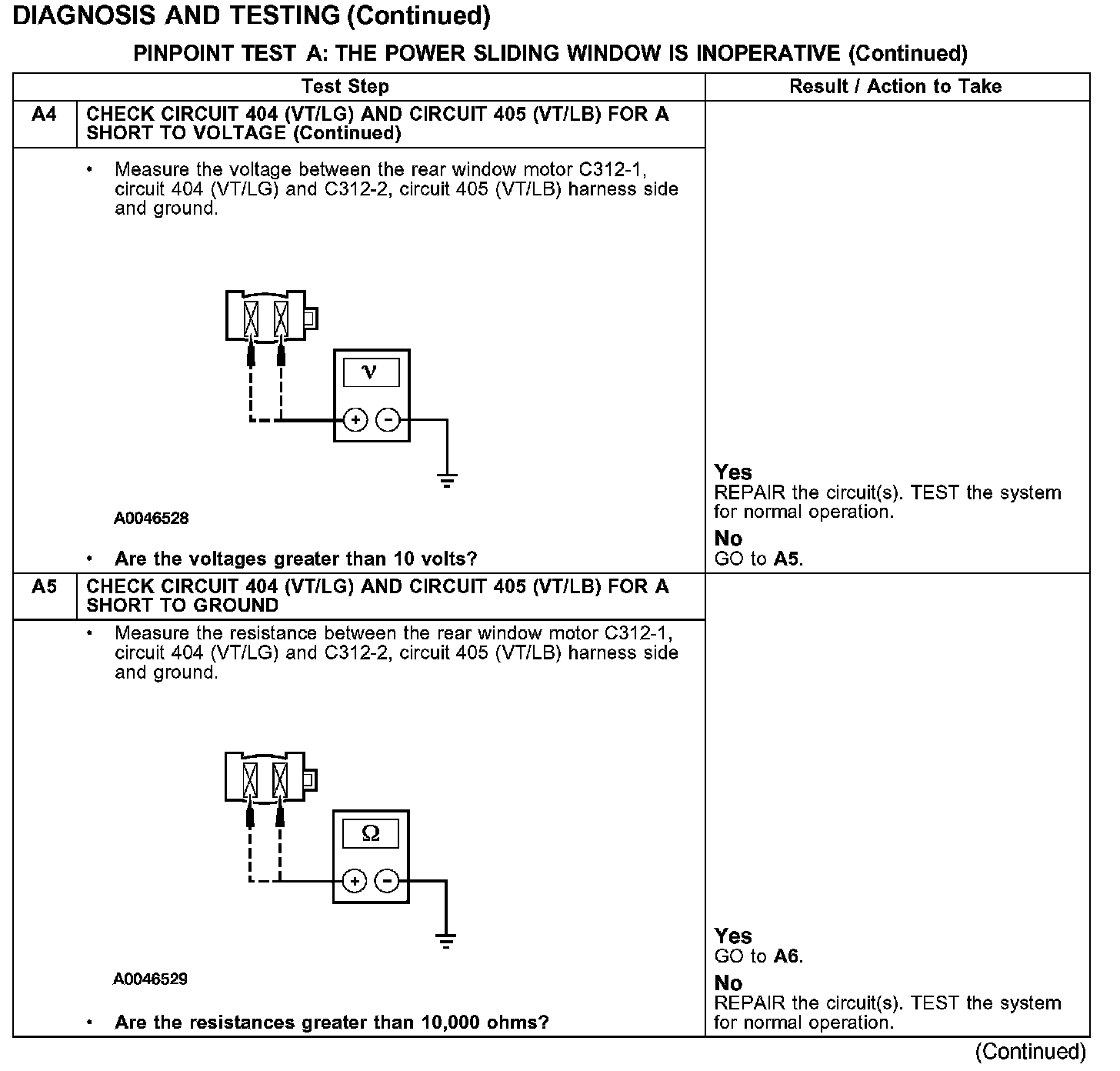

Test A4-A5:

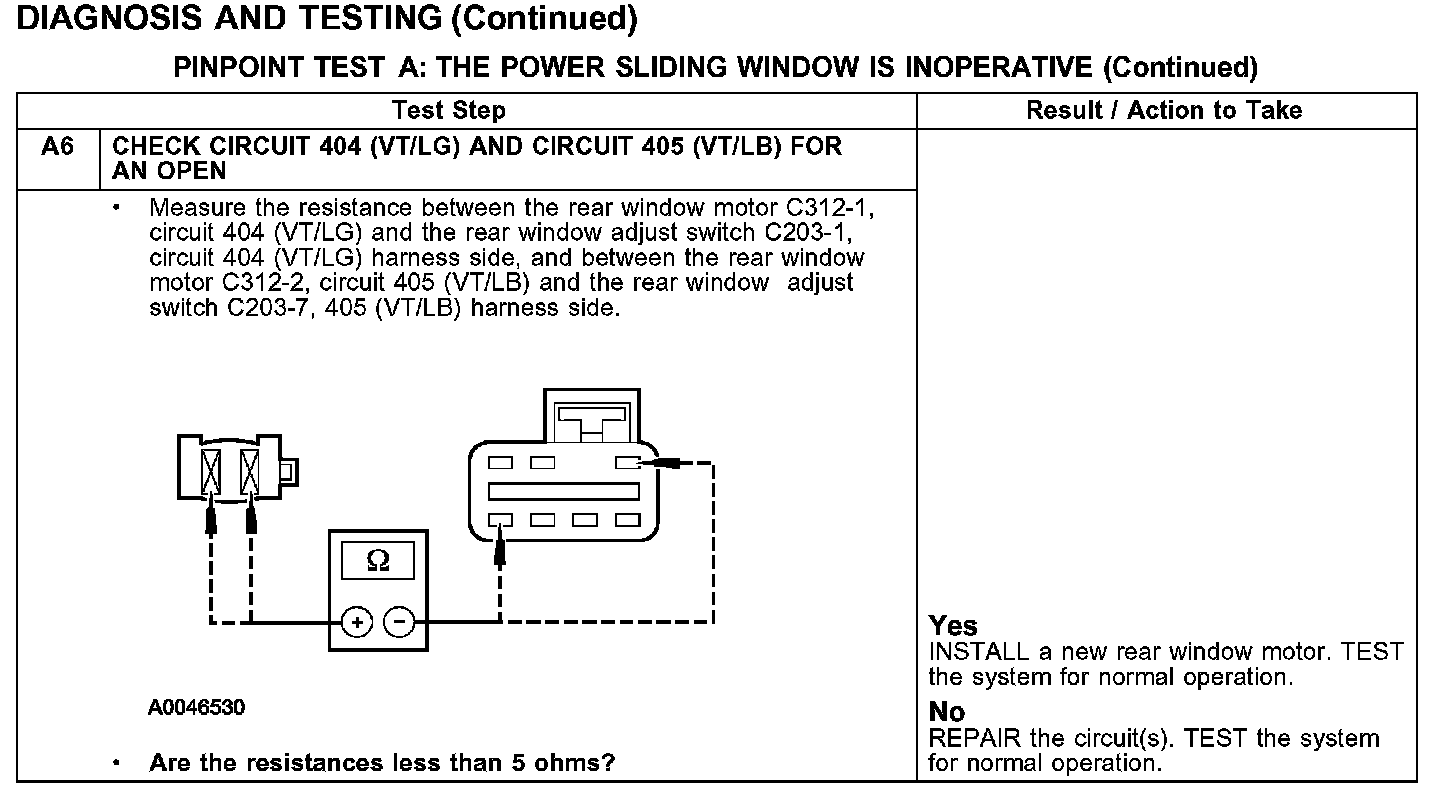

Test A6:
