Test L
Test L
PINPOINT TEST L: THE
CHARGING SYSTEM
WARNING INDICATOR OPERATES CORRECTLY BUT THE BATTERY VOLTAGE DOES NOT INCREASE

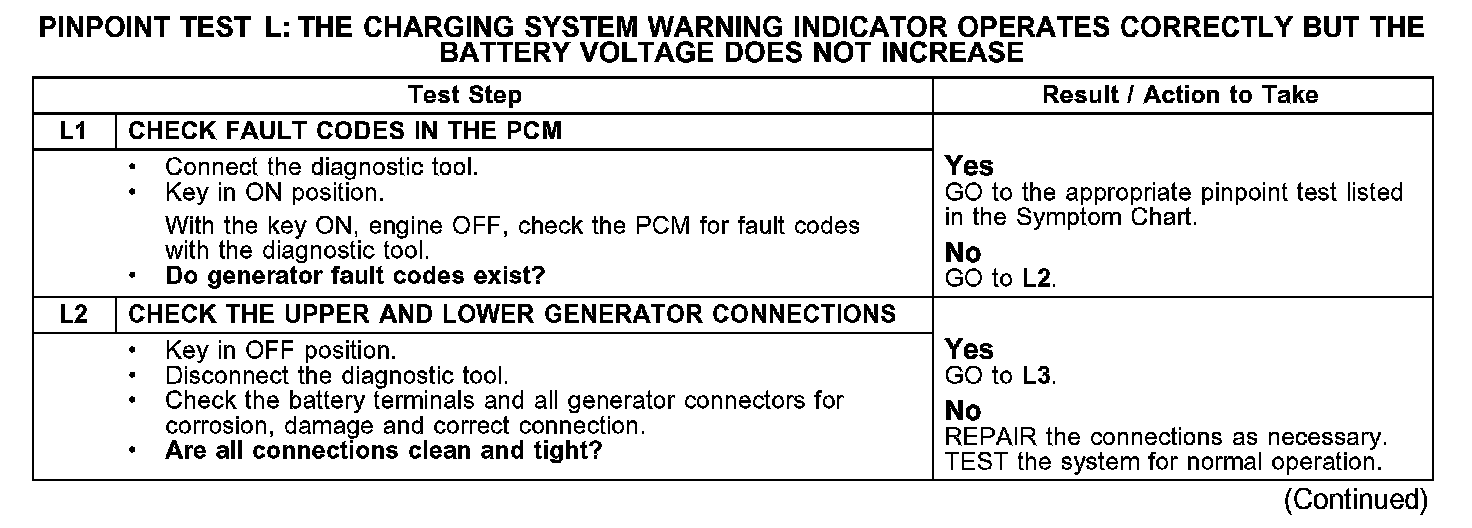

Test L1-L2:

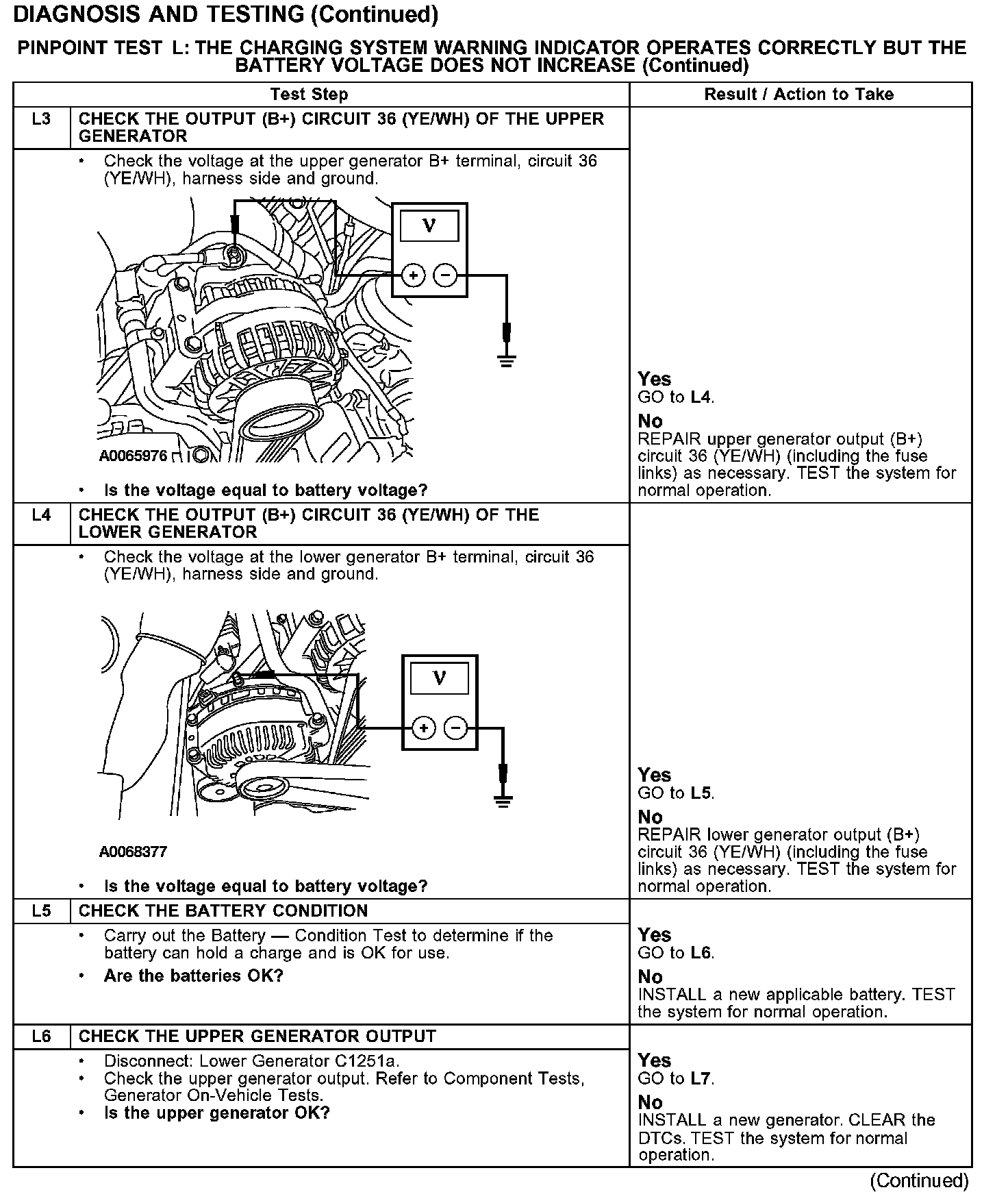

Test L3-L6:

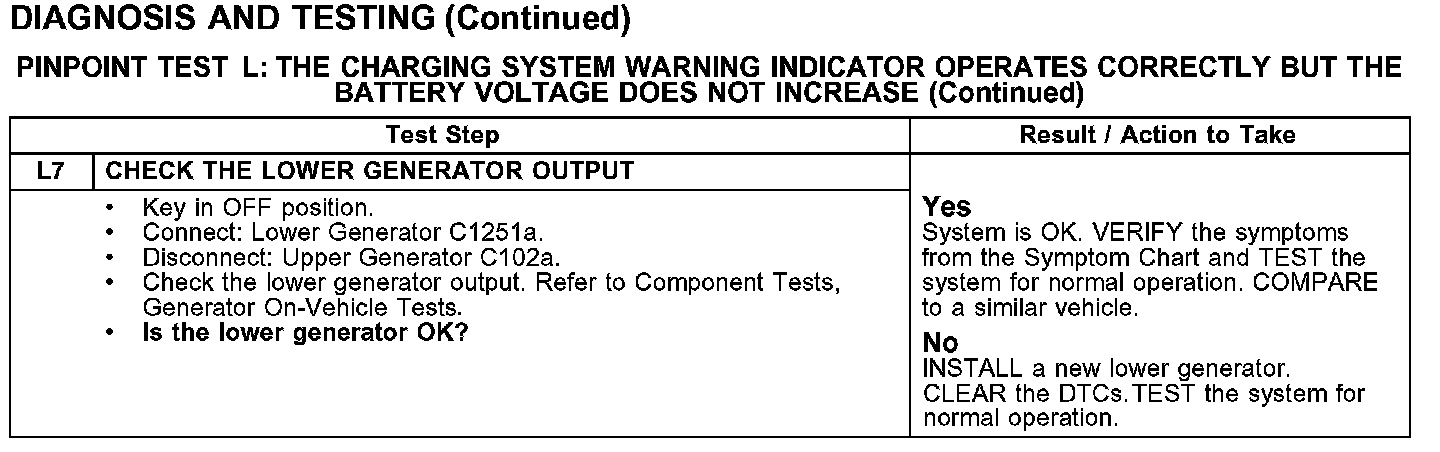

Test L7:
