Test V

PINPOINT TEST V: THE PANEL/FLOOR CONTROL DOES NOT OPERATE USING THE FRONT/REAR AUXILIARY CLIMATE CONTROLS

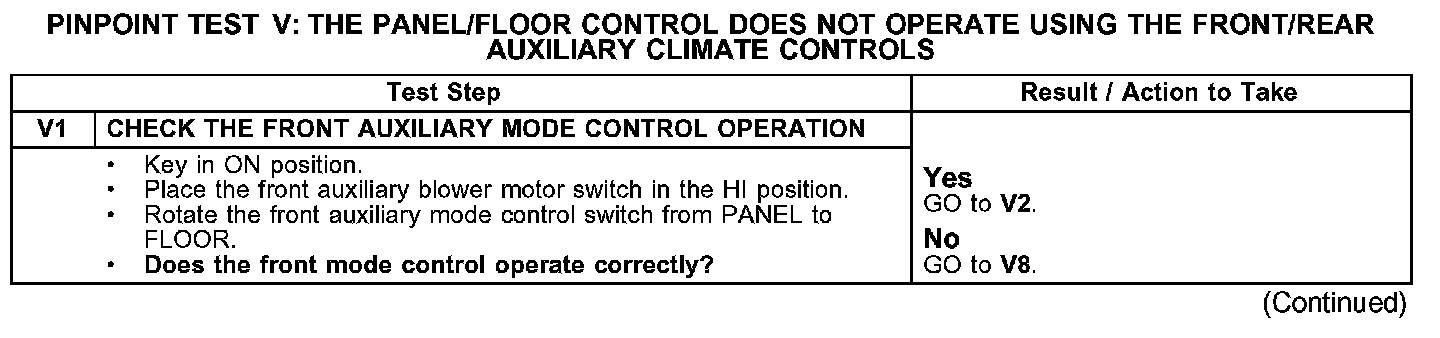

Test V1:

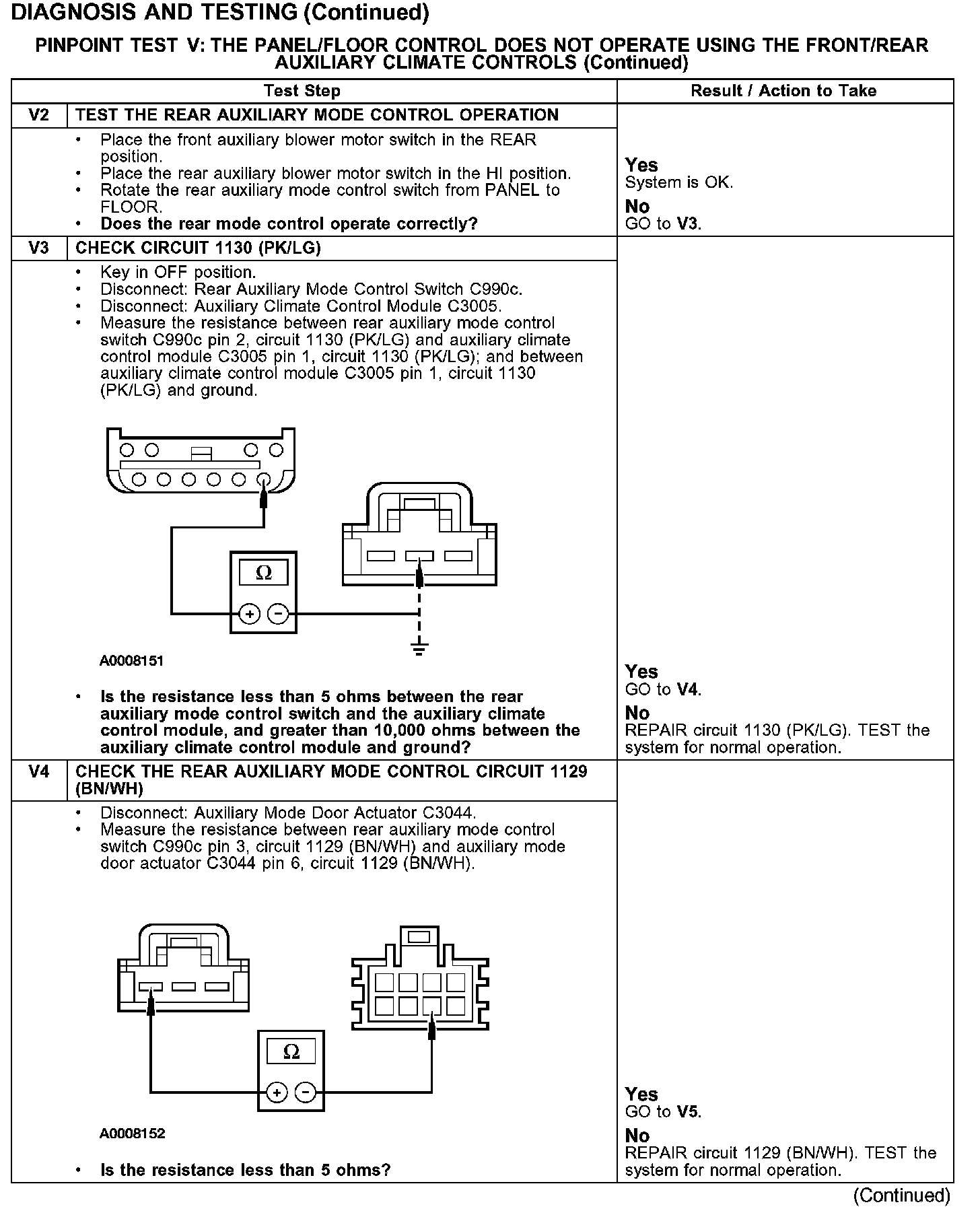

Test V2-V4:

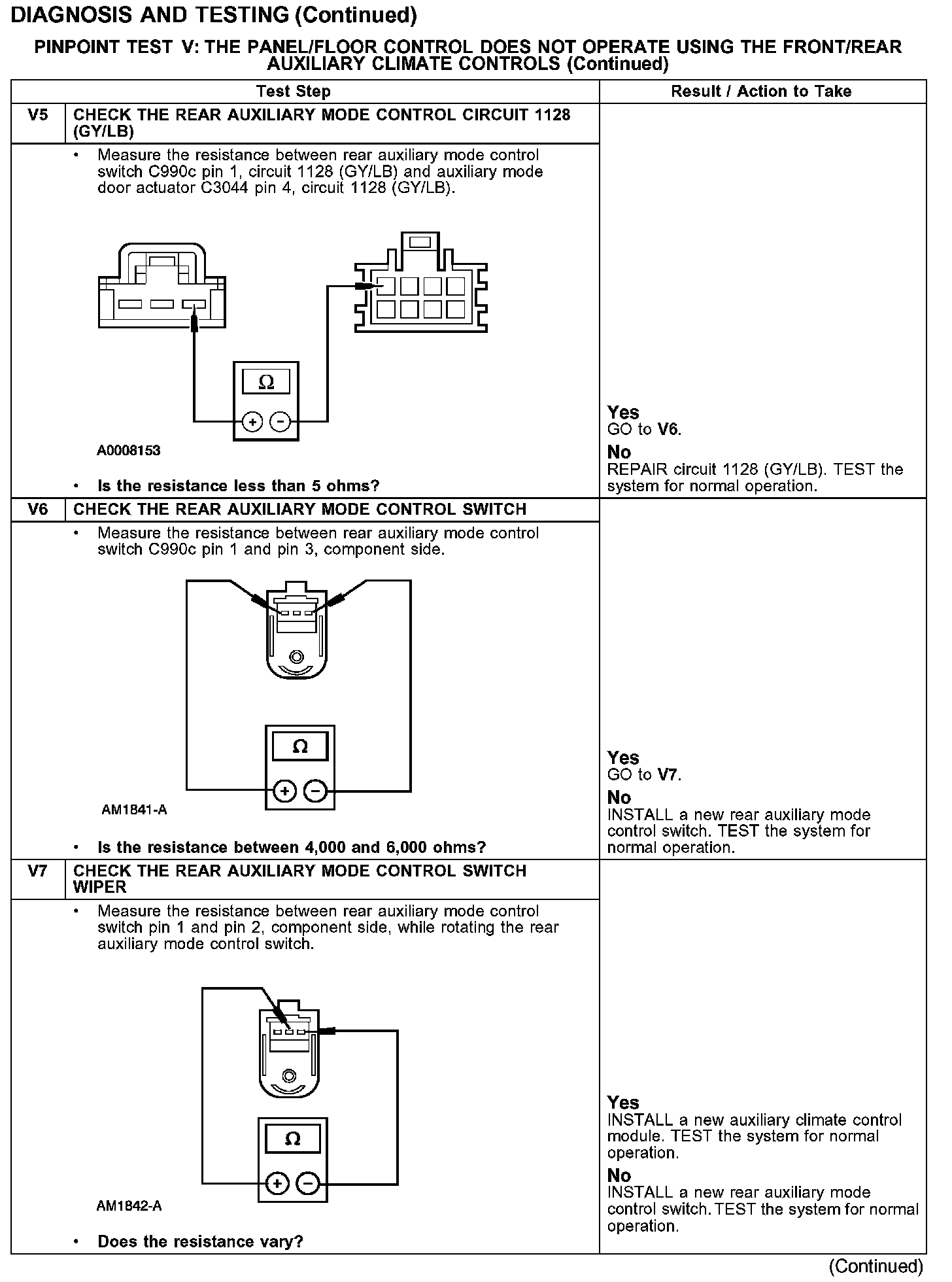

Test V5-V7:

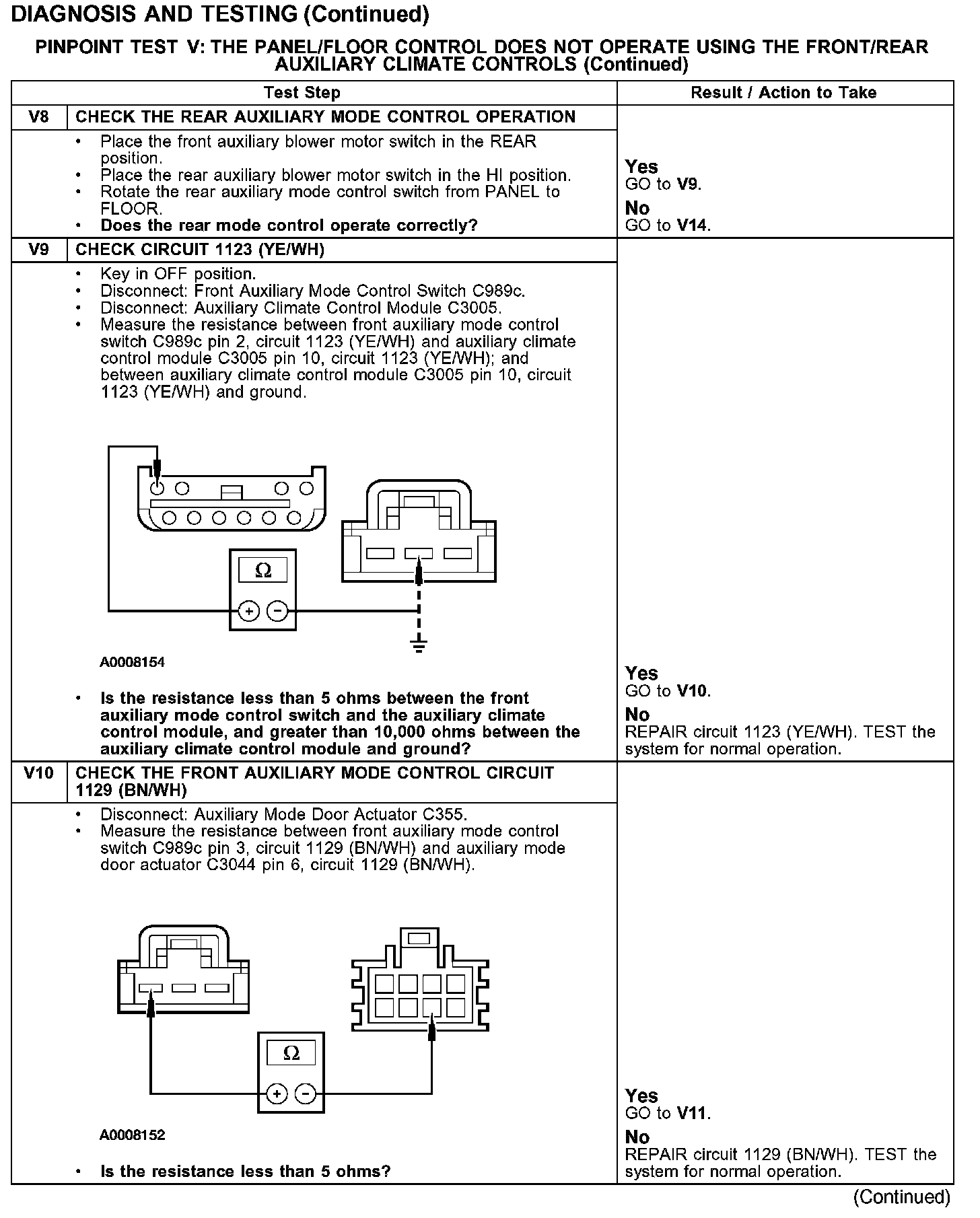

Test V8-V10:

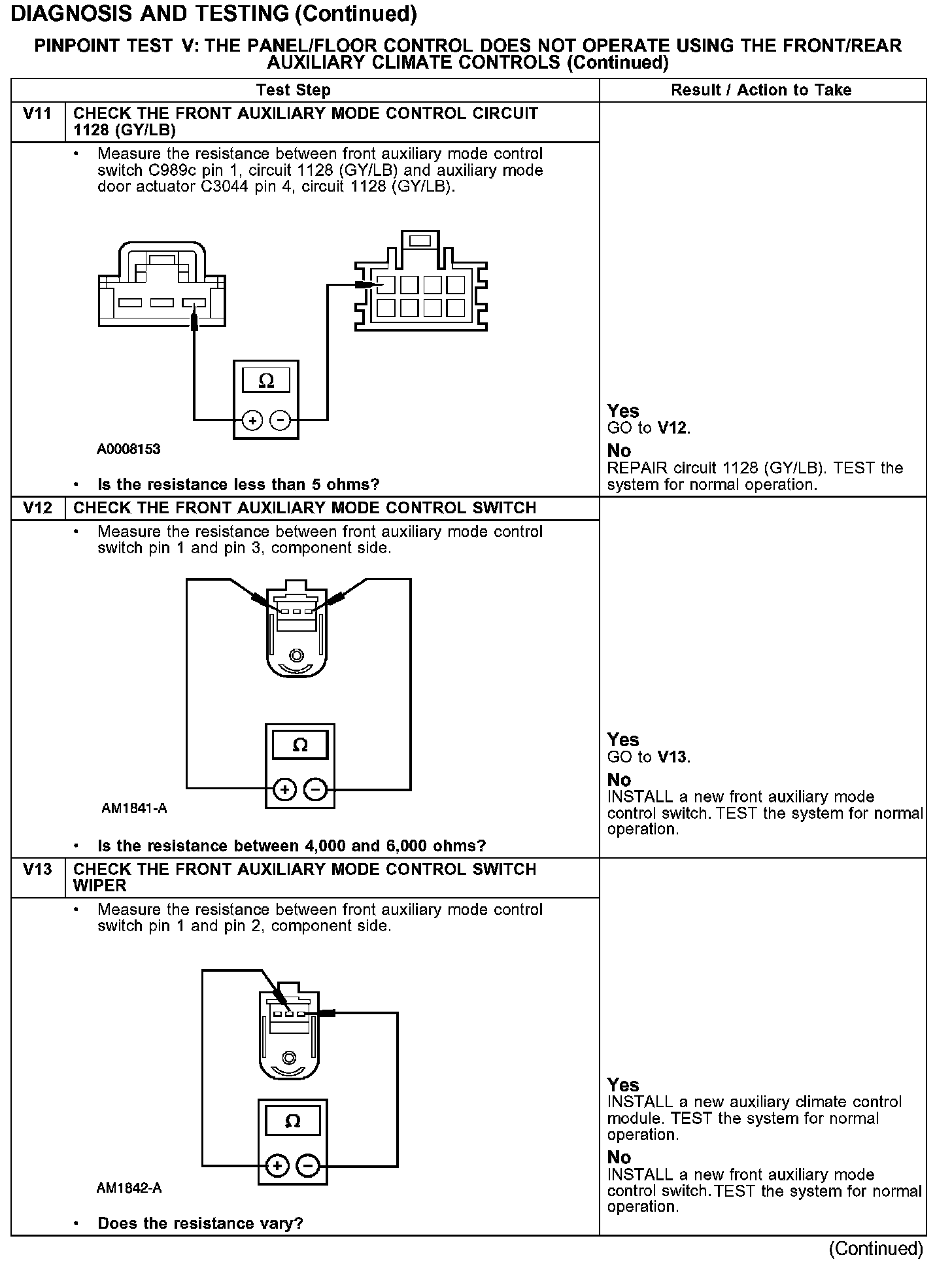

Test V11-V13:

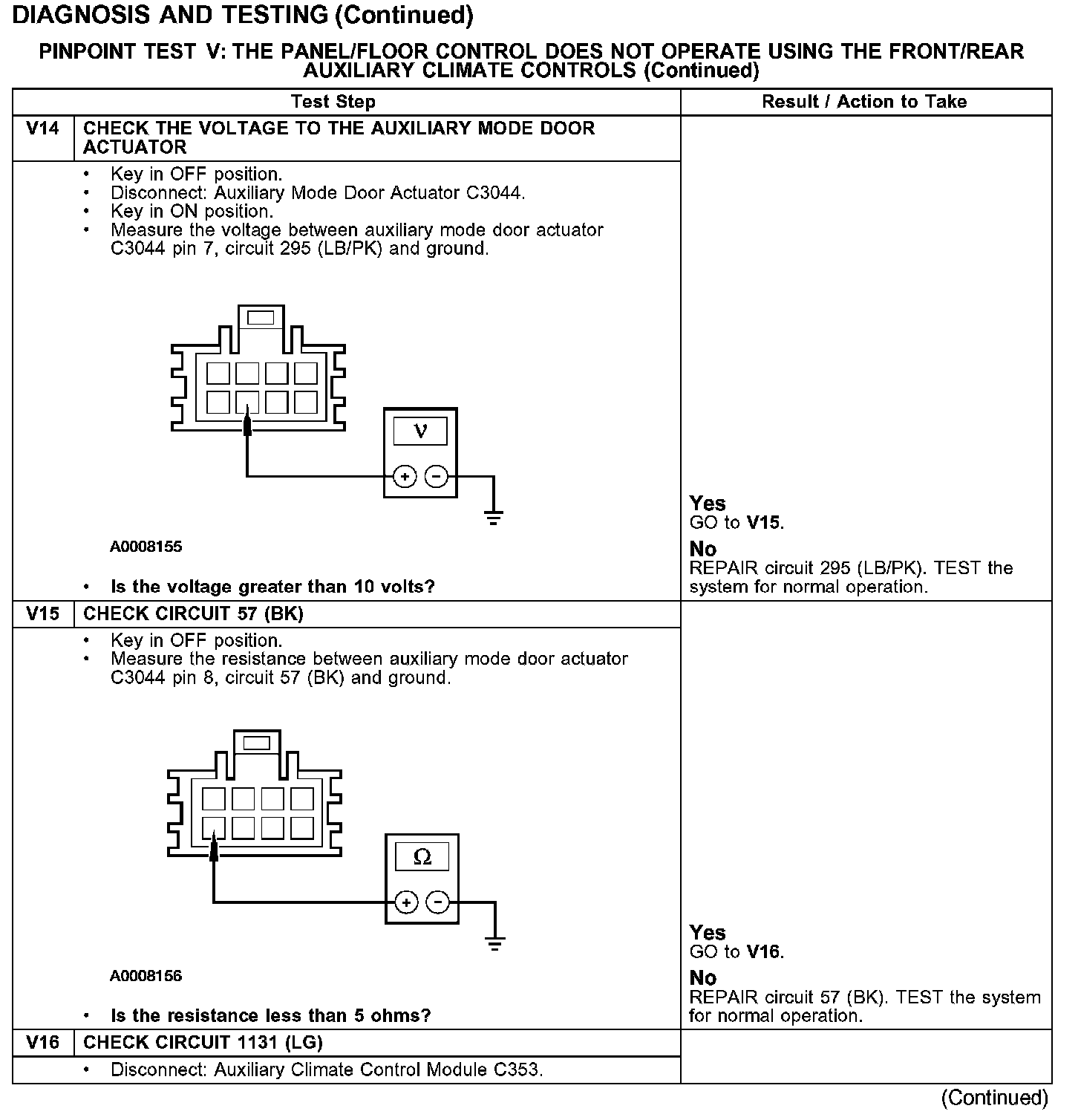

Test V14-V16:

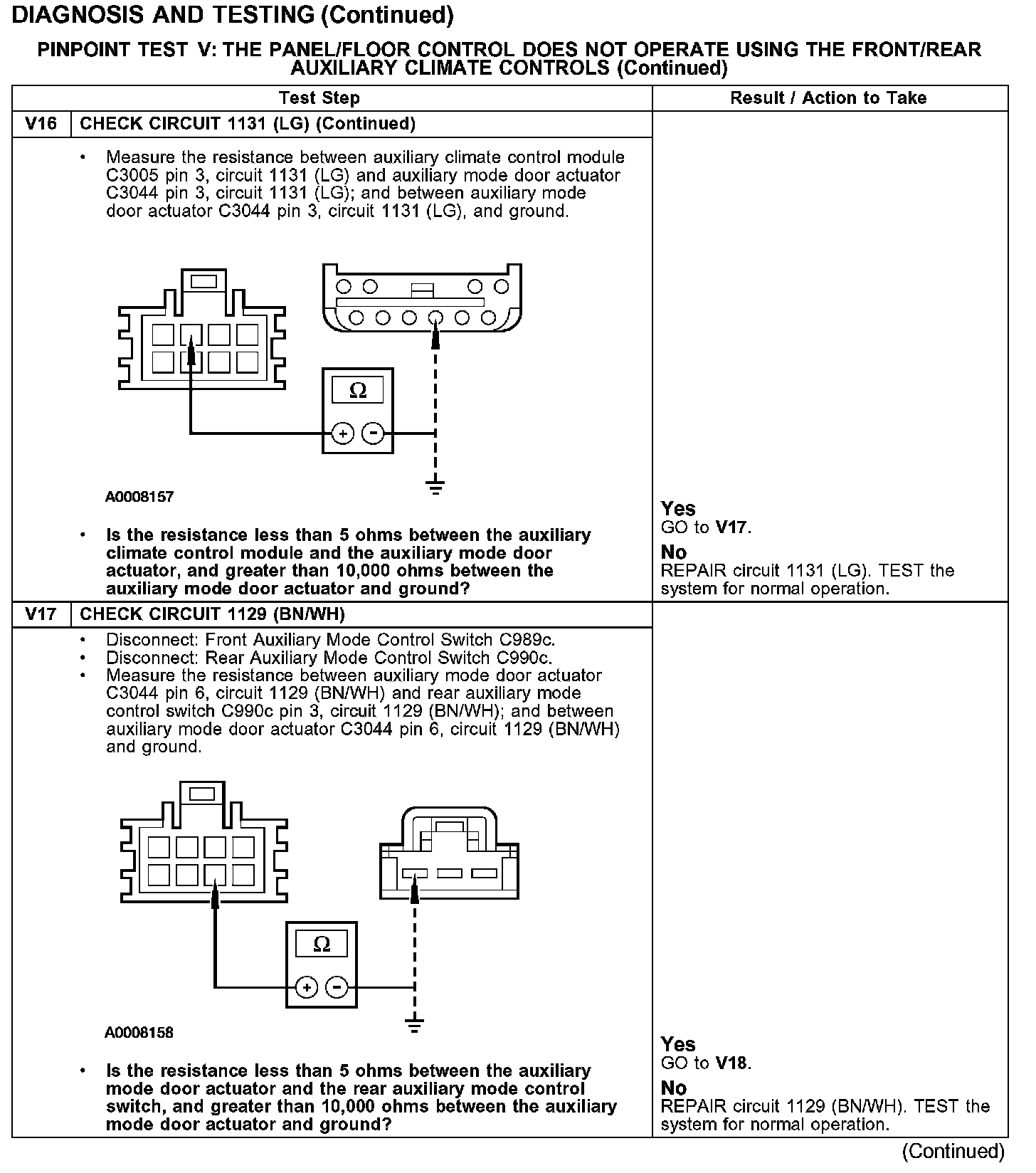

Test V16-V17:

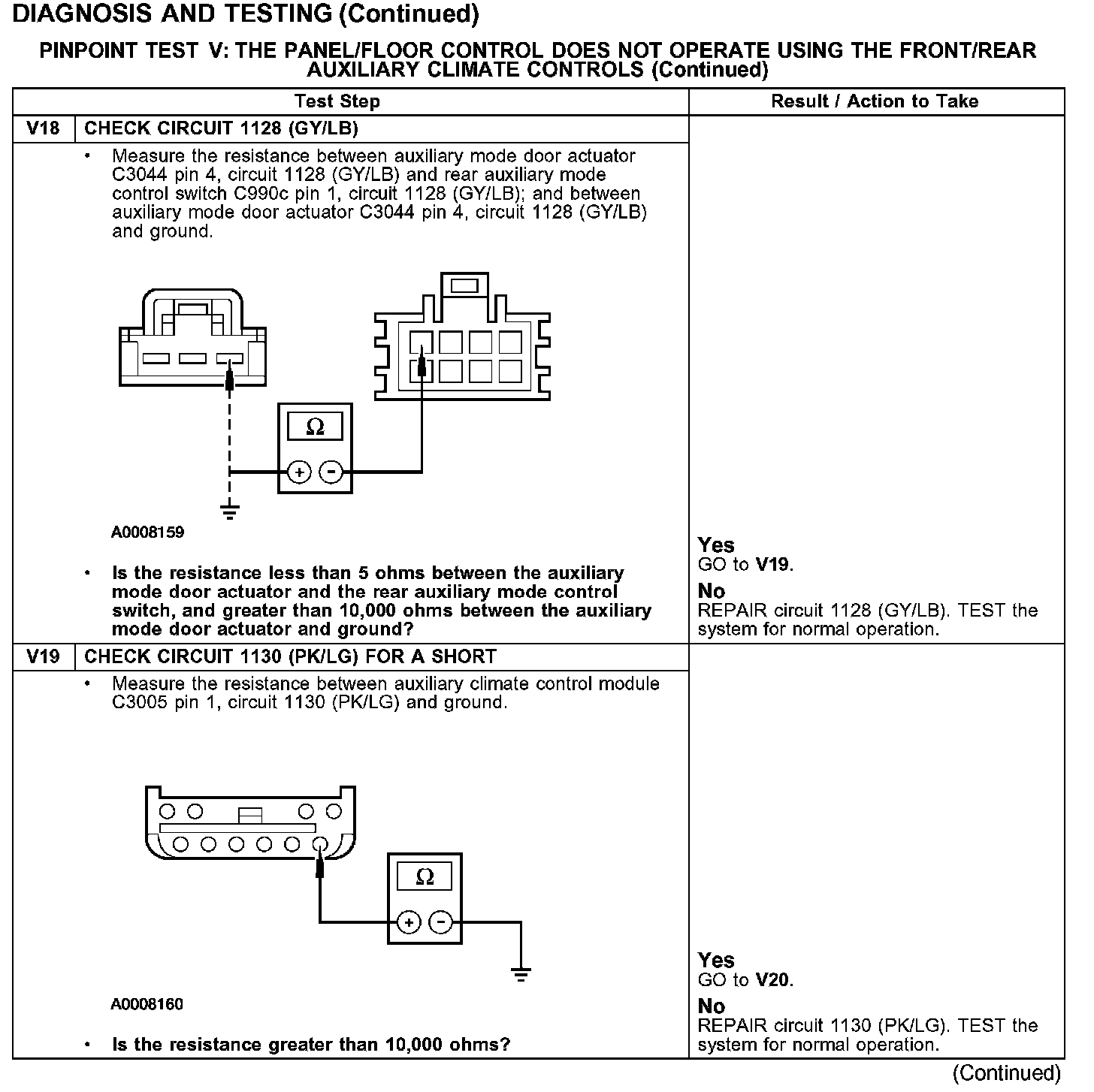

Test V18-V19:

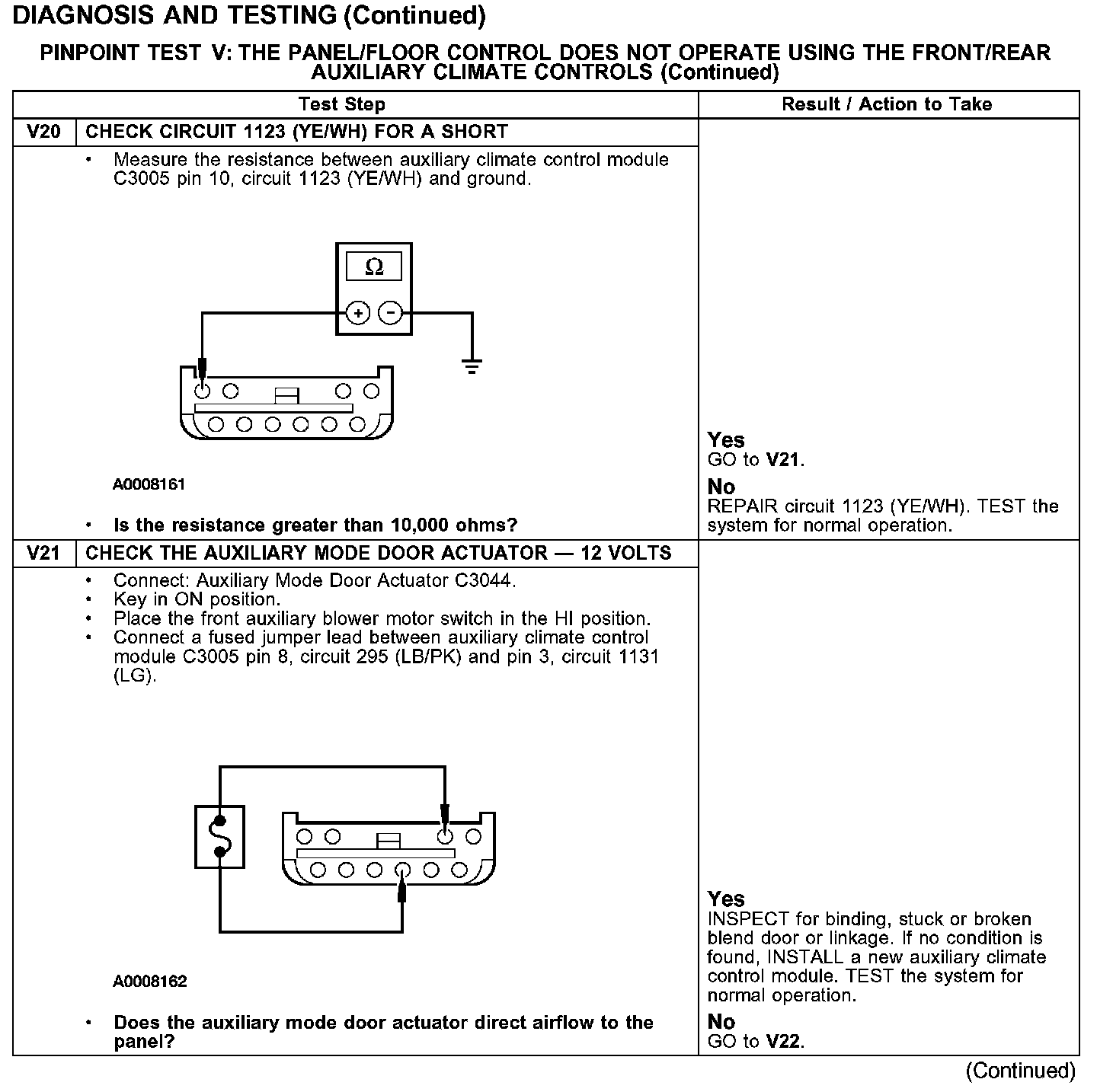

Test V20-V21:

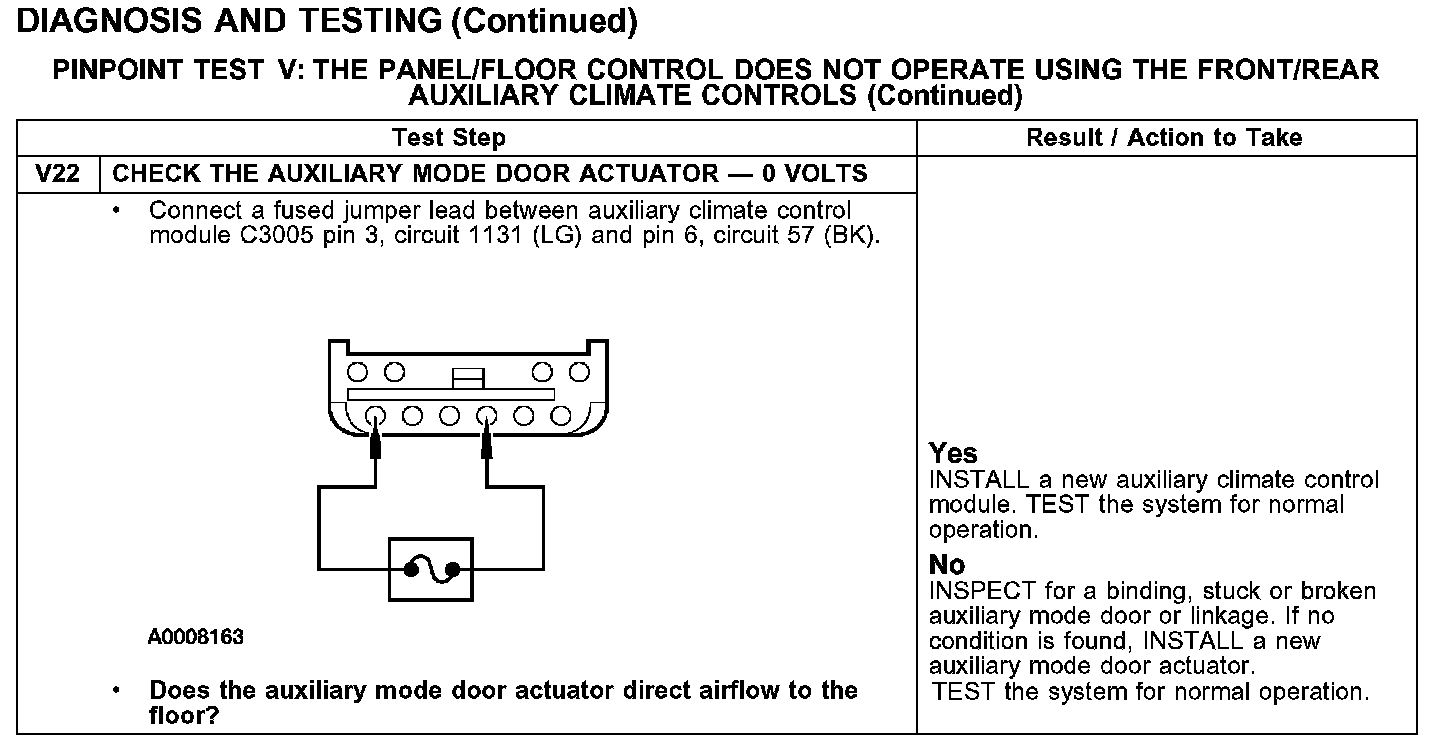

Test V22:
