Test H

PINPOINT TEST H: INCORRECT/ERRATIC DIRECTION OF AIR FLOW FROM OUTLET(S) - EATC

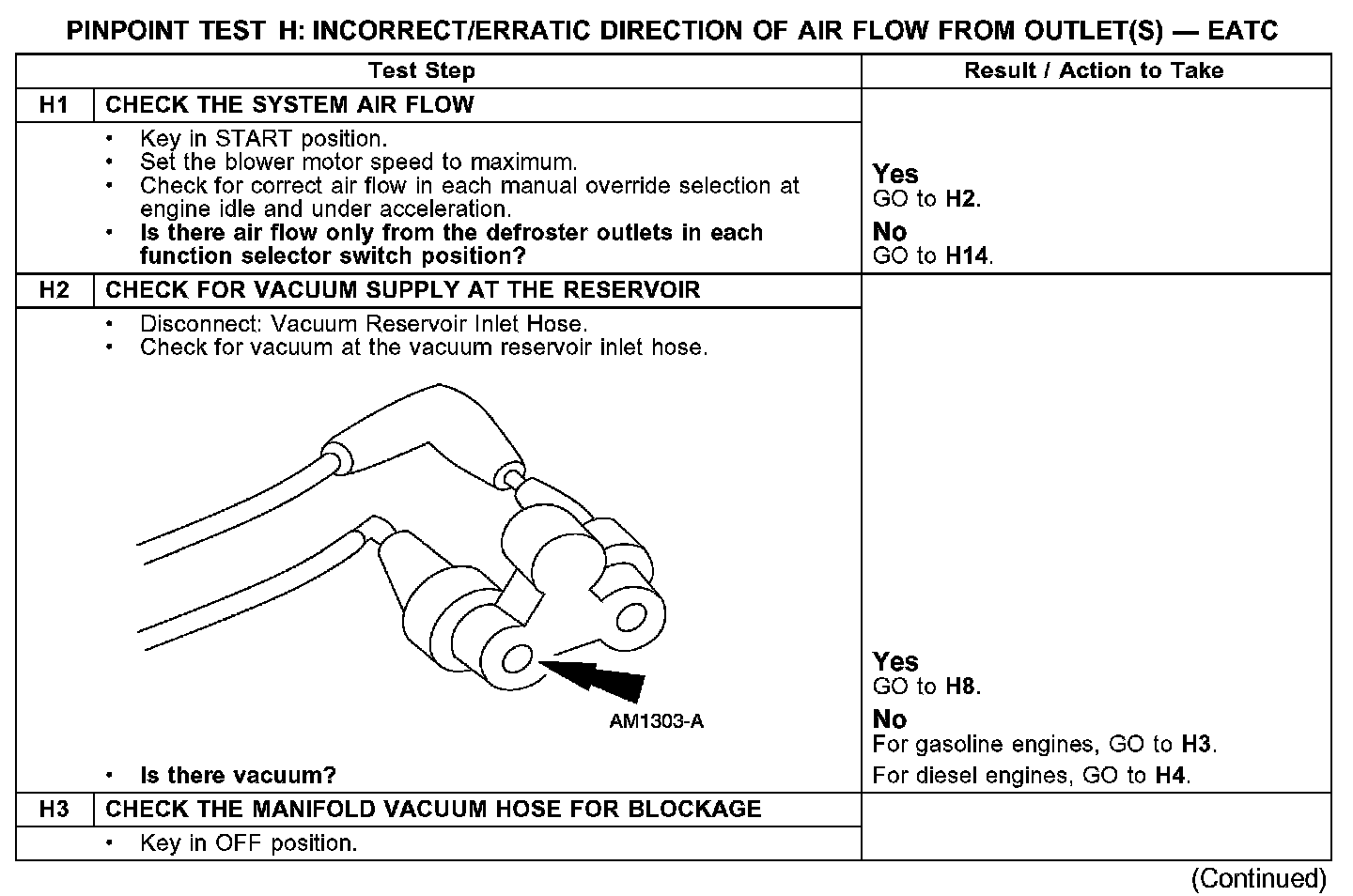

Test H1-H3:

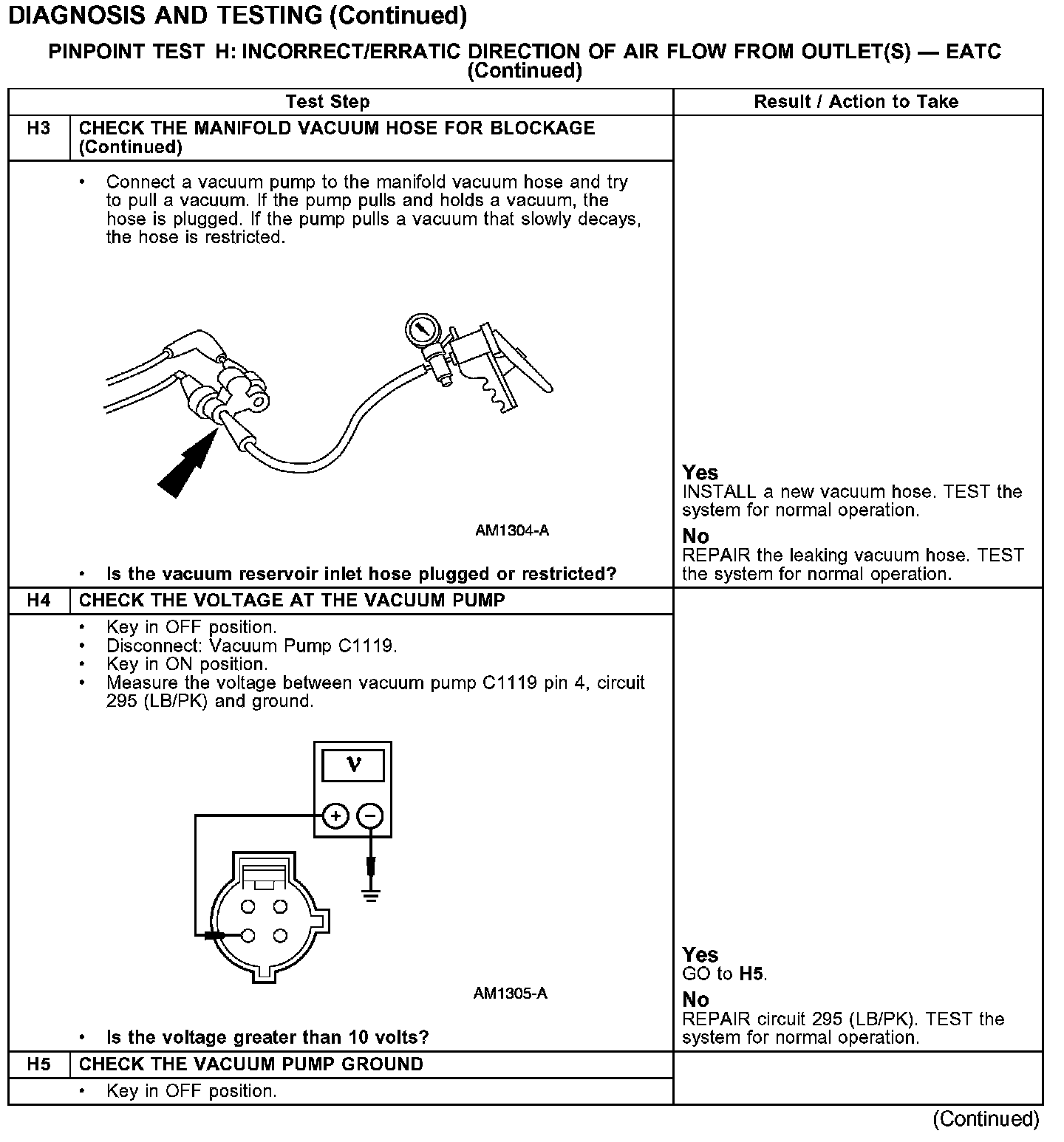

Test H3-H5:

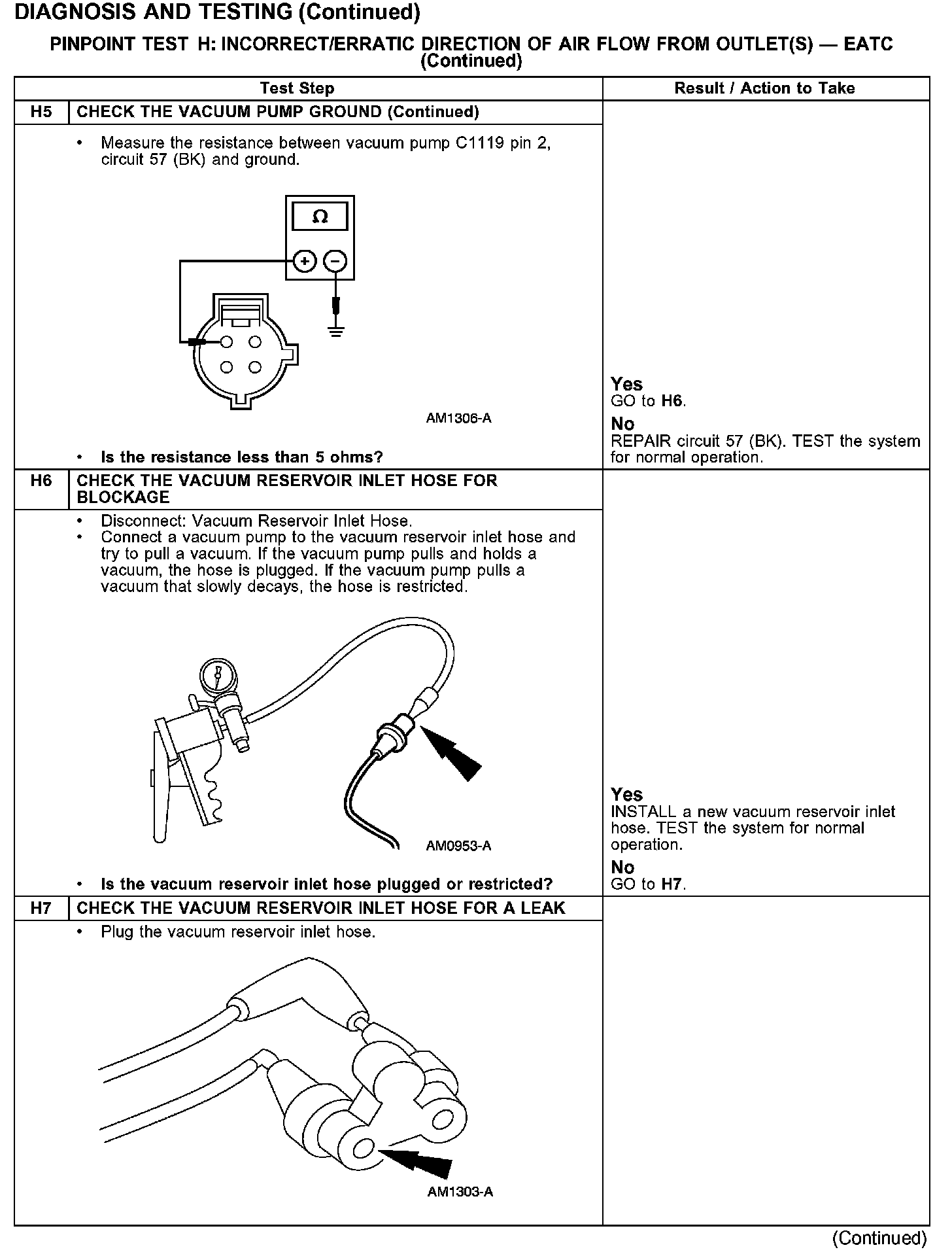

Test H5-H7:

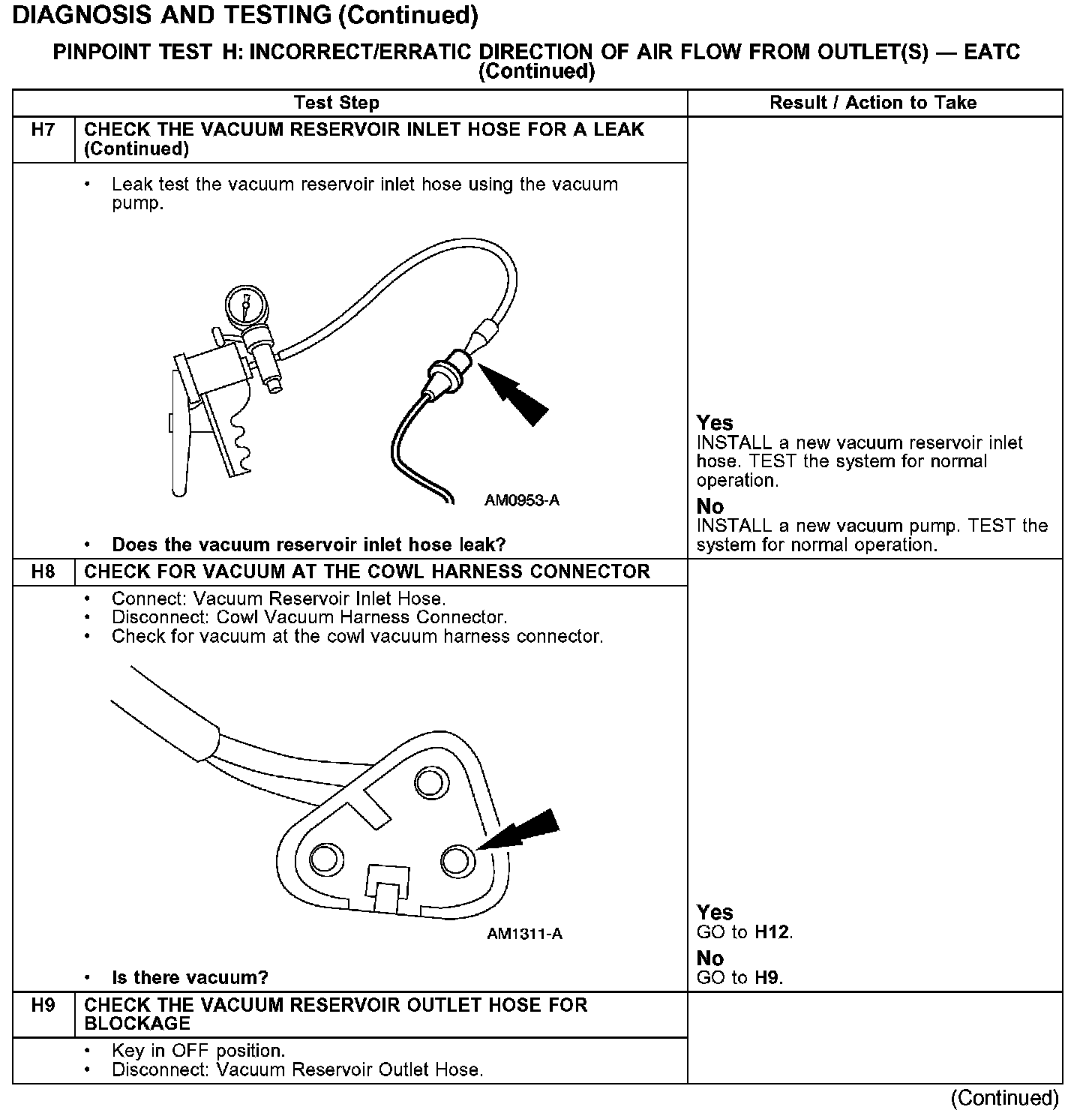

Test H7-H9:

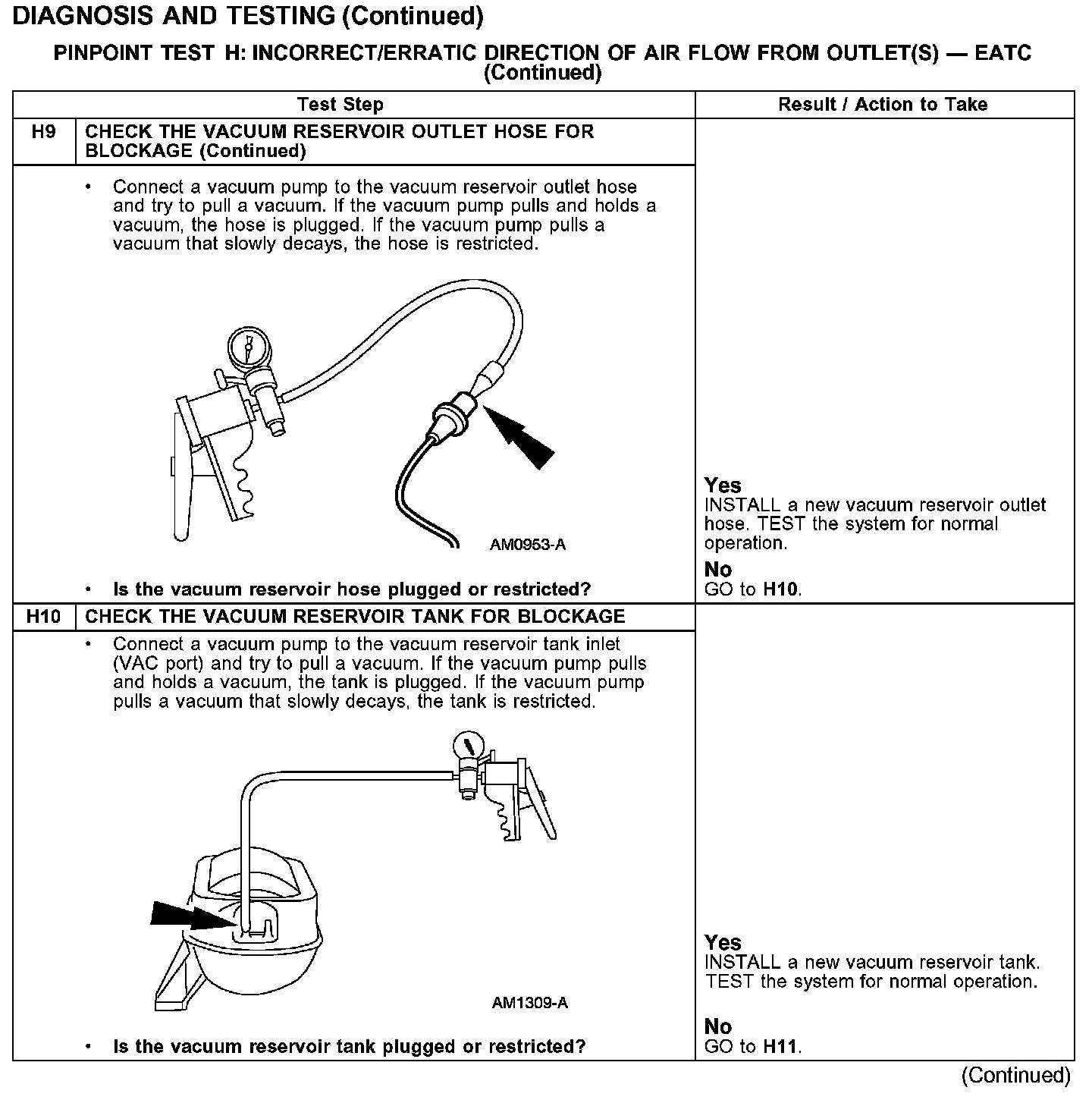

Test H9-H10:

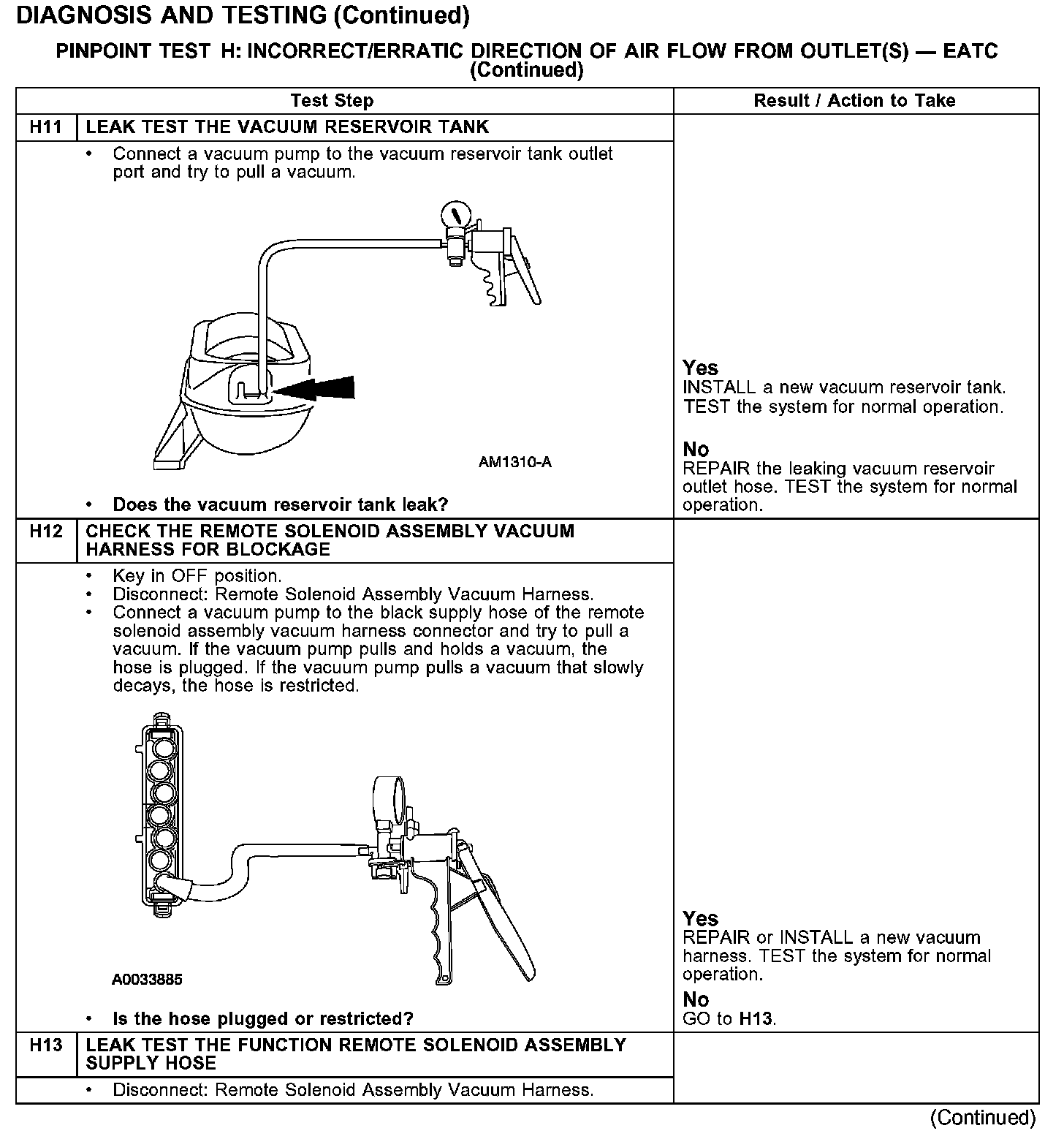

Test H11-H13:

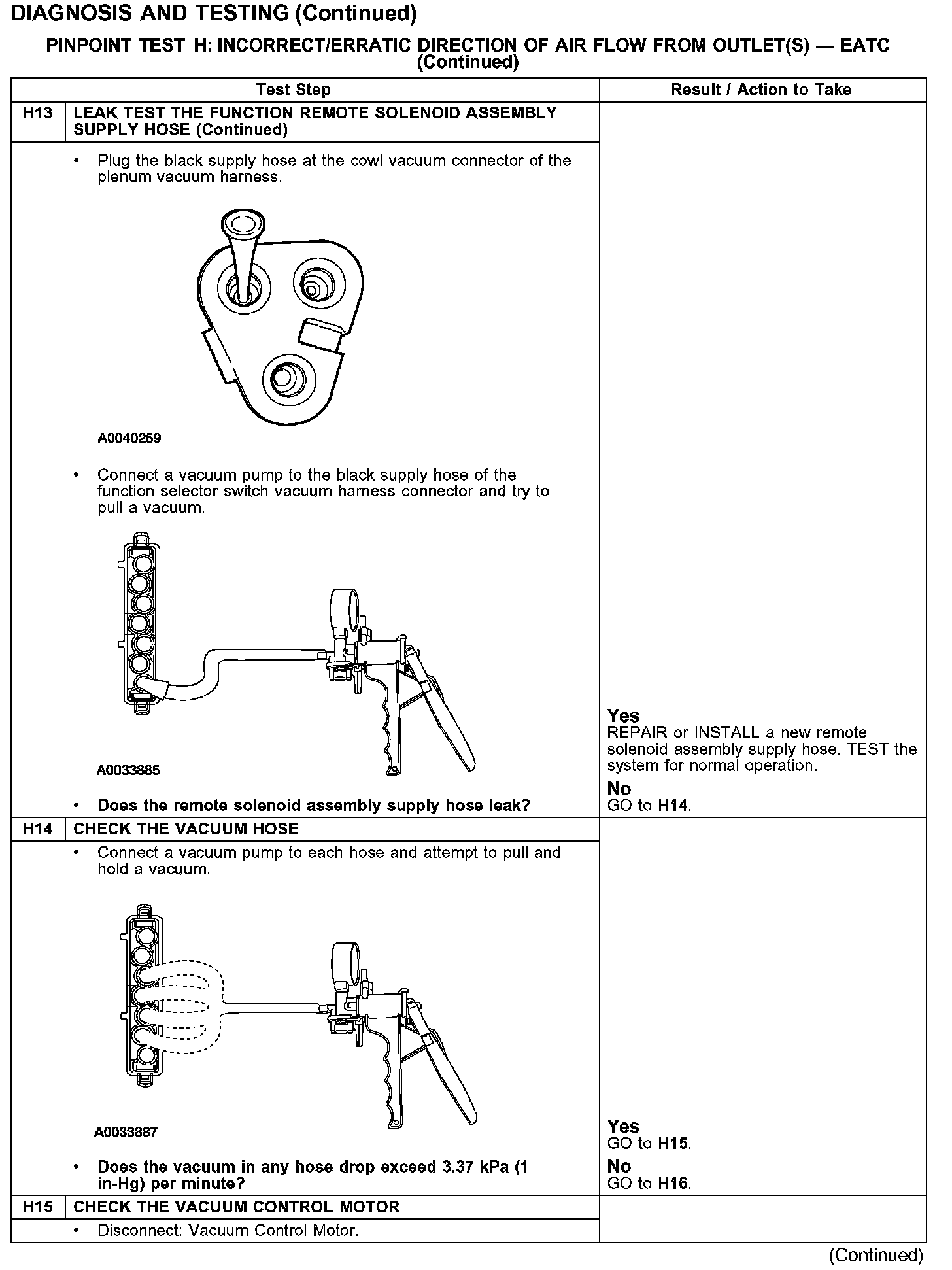

Test H13-H15:

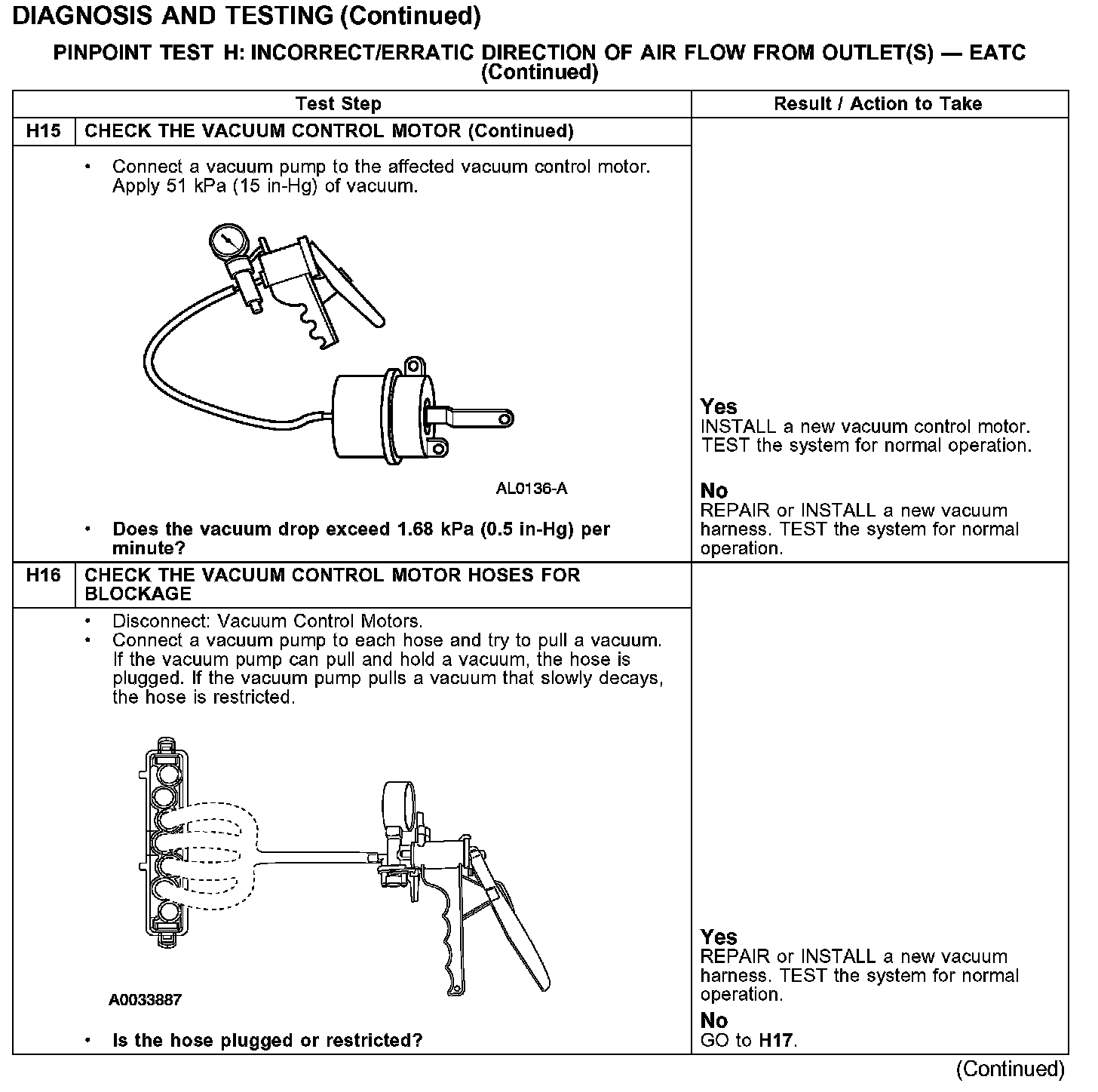

Test H15-H16:

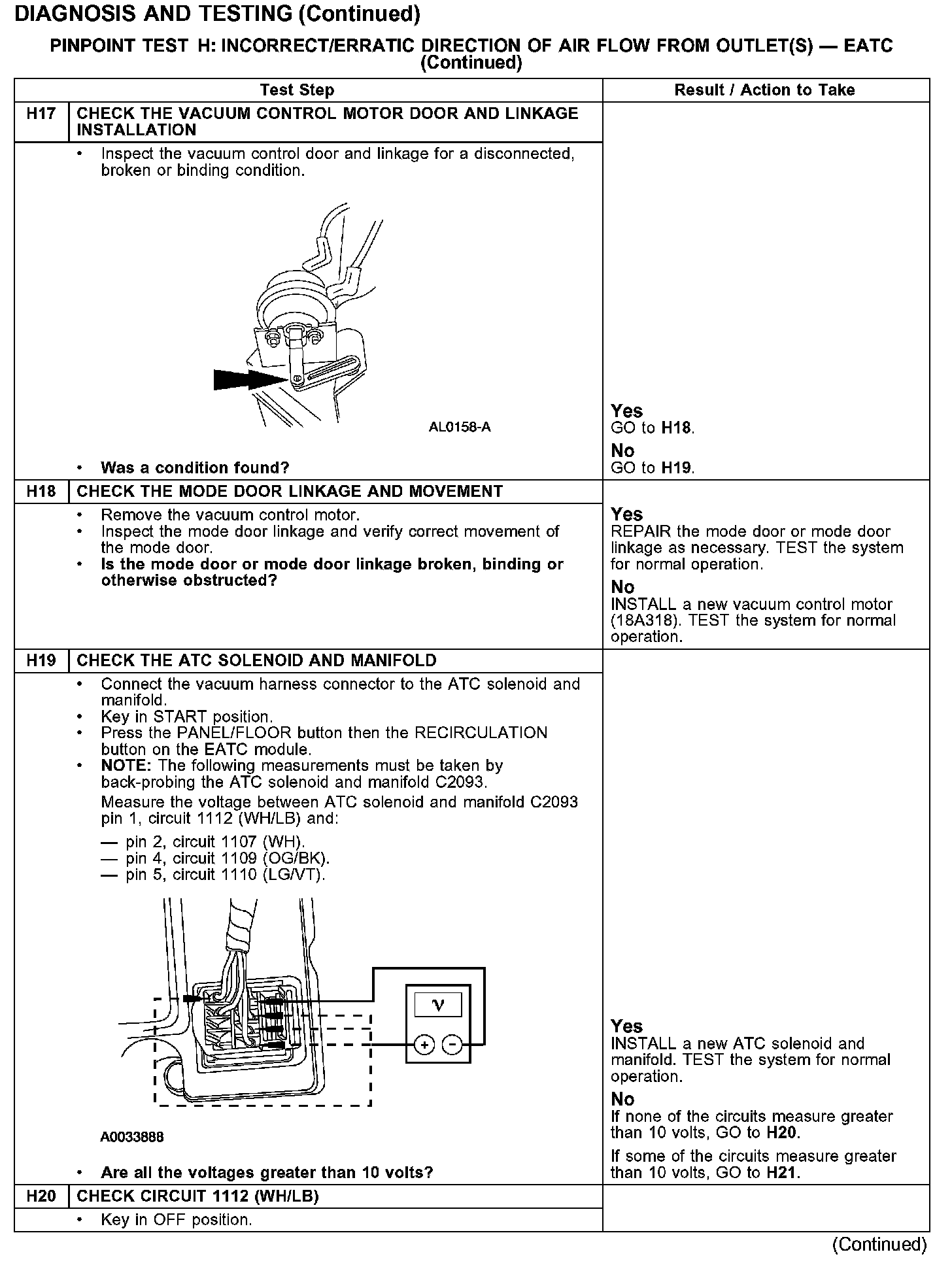

Test H17-H20:

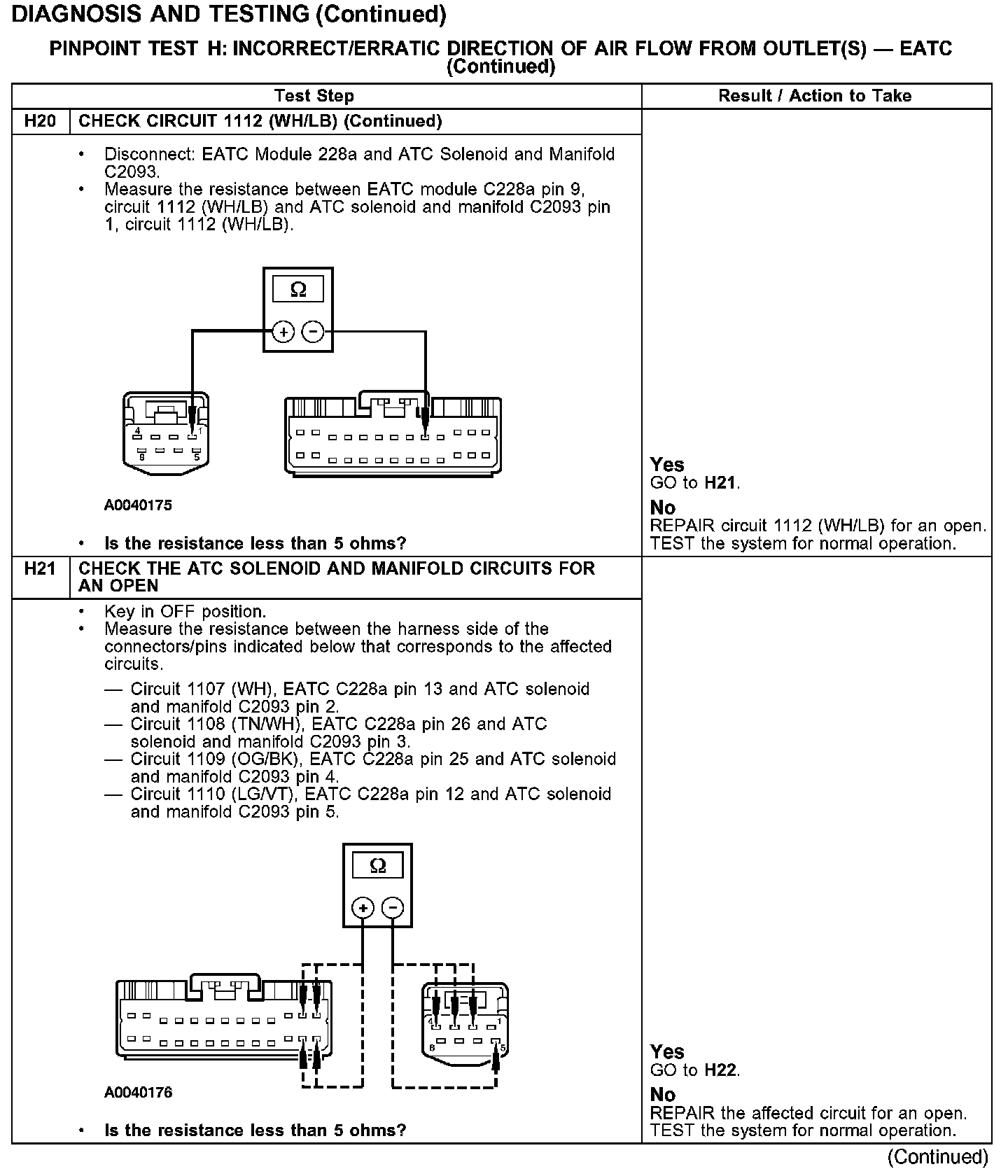

Test H20-H21:

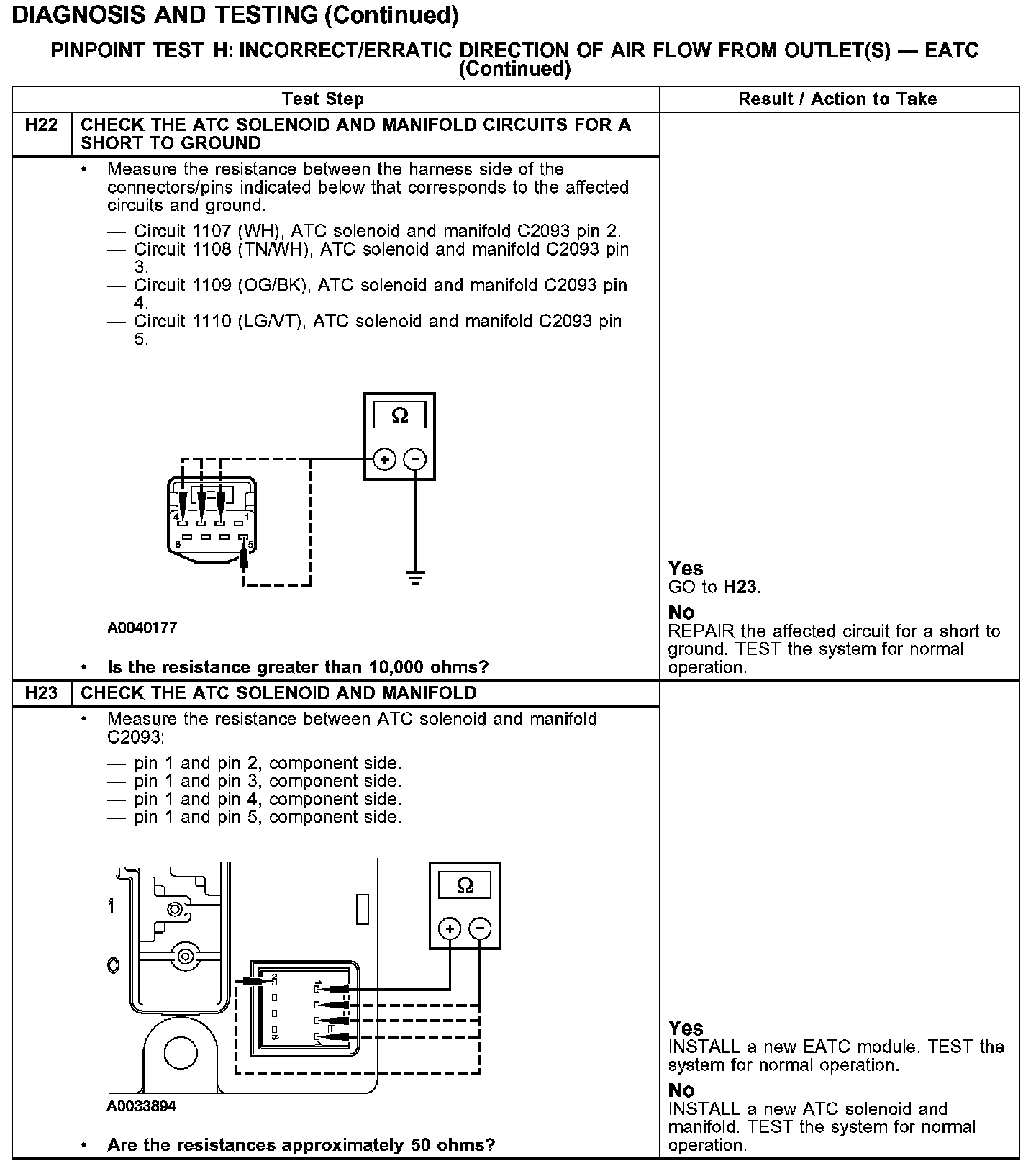

Test H22-H23:
