Test E

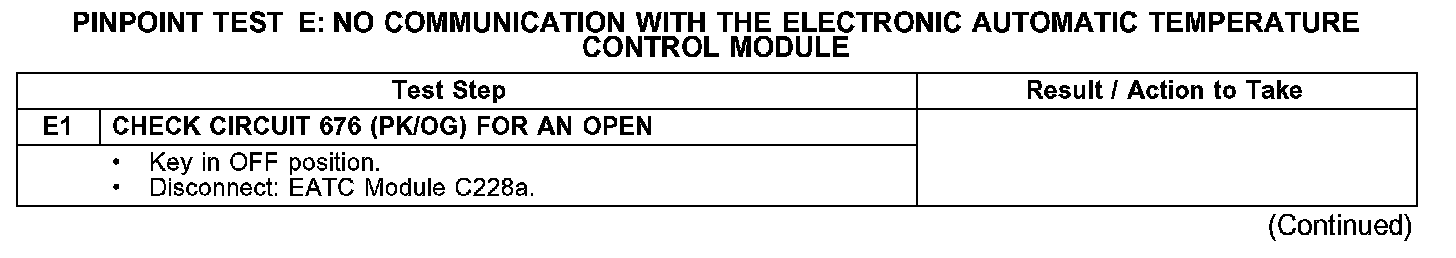

PINPOINT TEST E: NO COMMUNICATION WITH THE ELECTRONIC AUTOMATIC TEMPERATURE CONTROL MODULE


Test E1:

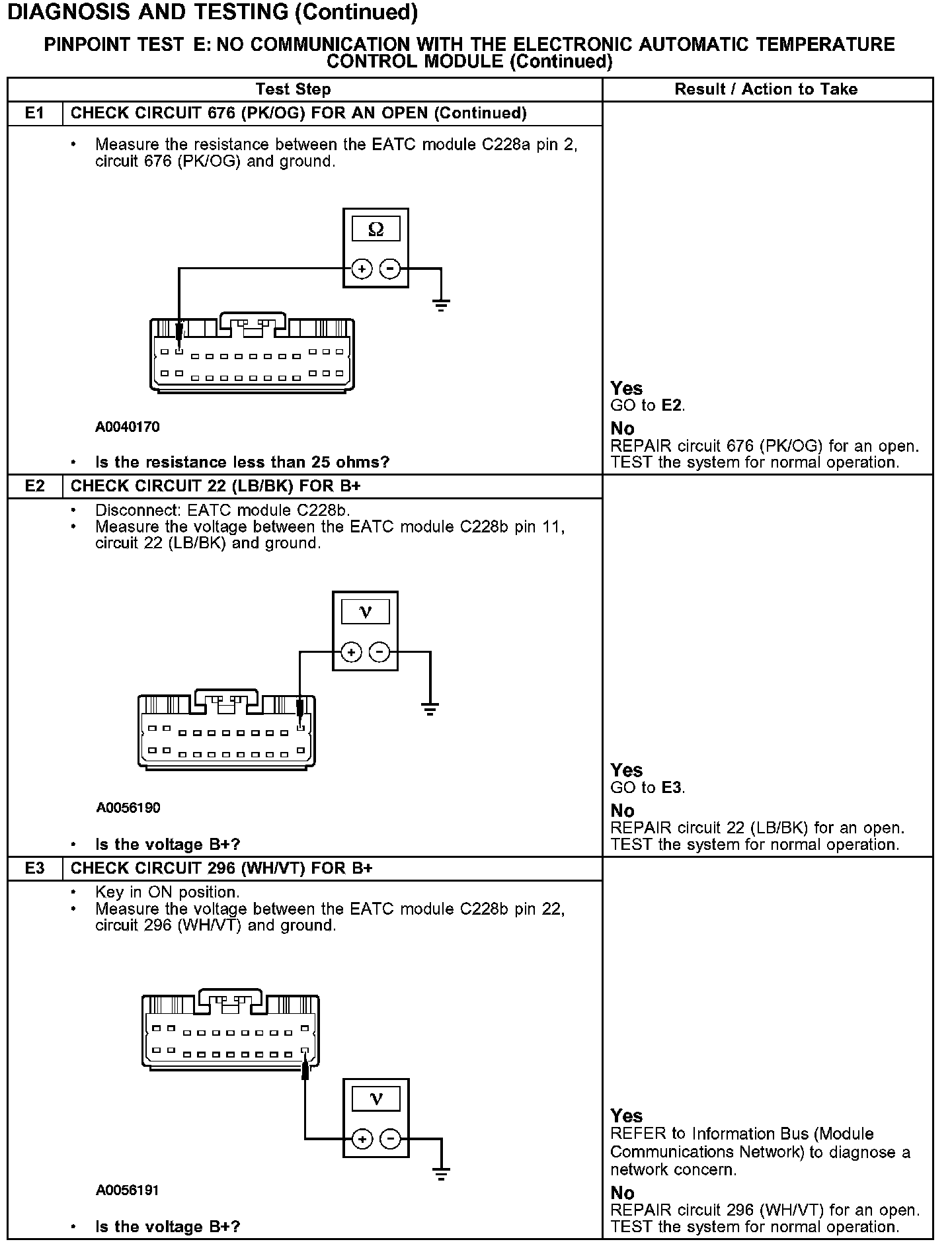

Test E1-E3:
