Test C

PINPOINT TEST C: DTC B1255 OR DTC B1257 - A/C AMBIENT TEMPERATURE SENSOR OPEN CIRCUIT OR SHORT TO GROUND

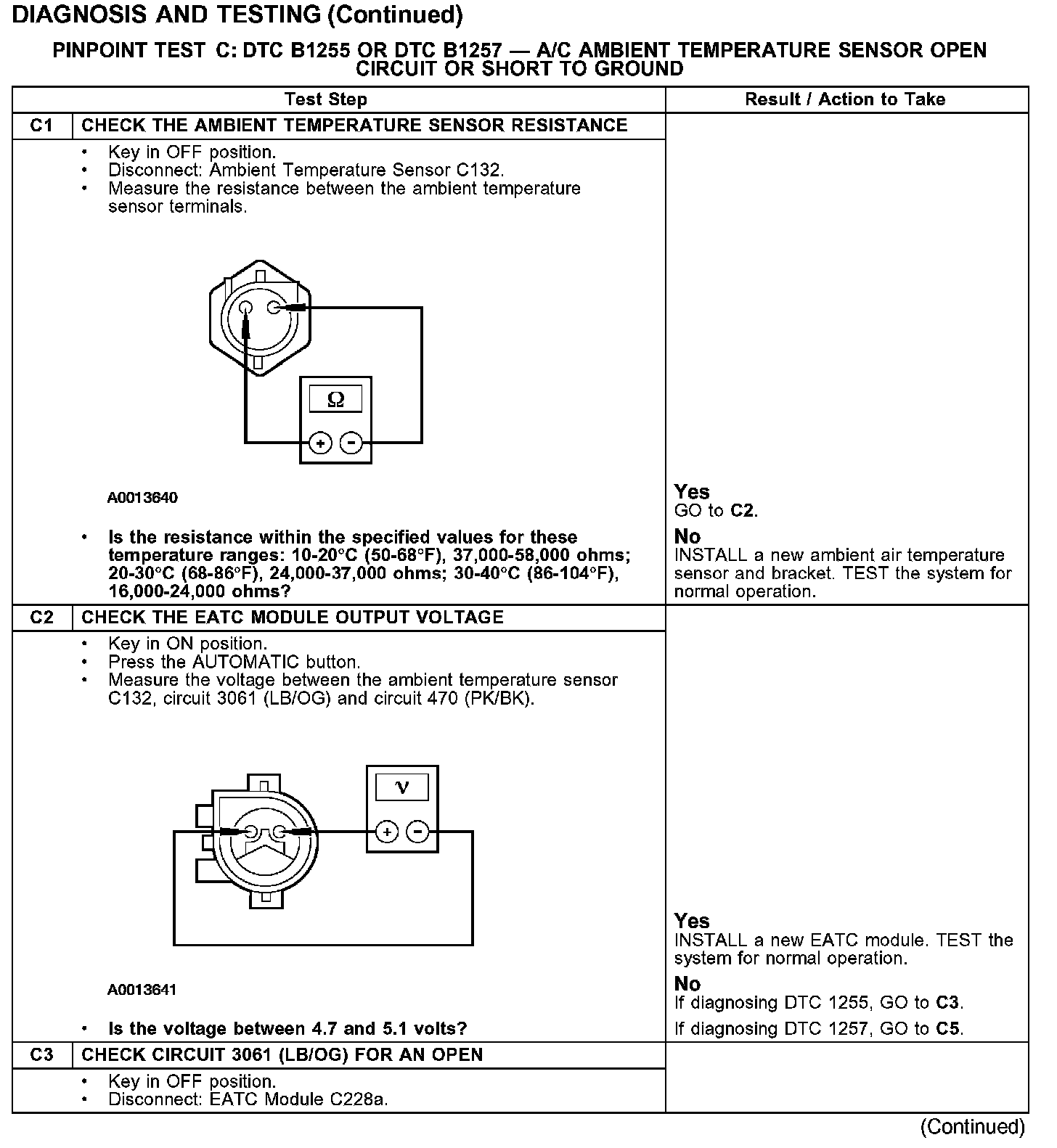

Test C1-C3:

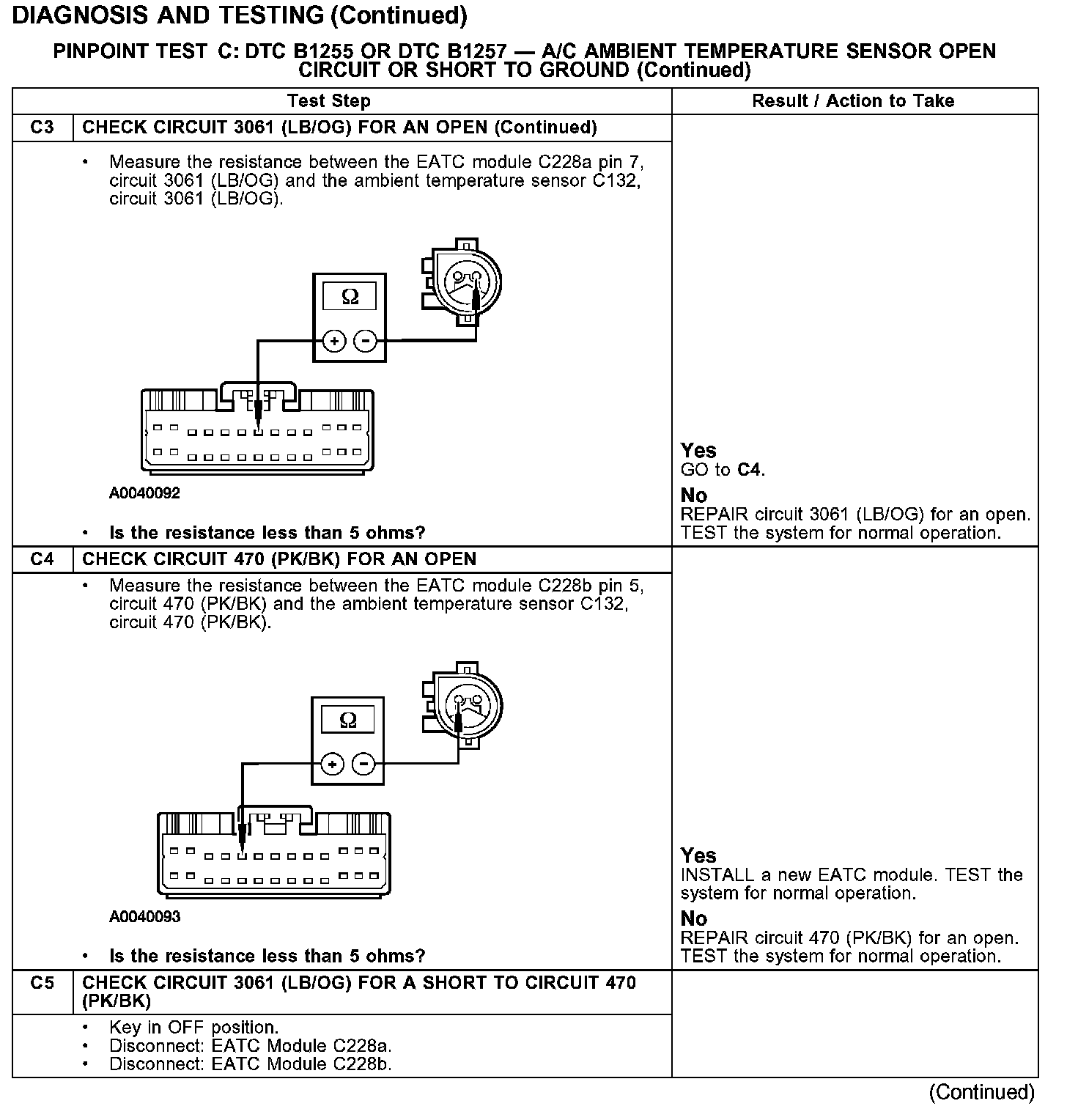

Test C3-C5:

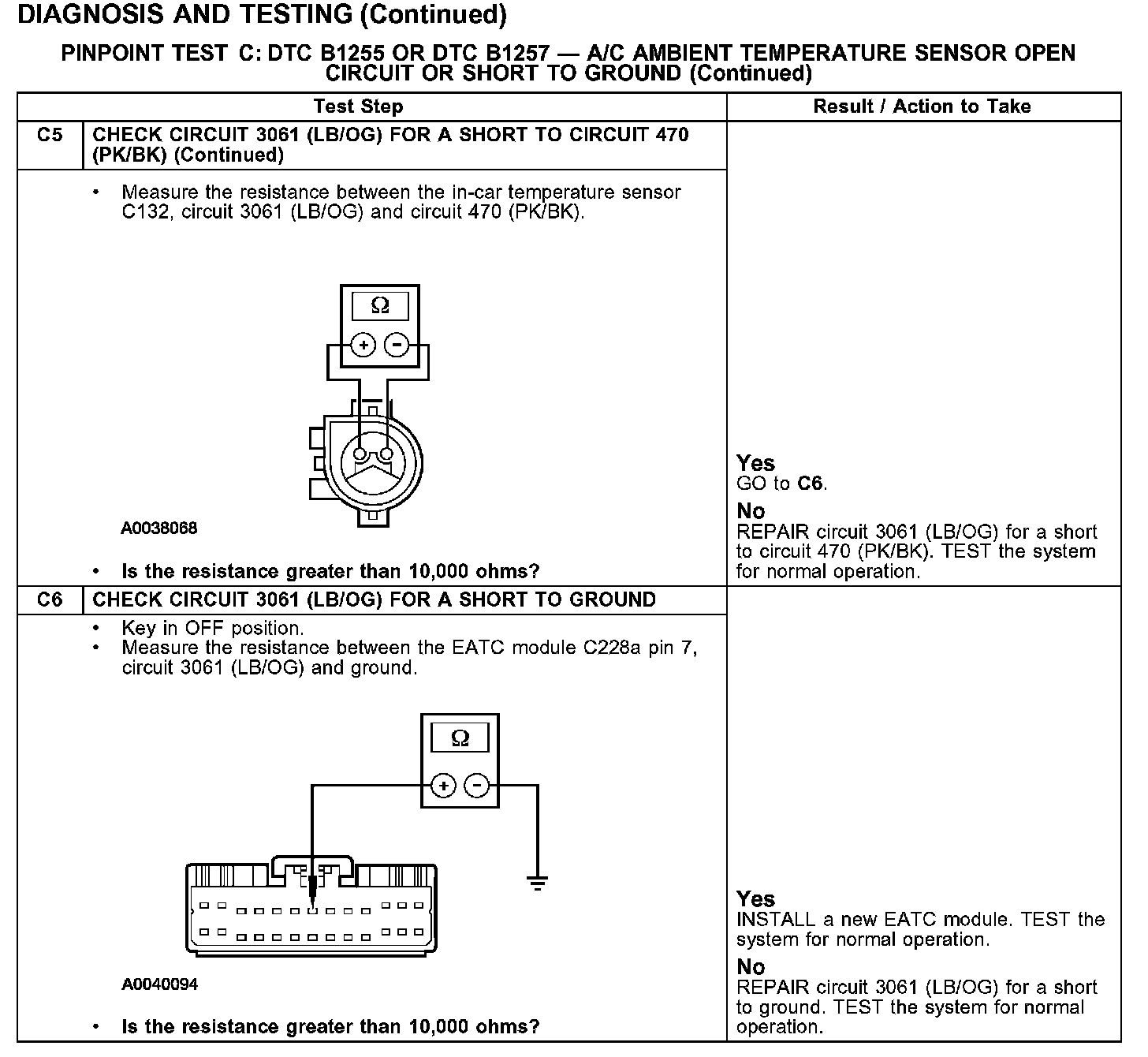

Test C5-C6:
