Dana S110
Rear Drive Axle and Differential

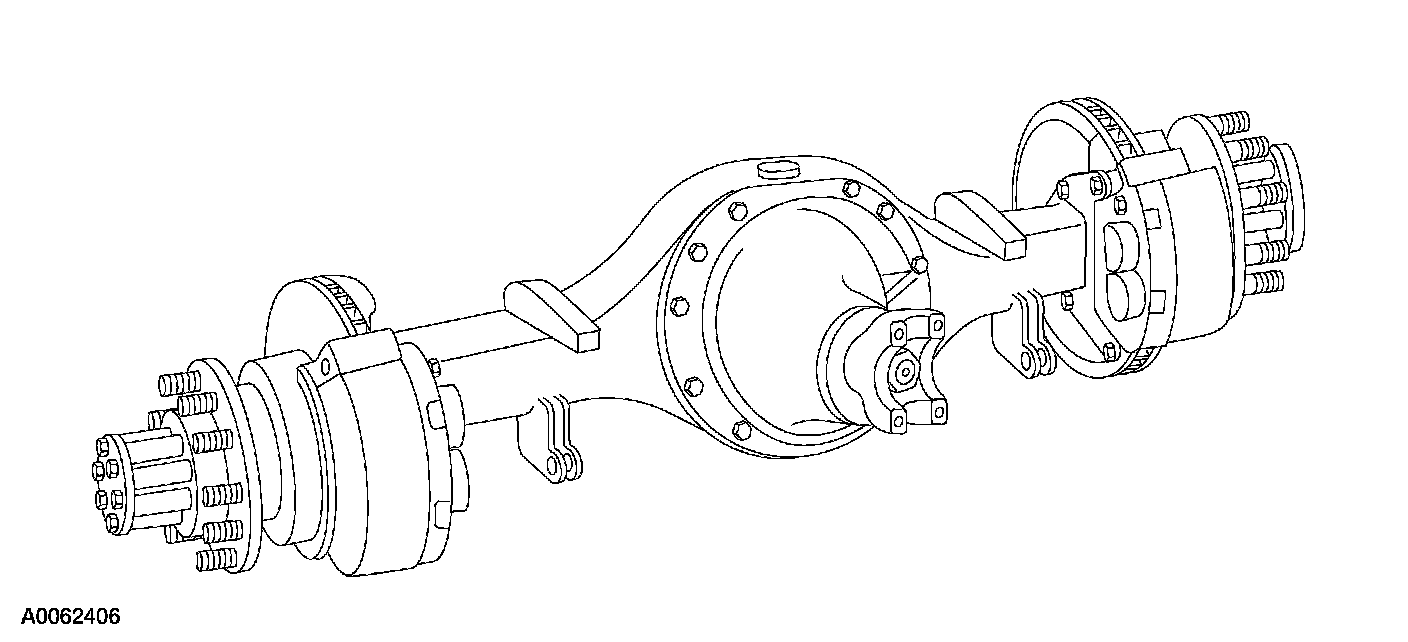

Dana Model S110 Full-Floating Rear Drive Axle

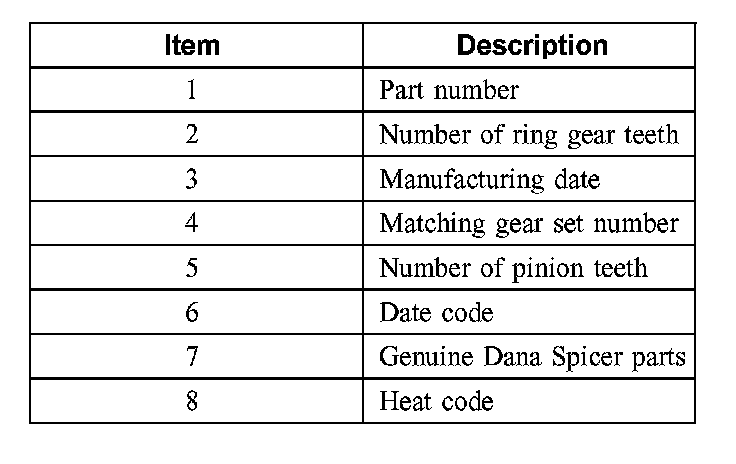

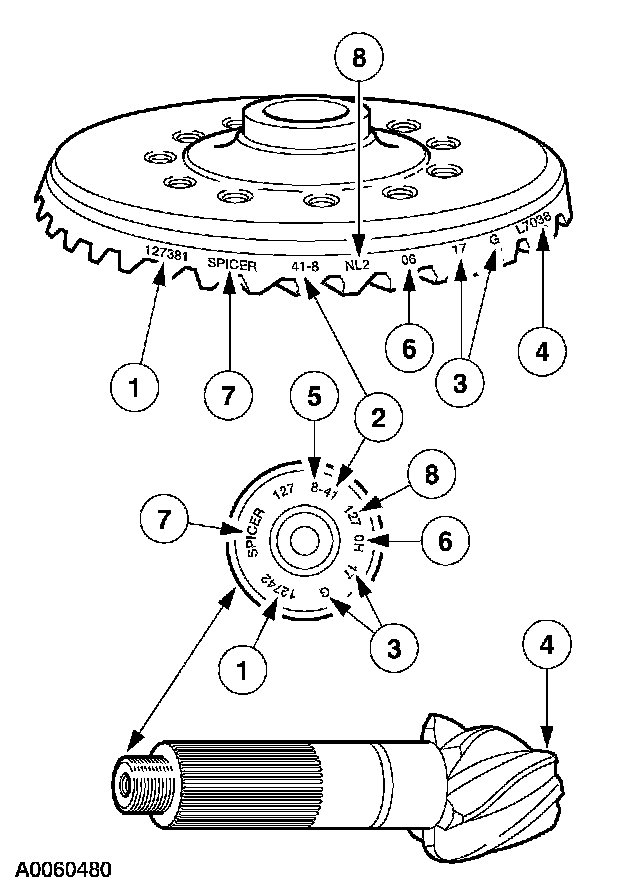

Gear Set Identification

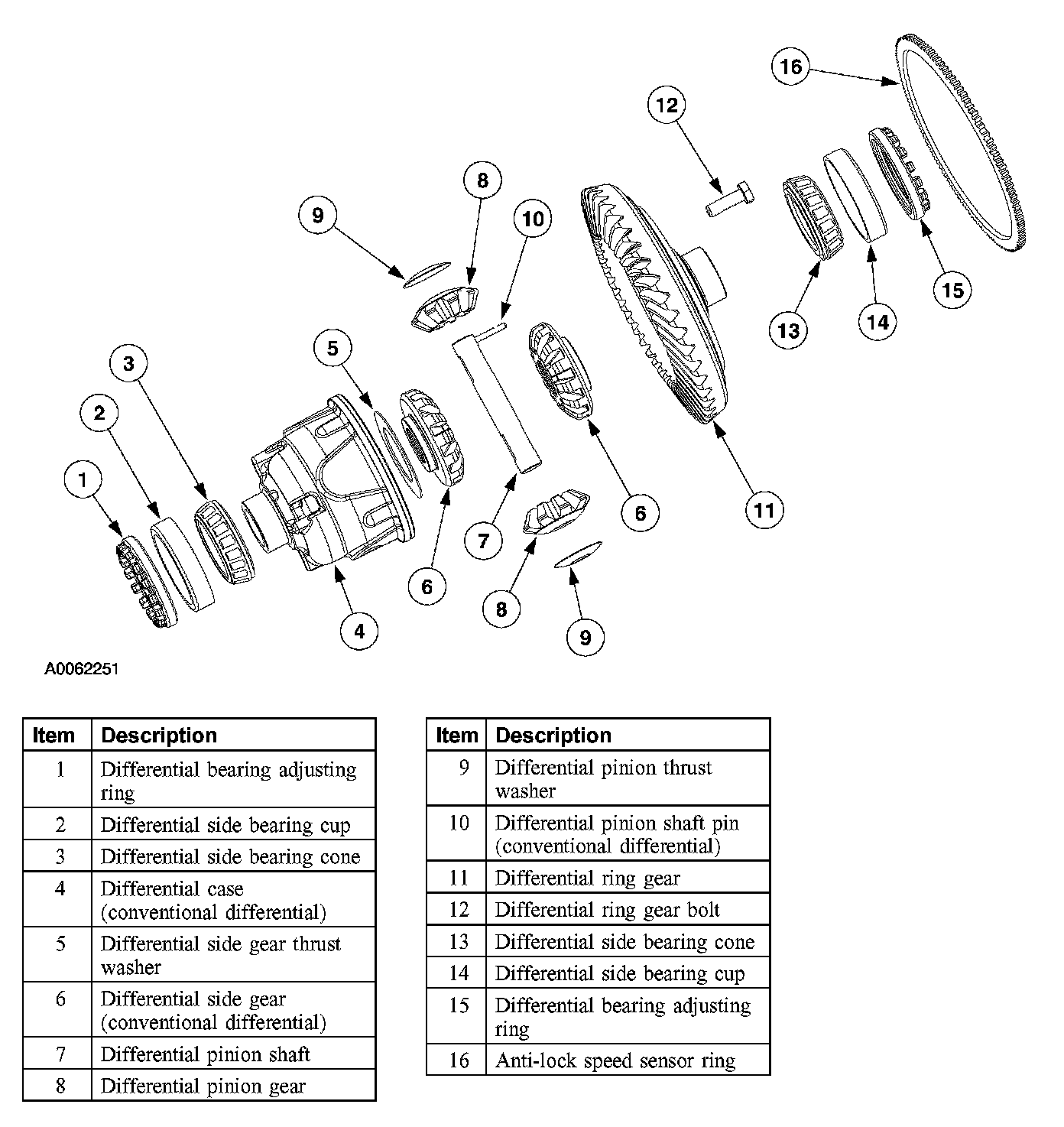

Dana Model S110 Wheel Differential Assembly, Disassembled View

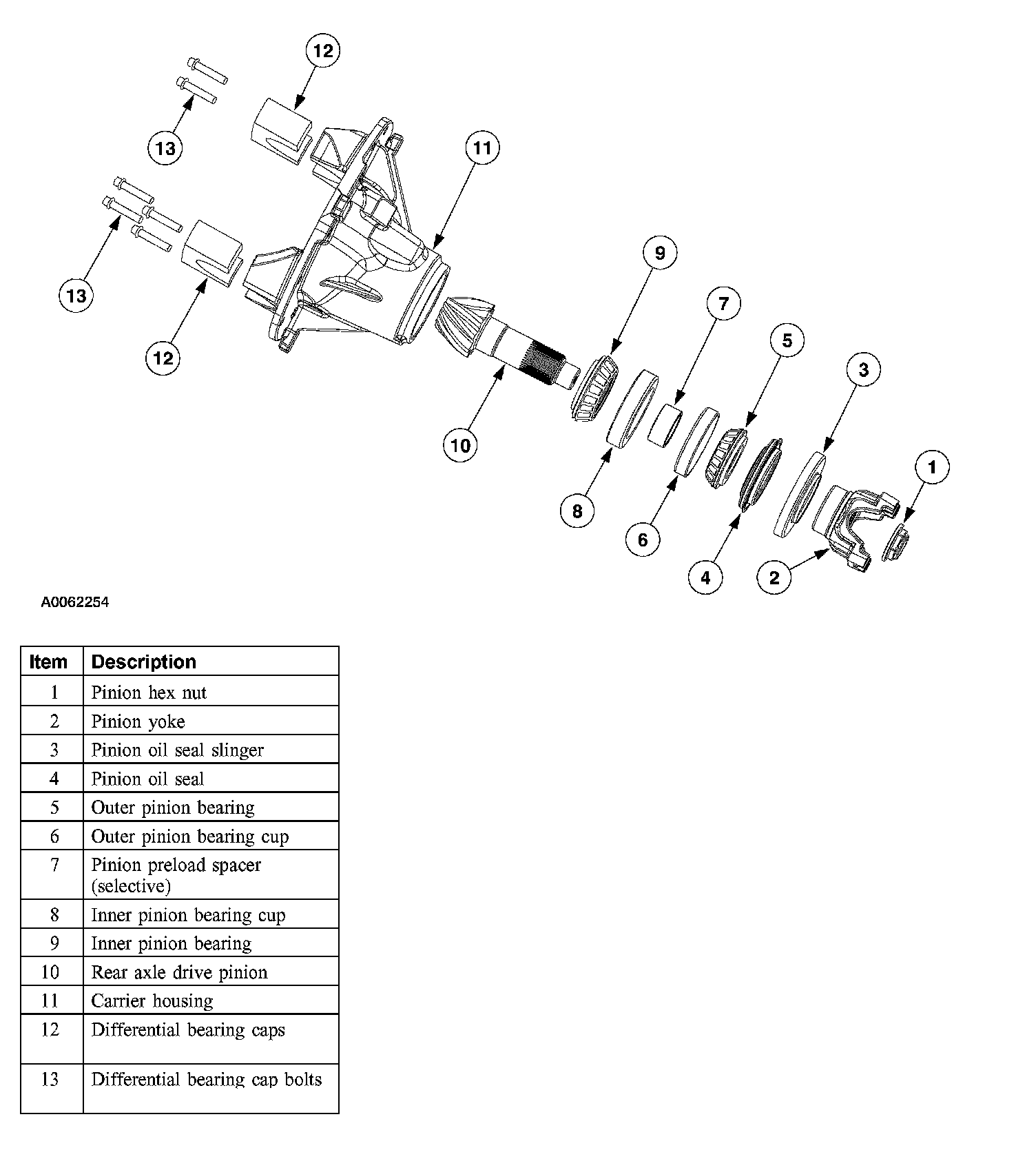

Dana S110 Rear Axle Pinion Assembly, Disassembled View
Dana Model S110 Full-Floating Rear Drive Axle
Gear Set Identification
Dana Model S110 Wheel Differential Assembly, Disassembled View
Dana S110 Rear Axle Pinion Assembly, Disassembled View
