Home >> Ford >> 2004 >> Excursion 2WD V10-6.8L VIN S >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> Test H

Test H

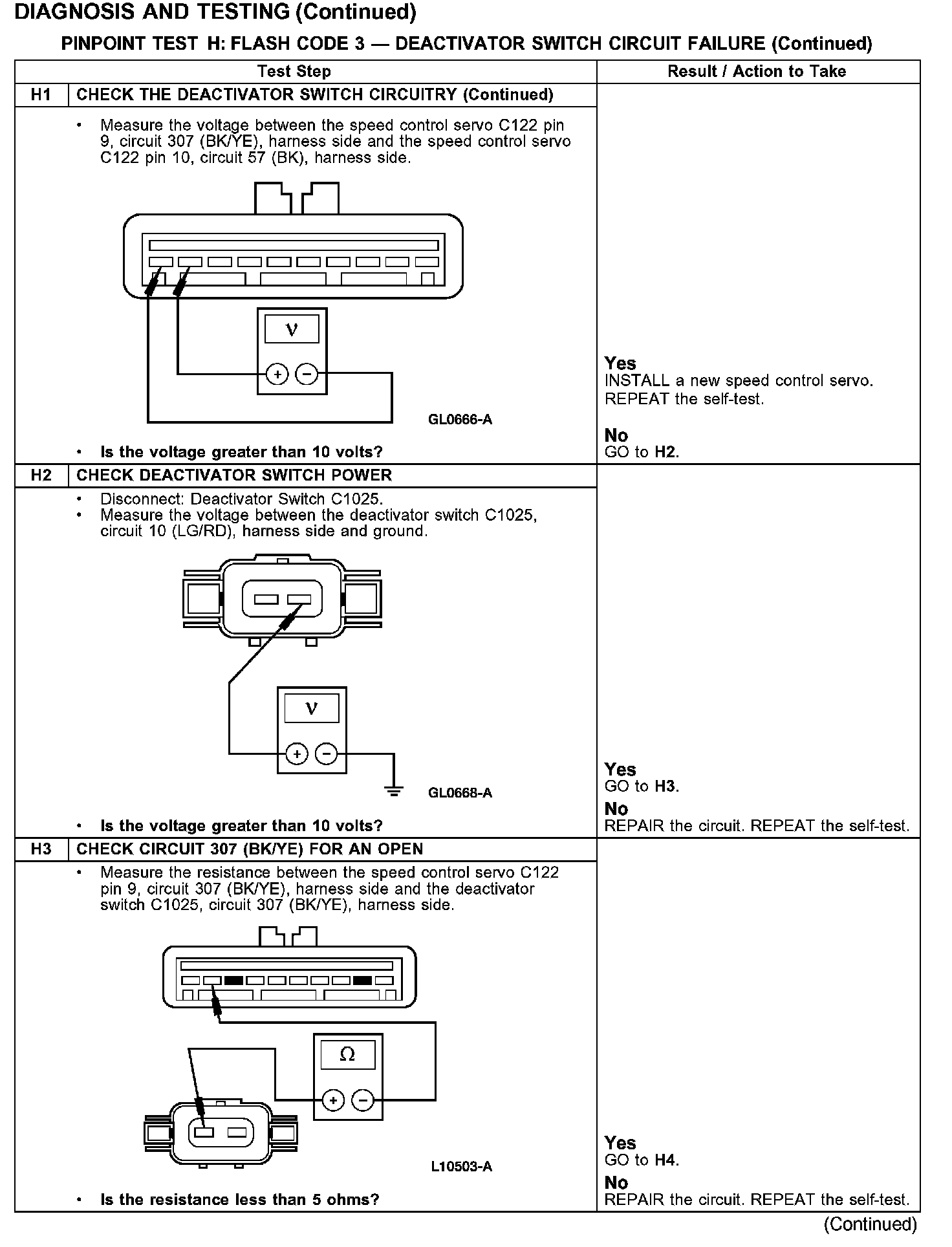

PINPOINT TEST H: FLASH CODE 3 - DEACTIVATOR SWITCH CIRCUIT FAILURE


Test H1:






Test H1-H3:






Test H4:
