PINPOINT TEST G: THE DOORS DO NOT LOCK/UNLOCK USING THE REMOTE TRANSMITTER/WIRELESS
KEYLESS ENTRY
KEYPAD

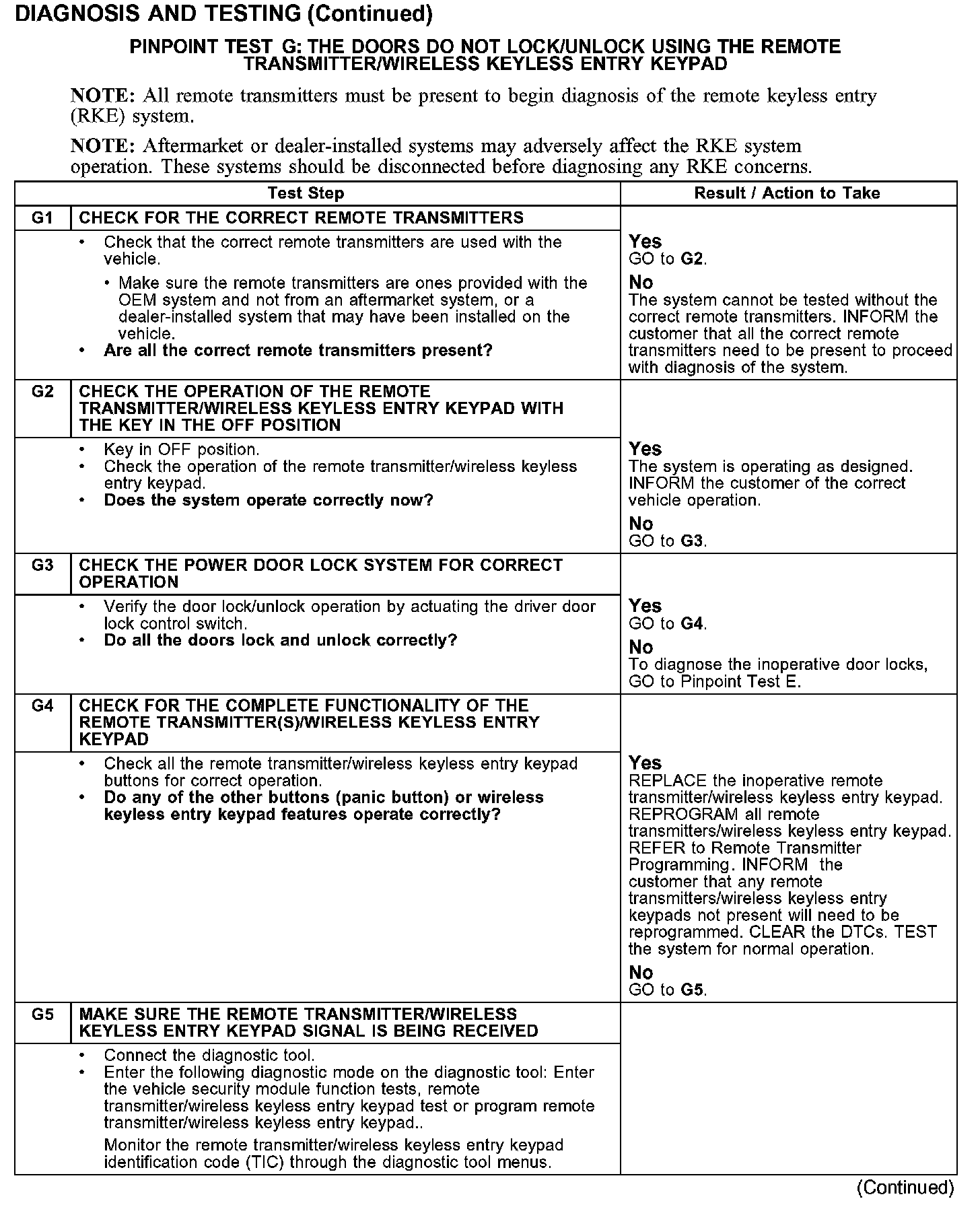

Test G1-G5:

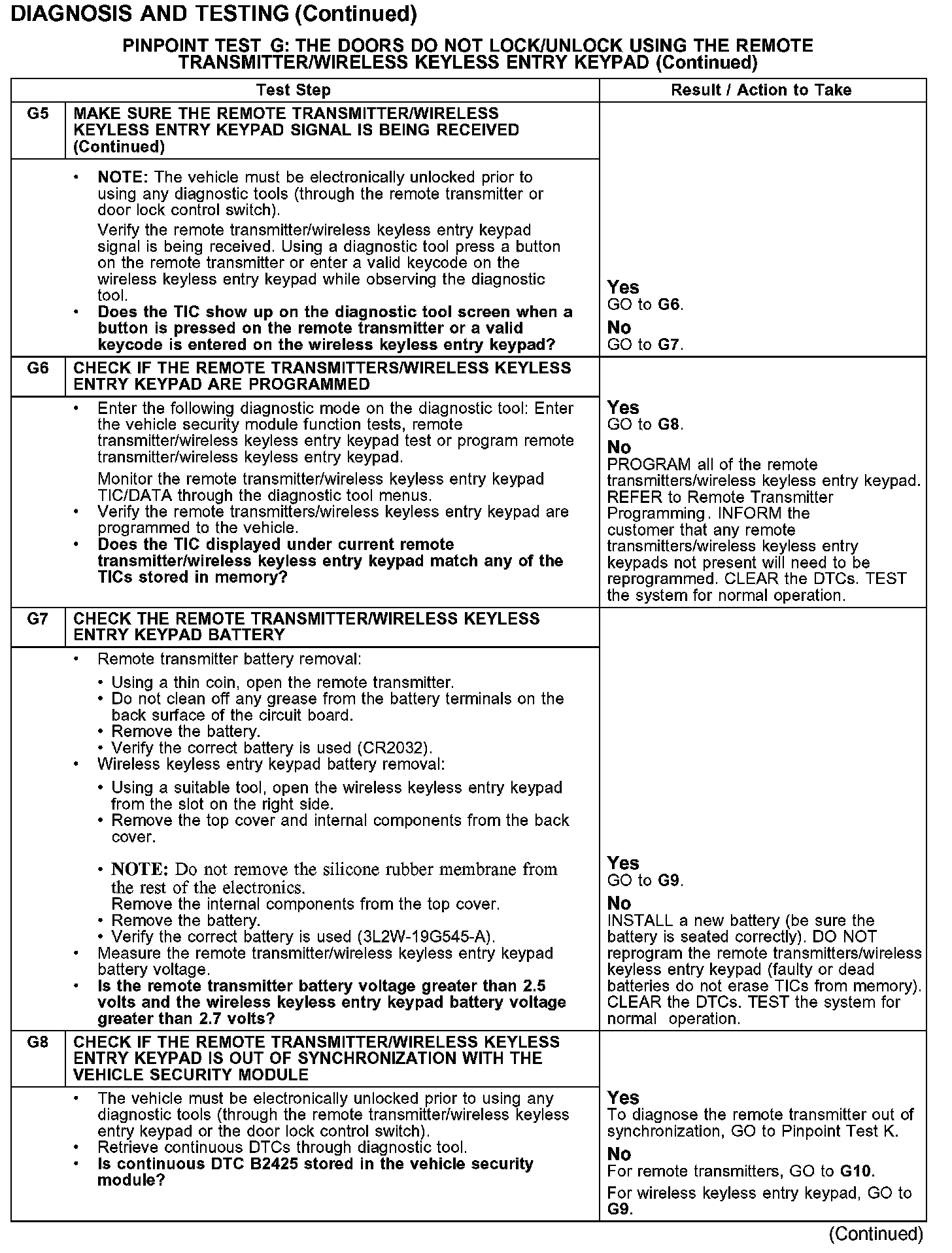

Test G5-G8:

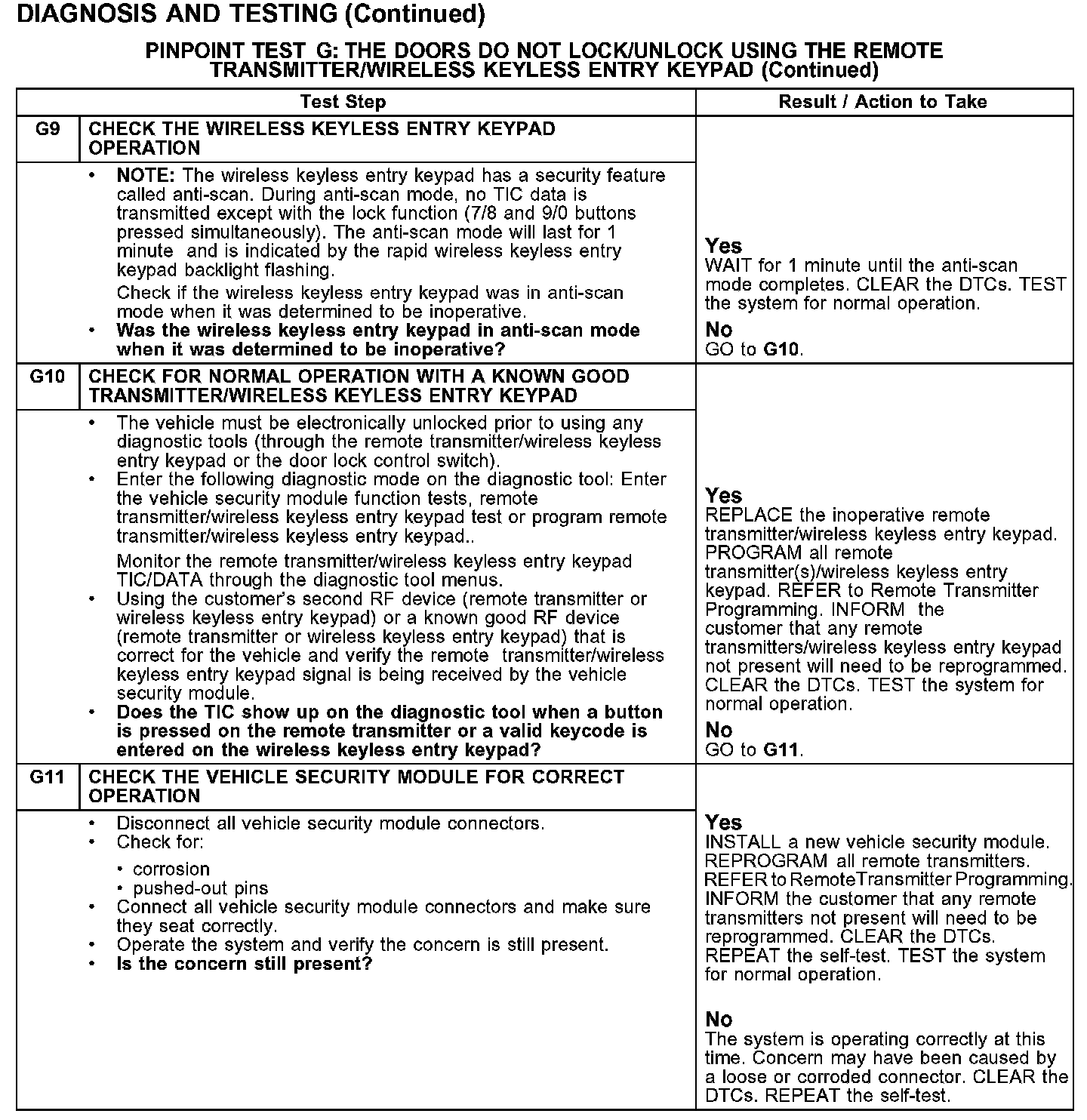

Test G9-G11:
