Home >> Ford >> 2004 >> E 350 V10-6.8L VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Front

Front

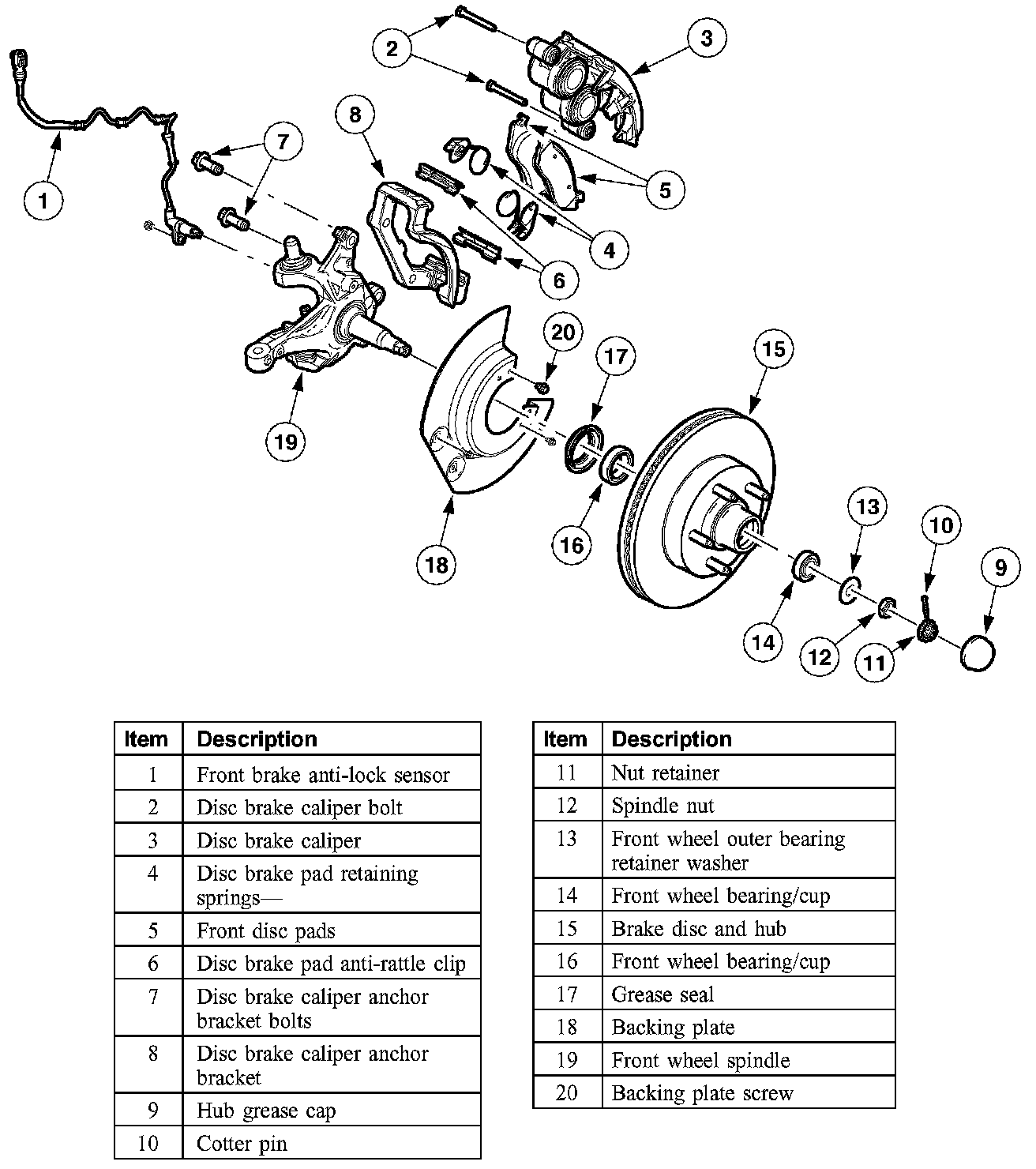

Front Disc Brake Components-E-150

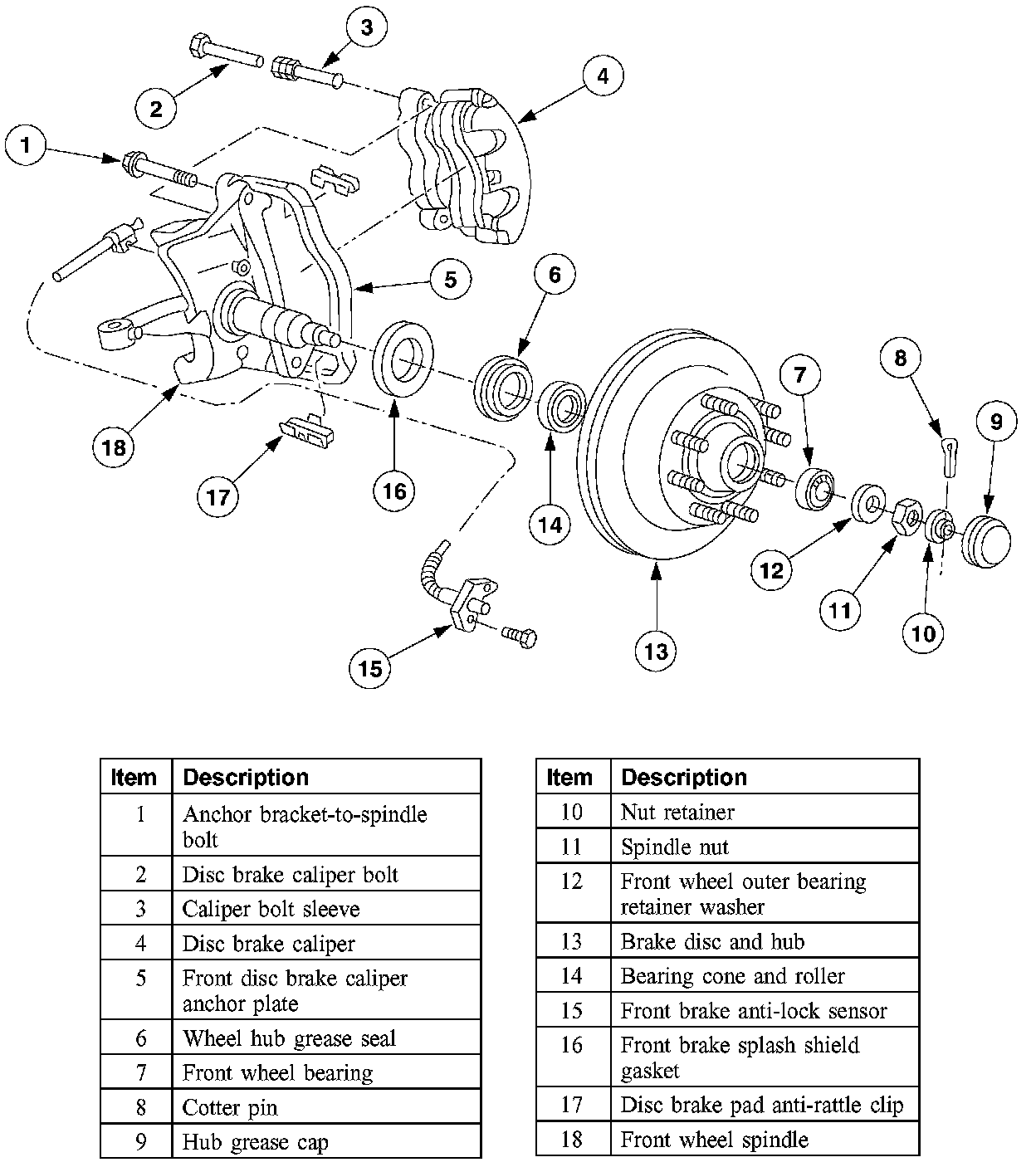

Front Disc Brake Components-E250, E350, Single Rear Wheel

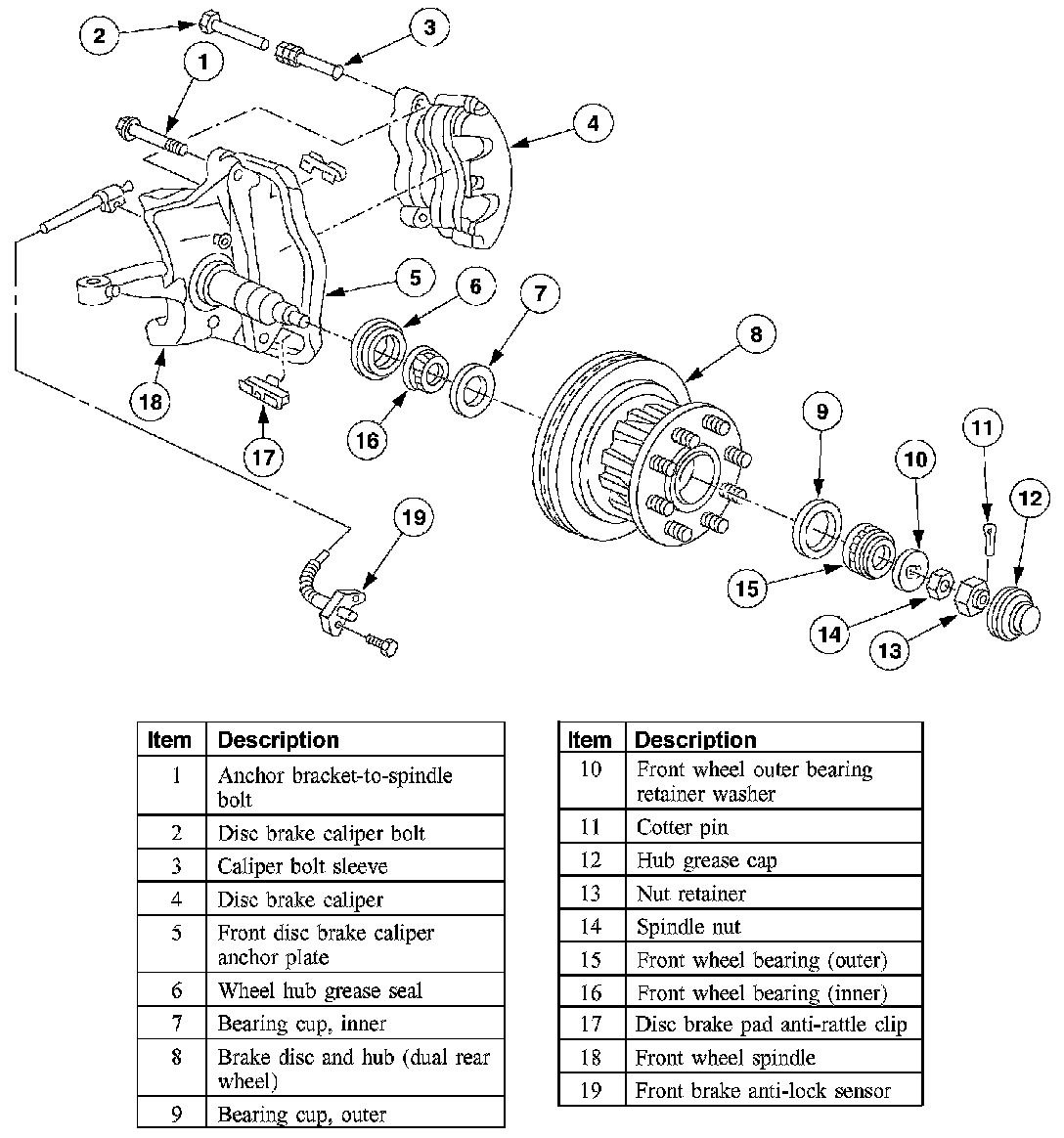

Front Disc Brake Components-E350, E450, Dual Rear Wheel
