Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

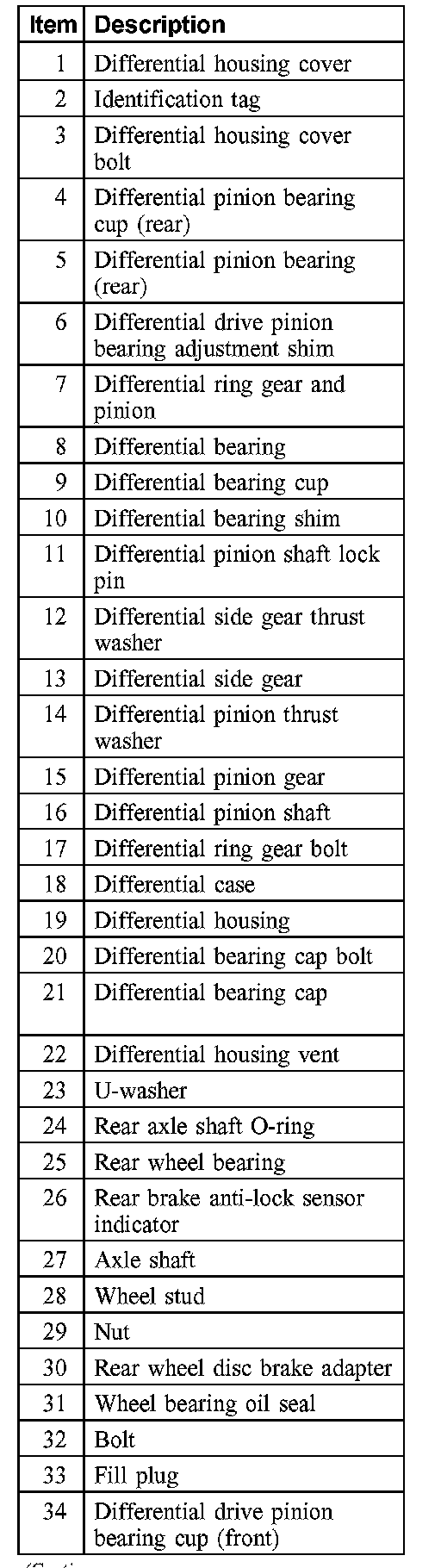

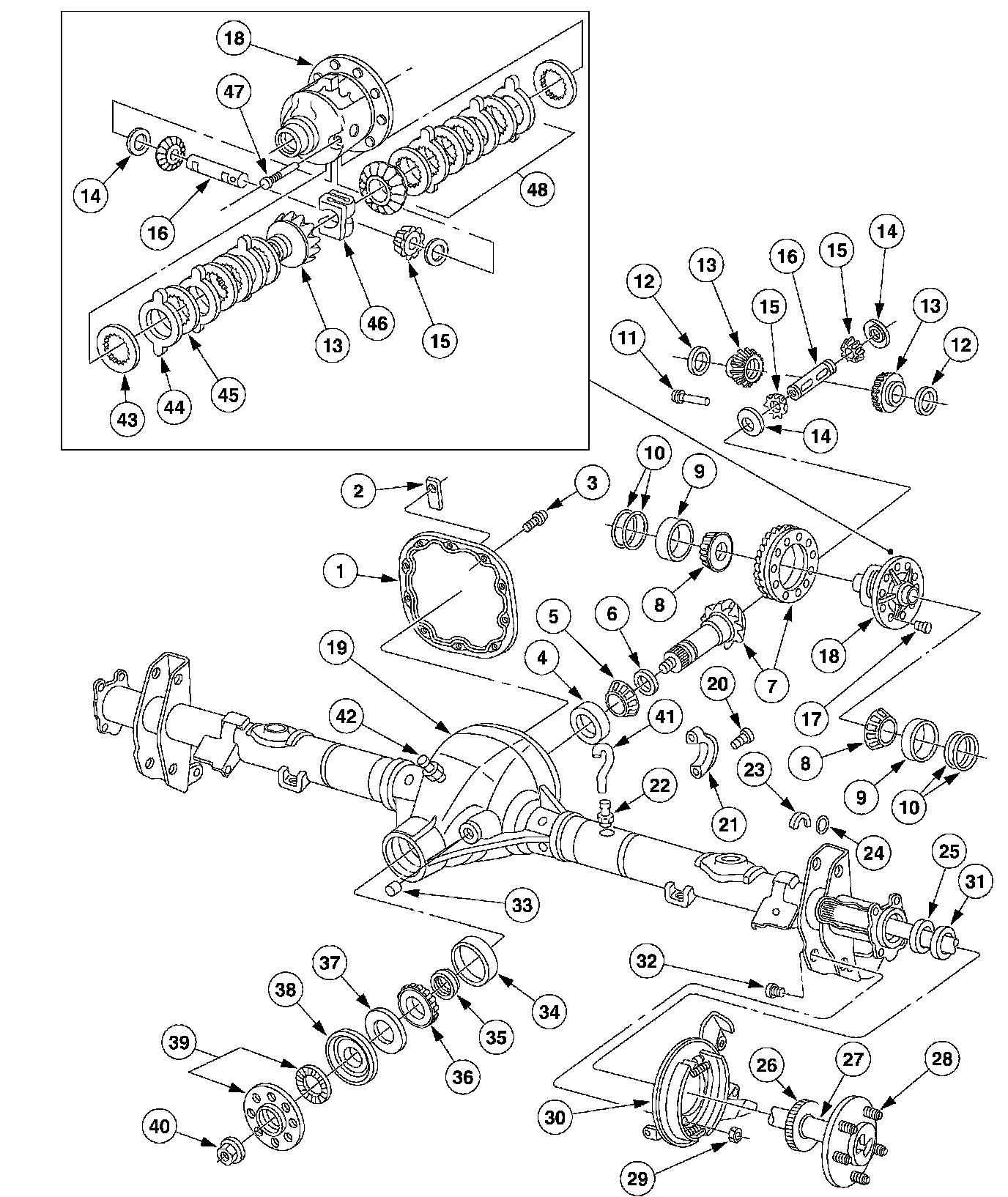

Differential Assembly
Differential Assembly
Rear Drive Axle and Differential
Part 1 Of 3:
Part 2 Of 3:
Part 3 Of 3:
8.8-Inch Axle
