Test F

PINPOINT TEST F: THE DOORS DO NOT LOCK/UNLOCK USING THE REMOTE TRANSMITTER

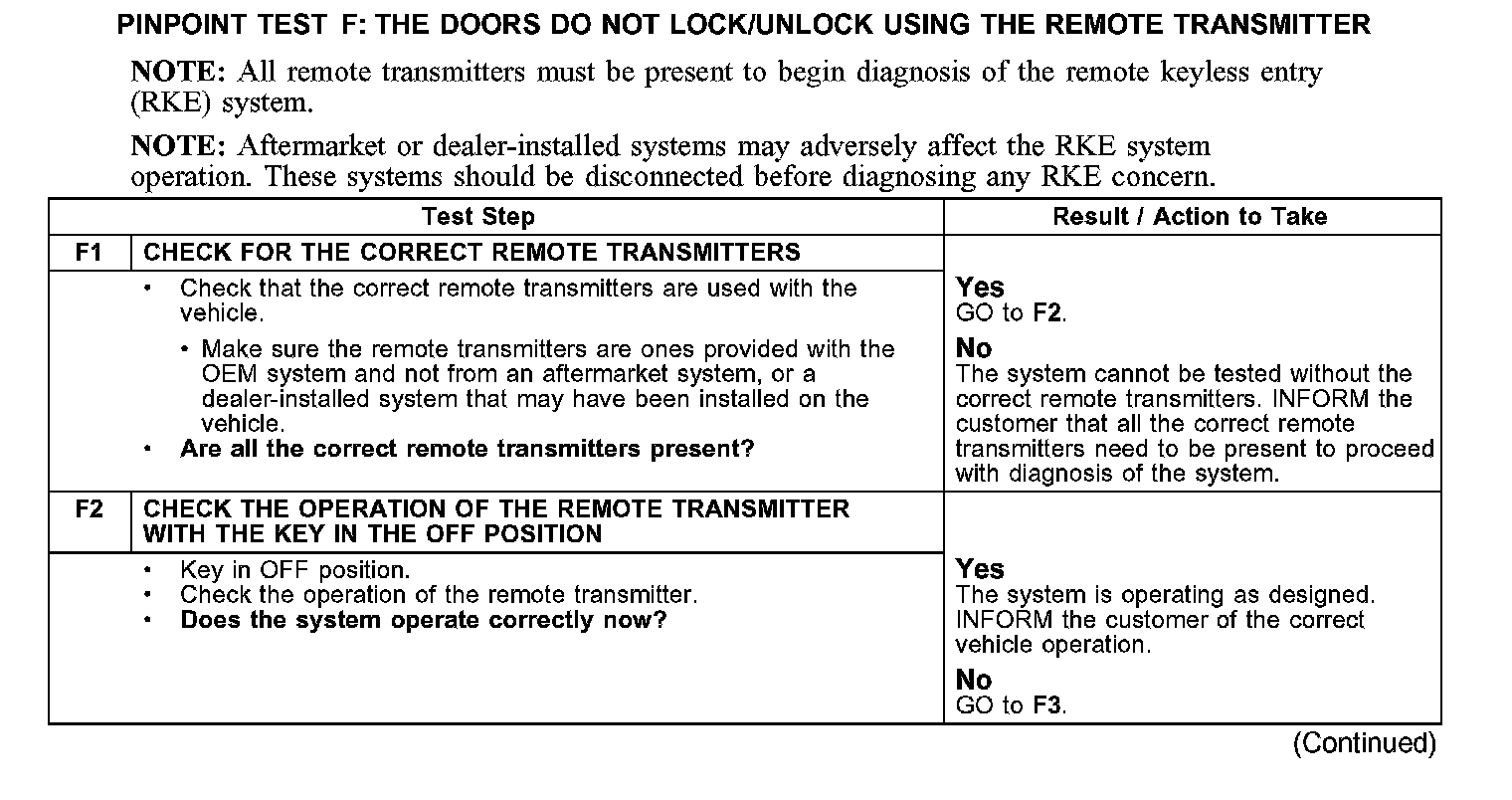

Test F1-F2:

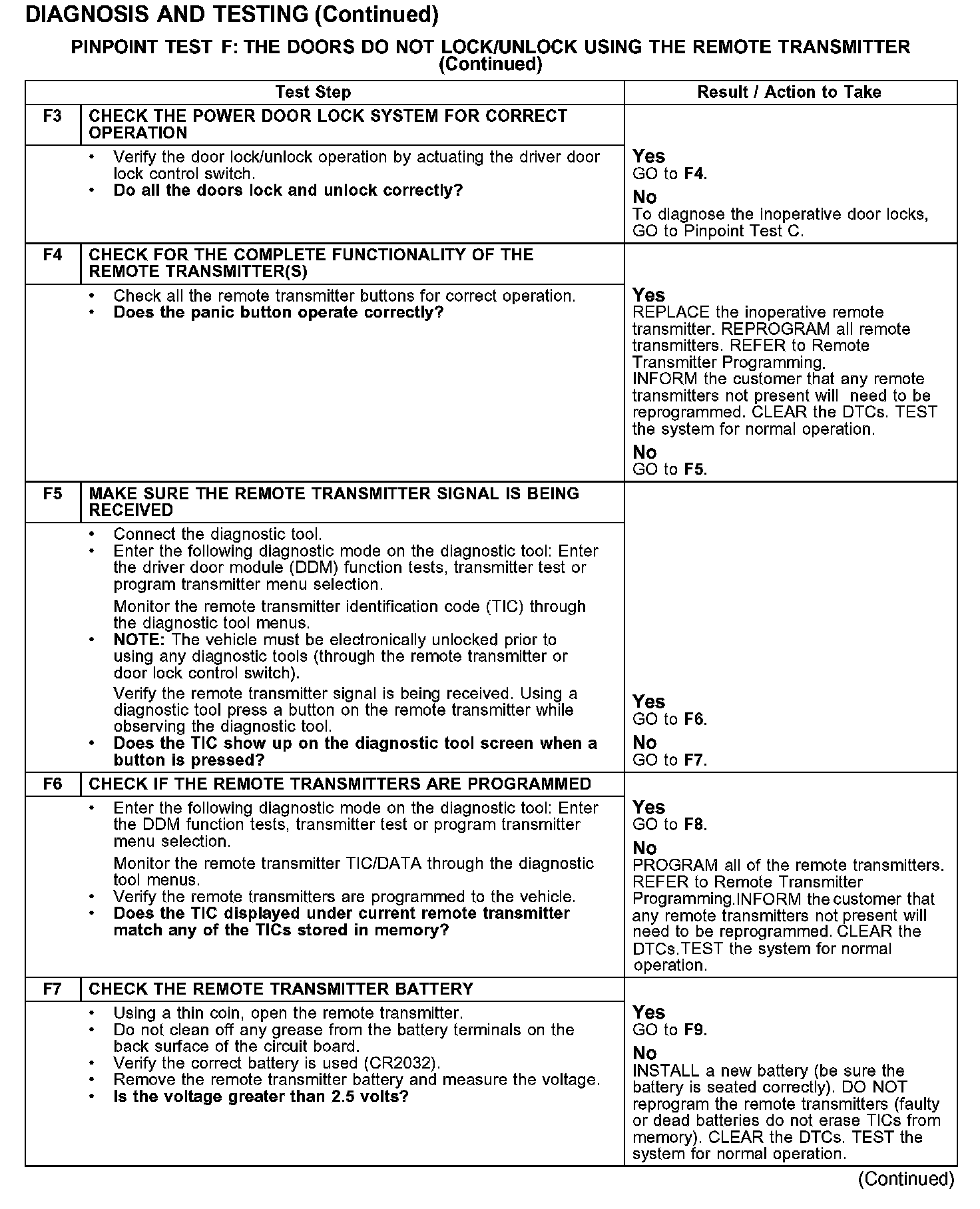

Test F3-F7:

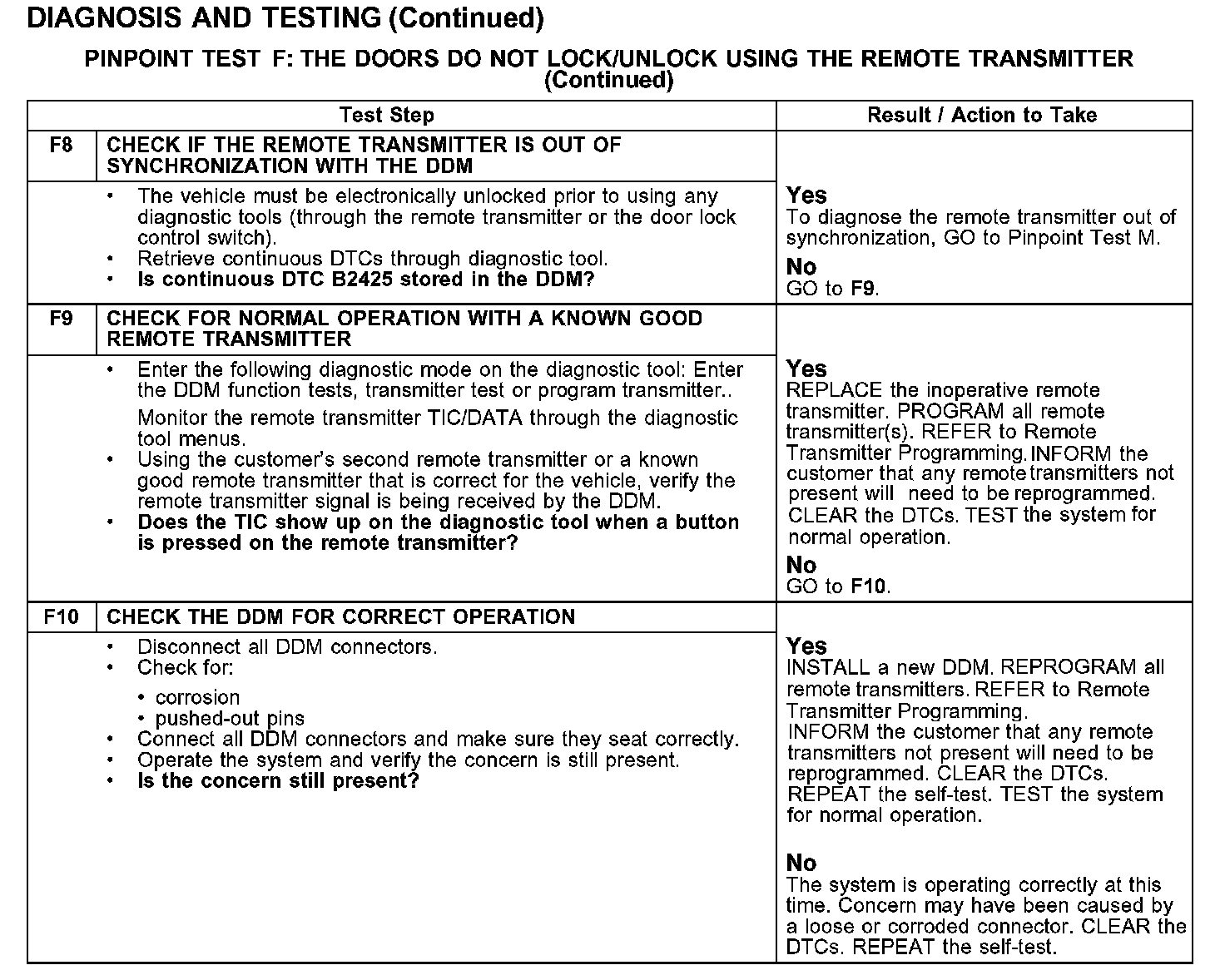

Test F8-F10:
