Bezel - Transmission Control Selector Dial: Installation

    NOTE: Adjust the transmission control selector dial bezel and then tighten the screws in the sequence shown; refer to BEZEL ADJUSTMENT - TRANSMISSION CONTROL SELECTOR DIAL .
  1. To install, reverse the removal procedure.

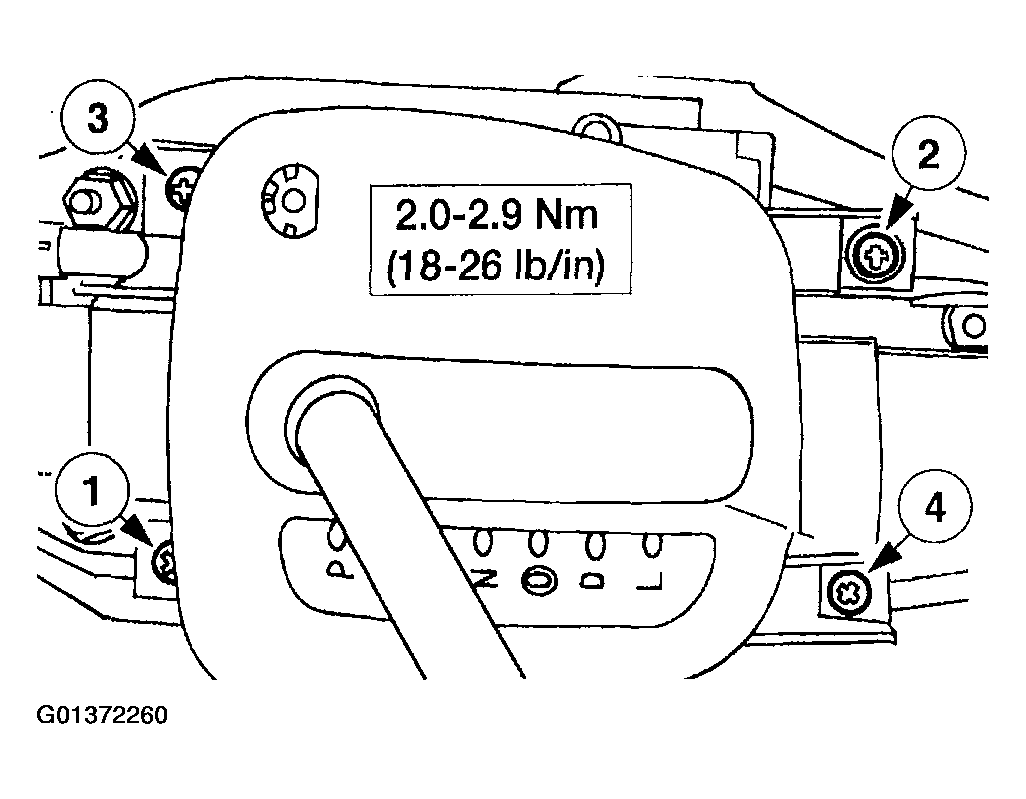

Fig 1: Installing Transmission Control Selector Dial Bezel
G01372260Courtesy of FORD MOTOR CO.
