LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2003
>>
ZX2 Automatic
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Safety Belt System
>>
Diagnosis And Testing
>>
Safety Belt System
>>
Symptom Chart
Symptom Chart

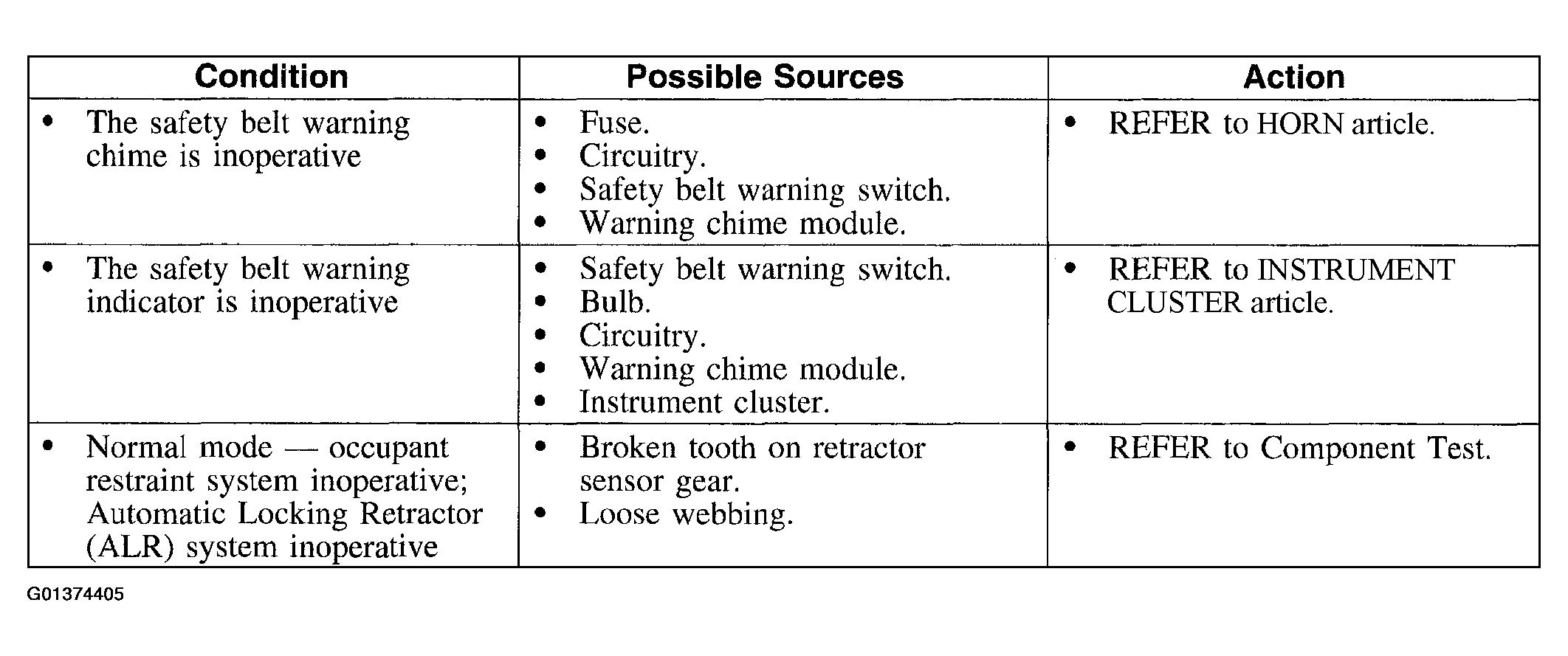

Fig 1: Symptom Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
