Home >> Ford >> 2003 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Test I

Test I

PINPOINT TEST I: THE FRONT ELECTRONIC MODULE (FEM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

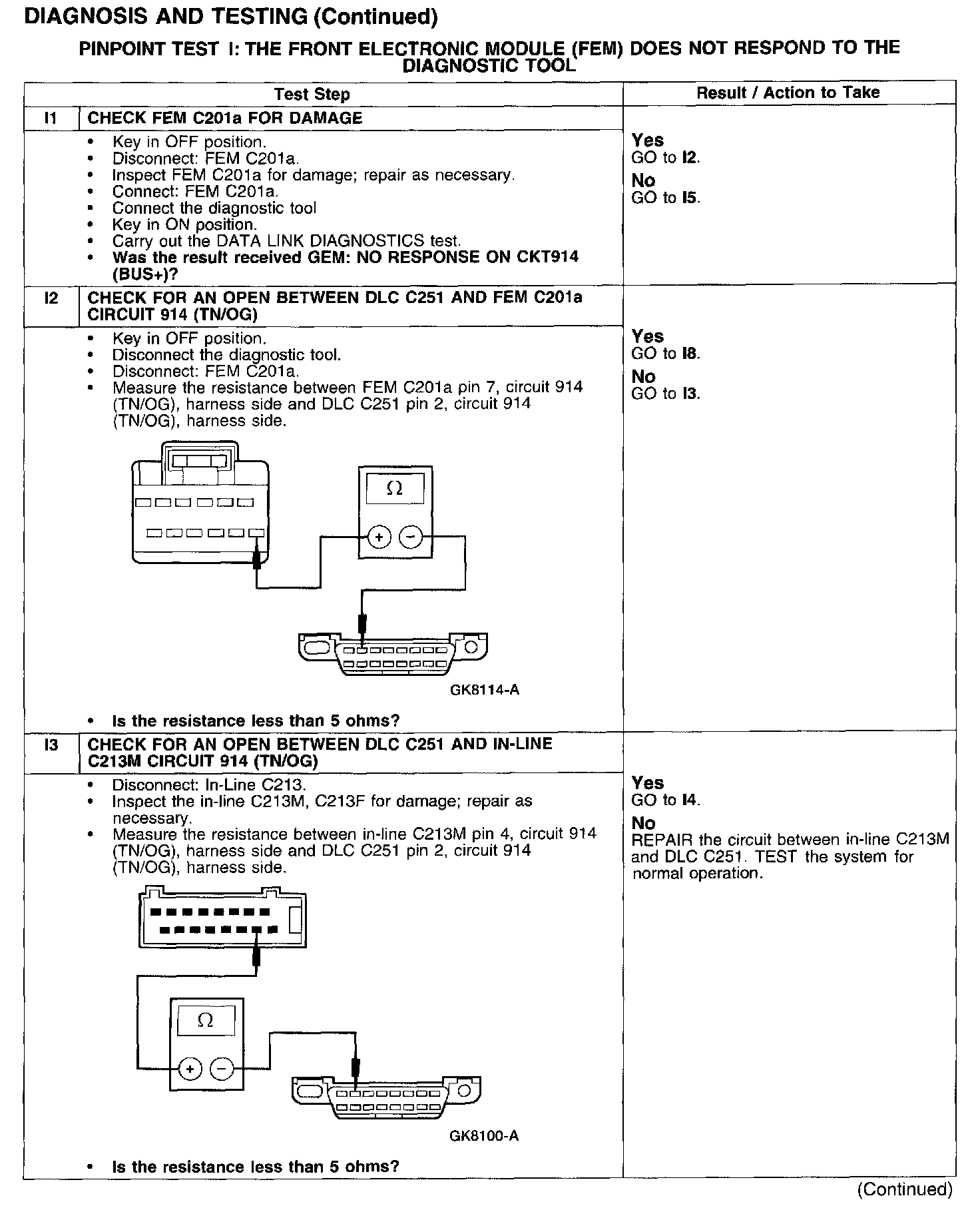

Test I1-I3:

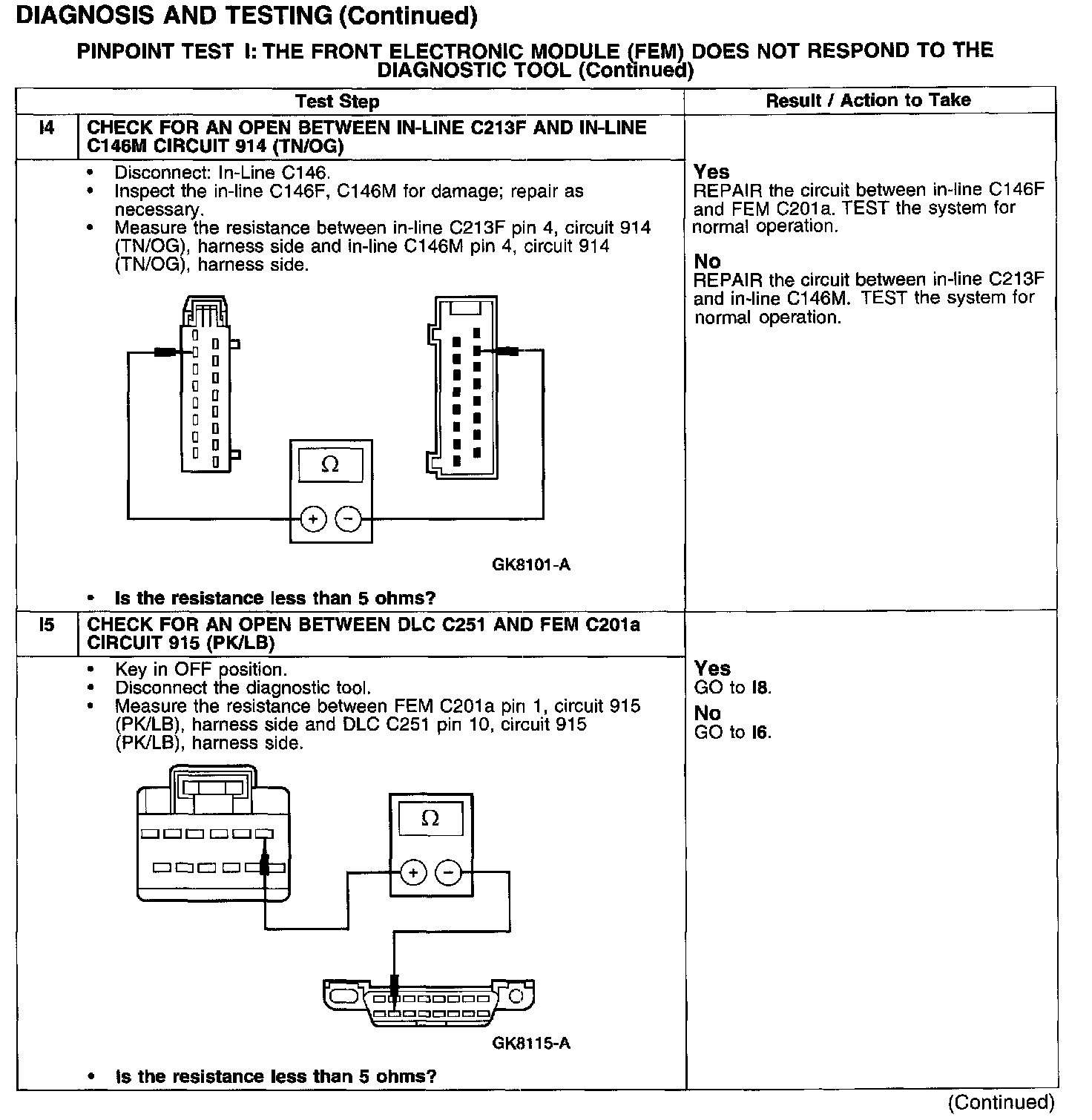

Test I4-I5:

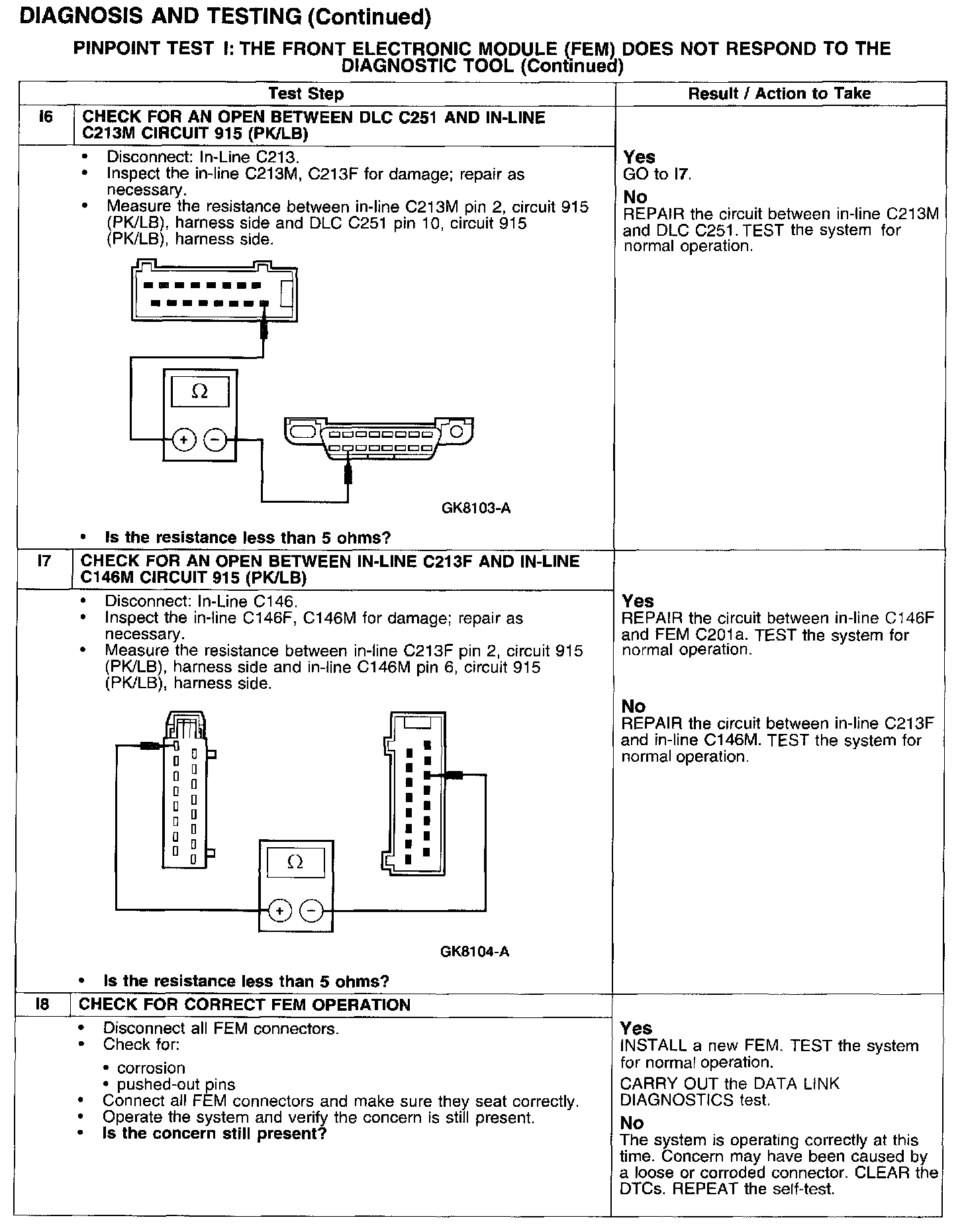

Test I6-I8:
