Home >> Ford >> 2003 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Ignition Switch

Ignition Switch

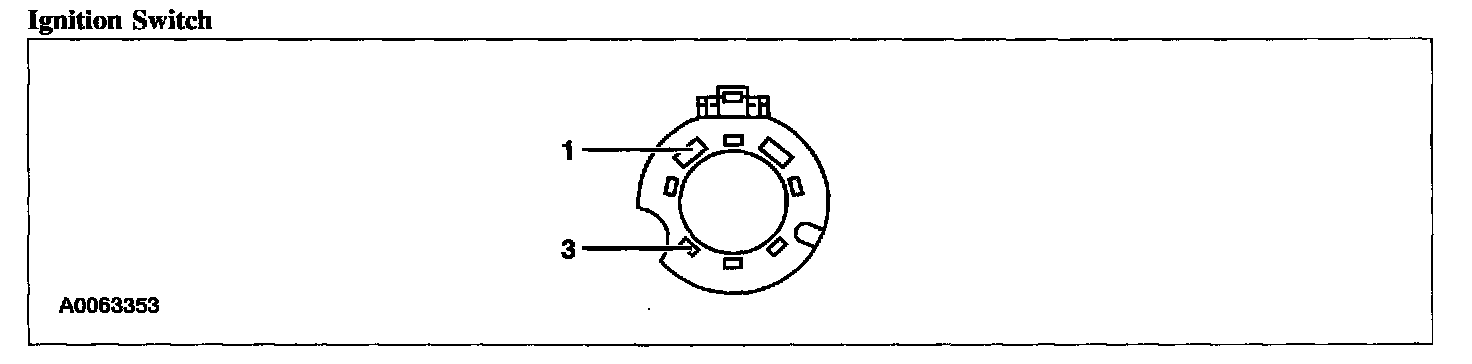

Ignition Switch, Part 1:

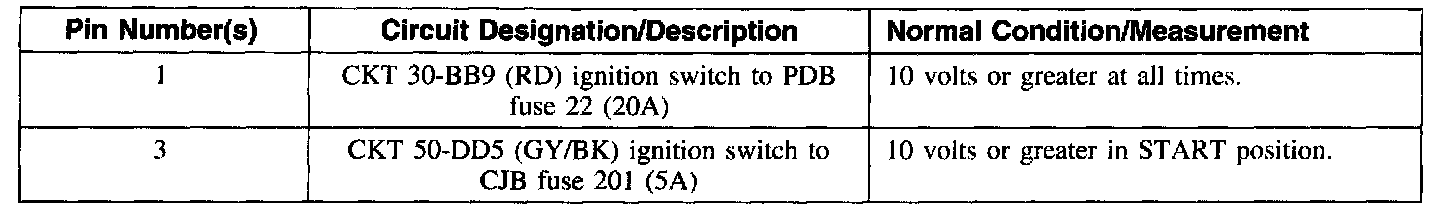

Ignition Switch, Part 2:
