Home >> Ford >> 2003 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Solenoid Operation Chart

Solenoid Operation Chart

Solenoid Operation Chart

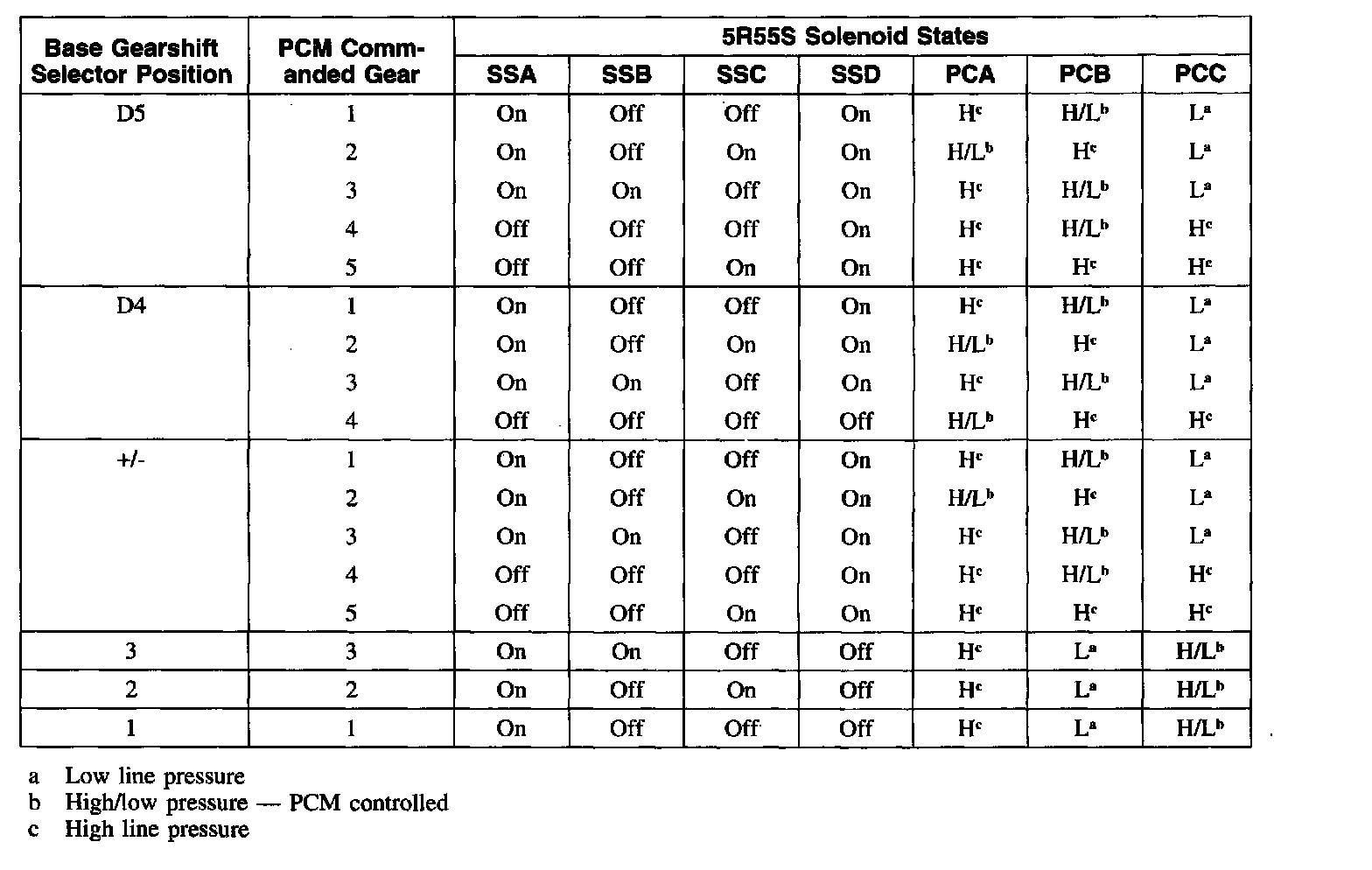

Part 1 Of 2:

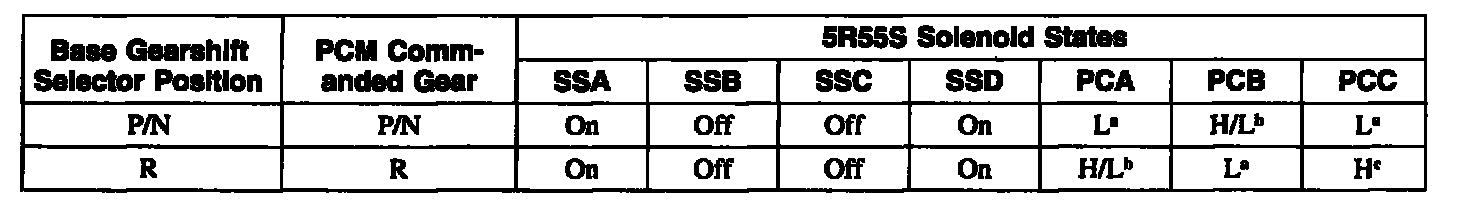

Part 2 Of 2:
